EMAX ES3004 17g 3.5kg 0.13sec 23T Metal Gear Analog Servo For RC Airplane ES3104 upgrade

$8.69 USD Sold out
Notes

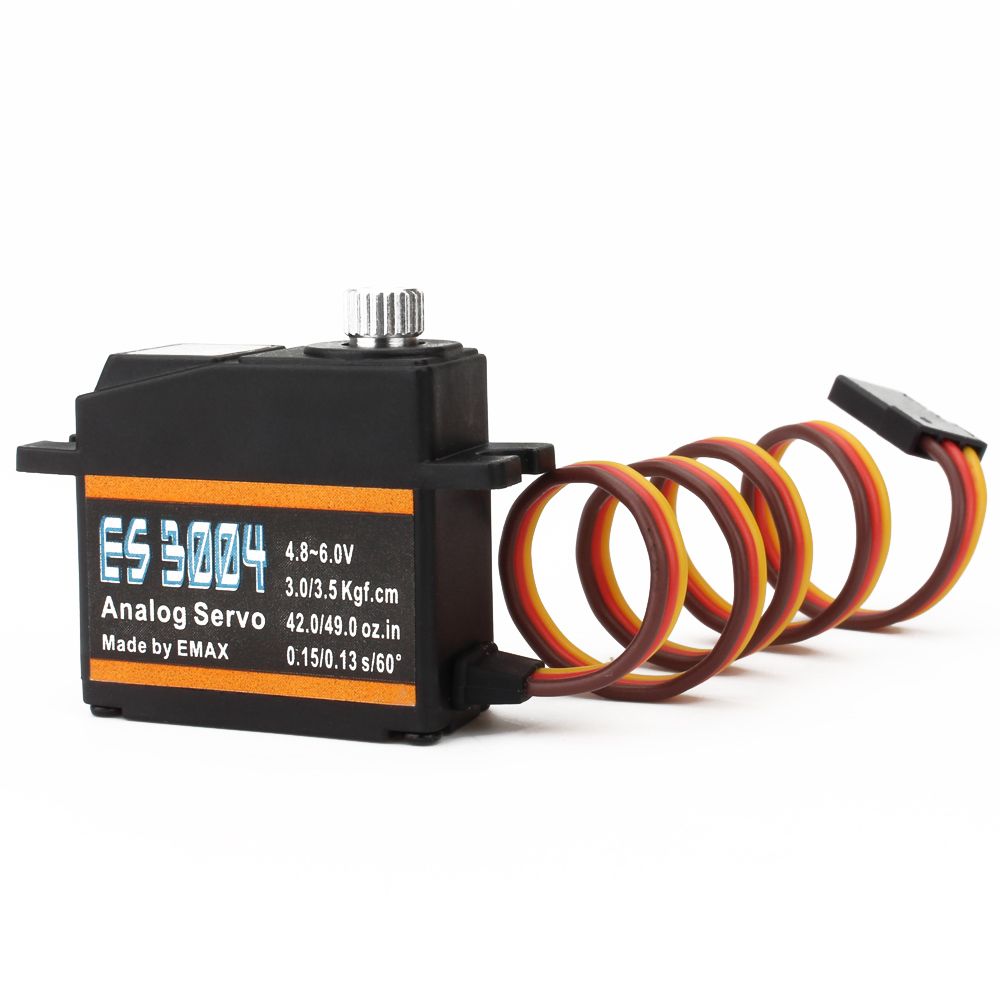

EMAX ES3004 17g 3.5kg 0.13sec 23T Metal Gear Analog Servo For RC Airplane ES3104 upgrade

Specifications:

Brand Name EMAX
Item Name ES3004
Operating Voltage 4.8V - 6.0V
STD Direction Counter Clockwise / Pulse Traveling 1500 to 1900 μ sec
Stall Torque 4.8V 3kg.cm Max
Operating Speed 4.8V 0.15 sec/60° at no load
Stall Torque 6.0V 3.5kg.cm Max
Operating Speed 6.0V 0.13 sec/60° at no load
Size 28.45x13.00x31.10mm
Weight 17g
Plug Available FUT;JR
Flower Head 23T
Maximum Travel 145°±10° (700-2300μ sec)
Others Bearing; Metal; Analog


Package Included:
1x EMAX ES3004 17g Servo
