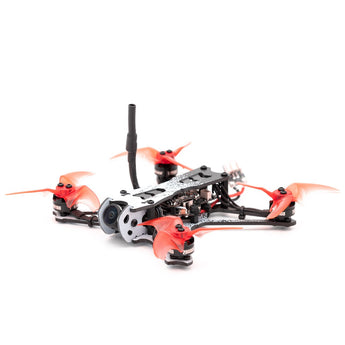

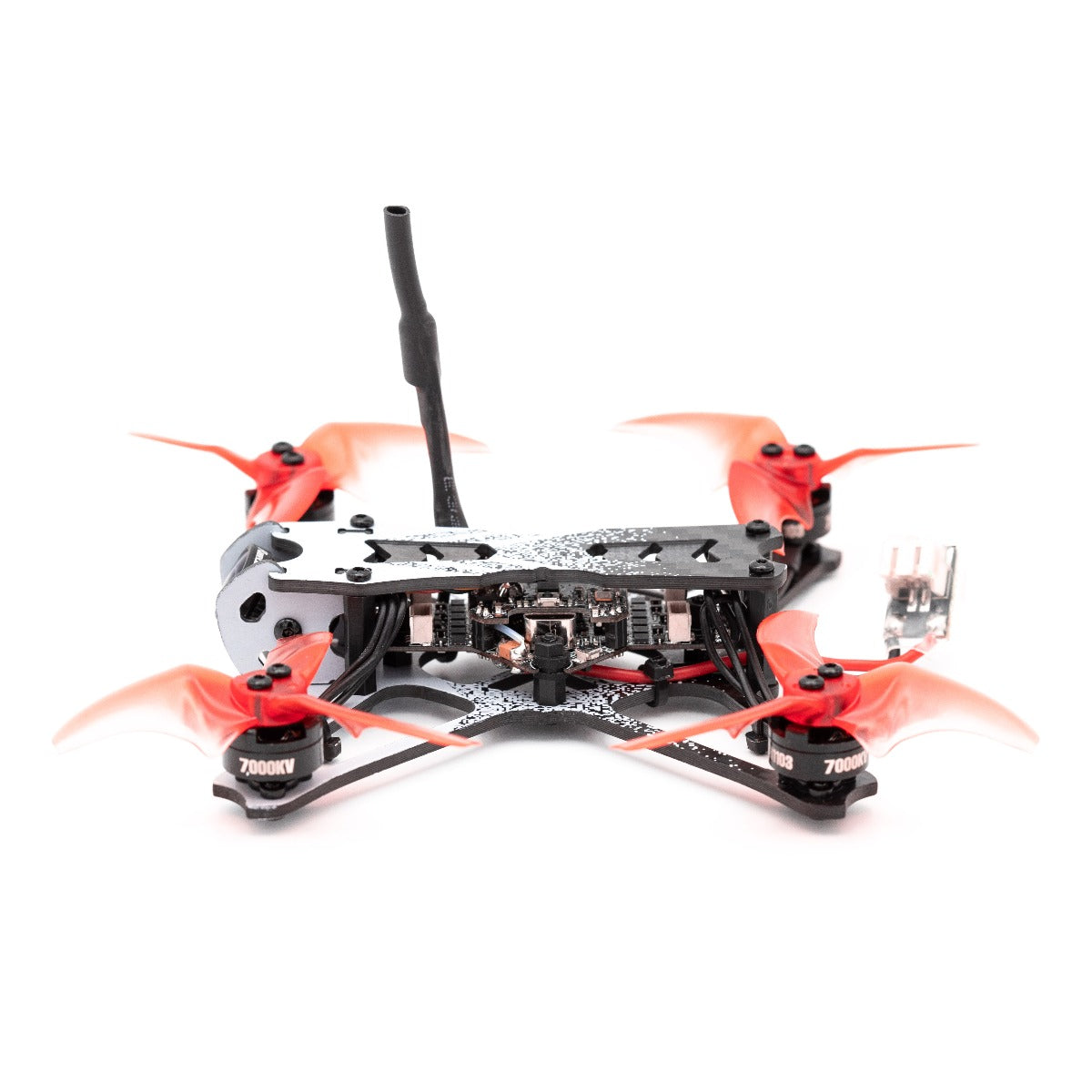

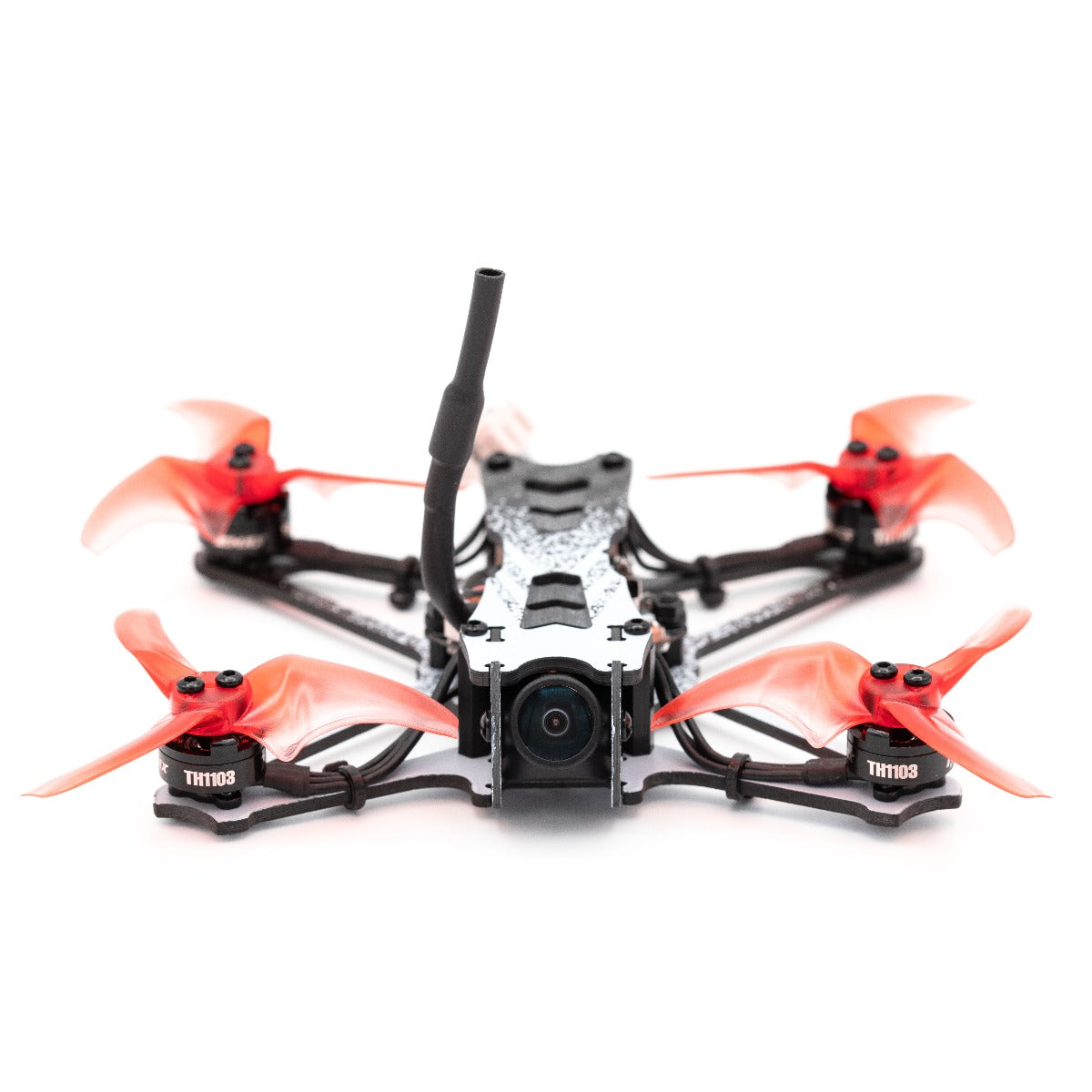

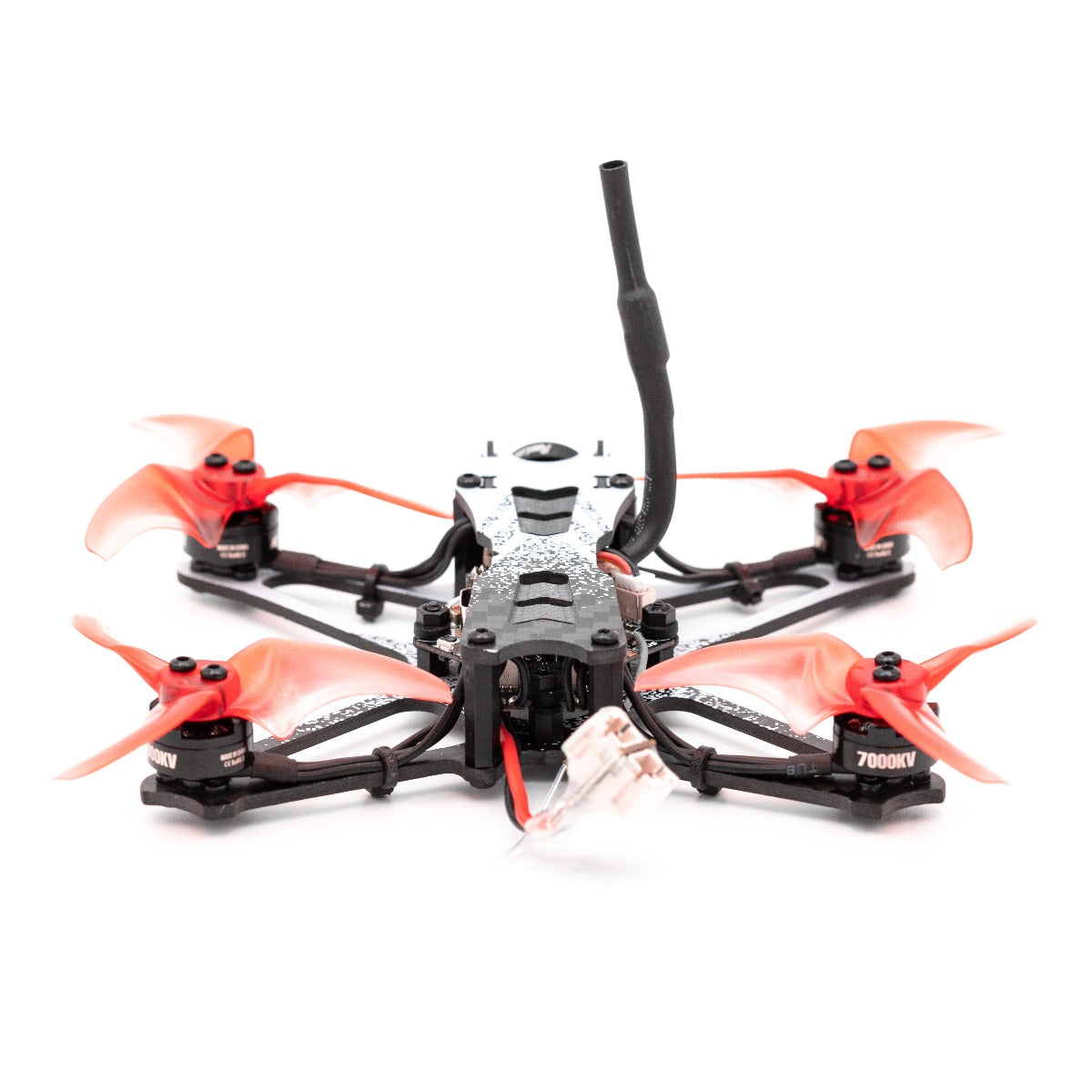

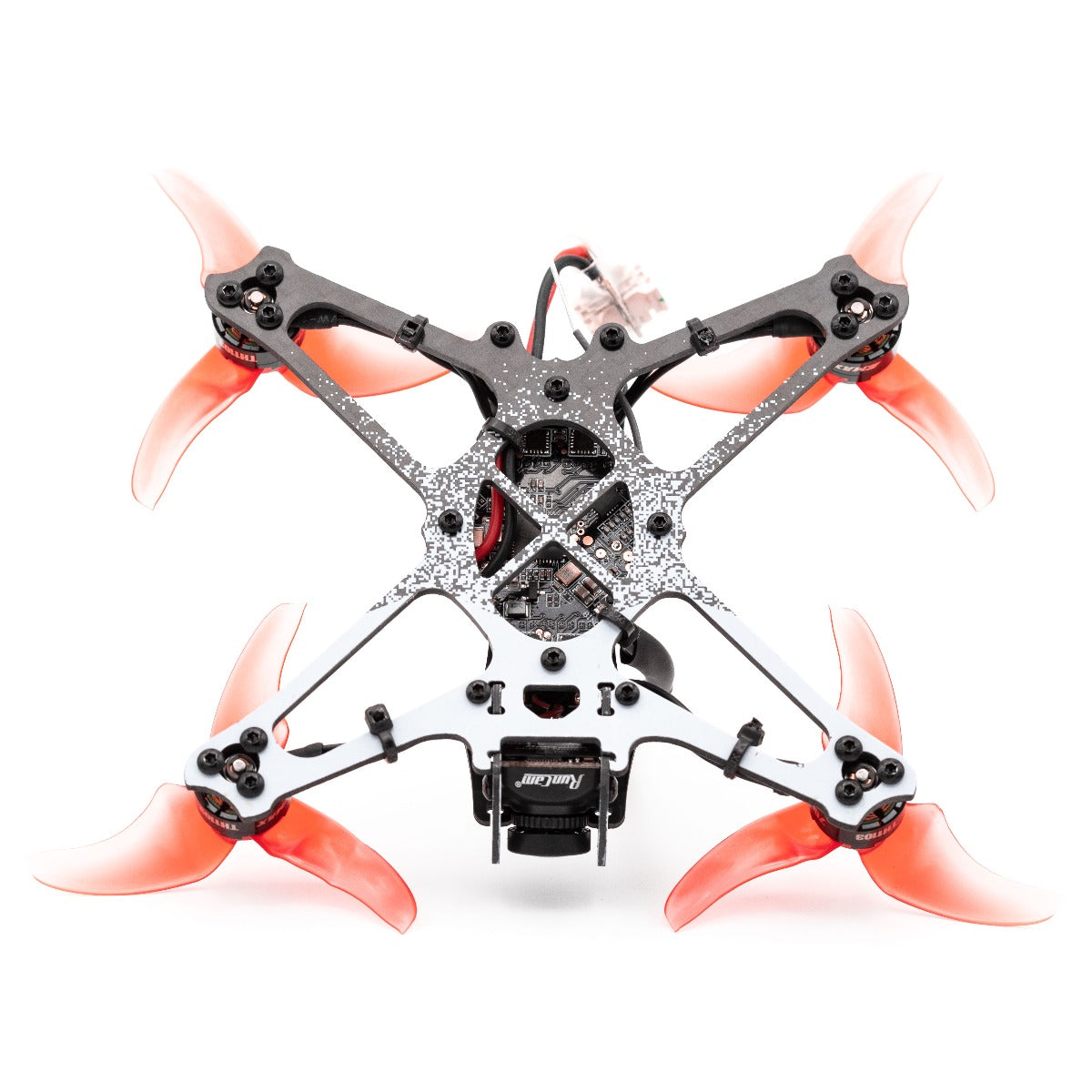

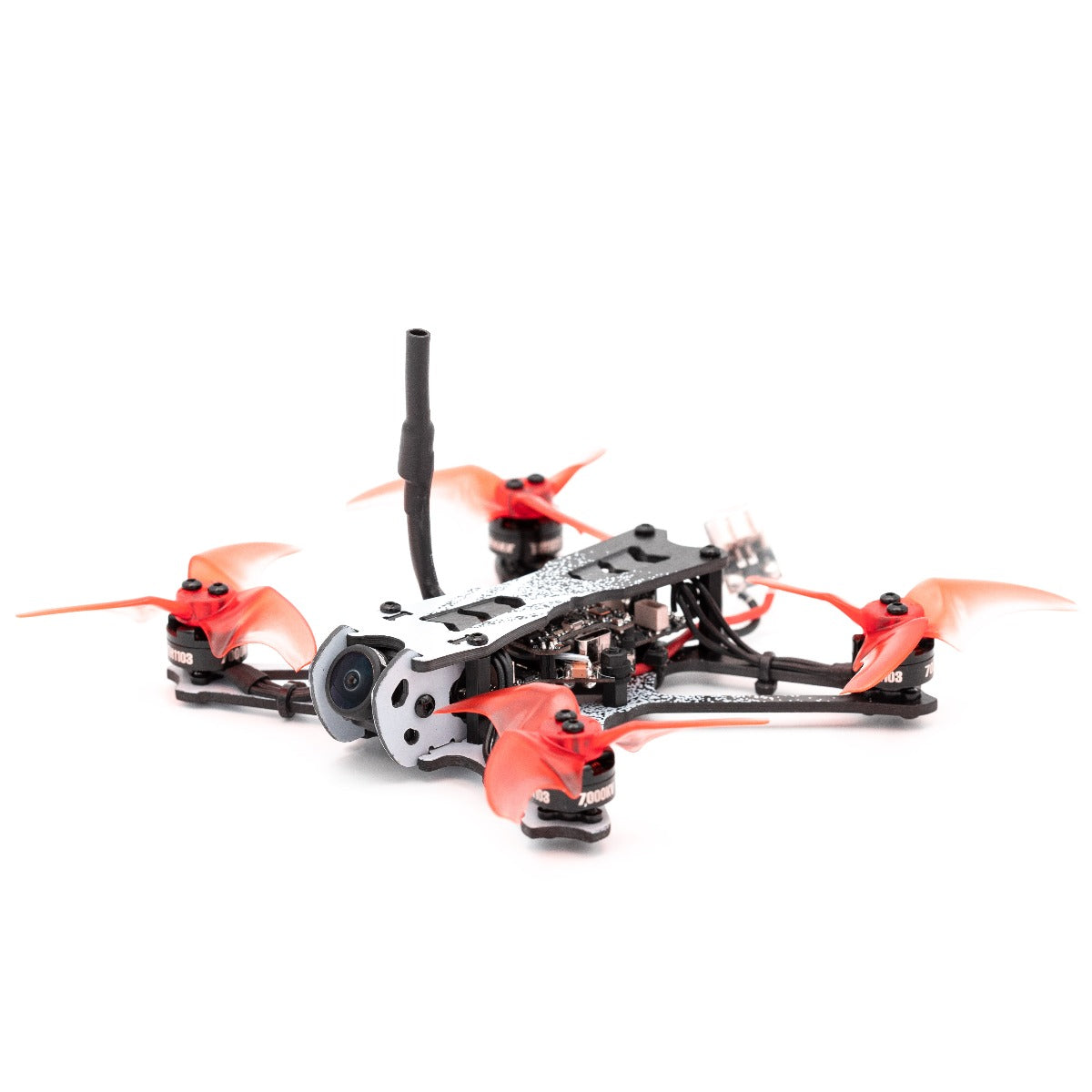

Tinyhawk II Freestyle BNF

$139.99 USD
79 in stock, ready to ship
Notes

* Frame

Wheelbase: 115mm
Dry Weight: 49g
All Up Weight: 79g with 2x 450mAh 1S battery
Frame Material: Carbon Fiber

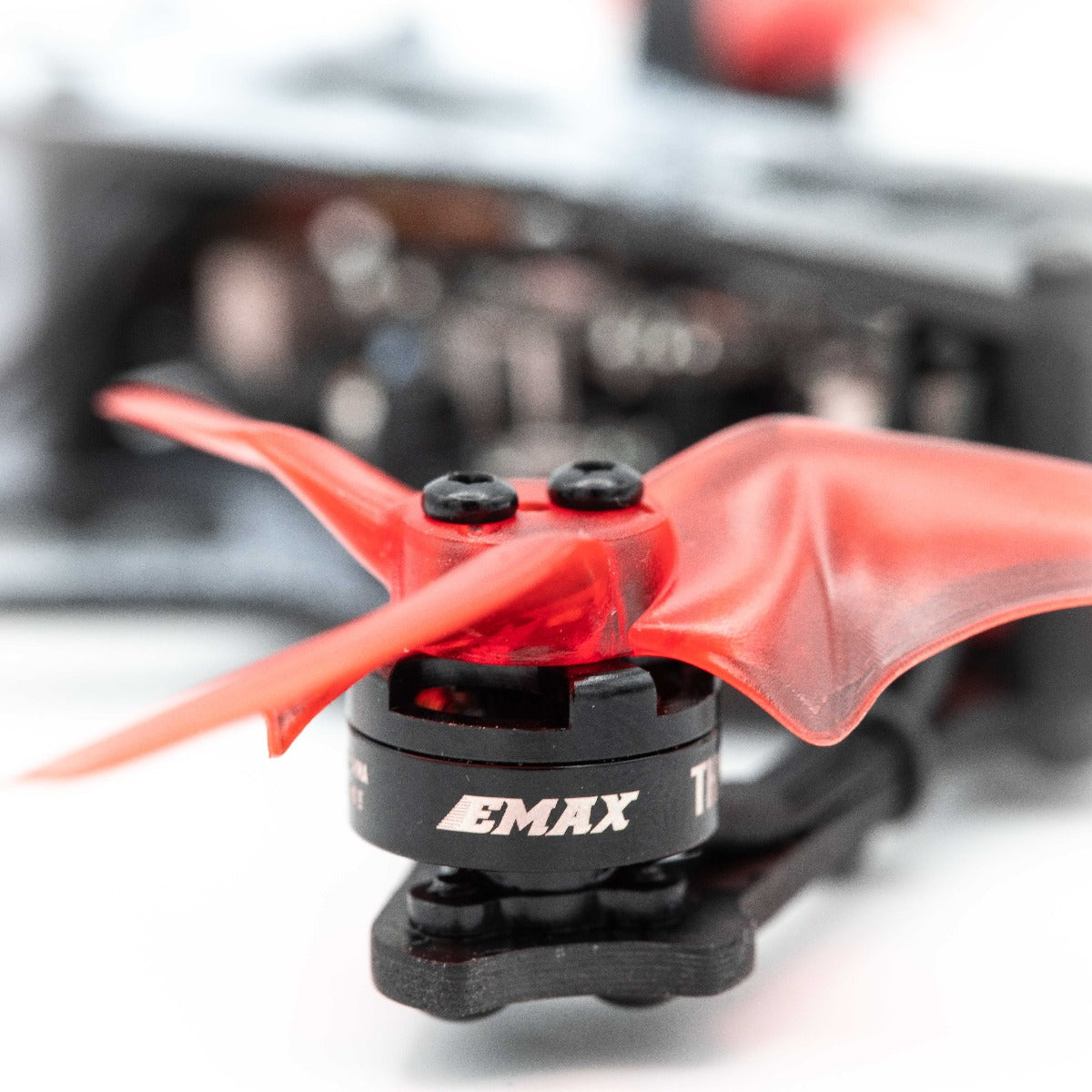

* Motors
Stator Size: 1103
Kv: 7000kv
Propeller Mount: T-mount, 1.5mm shaft
Propeller: Avan Rush 2.5"

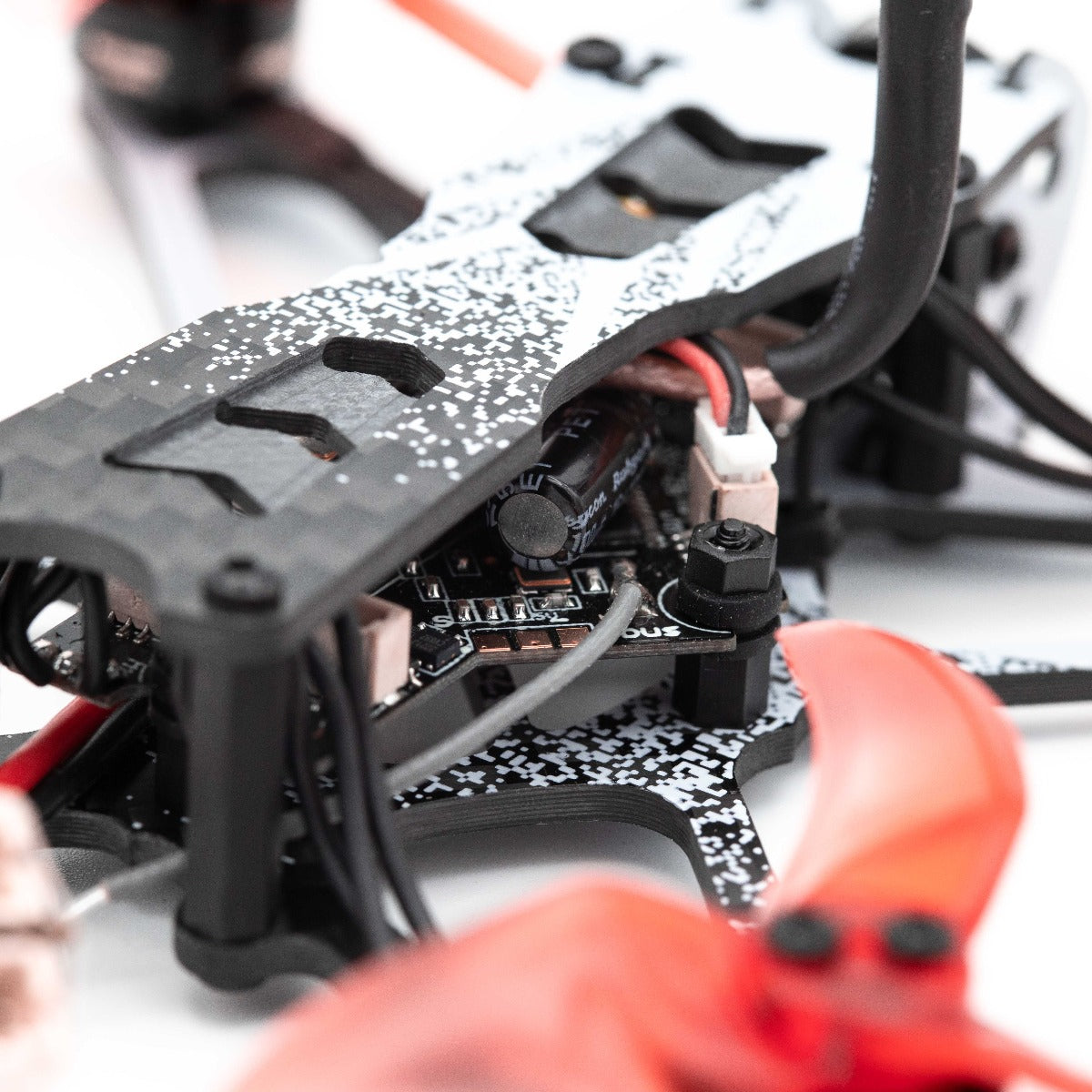

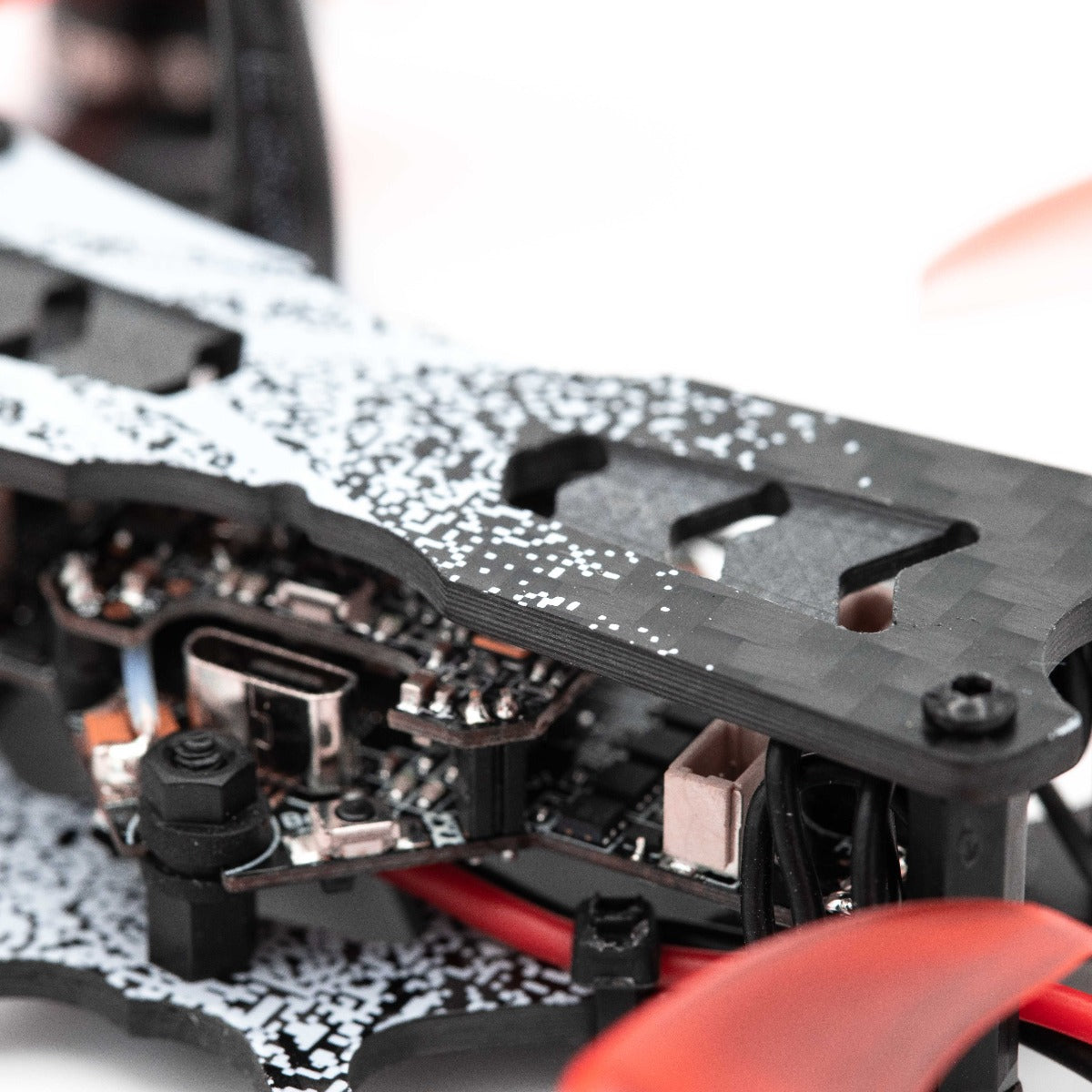

* All-In-One (AIO) Flight Controller
Flight Controller: F4 (MATEKF411RX Firmware)
ESC: 4-in-1 5A BlHeli_S
Receiver: EMAX SPI Receiver (Compatible with FrSky D8 mode**)
Battery Connector: JST-PH2.0 Duo



* FPV System
Ham radio license required for use in North America.
VTX Power: 25/100/200mw Switchable (set to stay at 25mW until armed)*
Channels: 37CH incl. Raceband

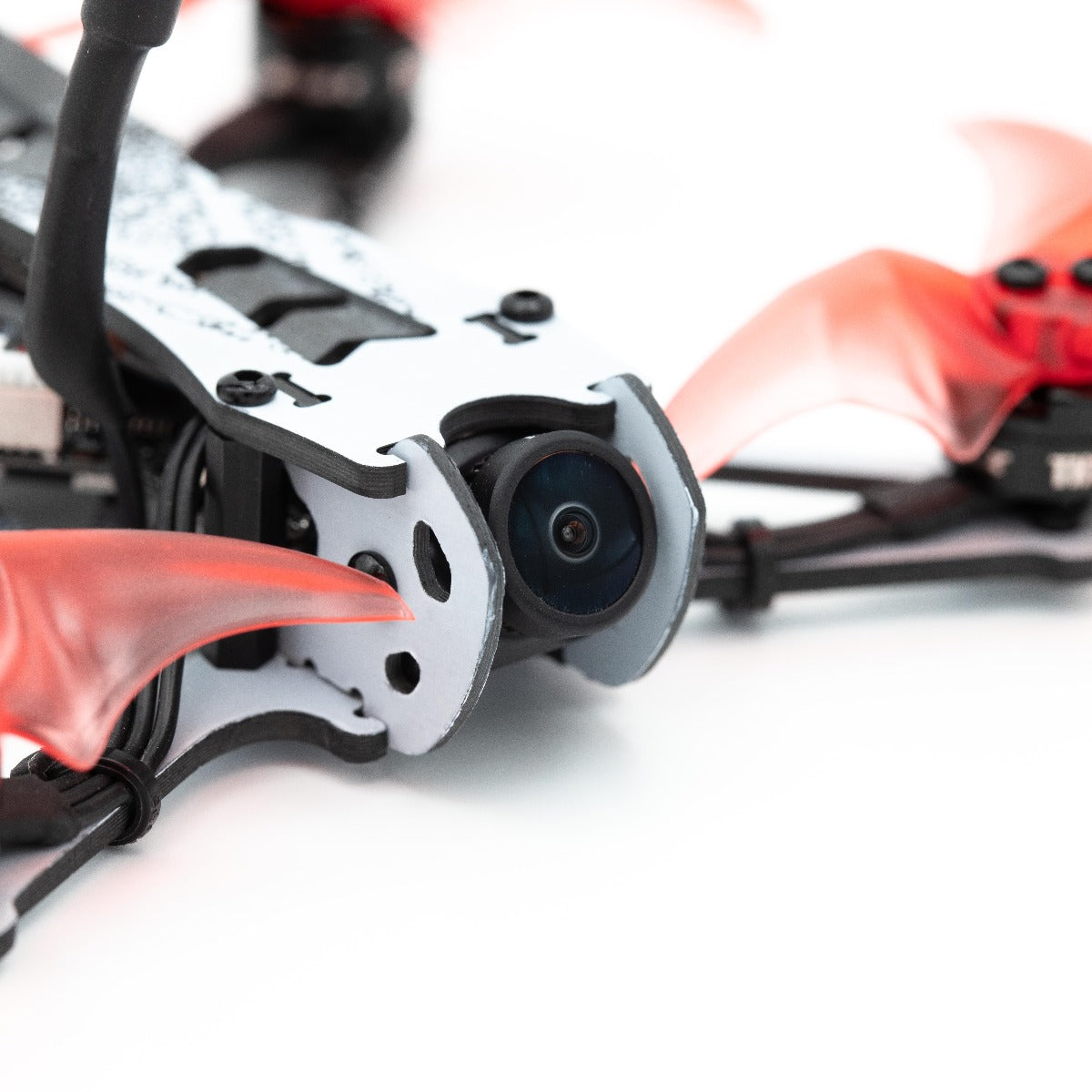

Camera: RunCam Nano 2 1/3" 700TVL CMOS
Smart Audio Connected



* Includes
1x Tinyhawk II Freestyle BNF
2x EMAX 450mAh 1S HV Battery
1x 1S USB LiPo Charger
1x Screwdriver + Hardware Kit


*Please note that even if you unlocked the video transmitter (VTX) per the manual and are changing power levels via the OSD/Smart Audio (VTX SA), the Tinyhawk II Freestyle is set to stay at 25mW until you arm the motors.



** Be advised that this model is NOT compatible with the latest 2019+ FrSky ACCESS protocol transmitters without the use of FrSky's external XJT module for ACCESS transmitters for D8 mode capability.



RECOMMENDED FOR CHILDREN 14+ YEARS OF AGE
