Emax USA

Tinyhawk RTF Kit - With Controller & Goggles

$189.99 USD Sold out
Notes





  • Key Features:
    1. 75mm Indoor racing drone
    2. 8mm diameter brushless motors with durable ball bearings for increased flight time/performance and low maintenance
    3. Durable polypropylene plastic frame with propeller guards
    4. Motor beeper function to help find your Tinyhawk after an unintentional landing
    5. Speeds up to 56kph
    6. Up to 4 minutes of flight time on a single battery
    7. Fast F4 processor for smooth and stable flight characteristics
    8. MPU6000 gyro for vibration free operation
    9. Unique inverted motor design to keep the profile and center of gravity as low as possible
    10. 25mw video transmitter and 600 TV-line camera included for fun First Person View flight via FPV style goggles
    11. Smart Audio function allows changing the video channel via your transmitter
    12. On Screen Display settings controls allow customizable flight feel
    13. Pre-tuned from the factory by expert pilots with new pilots in mind
    14. Three different rate profile settings for various types of flying feel
    15. Plug-in type motors for easy maintenance
    16. 1s High Voltage (HV) 450mah Lithium-Polymer battery included
    17. 40 video channel FPV (First Person View) goggles to experience flight like a pilot or a bird
    18. 6 channel gamepad sized radio transmitter/controller compatible with Frsky D8 protocol
    19. Everything included in one package, without need for extras to get in the air
    20. Custom carbon fiber themed carrying case

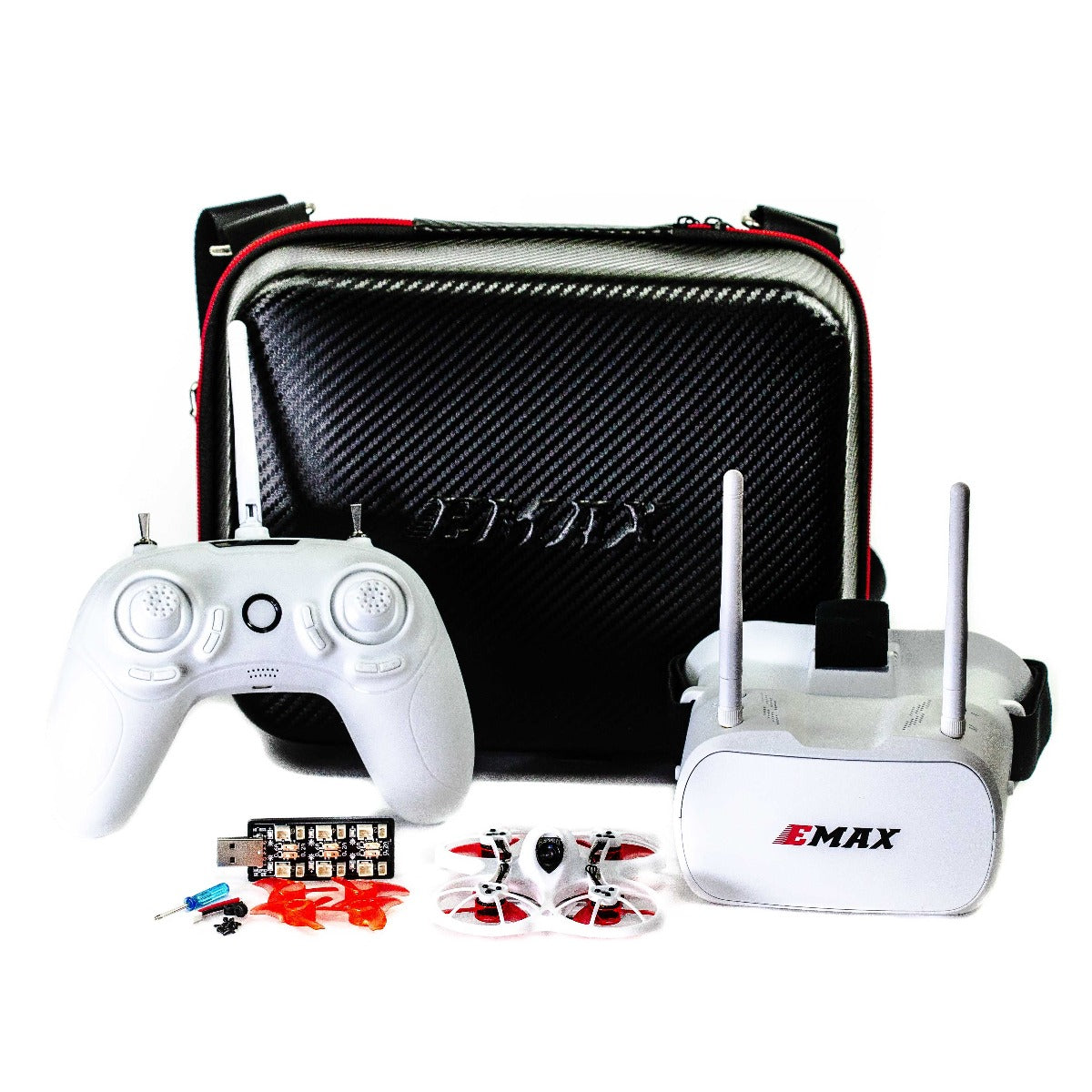

Included in Package:

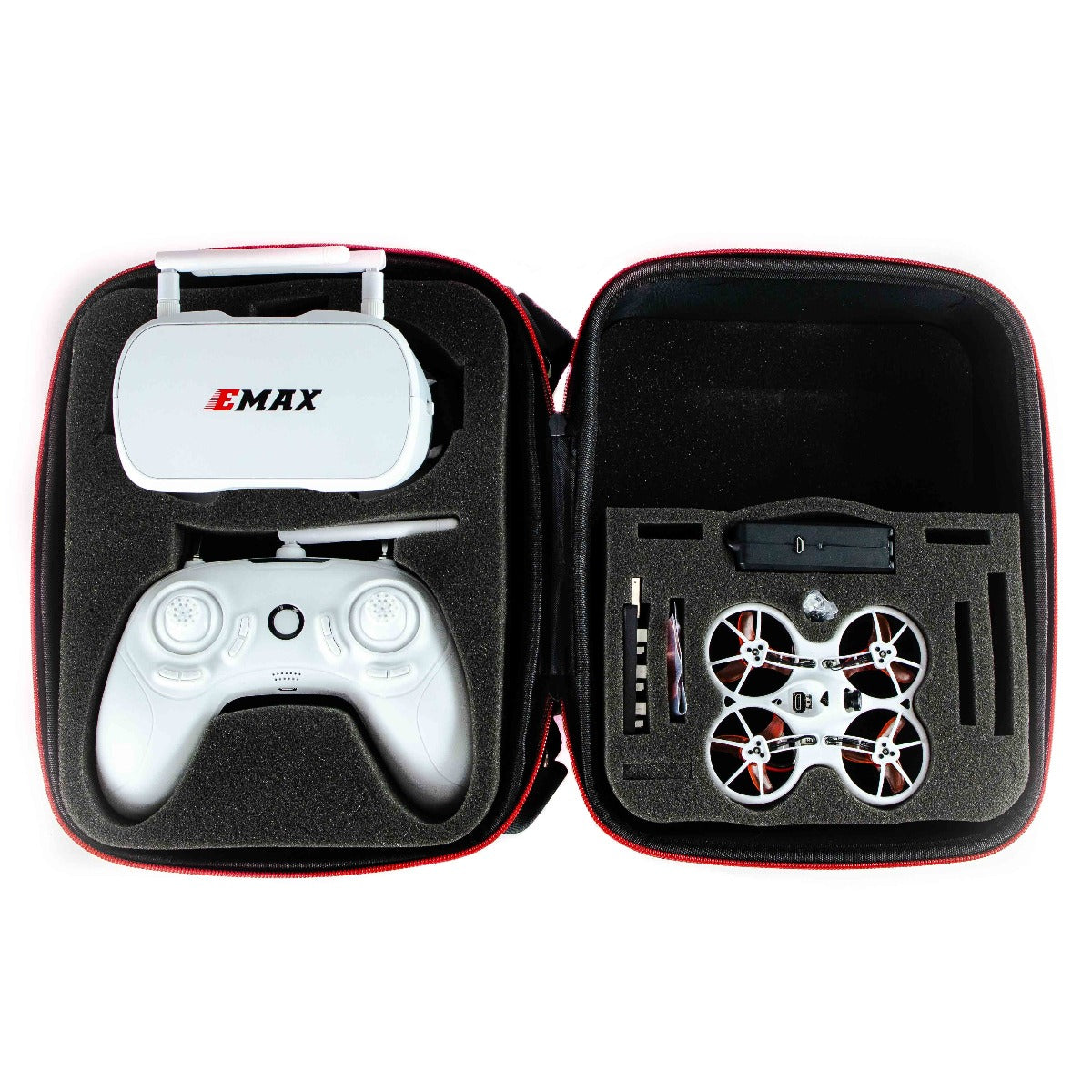

  • Lightweight soft carry case, with carbon fiber look
  • TinyHawk indoor flying drone
  • USB High Voltage capable 6 port USB Charger
  • 1s High Voltage (HV) 450mah lipo battery
  • EMAX Transporter 40-Channel FPV goggle with 18650 Li-Ion battery
  • EMAX E6 Transmitter 6-Channel with 18650 Li-Ion battery
  • USB charging cable for goggle and radio
  • Spare parts bag and Phillips screwdriver
  • Spare set of AVAN Tinyhawk 3-blade propellers
TinyHawk Specifications:
Size: 75mm motor to motor L 110mm x W 95mm x H 39mm
Dry Weight: 29g
All Up Weight: 42g with 450mah 1s Li-Po Battery
Frame Material: Polypropylene
Propeller Properties:
Diameter: 40mm
Blades: 3
Pitch: 23mm
Weight: 0.5 g
Motor Properties:
Stator: 8mm diameter
Weight: 2.5g
Bearing Size: Φ1.5*Φ4*2mm
Shaft Diameter: Φ1.5mm
Propeller Mount: Press-Fit Over Bell
All-in-One Board:
Flight Controller: F4
ESCs: 4in1 3A
Receiver: Compatible with Frsky
Battery Connector: JST-PH2
Camera and Video Transmitter:
VTX Power: 25mw
Channels: 37CH (unlocked)
Channel Changing: OSD/Smart Audio
Camera: 600TVL CMOS
Battery:
Voltage: 1s 4.35v HV
Capacity: 450 mAh
Discharge Rating: 80c/160c

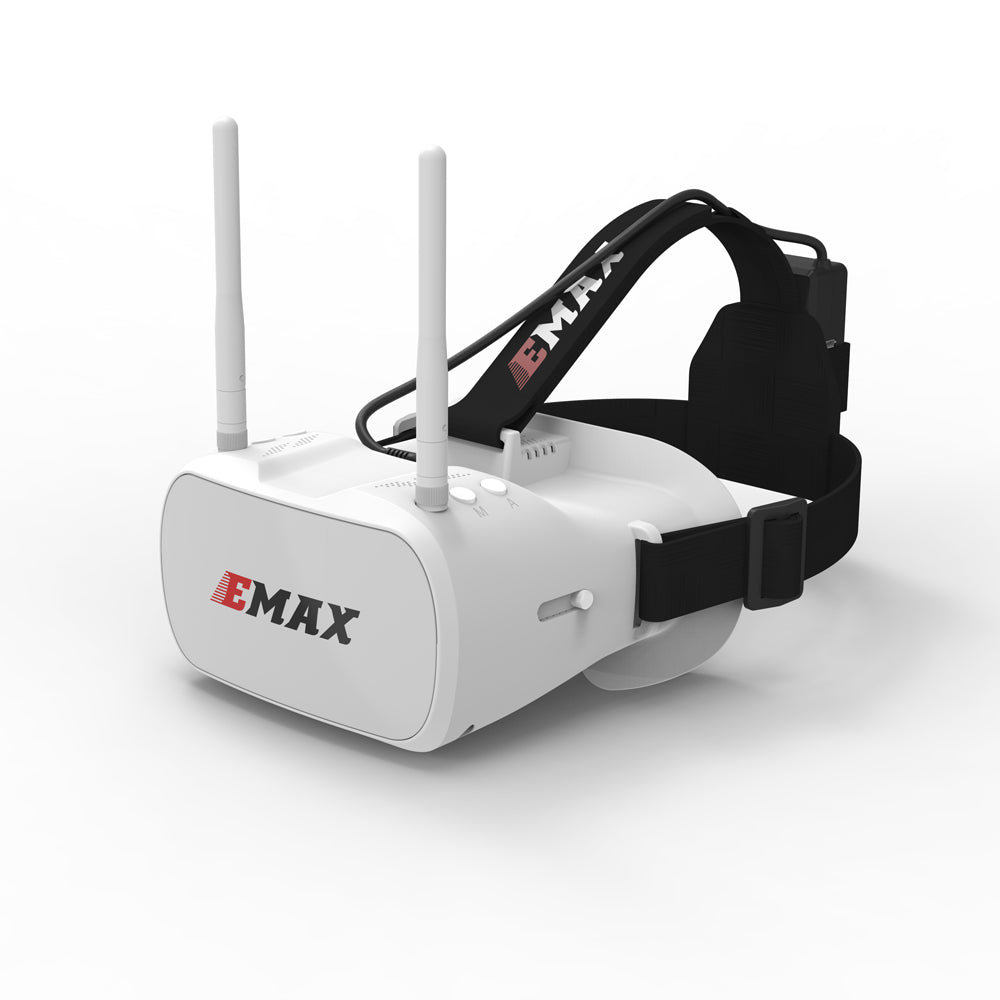

EMAX Transporter Goggle Specifications:
Dimensions: 140×153×90(mm)
Weight: 398g (without battery)
Resolution: 480×272
Battery: Single 18650 Li-Ion battery

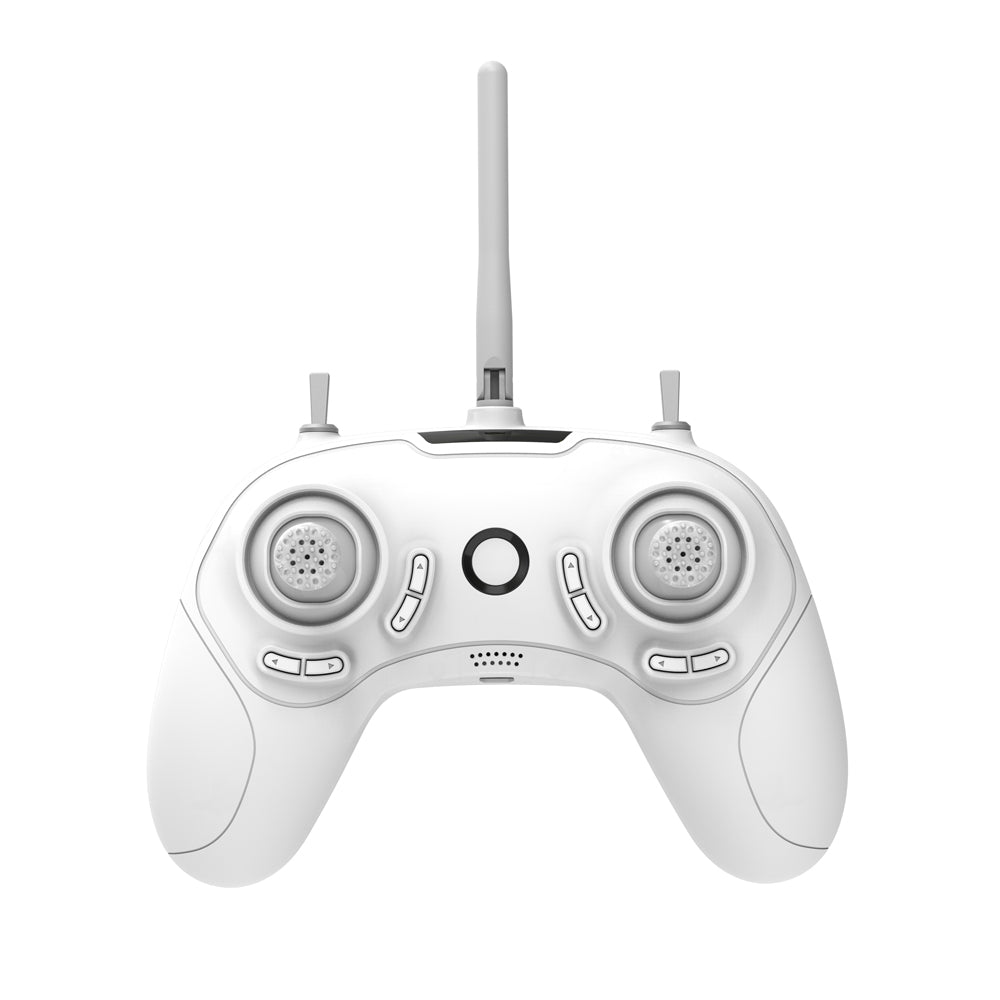

EMAX E6 Transmitter Specifications:
Dimensions: 181×213×80(mm)
Weight: 211g (without battery)
Number of Channels: 6 Channels
Transmission Frequency: 2.4GHz ISM Band（2400MHz~2483.5MHz）
Output Power: 22dbm
Modulation: GFSK
Battery: Single 18650 Li-Ion battery
