NewBeeDrone BeeBrain Brushed V2 AIO Flight Controller ELRS 2.4GHz with 25-400mW VTX

$49.99 USD
12 in stock, ready to ship
Notes

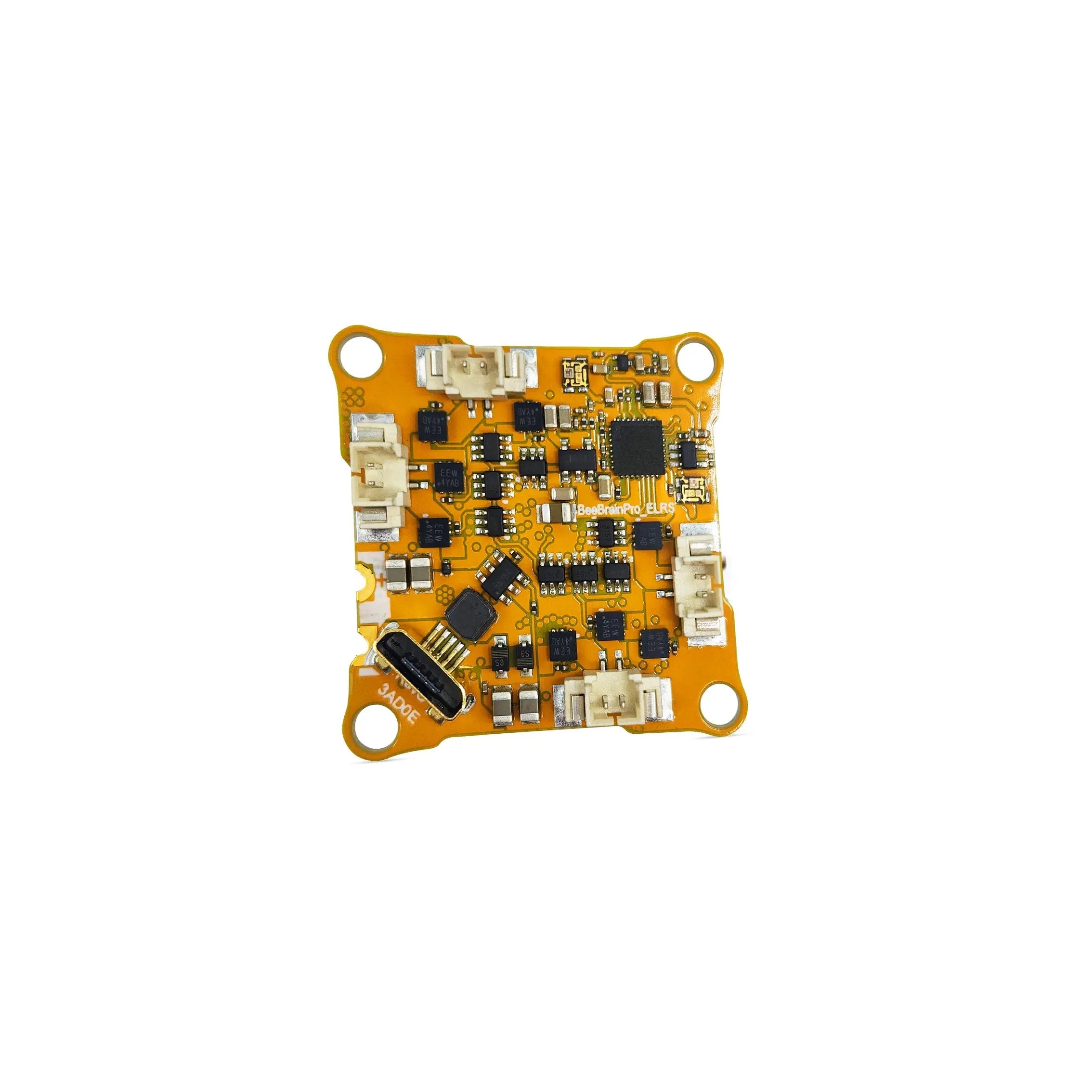

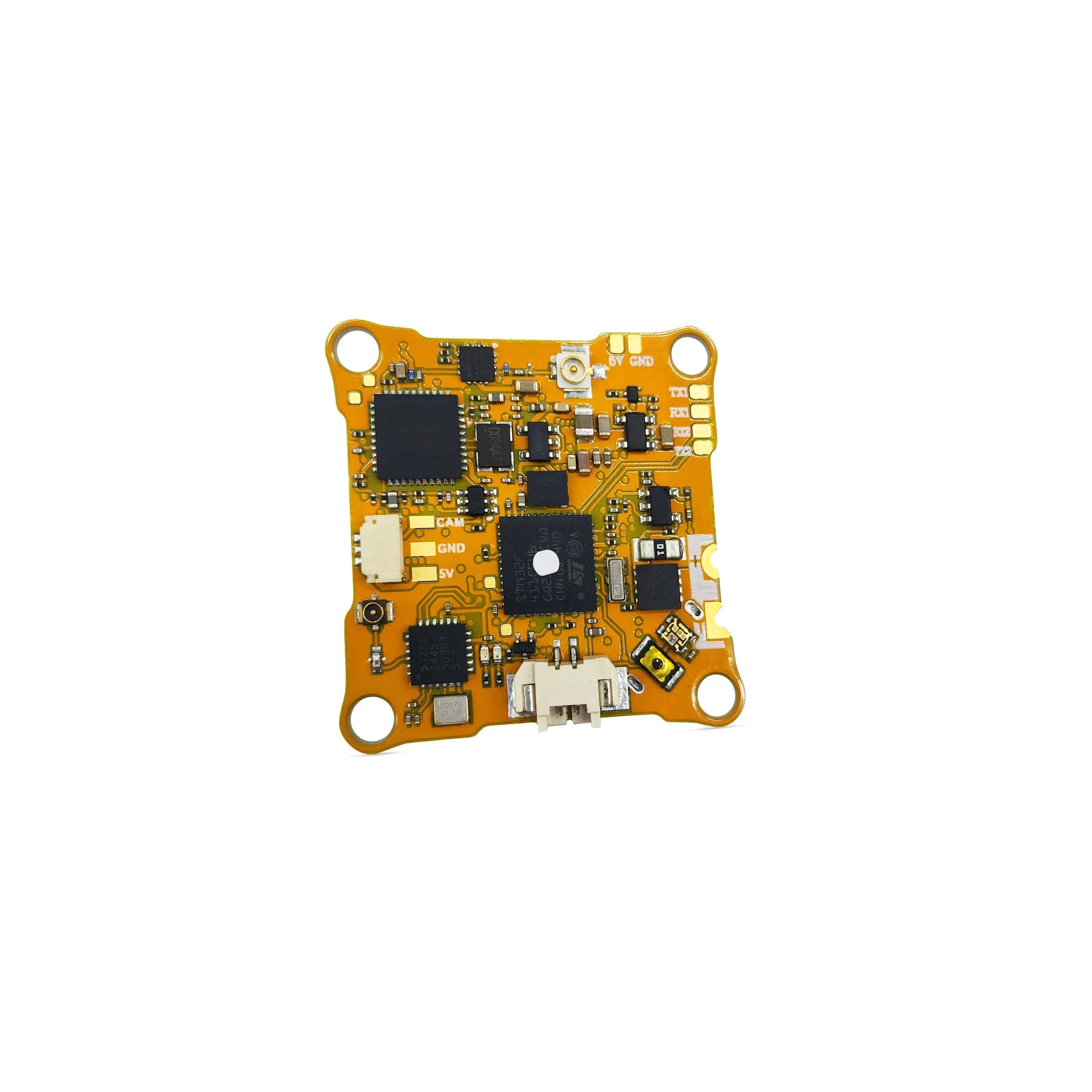

NewBeeDrone BeeBrain Brushed V2 AIO Flight Controller ExpressLRS(ELRS)2.4g with 25-400mw VTX



🎯BeeBrain Brushed V2 AIO Flight Controller– Integrated ELRS & SmartMAX VTX for 65mm Whoops

NewBeeDrone’s BeeBrain Brushed V2 AIO Flight Controller is a compact, all-in-one solution designed for 65mm brushed whoop builds. Featuring an integrated ExpressLRS 2.4GHz SPI receiver and SmartMAX 25–400mW VTX, it delivers low-latency control, intelligent power management, and clean video transmission — all in a lightweight, ready-to-fly design.

Engineered for precise indoor performance and ultra-responsive handling, the BeeBrain Brushed V2 includes Turtle Mode and Active Braking ESCs to help you recover faster and maintain better control.



✅ Key Features:

  • Integrated ExpressLRS 2.4GHz SPI Receiver – SPI-based, supporting ELRS 3.0 and above for low-latency, long-range control.

  • SmartMAX Adjustable VTX – Selectable 25mW / 100mW / 400mW output

  • Turtle Mode Support – Flip your drone over after a crash without walking over to rescue it.

  • Active Braking Brushed ESCs – For more precise, locked-in flight feel.

  • Betaflight Compatible – Full support for CLI tuning and firmware updates

  • Compact & Lightweight – Perfect for 65mm brushed whoop frames

🔧 Technical Specification

  • MCU: STM32F411

  • Gyro: BMI270

  • ESC: 4x brushed 12A ESC with Turtle Mode

  • Receiver: Built-in ELRS 2.4GHz SPI (ELRS 3.0+ compatible)

  • VTX: SmartMAX 25mW / 100mW / 400mW (thermal auto-boost)

  • Antenna: IPEX connector

  • Weight: ~4.5g

  • Input Voltage: 1S LiPo

  • Mounting: 25.5 x 25.5mm



✅ Ready to Build Smarter?

Upgrade your next build with the BeeBrain Brushed V2 — cleaner integration, smarter features, and unmatched performance in a compact, lightweight design.


📦 What's in the Box?

1 x BeeBrain Brushed V2 AIO Flight Controller

💬 Have Questions?

Got a question? Drop us a line at support@newbeedrone.com — we’re always here to help!
