NewBeeDrone LionBee 3inch Frame

$14.99 USD
24 in stock, ready to ship
Notes

NewBeeDrone LionBee 3inch Frame

The NewBeeDrone LionBee Long Range Frame introduces a completely new structural concept designed specifically for 1S long-range FPV platforms. Unlike traditional micro-long-range frames, the LionBee Frame is engineered around a dedicated 18650 battery chamber, creating a rigid, optimized layout that enhances balance, reduces vibration, and increases endurance.

This frame was built to support the innovative LionBee AIO flight controller and its extended mounting architecture. With a unique 25.5 × 82mm FC mounting pattern, the LionBee Frame allows the AIO board to integrate directly with the battery chamber, forming a unified structural module that improves both electrical and mechanical performance.

Constructed from lightweight, high-strength carbon fiber, the LionBee Frame delivers stability and durability while maintaining the efficiency required for long-range missions. The stretched body layout provides smoother airflow and improved propeller efficiency, making it ideal for endurance flying, GPS-assisted missions, and ultra-light exploration builds.

With a modular, replaceable battery chamber design, field maintenance becomes simple and reliable—allowing fast swaps after impacts without requiring soldering. Combined with a clean top-mount component layout, the LionBee Frame is built for developers, explorers, and pilots who want to push 1S long-range performance into a new generation.



Key Features

  • Designed specifically for 1S long-range FPV builds

  • Structural integration with 18650 battery chamber

  • Supports the LionBee AIO FC with 25.5 × 82mm mounting pattern

  • Lightweight, high-strength carbon fiber construction

  • Stretched body layout for improved aerodynamic efficiency

  • Modular, replaceable 18650 battery chamber design

  • Optimized center-of-gravity placement for stable cruising

  • Compatible with M10Q GPS modules and long-range accessories

  • Clean top-mounted electronics layout for simplified wiring

  • Engineered for developers, innovators, and long-range explorers





Specifications

  • Frame Material: Carbon Fiber

  • Wheelbase: 3-inch class

  • FC Mounting Pattern: 25.5 × 82mm (LionBee AIO format)

  • Motor Mounting: 9mm / 1202 class motors

  • Battery Type: 1× 18650 Li-ion cell (JP30 recommended)

  • Battery Mounting: Integrated replaceable battery chamber

  • Antenna Mounting: Supports IPEX1, IPEX3, and TPU brackets

  • Camera Mounting: Micro-FPV camera compatible

  • Weight: Ultra-light optimized for endurance



What’s Included

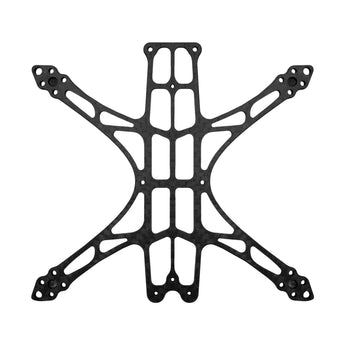

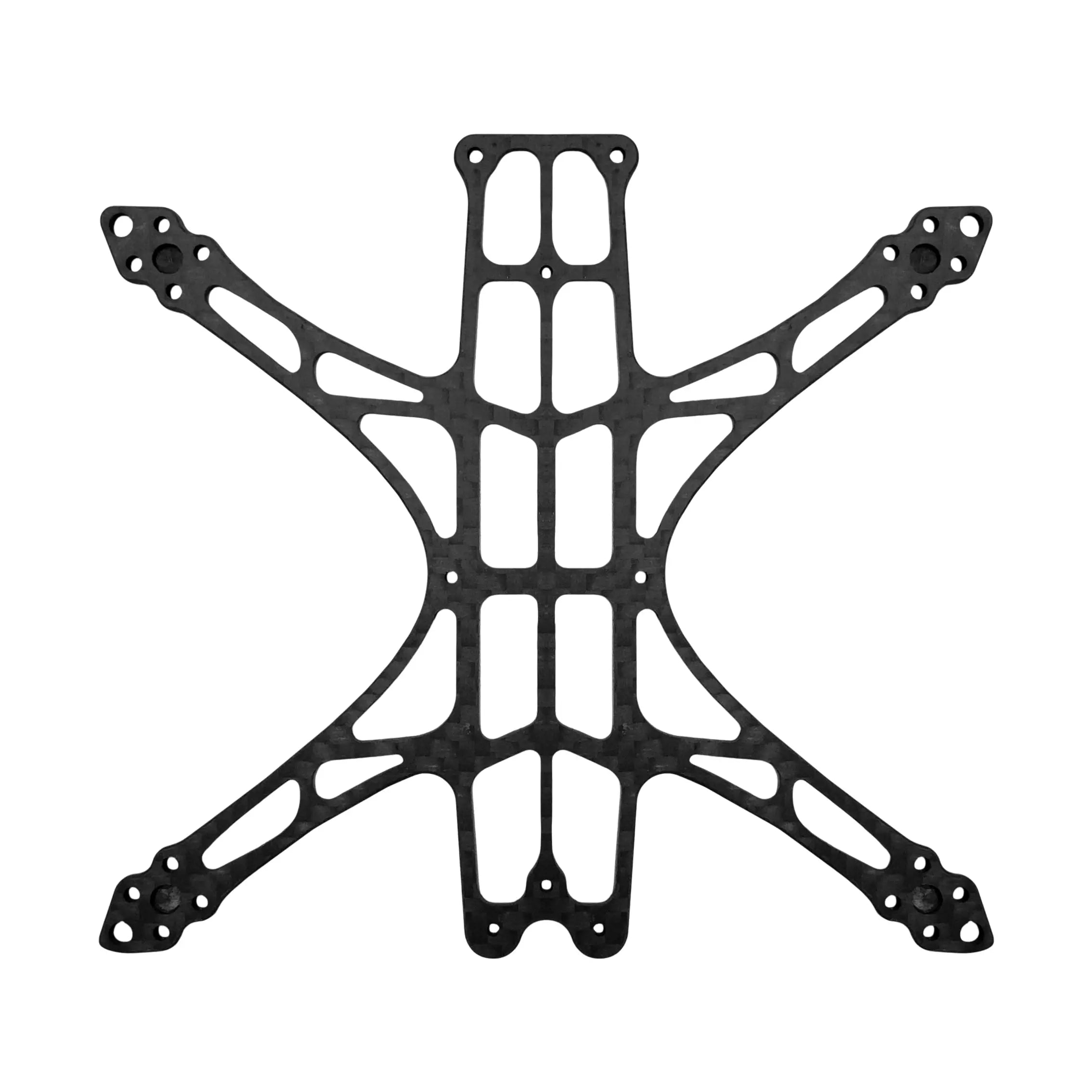

  • 1× Carbon Fiber LionBee Frame Plate Set

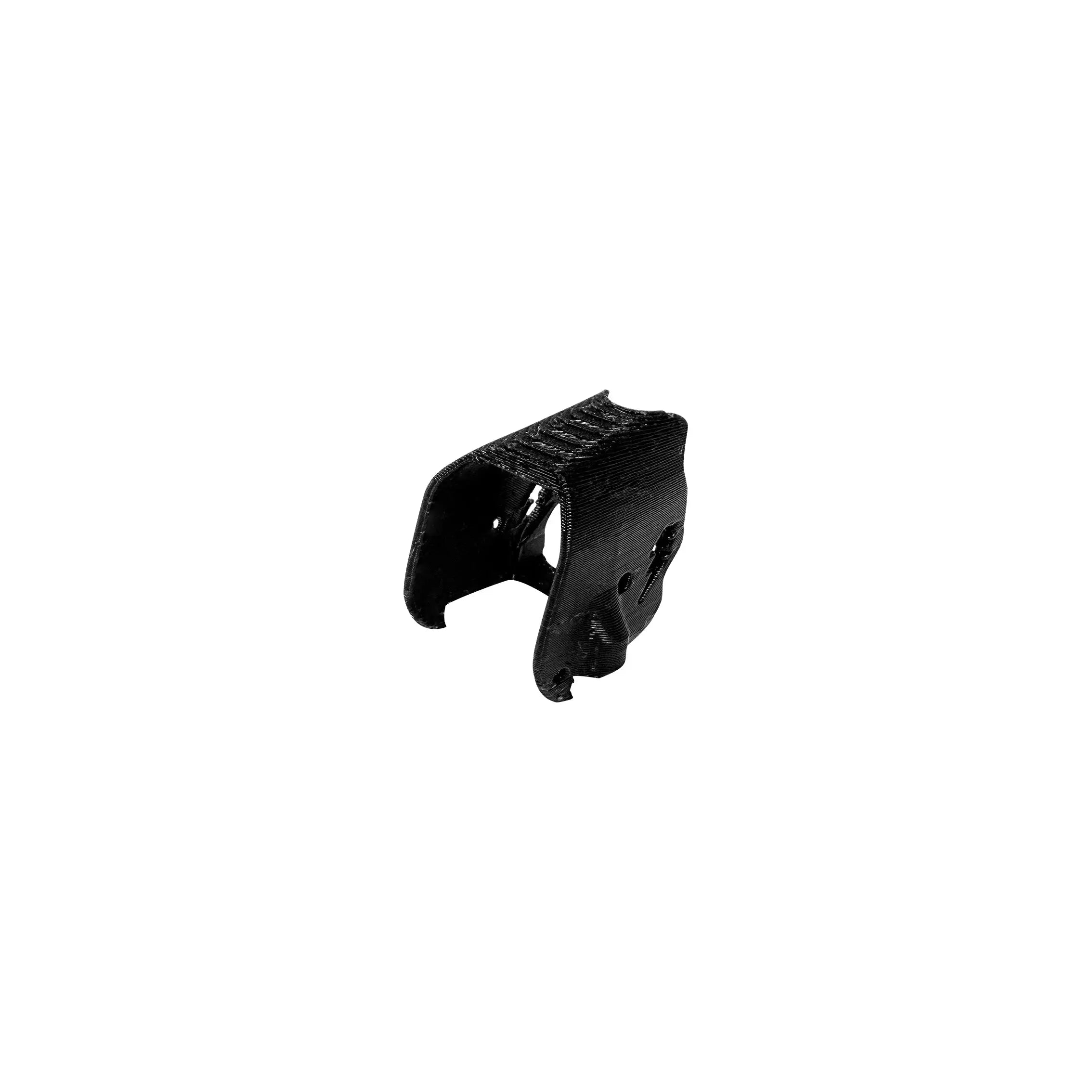

  • 1× TPU Camera Mount

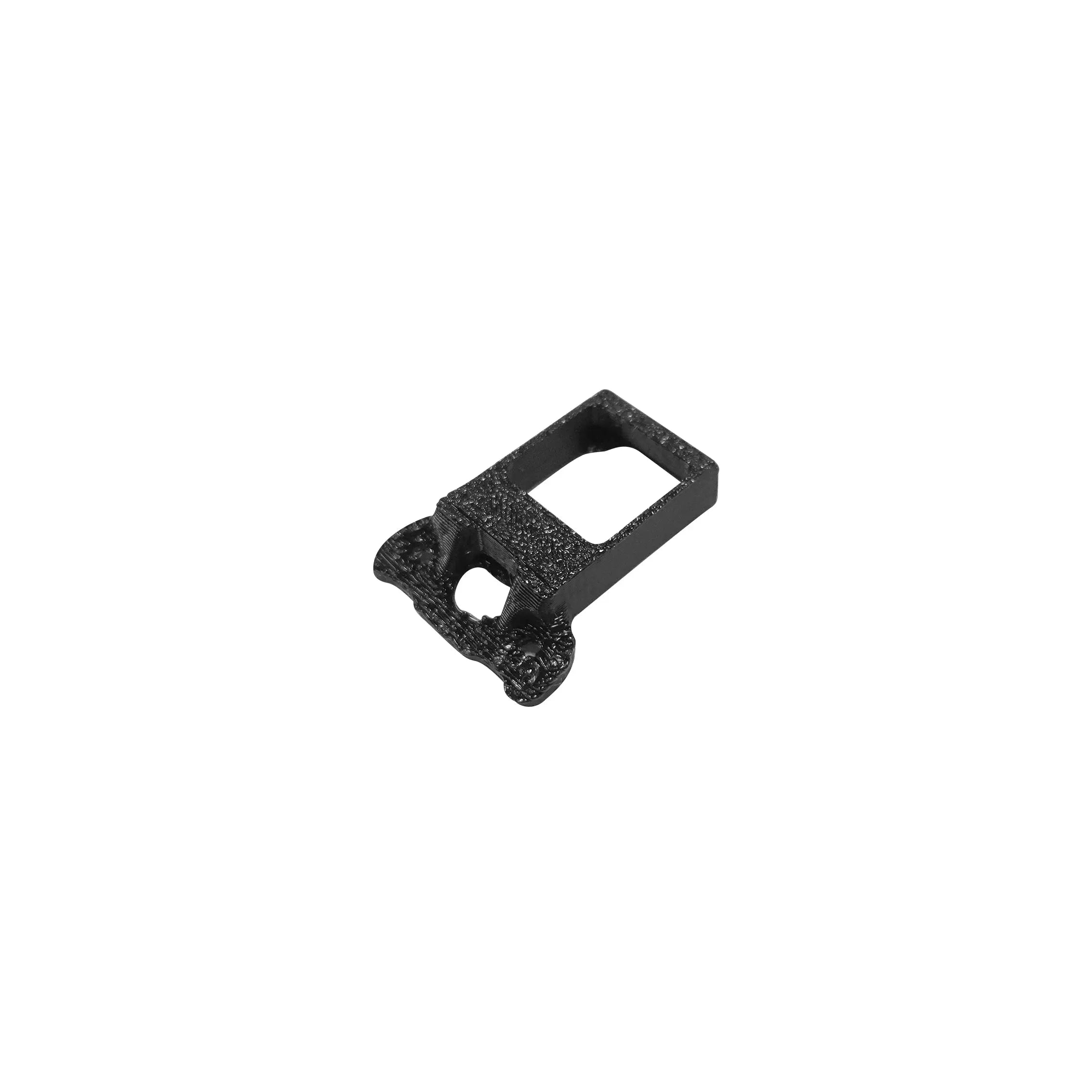

  • 1× TPU GPS Mount

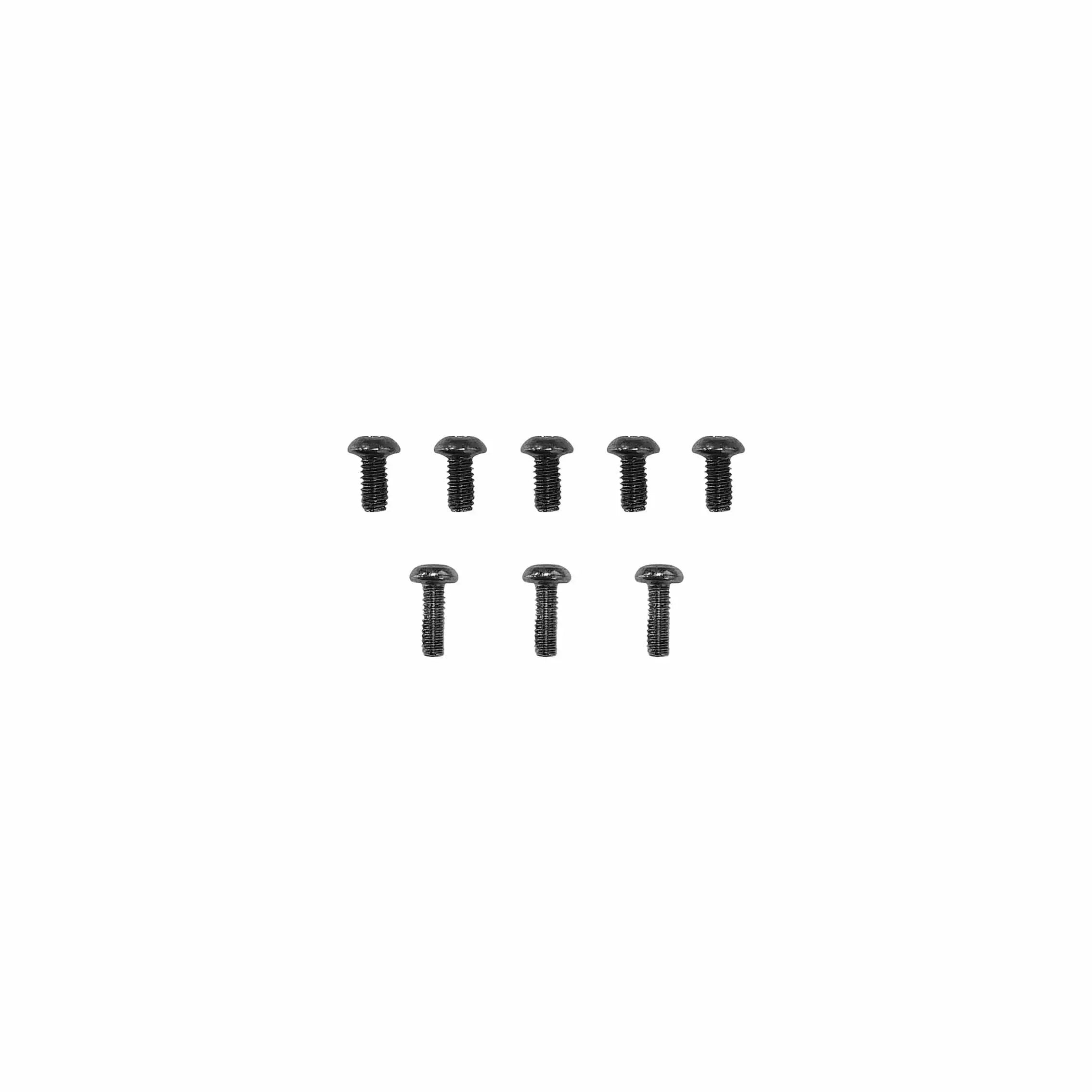

  • Full Screw & Hardware Kit

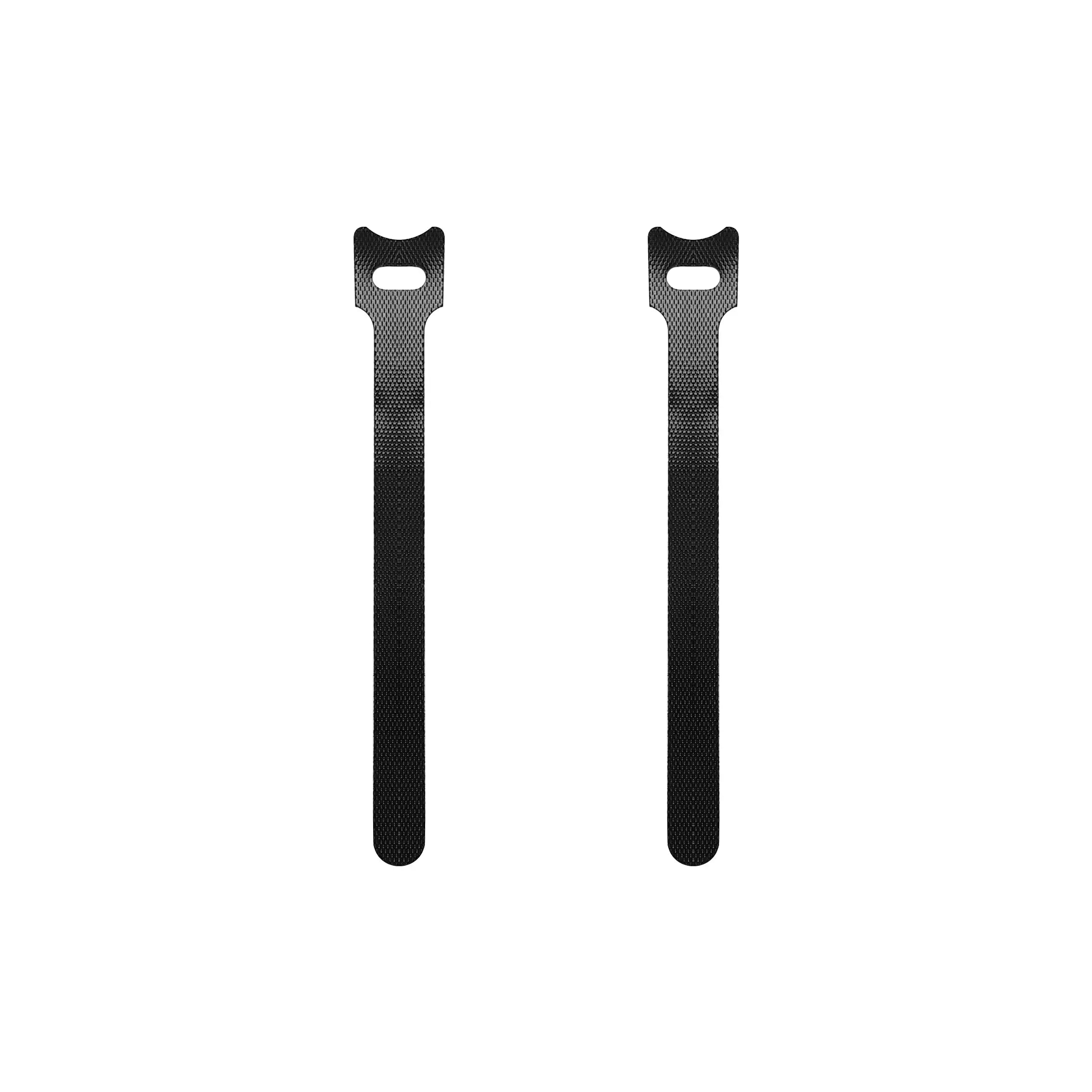

  • Adhesive pads and mounting accessories
