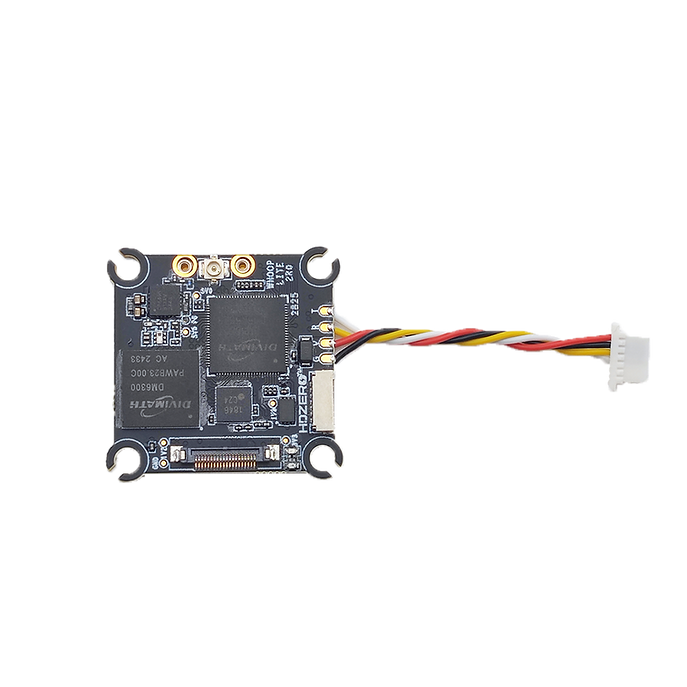

HDZero Whoop V2 VTX

The HDZero Whoop V2 VTX is the evolution of the Whoop Lite VTX, designed for pilots who want the same HDZero performance, but with improved durability, reliability, and ease of installation.

Supporting all HDZero MIPI cameras, including 540p90 , 720p60, and 1080p30 modes, the Whoop V2 delivers up to 200 mW of clean, low-latency HD video over 5.8 GHz.

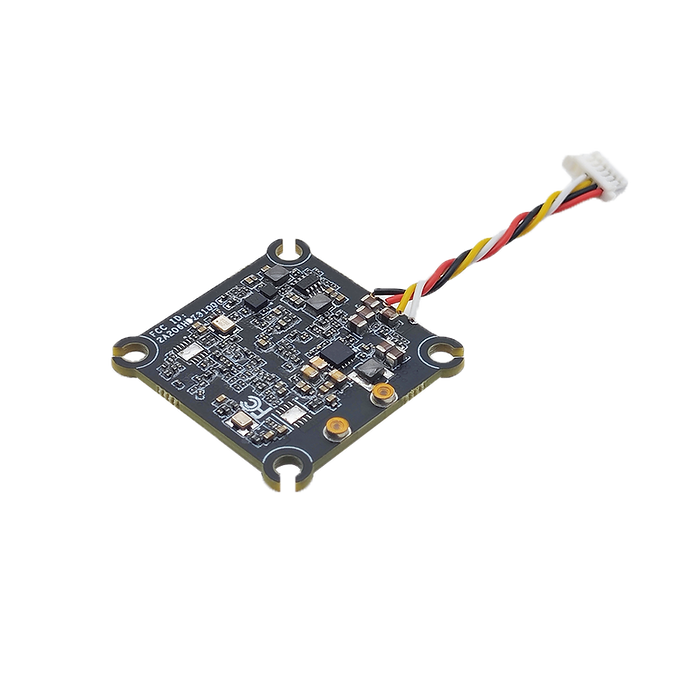

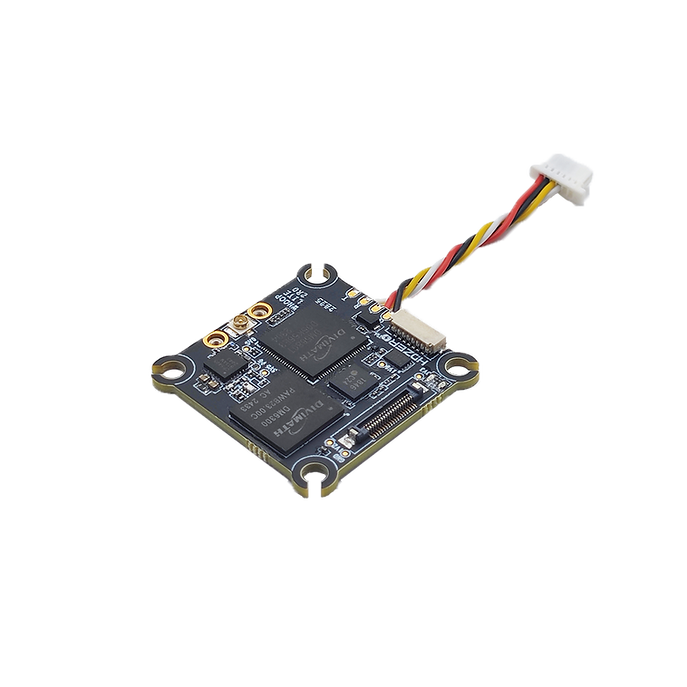

A thicker PCB provides greater impact resistance (addressing a common failure point of the Whoop Lite), a factory-soldered wire harness with Betaflight standard digital VTX plug simplifies installation, and a brass antenna retention bar keeps the U.FL connector secure through crashes and vibration.

With its compact 31 × 31 mm footprint and 25.5 × 25.5 mm mounting pattern, the Whoop V2 fits everything from 80 mm whoops to 4-inch micro drones. For ultralight builds, our HDZero AIO boards combine FC + VTX with an AHD camera interface to save both weight and space.

Power input range: 3 – 12.6 V (1S – 3S)

Notes:
• No reverse-polarity protection — incorrect wiring will permanently damage the unit.
• Ensure ≥ 1.5 A available current when powered from a 5 V pad.
• Direct 1 S power may dip below 3 V on throttle punch-outs, causing video loss.
• External capacitor recommended for 3S setups.

Includes M2 rubber grommets and a brass antenna bar for secure mounting. For high-speed racing, consider the HDZero Race V3 VTX which has a more common 20 x 20 mm mounting pattern for 5in builds.





Specifications:

Feature

Whoop V2 VTX

Whoop Lite VTX Comparison

Supported Cameras

All HDZero MIPI cams

Video Resolution / Frame Rate

720p60 / 540p90 / 1080p30

RF Power Output

25 mW / 200 mW

Frequency Range

5.725 – 5.850 GHz

RF Connector

Secured U.FL with brass bar

Standard U.FL (no retention bar)

Video Connector

MIPI

Durability / PCB

Thicker PCB for impact resistance

Thinner PCB – more prone to damage

Wiring / Install

Pre-soldered wire harness

Manual soldering required

Size

31 × 31 mm (29 × 29 inner)

32.5 × 32.5 mm (29 × 29 inner)

Mounting Pattern

25.5 × 25.5 mm (M2)

Weight

5.4 g (5.1 g w/o wires)

4.9 g (4.6 g w/o wires)

Board Thickness

~1.6 mm

~1.2 mm (no shielding)

Power Input

3 – 12.6 V (1S – 3S)

Power Consumption

5 – 6 W

Control / OSD

MSP OSD / Smart Audio

Recommended Use

80 mm whoops – 4″ micro drones

65 – 85 mm whoops

Mounting Hardware

M2 grommets + brass bar included

M2 grommets only

Antenna Included

Not included

Alternative for Ultralight Builds

HDZero AIO (FC + VTX, AHD interface)


Includes:

  • HDZero Whoop V2 VTX * 1;

  • Power/Uart Cable * 5；

  • Zip ties * 2；

  • Rubber Grommet (M3 to M2) * 4;

  • u.FL Antenna Retention Screws * 3;

  • Metal bar * 1
