EMAX E3 1404 Brushless Motor

$17.99 USD Sold out
KV
Notes
EMAX / E3 SERIES

EMAX E3 1404

A 9.9-gram 9N12P external-rotor motor for responsive 2- to 4-inch FPV aircraft, available in 3700KV, 4800KV and 6000KV configurations.

Built for high power that lasts.AL7075 anodized construction, N52SH arc magnets, NSK precision bearing support and published maximum power up to 316W.
Framework9N12PExternal-rotor architecture
Motor size19.1 × 17.4Millimeters
Weight9.9 gIncluding wire
Propeller range2–4 inVariant and setup dependent

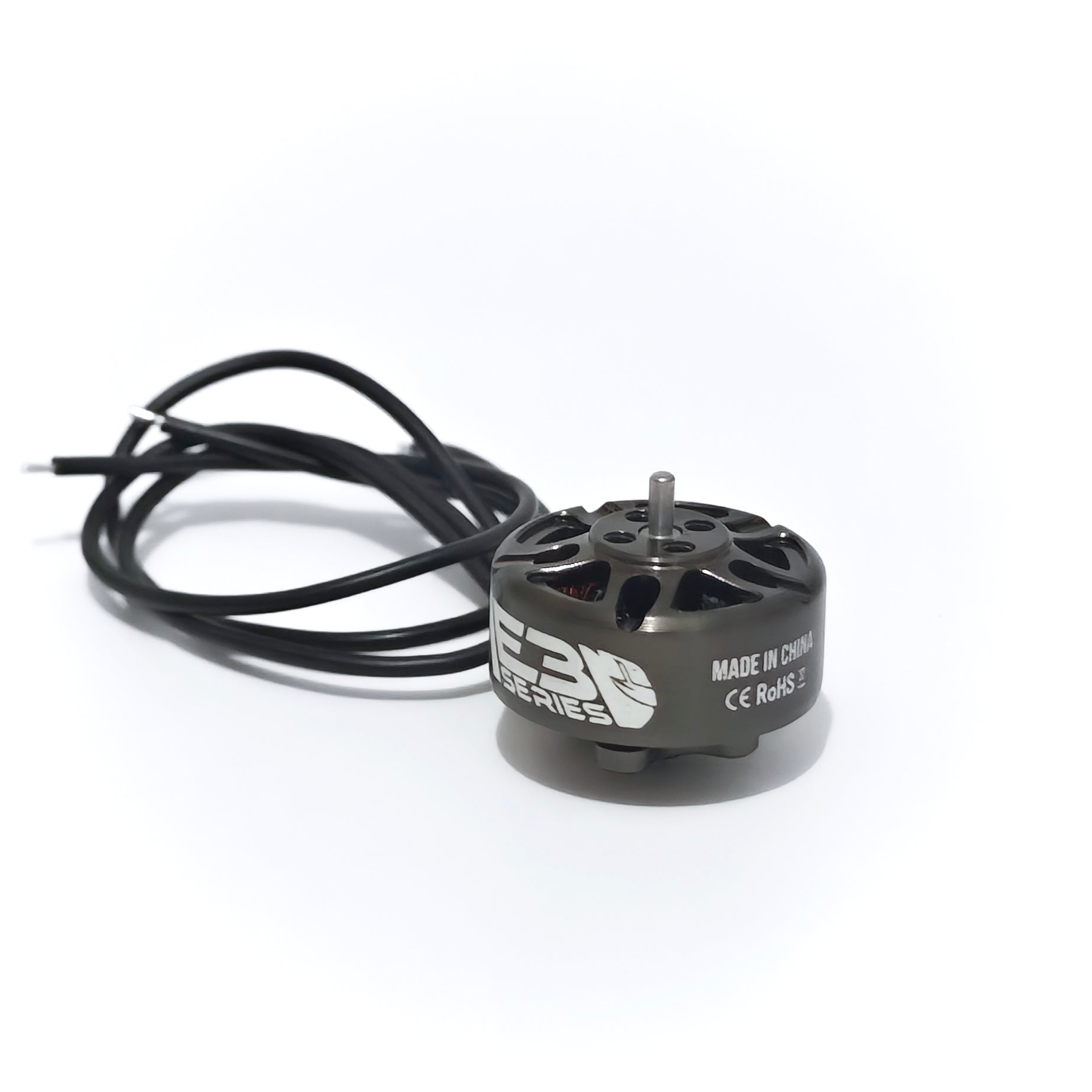

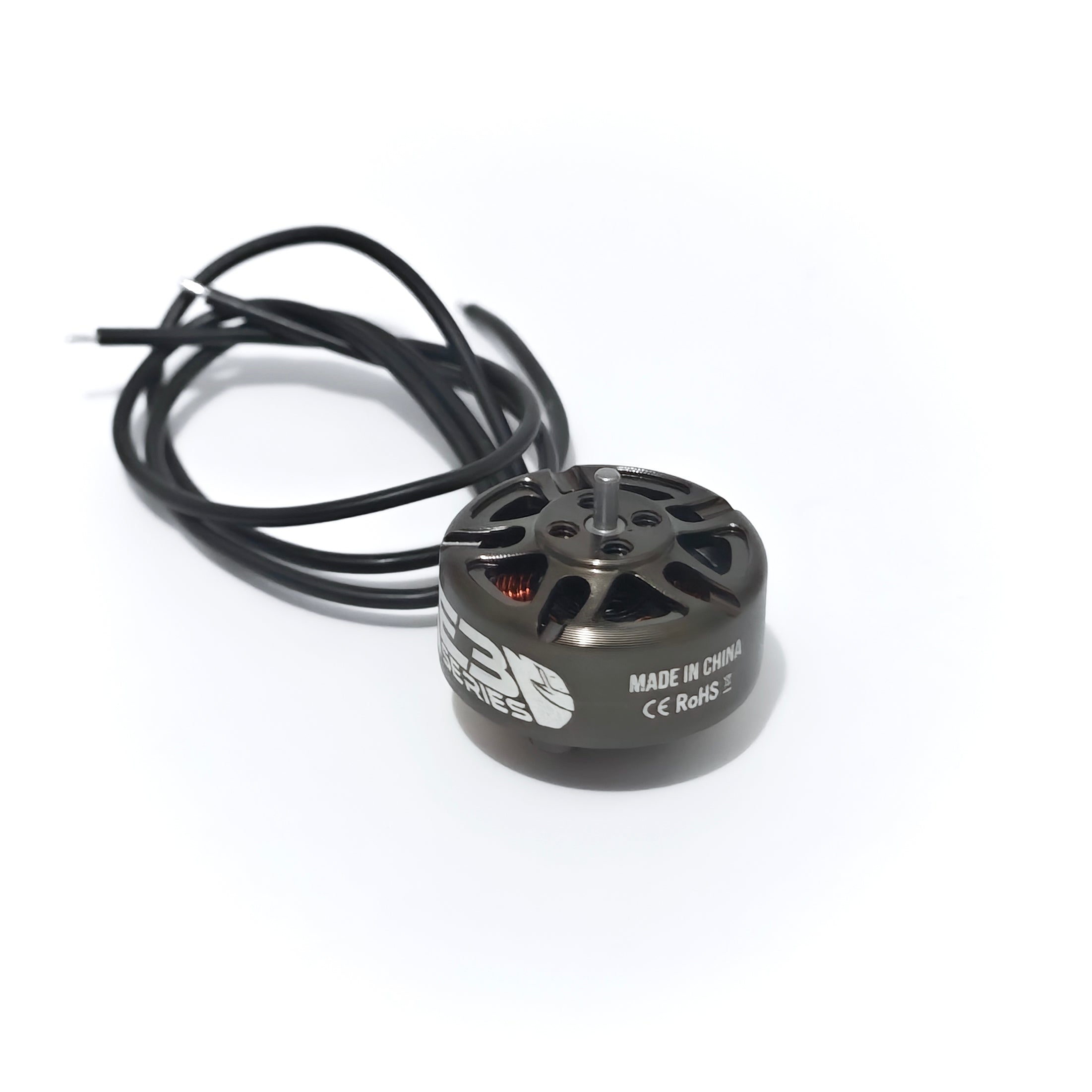

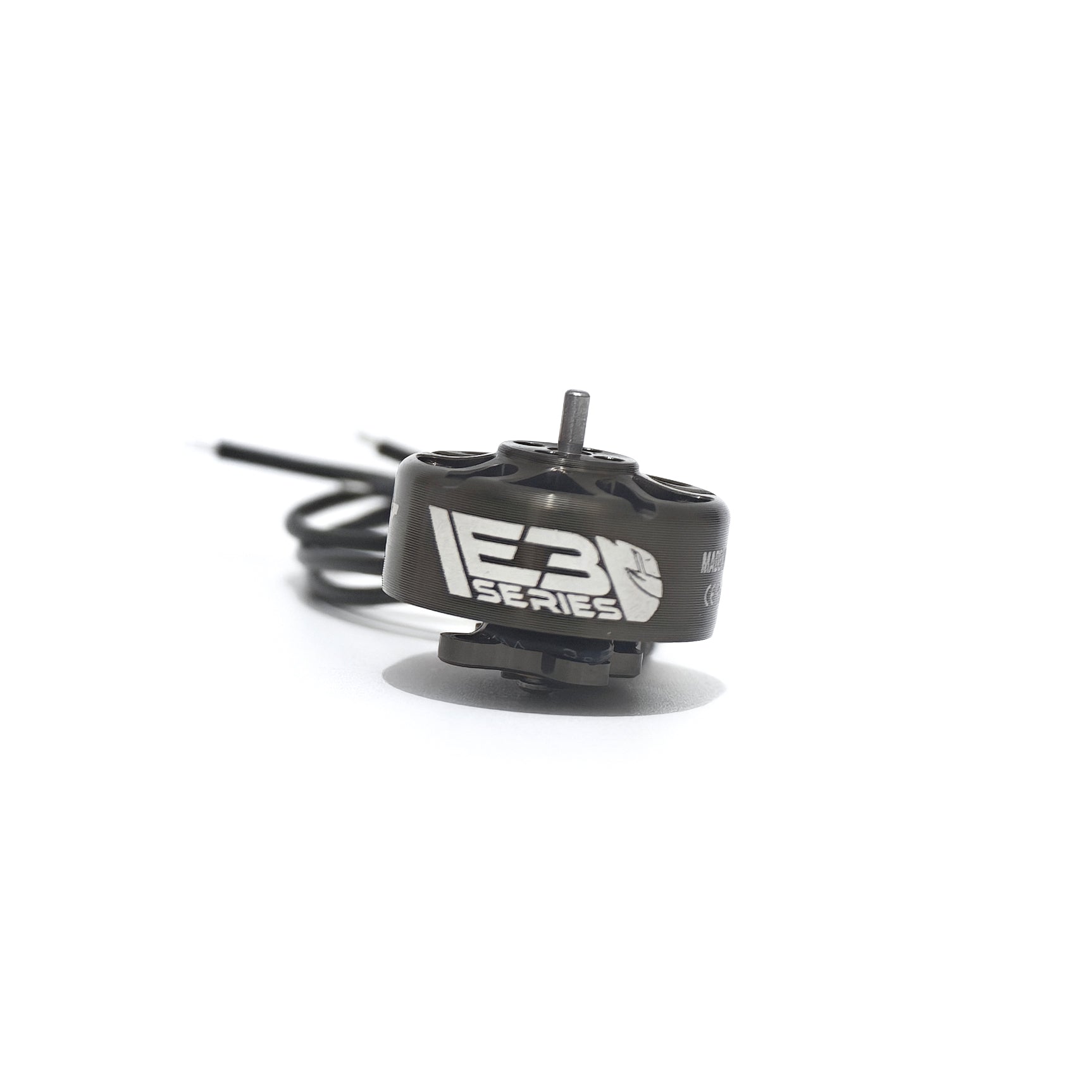

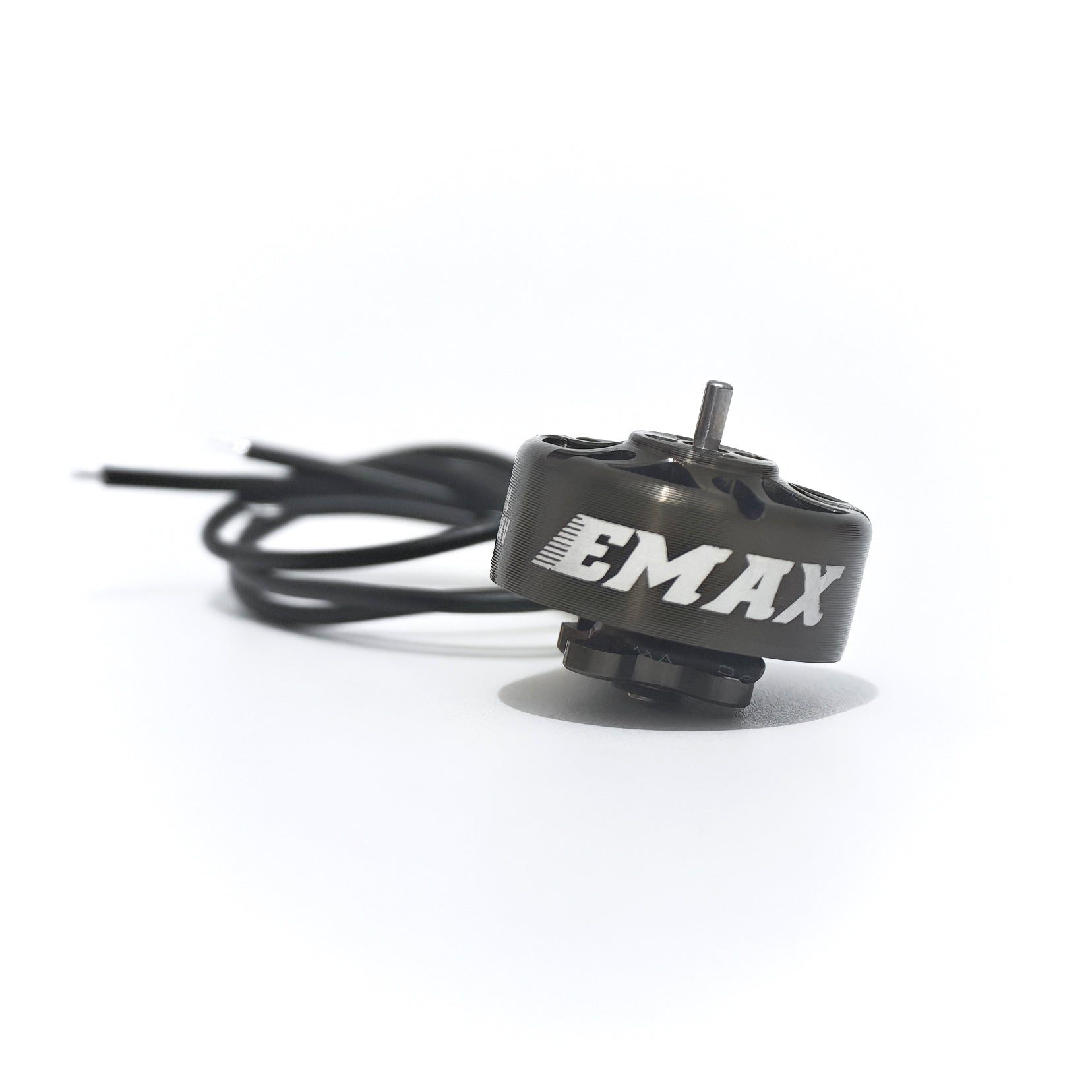

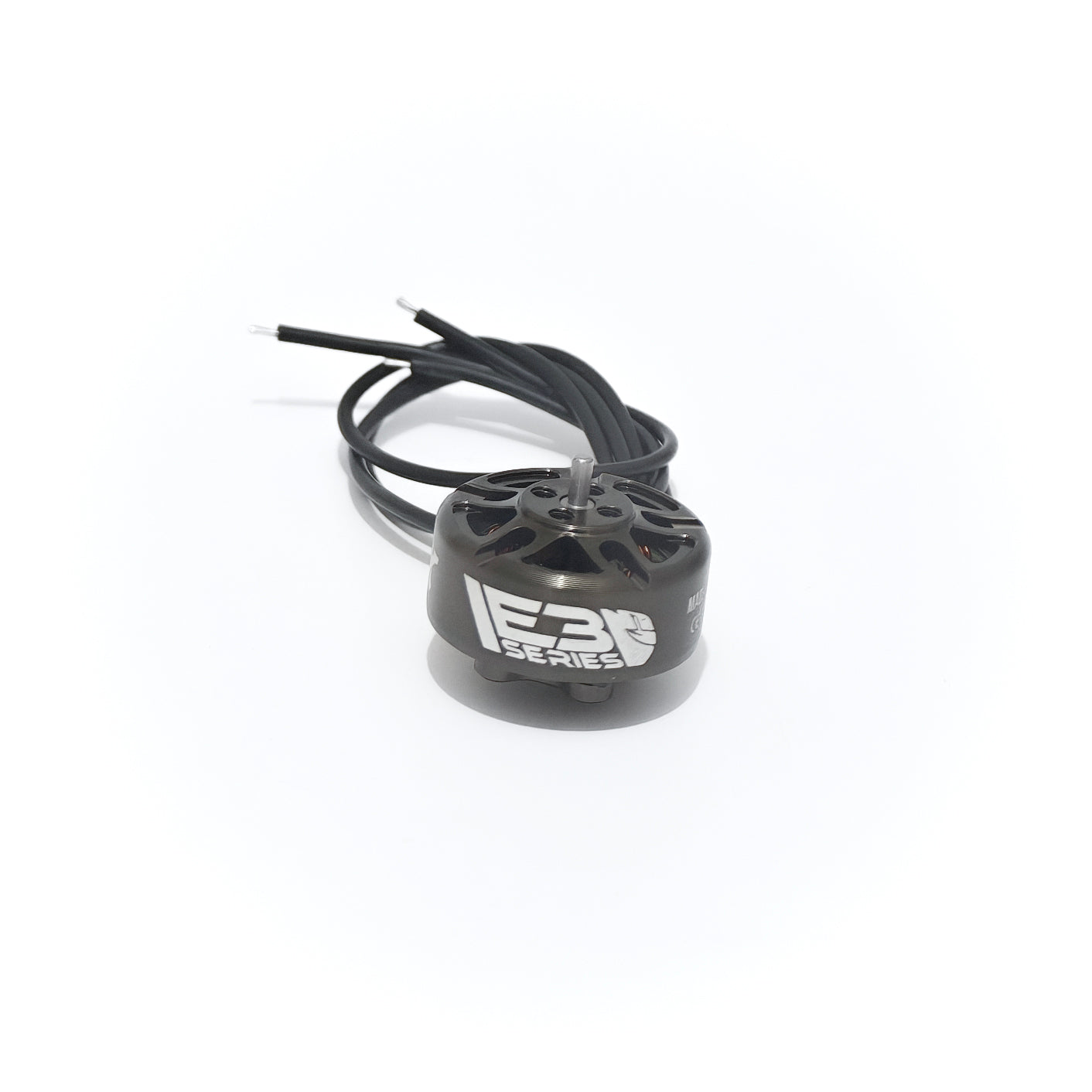

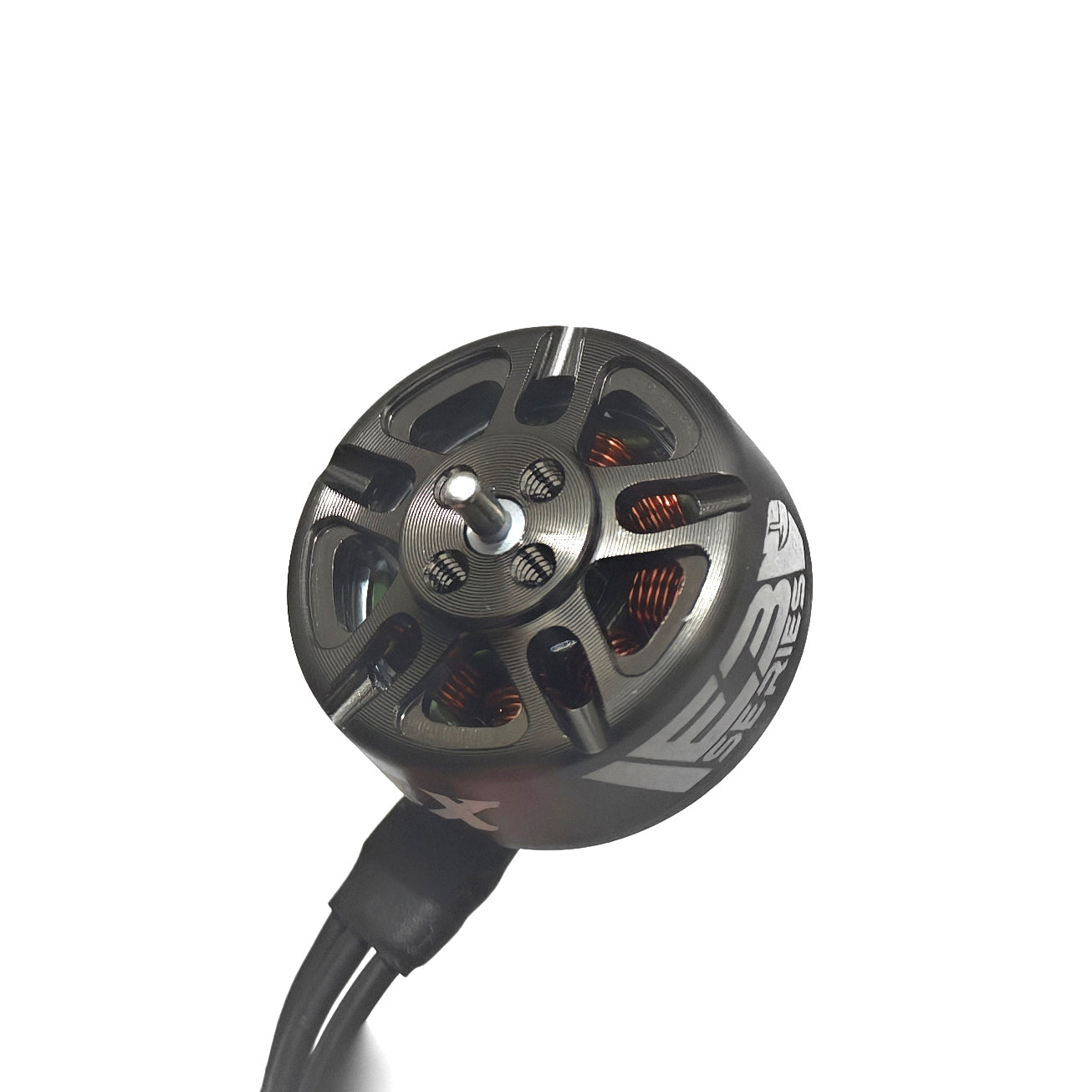

EMAX E3 1404 brushless FPV motor built for durable high-power operation
01 / Choose Your KV

Three windings for long-range, freestyle and racing builds.

Choose the winding around the complete aircraft, propeller, ESC, battery and cooling requirements.

3700KV3–4S · 3–4-inch propeller · up to 228W published maximum power
4800KV3–4S · 3–4-inch propeller · up to 270W published maximum power
6000KV2–4S · 2–3.5-inch propeller · up to 316W published maximum power
EMAX E3 1404 KV selection guide for 3700KV, 4800KV and 6000KV
02 / Maximum Bench Results

Highest recorded thrust in each supplied test sheet.

KV Test propeller Voltage Current Thrust Power RPM
3700KV GF 3.5 × 2.0 × 3 16 V 12.58 A 426 g 201.28 W 34,628
4800KV HQ 3 × 1.6 × 3 16 V 16.87 A 471 g 269.92 W 44,928
6000KV HQ 2.2 × 2 × 3 16 V 19.77 A 439 g 316.32 W 59,523

Maximum-throttle bench results from the supplied EMAX load-test sheets. Results are configuration-dependent and are not guaranteed aircraft-level performance.

03 / Motor Construction

Compact components selected for durability and response.

The E3 1404 combines a rugged steel shaft, AL7075 anodized housing, one-piece outer rotor, N52SH arc magnets, single-strand winding and NSK precision bearing support.

Exploded EMAX E3 1404 construction showing its steel shaft, anodized housing, outer rotor, arc magnets, winding and NSK precision bearing
04 / Platform Details

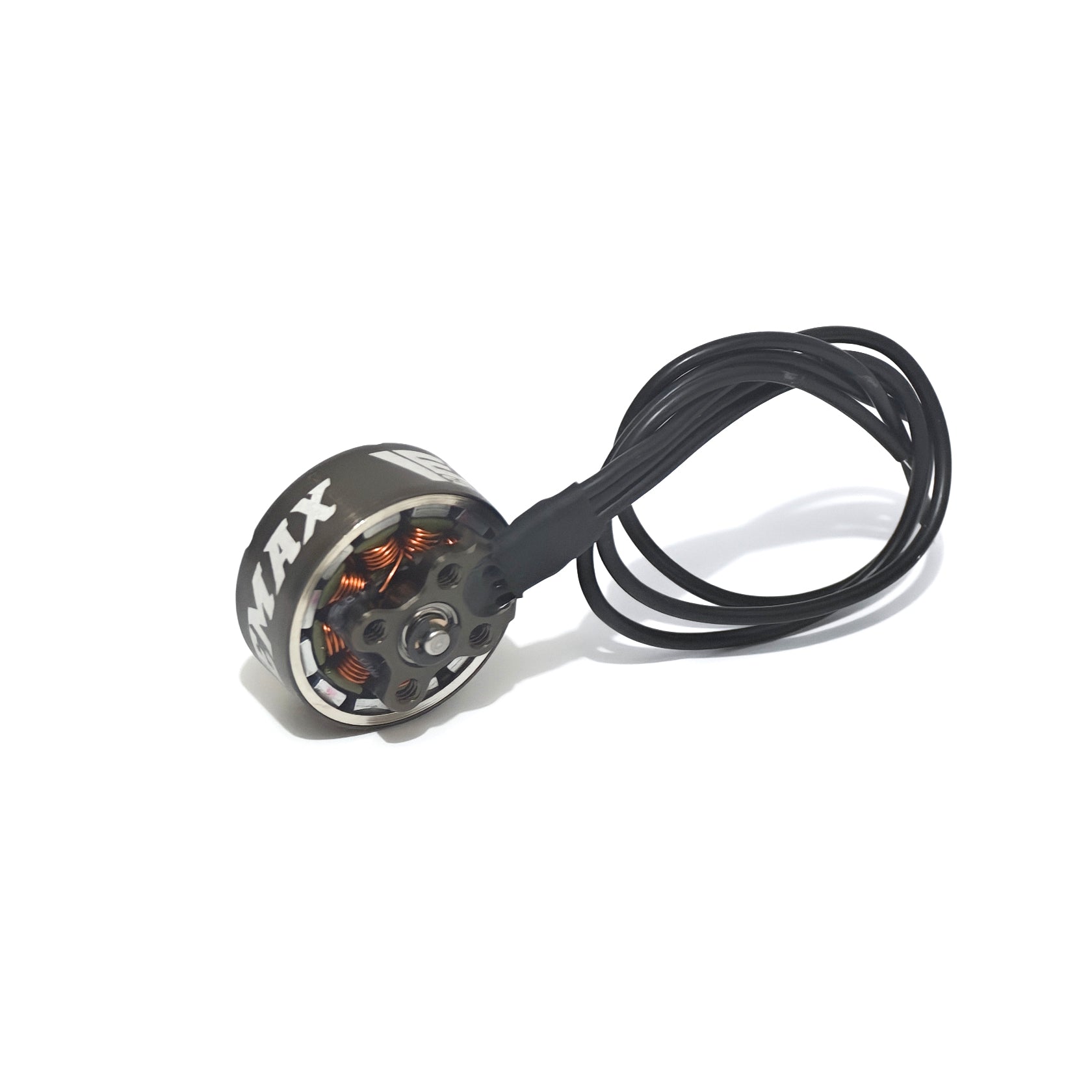

Lightweight 1404 geometry with a 9 × 9 mm mounting pattern.

Framework 9N12P
Overall dimensions Ø19.1 × 17.4 mm
Weight 9.9 g with wire
Propeller shaft Ø1.5 mm
Bearing shaft Ø2 mm
Stator height 4 mm
Mounting pattern 9 × 9 mm, four M2 holes
Leads 120 mm, 24 AWG silicone wire
AL7075 housingAnodized aluminum construction.
N52SH magnetsArc-magnet rotor specification.
NSK bearingPrecision bearing support.
Three power profiles3700KV, 4800KV and 6000KV.
EMAX E3 Series high-performance FPV motor platform
05 / Electrical Specifications

Published limits by winding.

KV Cells Propeller Weight Idle current Resistance Peak current Maximum power
3700KV 3–4S 3–4 in 9.9 g 0.6 A at 10 V 238 mΩ 14.2 A at 4S 228 W at 4S
4800KV 3–4S 3–4 in 9.9 g 0.8 A at 8 V 157 mΩ 16.9 A at 4S 270 W at 4S
6000KV 2–4S 2–3.5 in 9.9 g 1.0 A at 7 V 103 mΩ 19.8 A at 4S 316 W at 4S

Published motor weight includes wire. Idle-current test voltage differs by winding as shown.

06 / In The Box

Three screw lengths included for compatible frames.

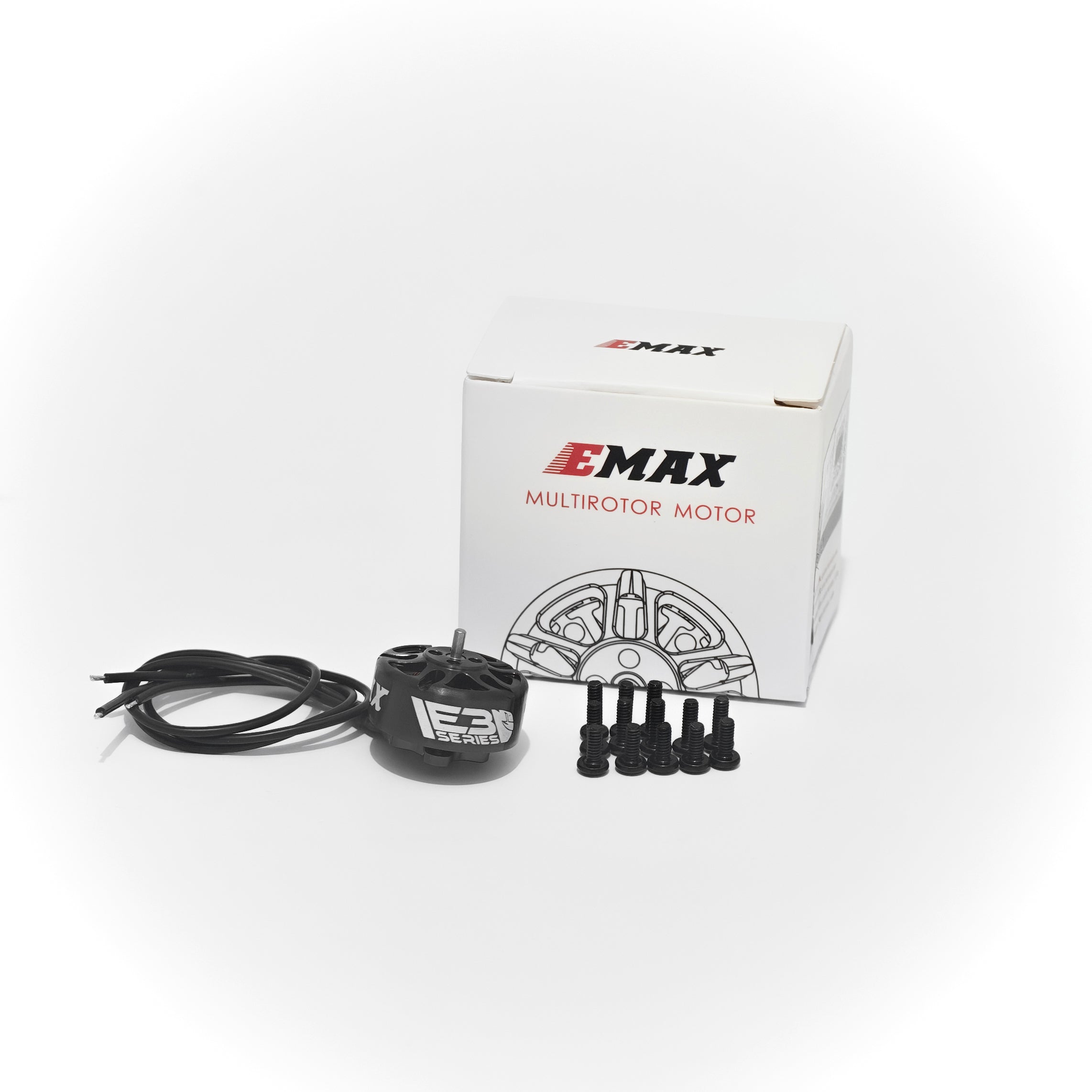

EMAX E3 1404 motor package with three sets of M2 mounting screws
  • 1 × E3 1404 motor
  • 5 × M2 × 5 mm screws
  • 5 × M2 × 6 mm screws
  • 3 × M2 × 6.5 mm screws

Bench-test note: Performance values are measured test data, not guaranteed aircraft-level performance. Current draw, thrust, efficiency, RPM and temperature vary with propeller, battery voltage and sag, ESC behavior, airflow, ambient conditions and test equipment. Higher KV, larger propellers and higher voltage increase system load; select the motor winding, propeller, ESC, battery and cooling for the complete aircraft.
