EMAX E3 1407 Brushless Motor

$19.99 USD Sold out
KV
Notes
EMAX / E3 SERIES

EMAX E3 1407

A lightweight 9N12P external-rotor motor for 3- to 4-inch FPV aircraft, offered in 2800KV, 3300KV and 4100KV configurations.

Built for high power that lasts.AL7075 anodized construction, N52SH arc magnets, NSK precision bearing support and published maximum power up to 413W.
Framework9N12PExternal-rotor architecture
Motor size19.1 × 29.8Millimeters
Weight15.4 gIncluding wire
Propeller range3–4 inVariant and setup dependent

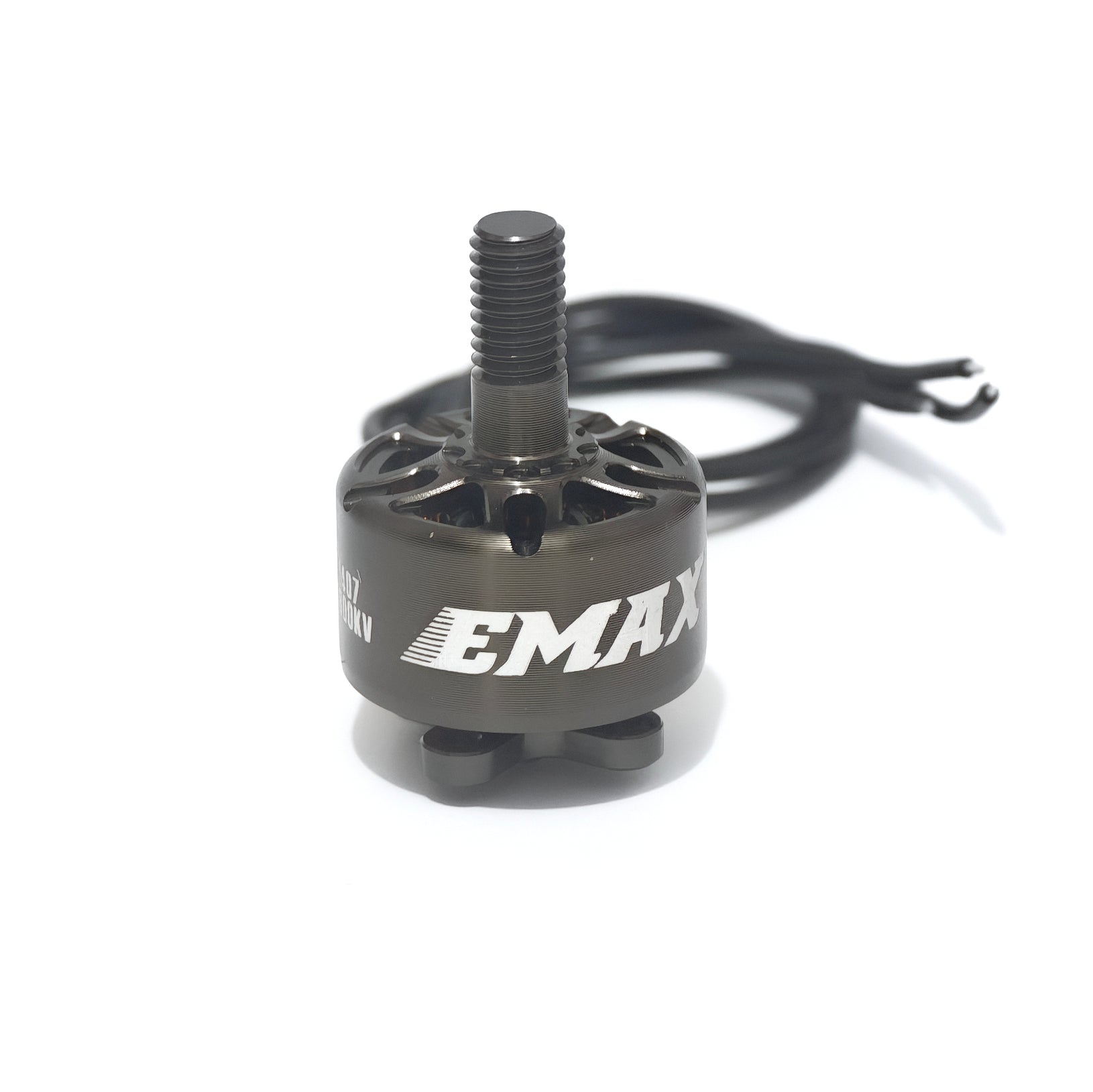

EMAX E3 1407 brushless FPV motor built for durable high-power operation
01 / Choose Your KV

Three windings for compact 3- to 4-inch builds.

Choose the winding around the complete aircraft, propeller, ESC, battery and cooling requirements.

2800KV4S · 3–4-inch propeller · up to 264W published maximum power
3300KV3–4S · 3–4-inch propeller · up to 360W published maximum power
4100KV3–4S · 3–4-inch propeller · up to 413W published maximum power
EMAX E3 1407 KV selection guide for 2800KV, 3300KV and 4100KV
02 / Maximum Bench Results

Highest recorded thrust in each supplied test sheet.

KV Test propeller Voltage Current Thrust Power RPM
2800KV HQ 4 × 3 × 3 16 V 15.51 A 589 g 248.16 W 26,505
3300KV HQ 4 × 3 × 3 16 V 22.52 A 691 g 360.32 W 28,707
4100KV HQ 3 × 4 × 3 16 V 24.5 A 603 g 392 W 40,802

Maximum-throttle bench results from the supplied EMAX load-test sheets. Results are configuration-dependent and are not guaranteed aircraft-level performance.

03 / Motor Construction

Compact components selected for durability and response.

The E3 1407 combines an AL7075 anodized housing, one-piece outer rotor, N52SH arc magnets, single-strand winding, steel shaft and NSK precision bearing support.

Exploded EMAX E3 1407 construction showing the anodized housing, outer rotor, arc magnets, winding and NSK precision bearing
04 / Platform Details

Lightweight 1407 geometry with a 12 × 12 mm mounting pattern.

Framework 9N12P
Overall dimensions Ø19.1 × 29.8 mm
Weight 15.4 g with wire
Propeller shaft M5 clockwise thread
Bearing shaft Ø2 mm
Stator height 7 mm
Mounting pattern 12 × 12 mm, four M2 holes
Leads 150 mm, 24 AWG silicone wire
AL7075 housingAnodized aluminum construction.
N52SH magnetsArc-magnet rotor specification.
NSK bearingPrecision bearing support.
Three power profiles2800KV, 3300KV and 4100KV.

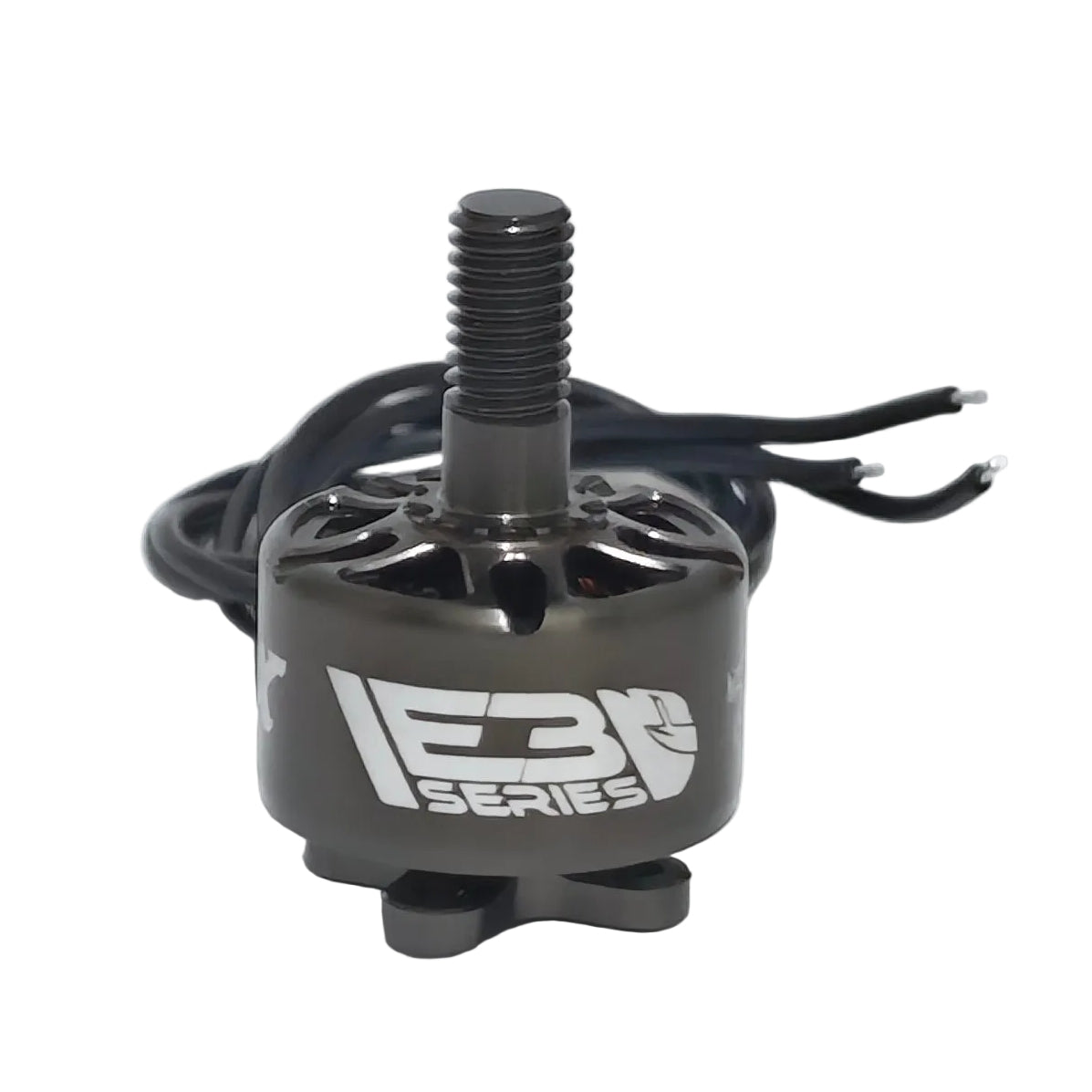

EMAX E3 Series compact high-performance FPV motor platform
05 / Electrical Specifications

Published limits by winding.

KV Cells Propeller Weight Idle current at 10 V Resistance Peak current Maximum power
2800KV 4S 3–4 in 15.4 g 0.8 A 190 mΩ 16.5 A at 4S 264 W at 4S
3300KV 3–4S 3–4 in 15.4 g 0.9 A 143 mΩ 22.5 A at 4S 360 W at 4S
4100KV 3–4S 3–4 in 15.4 g 1.3 A 98 mΩ 25.8 A at 4S 413 W at 4S

Published motor weight includes wire.

06 / Ready To Install

Two screw lengths included for compatible frames.

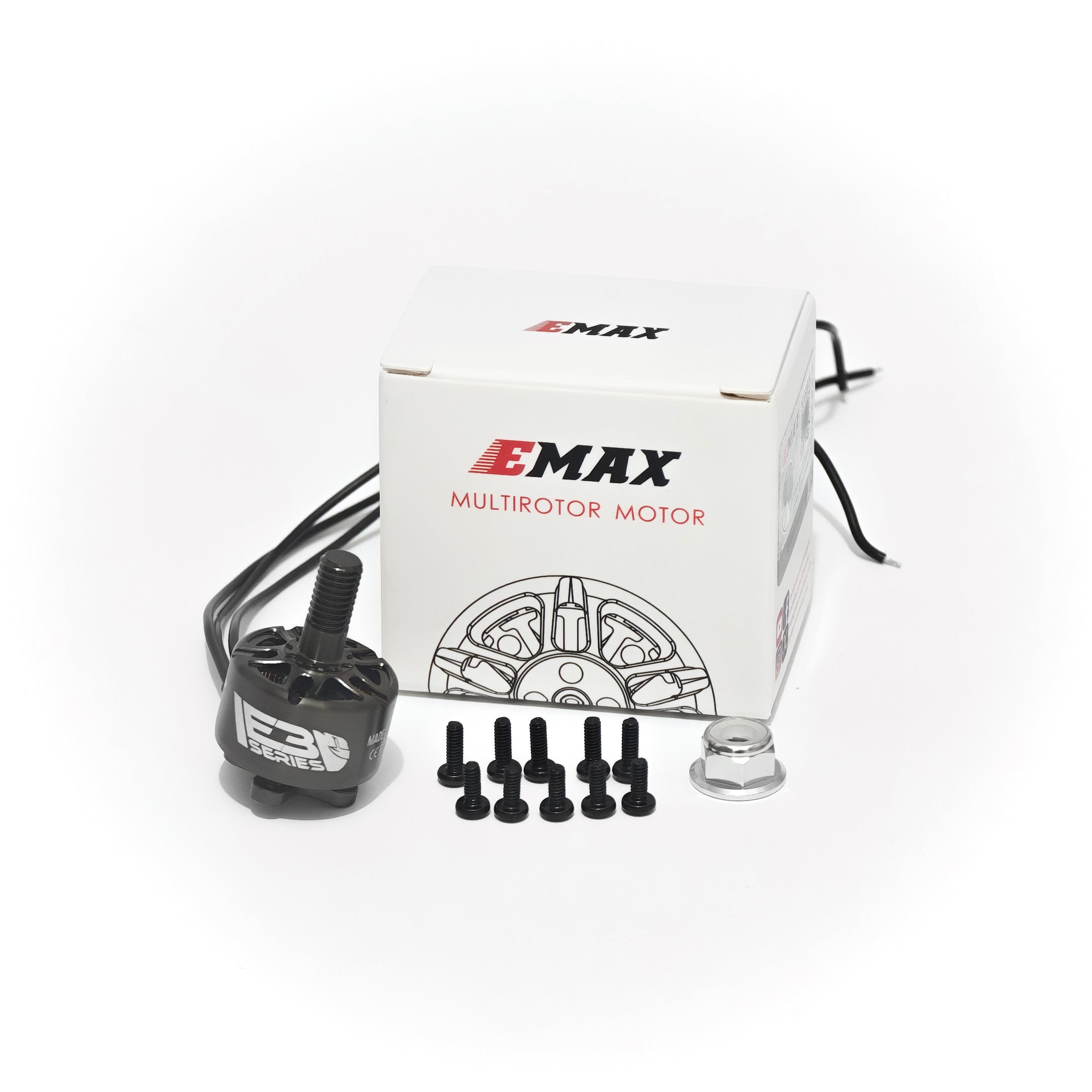

EMAX E3 1407 motor with M2 mounting screws and aluminum M5 nylock nut
  • 1 × E3 1407 motor
  • 5 × M2 × 5 mm screws
  • 5 × M2 × 6 mm screws
  • 1 × aluminum M5 nylock nut

Bench-test note: Performance values are measured test data, not guaranteed aircraft-level performance. Current draw, thrust, efficiency, RPM and temperature vary with propeller, battery voltage and sag, ESC behavior, airflow, ambient conditions and test equipment. Higher KV, larger propellers and higher voltage increase system load; select the motor winding, propeller, ESC, battery and cooling for the complete aircraft.
