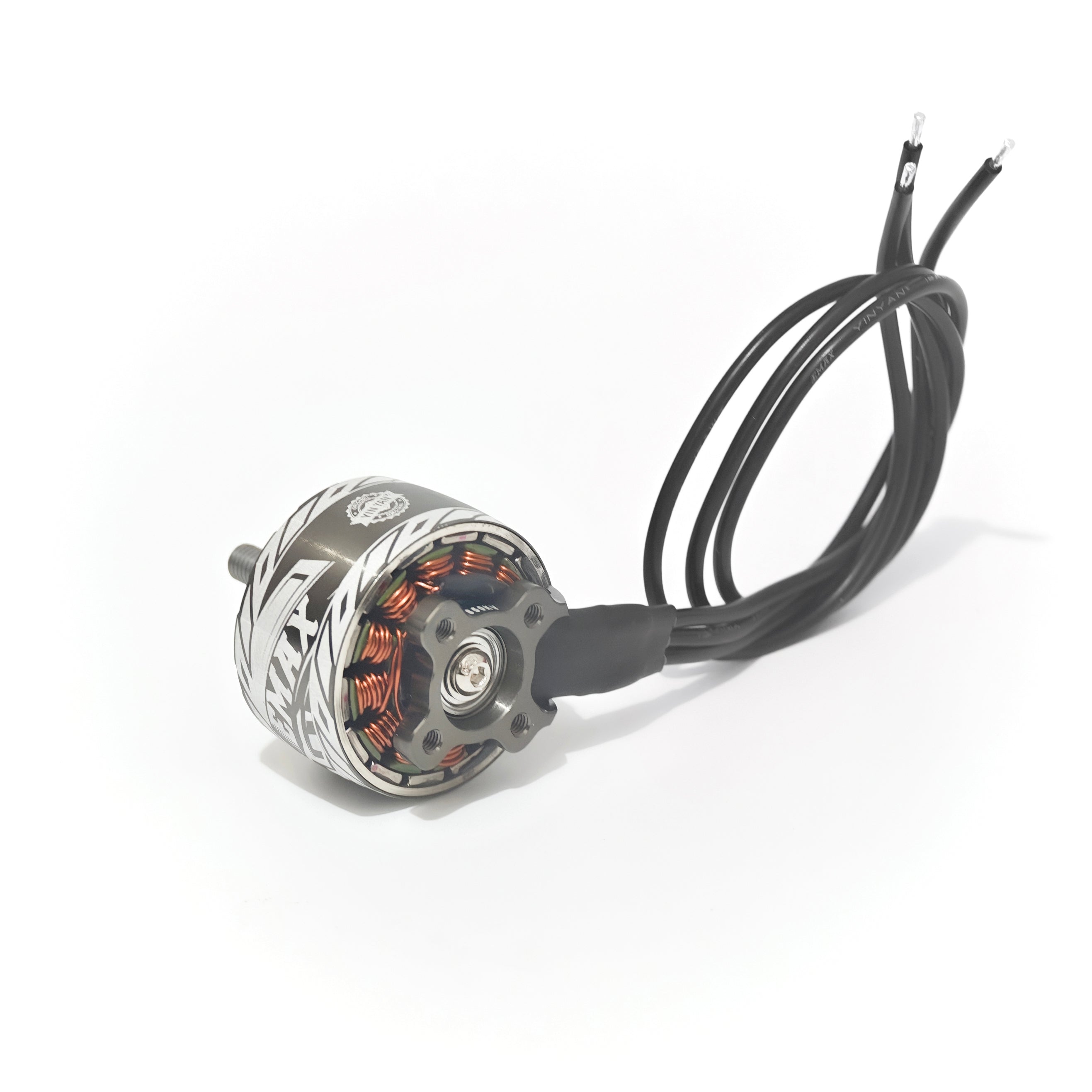

EMAX E3 2814 Brushless Motor

$37.99 USD Sold out

Product variants

Notes

EMAX / ECO III SERIES

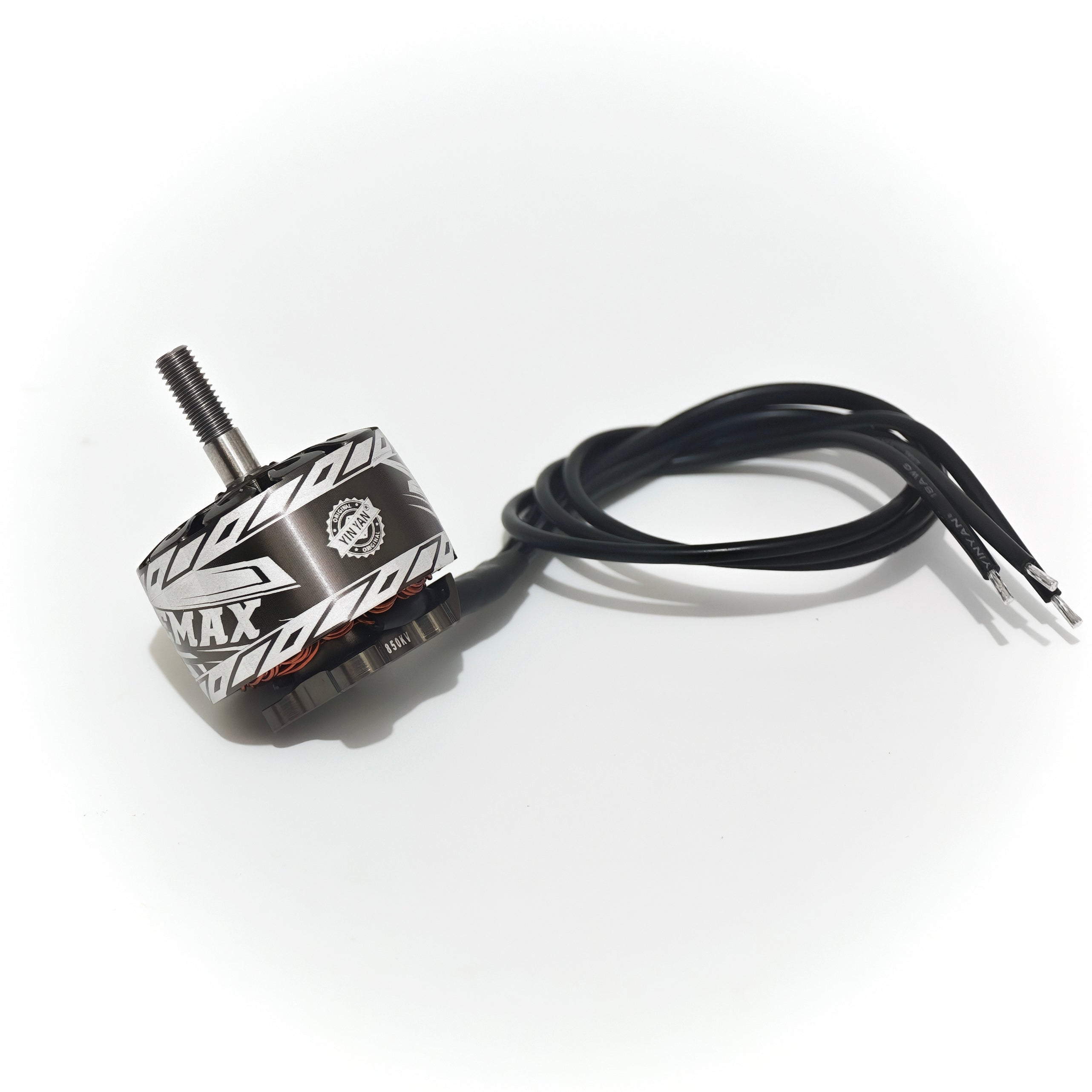

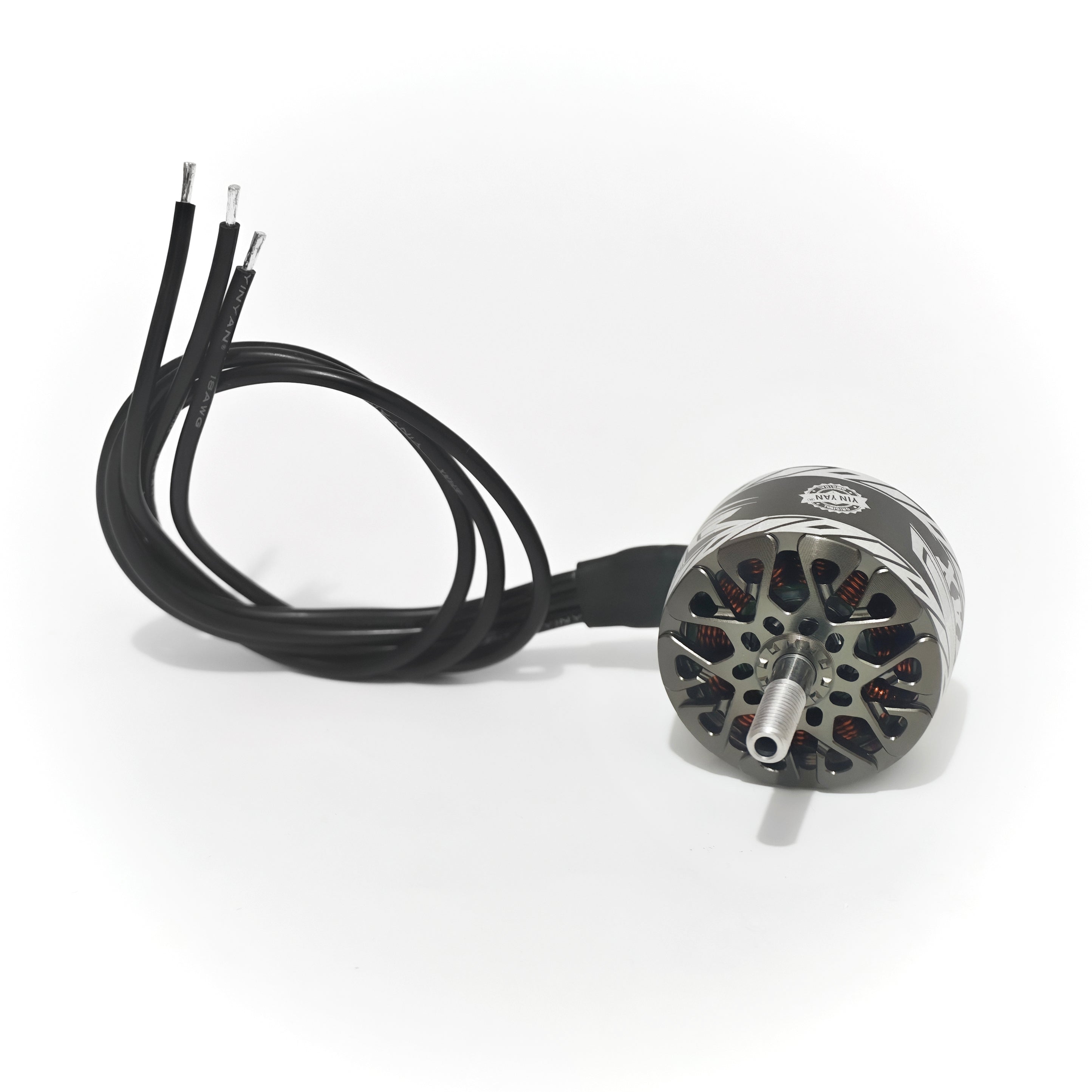

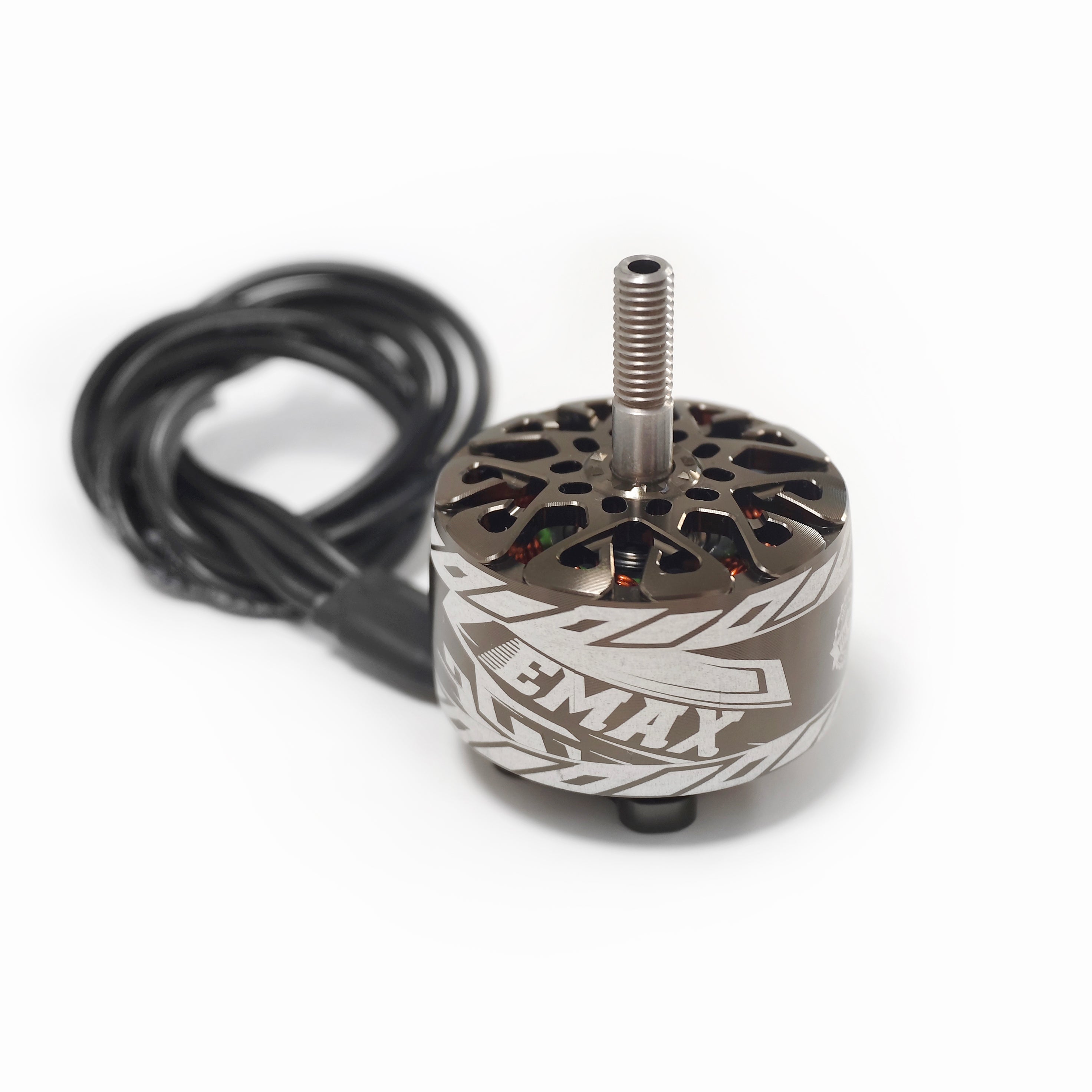

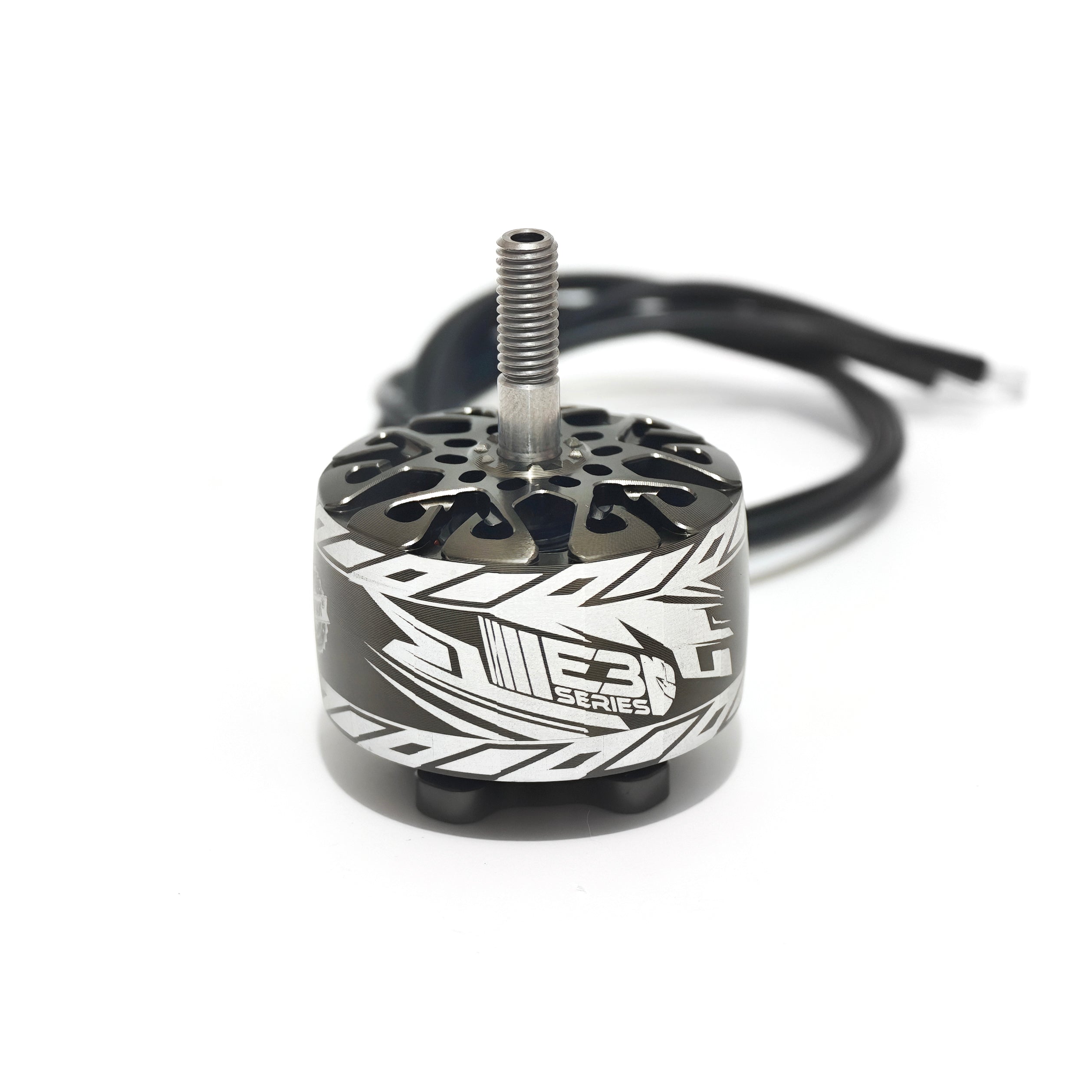

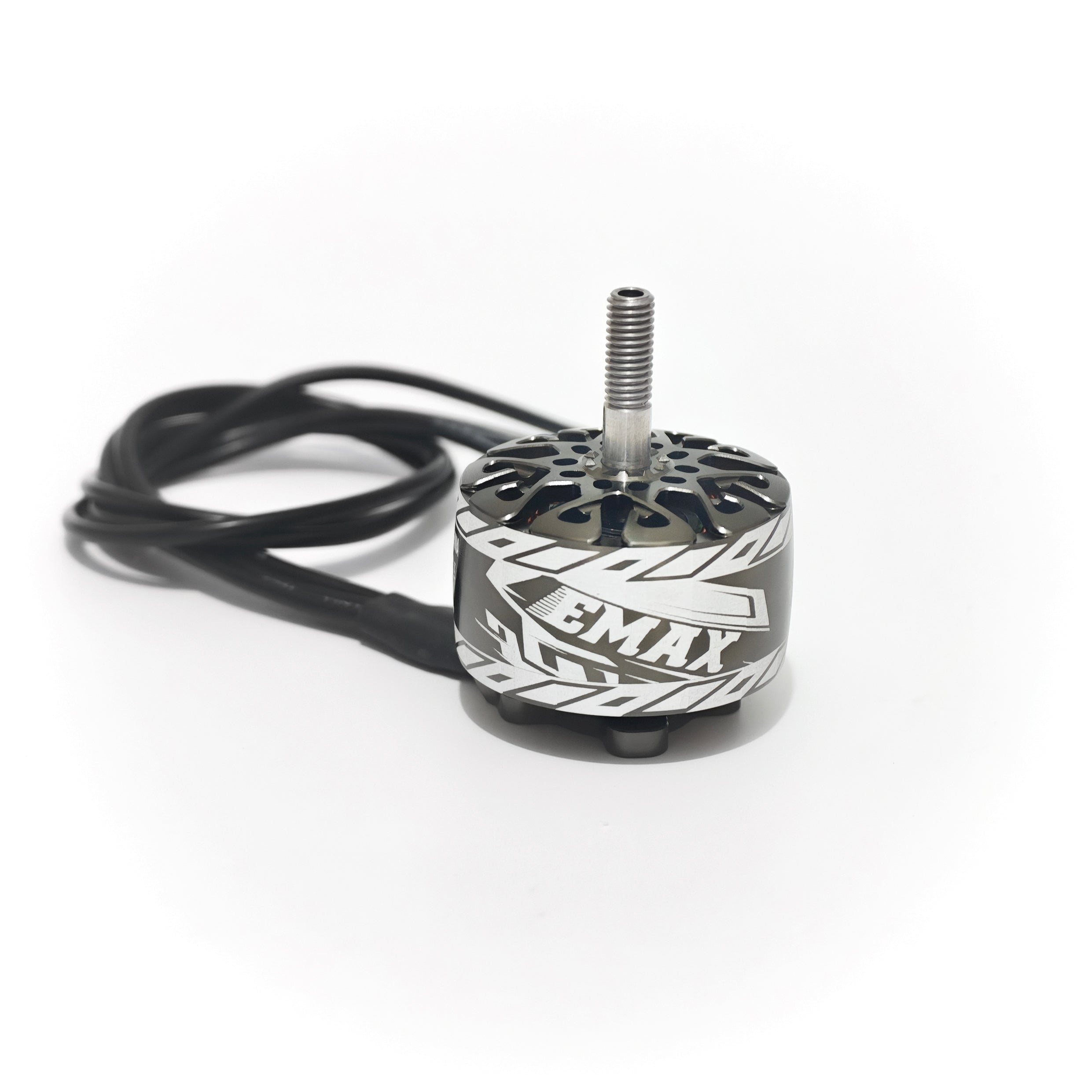

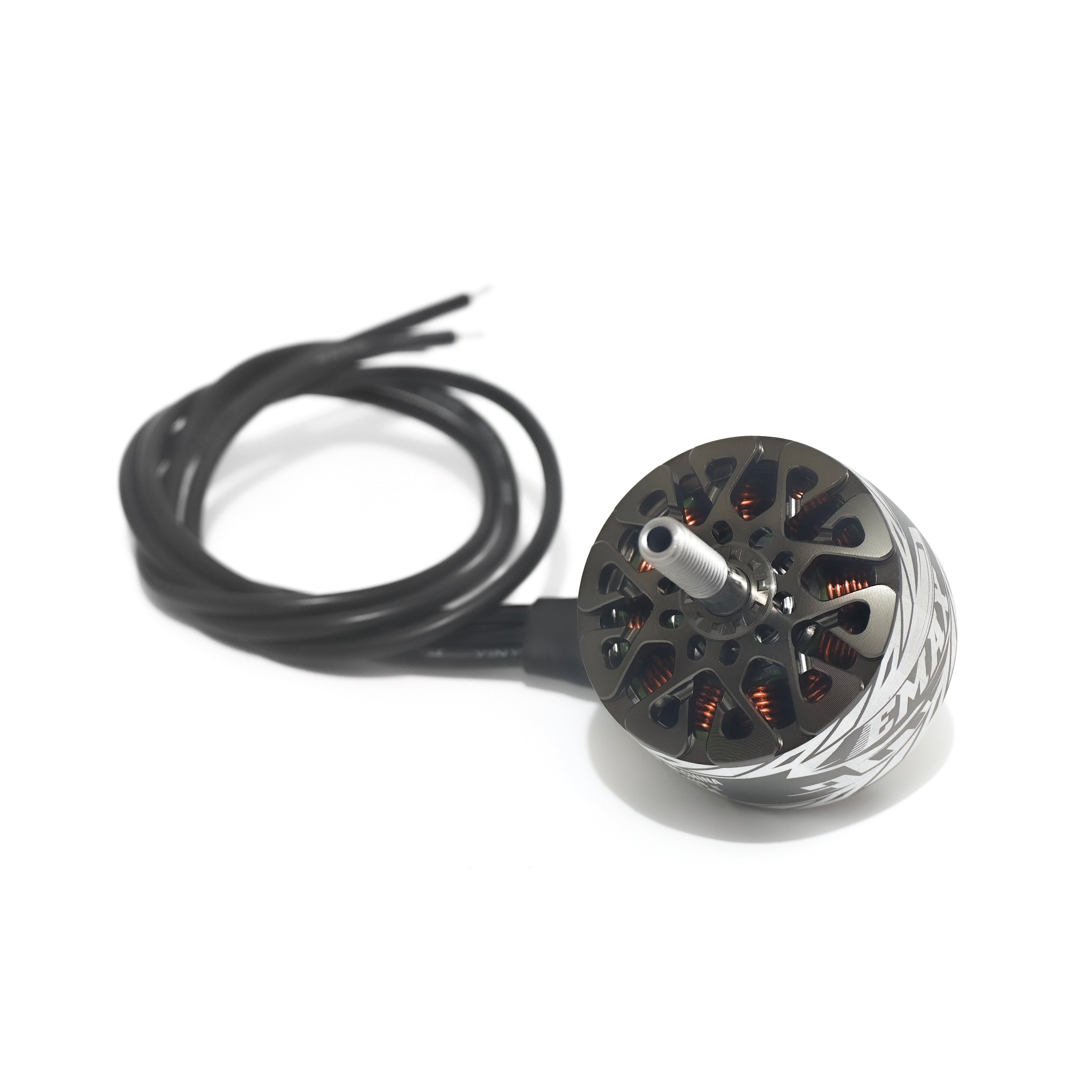

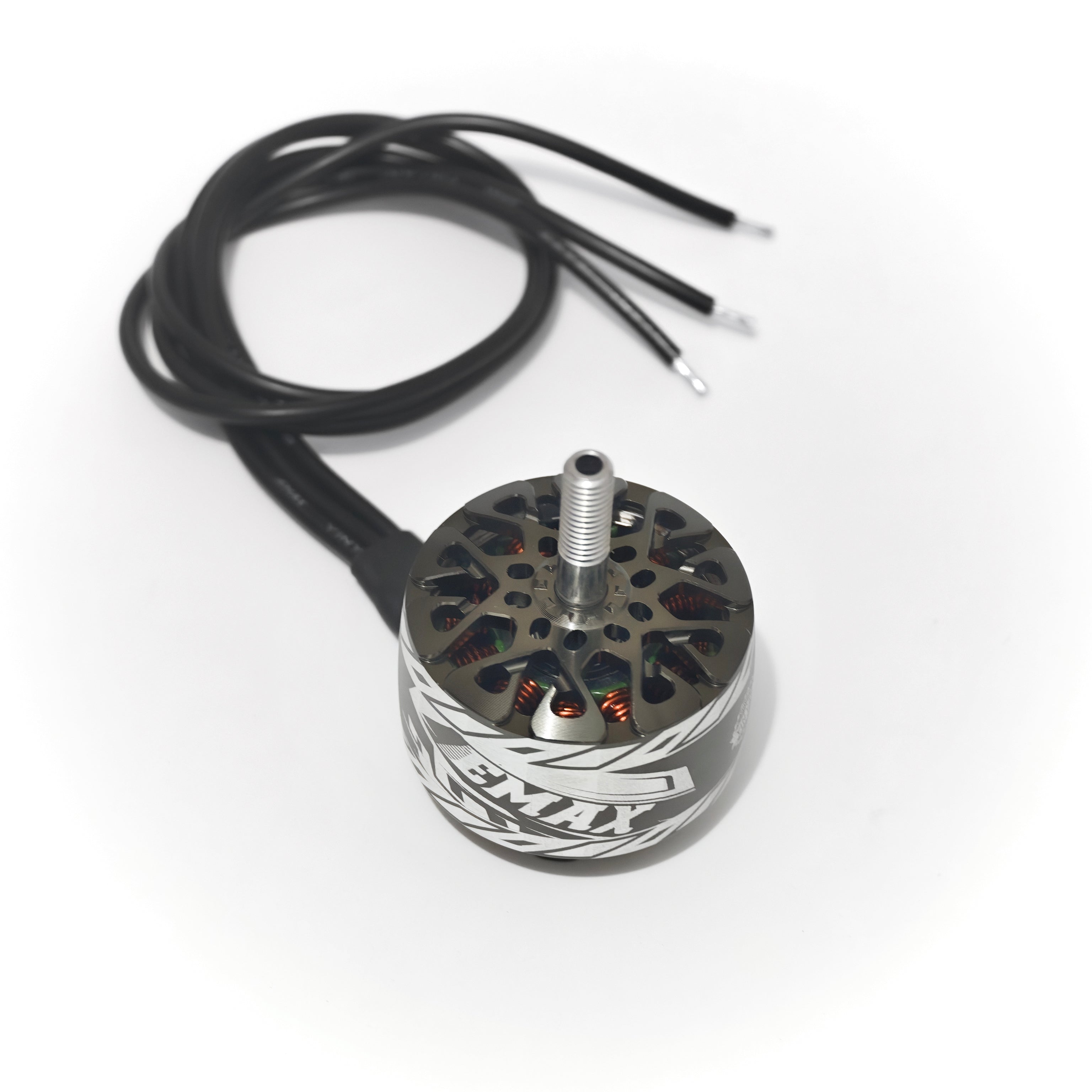

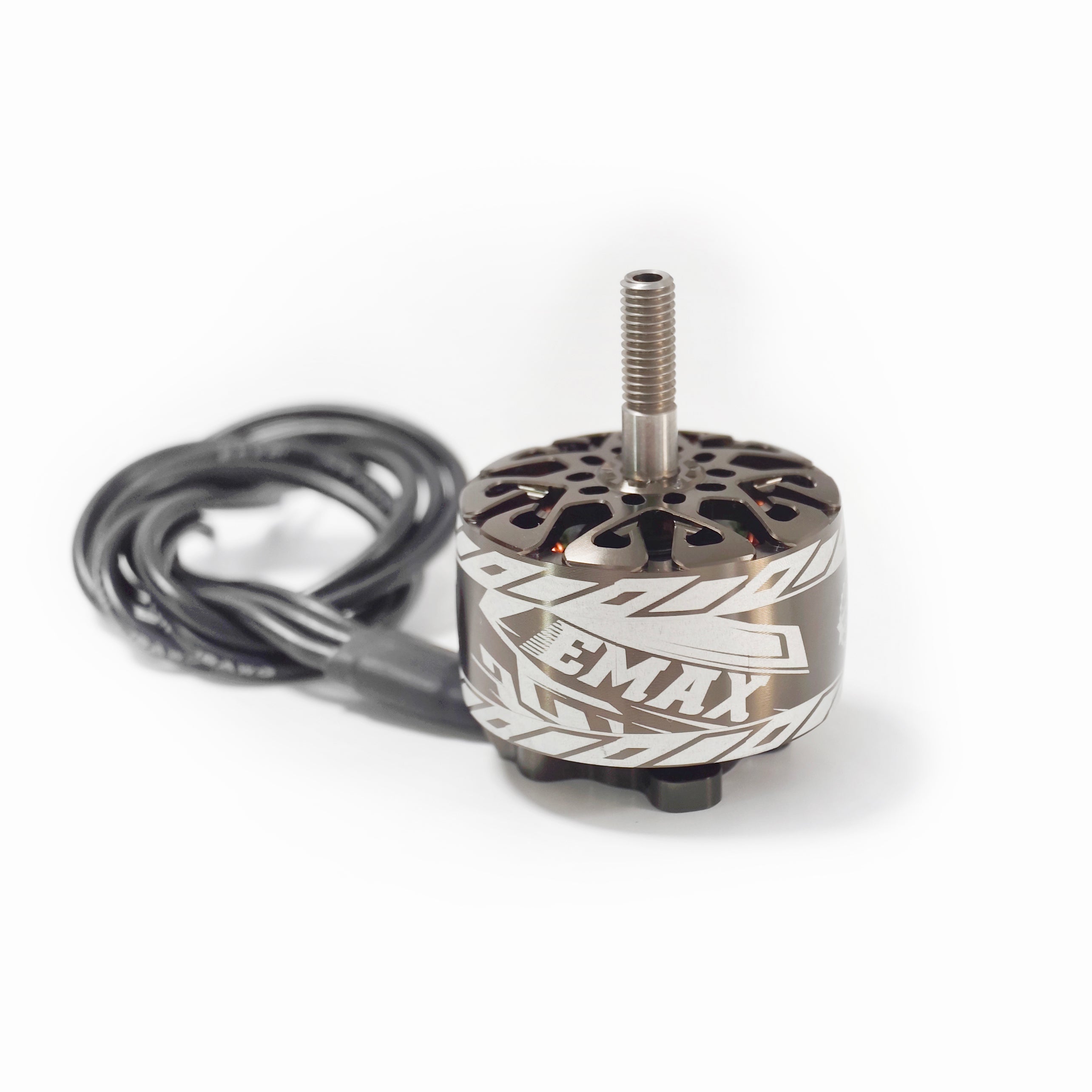

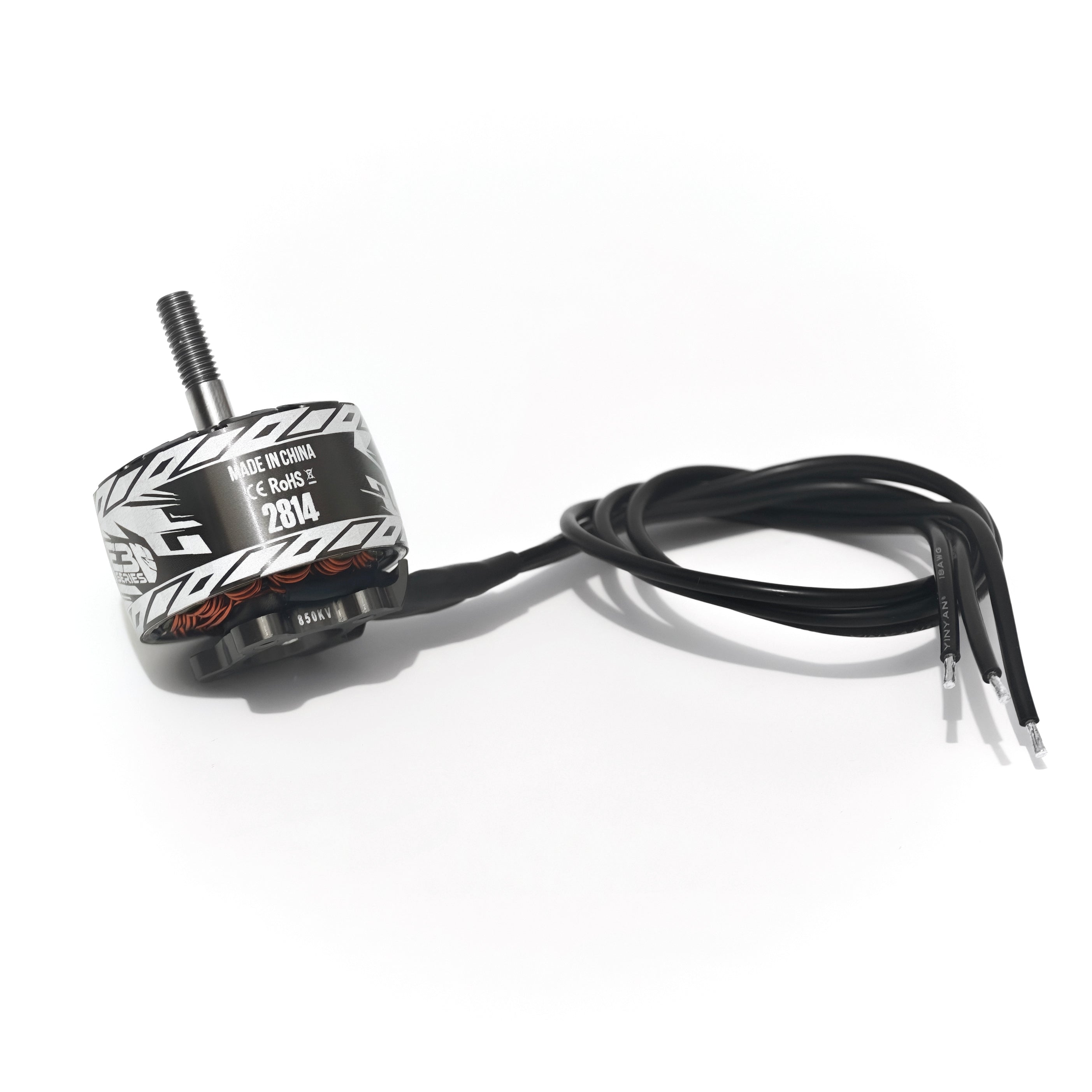

EMAX ECO III 2814

A compact 12N14P external-rotor platform for 8- to 10-inch FPV aircraft, available in 850KV and 1100KV for controlled torque or agile response.

Built for high power that lasts.AL7075 anodized construction, steel shaft, precision bearing support, 3–6S operation and verified peak output up to 1,895W.

Framework12N14PExternal-rotor architecture

Motor size35.1 × 45.5Millimeters

Weight range81–82 gWithout silicone wire

Propeller range8–10 inVariant dependent

01 / Choose Your KV

Two windings for 3S through 6S systems.

Choose the winding around the complete aircraft, propeller, ESC, battery and cooling requirements.

850KV3–6S · 9–10-inch propeller · up to 1,460W

1100KV3–6S · 8–9-inch propeller · up to 1,895W

EMAX ECO III 2814 KV selection guide for 850KV and 1100KV

02 / Maximum Bench Results

Highest recorded thrust in each supplied test sheet.

KV	Test propeller	Voltage	Current	Thrust	Power
850KV	GF 10×5×3	25 V	58.4 A	3940 g	1460 W
1100KV	GF 9×4.5×3	25 V	75.8 A	4080 g	1895 W

Maximum-throttle bench results from the supplied EMAX load-test sheets. Results are configuration-dependent and are not guaranteed aircraft-level performance.

03 / Motor Construction

Material choices focused on durability and response.

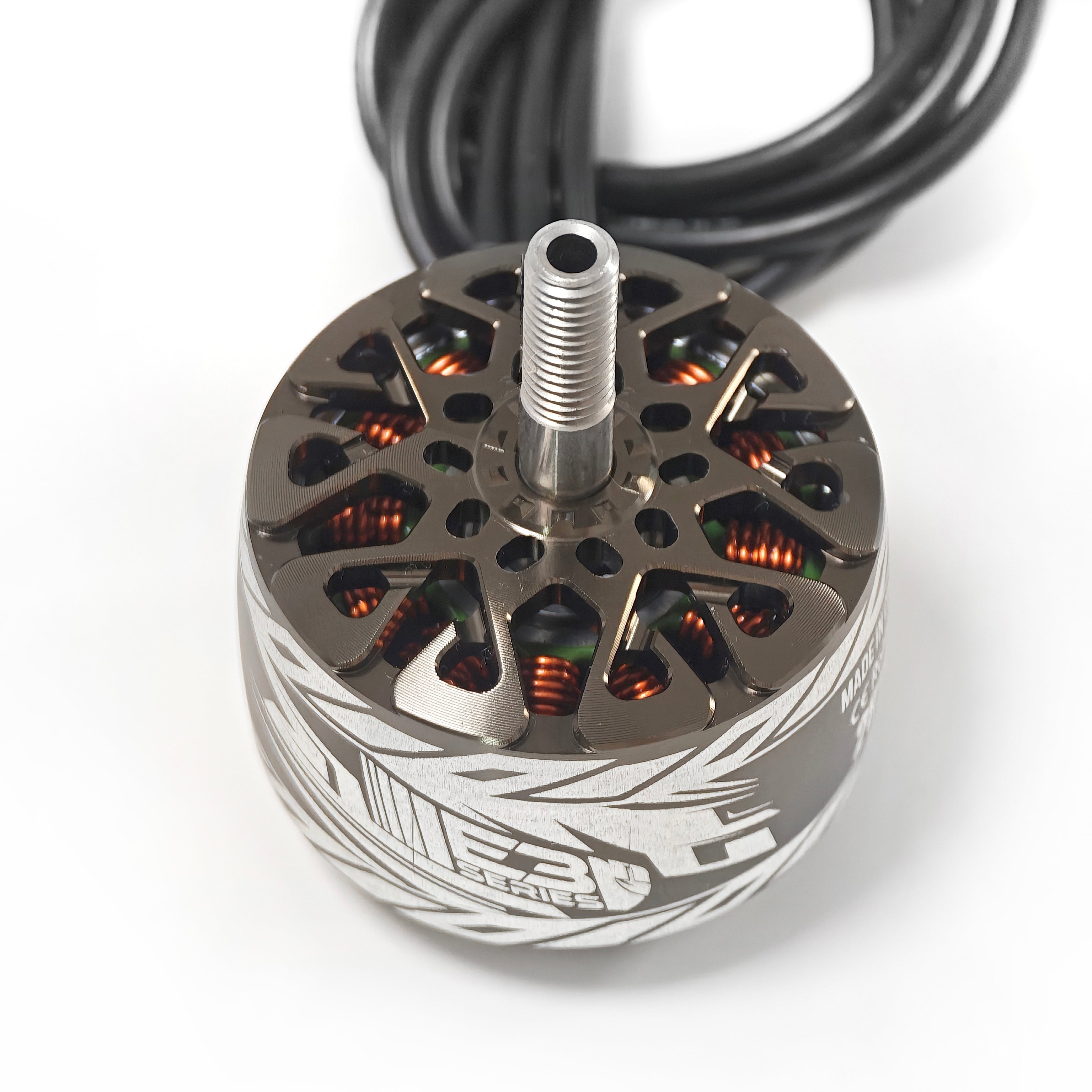

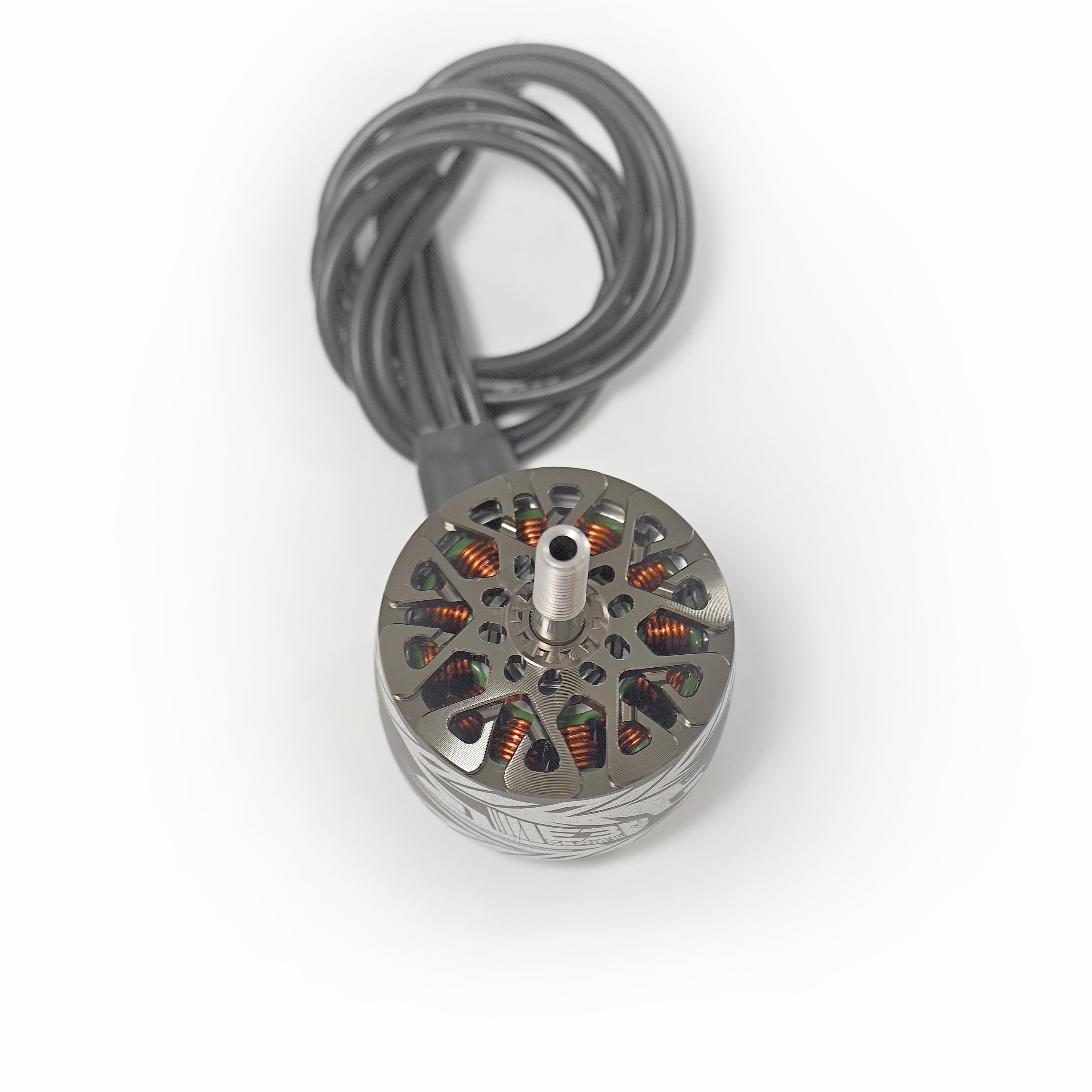

The ECO III 2814 combines an AL7075 anodized housing, steel shaft, single-strand copper winding and G1-level precision bearing support in a compact external-rotor platform.

Exploded EMAX ECO III 2814 construction showing steel shaft, anodized housing, 12N14P stator, copper winding and precision bearing

04 / Platform Details

Compact 2814 geometry with a 19 × 19 mm mounting pattern.

Framework	12N14P
Overall dimensions	Ø35.1 × 45.5 mm
Variant weight	81–82 g without silicone wire
Propeller shaft	M5 clockwise thread
Bearing shaft	5 mm
Mounting pattern	19 × 19 mm, M3
Leads	270 mm, 18 AWG silicone wire

AL7075 housingAnodized aluminum rotor construction.

Steel shaftM5 clockwise propeller thread.

Precision bearingG1-level rolling-element specification.

Two power profiles850KV and 1100KV.

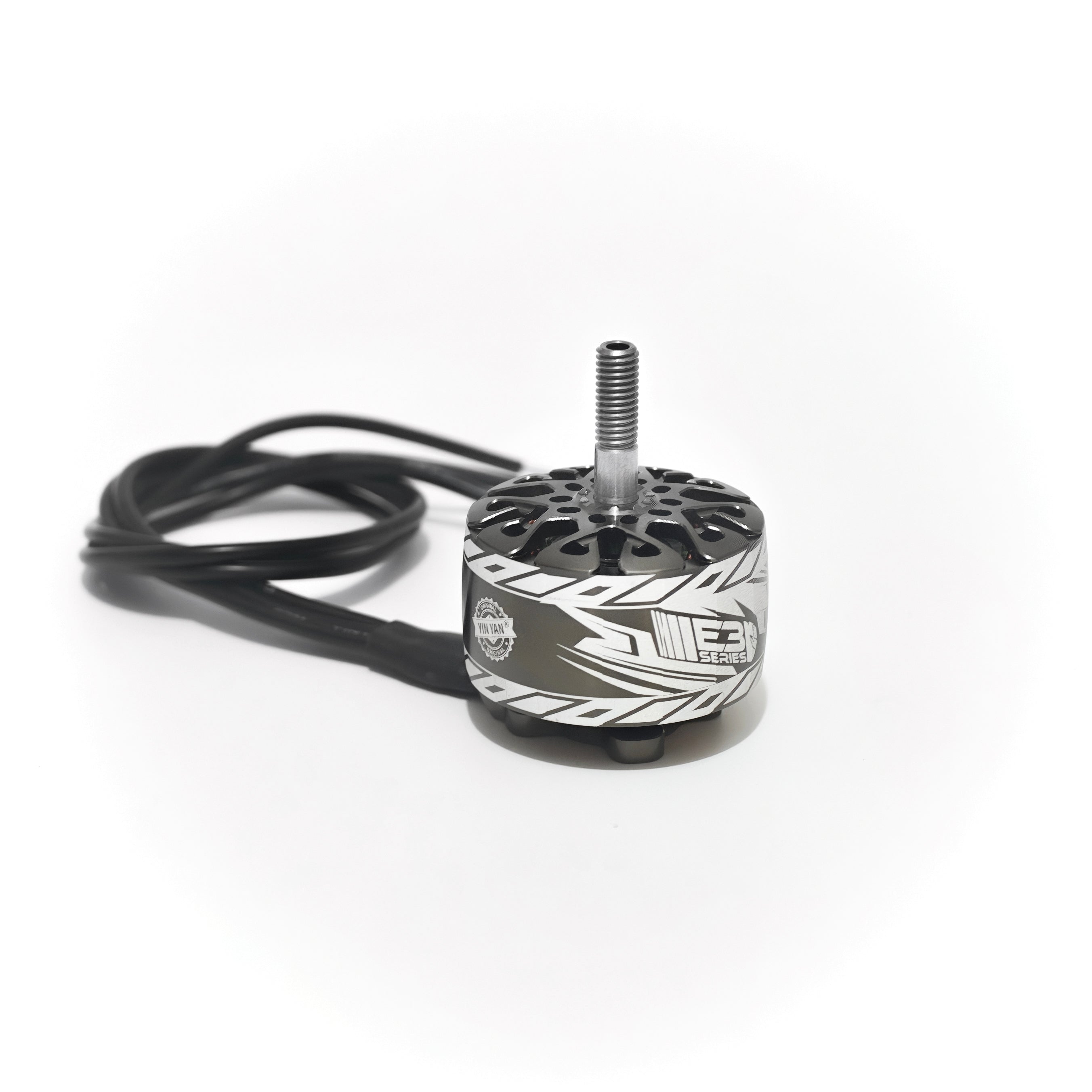

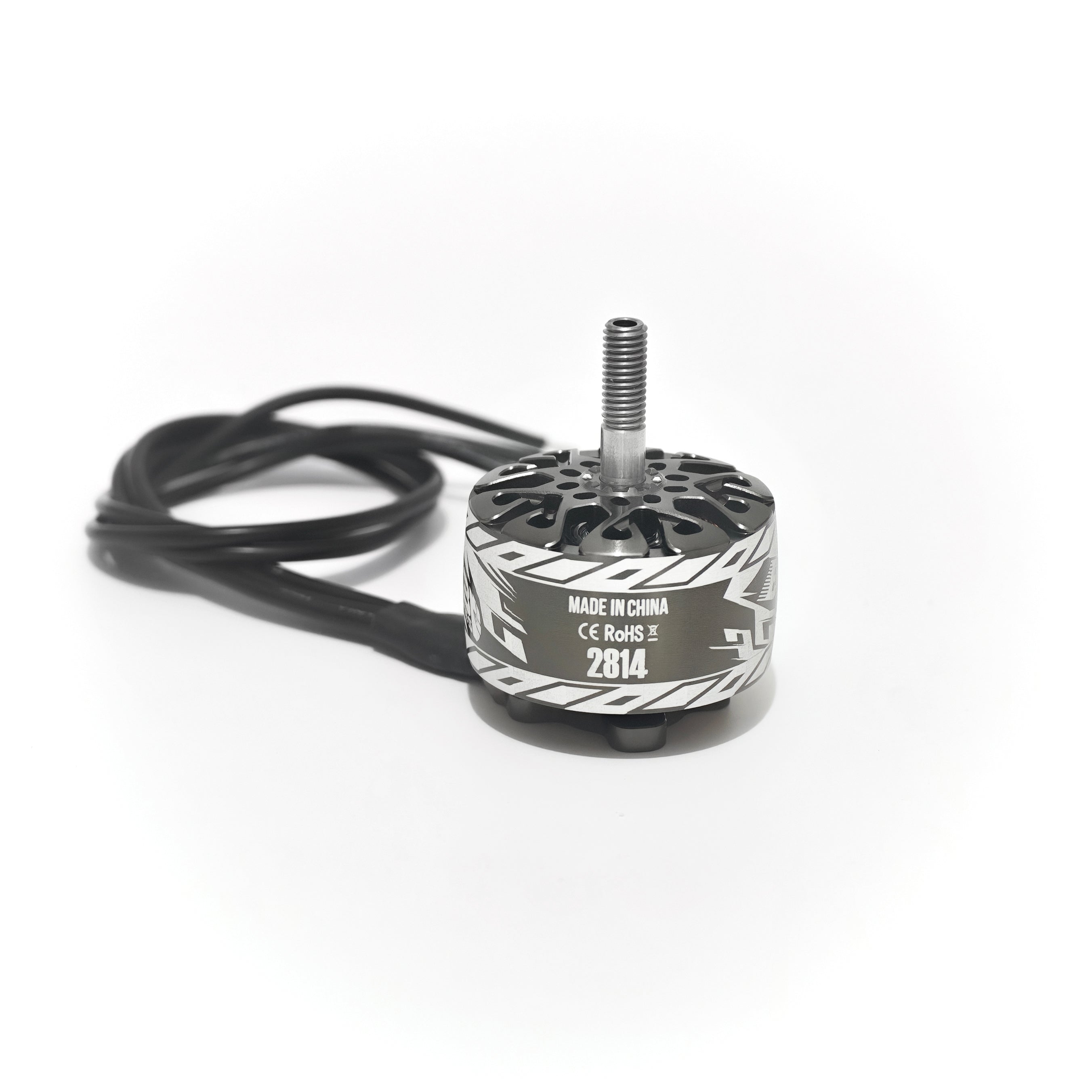

EMAX ECO III 2814 compact high-performance FPV motor platform

05 / Electrical Specifications

Published limits by winding.

KV	Cells	Propeller	Weight	Idle current at 10 V	Resistance	Peak current	Maximum power
850KV	3–6S	9–10 in	82 g	1.3 A	61 mΩ	58.4 A at 6S	1460 W at 6S
1100KV	3–6S	8–9 in	81 g	1.8 A	45 mΩ	75.8 A at 6S	1895 W at 6S

Weights exclude silicone wire.

06 / In The Box

Installation hardware included.

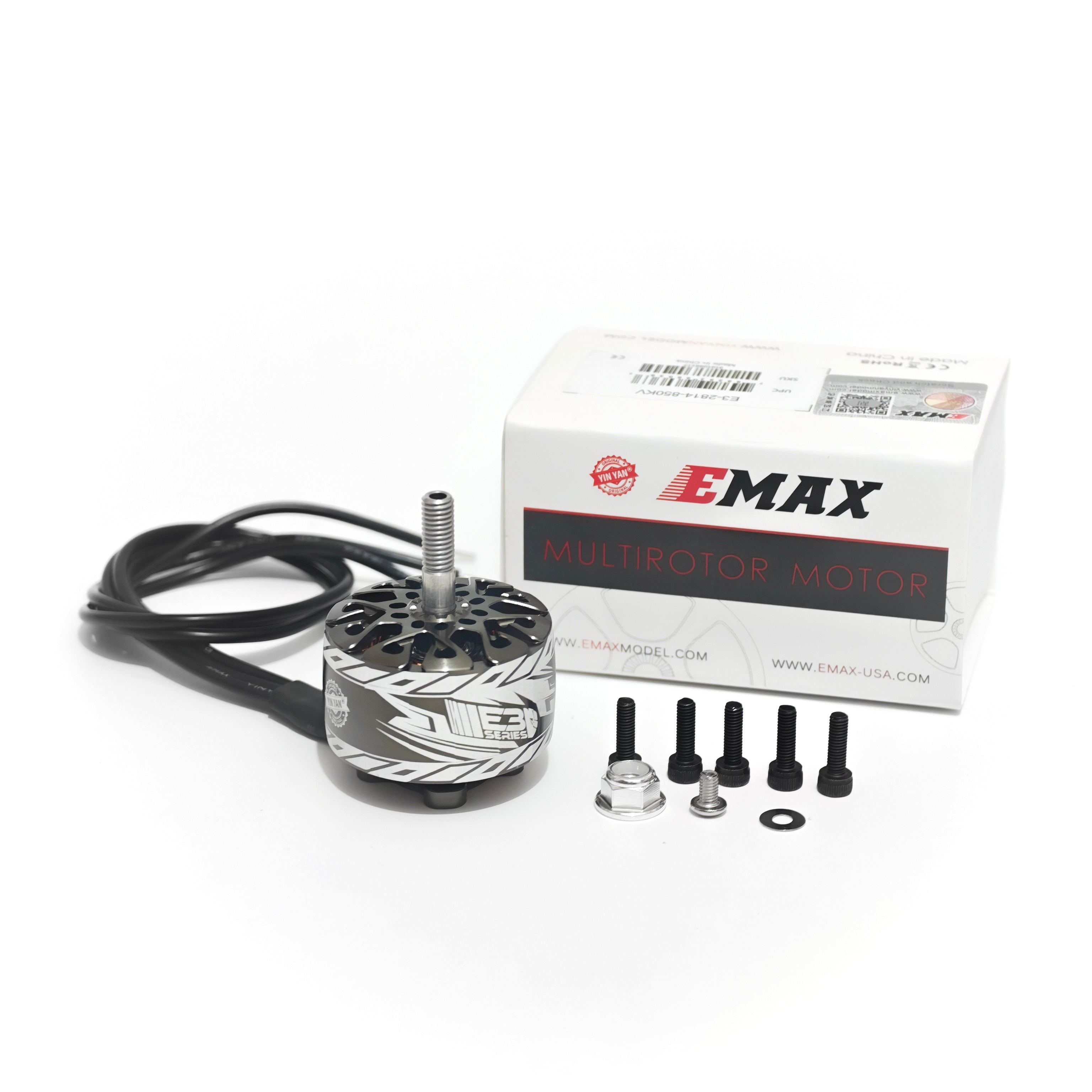

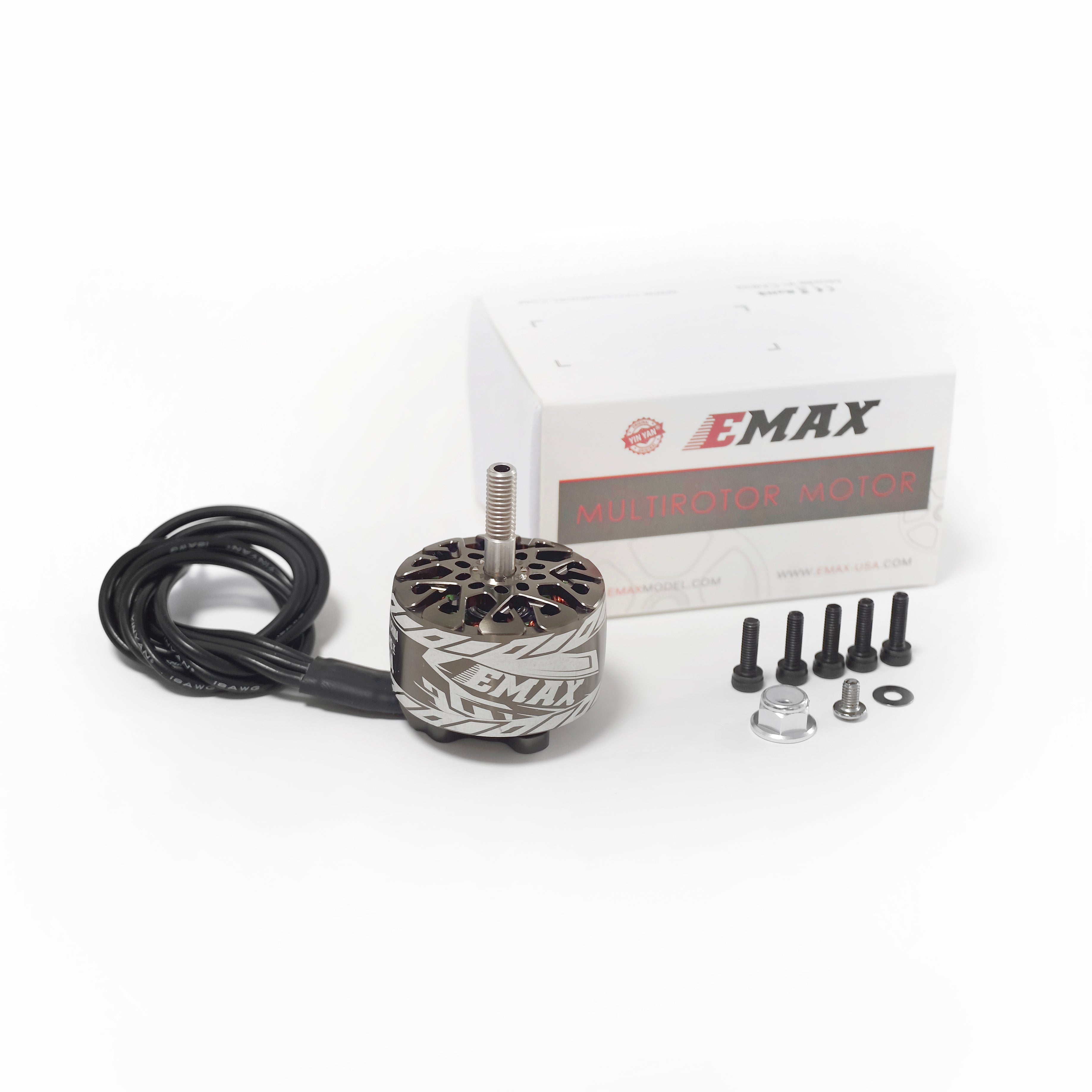

EMAX ECO III 2814 motor with five M3 mounting screws, aluminum M5 nylock nut, shaft screw and washer

1 × ECO III 2814 motor
5 × M3 × 10 mounting screws
1 × aluminum M5 nylock nut
1 × shaft screw
1 × washer
