360KV
6S–8S / 13–15-inch props
Idle current1.2A @ 10V
Resistance53mΩ
Published peak63.5A / 2992W
Bench: 7.962kg at 47.09V, GF1308 three-blade.
Emax USA
EMAX ECOII 4315 Brushless Motor
$38.99 USD
/
Sold out
Couldn't load pickup availability
ECO II SERIES / LARGE MULTIROTOR POWER
Brushless Motor Platform

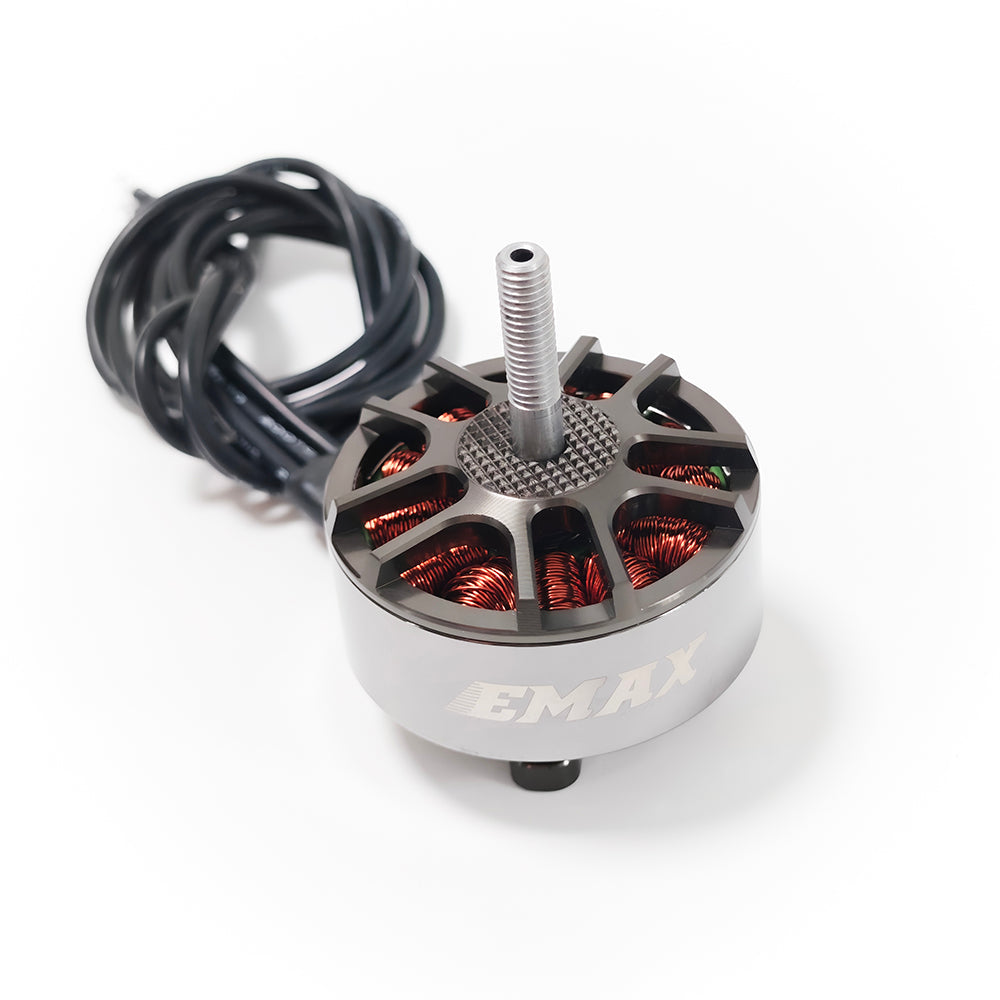

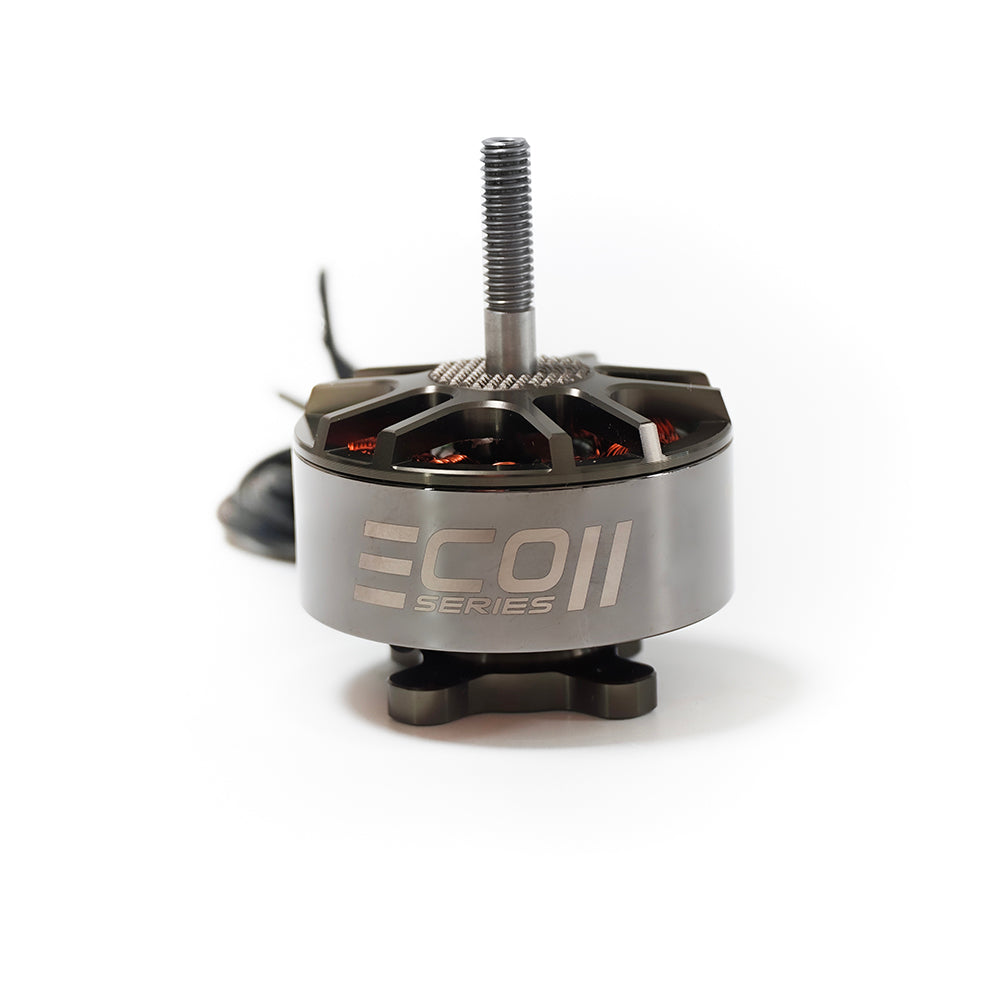

EMAX ECO II 4315

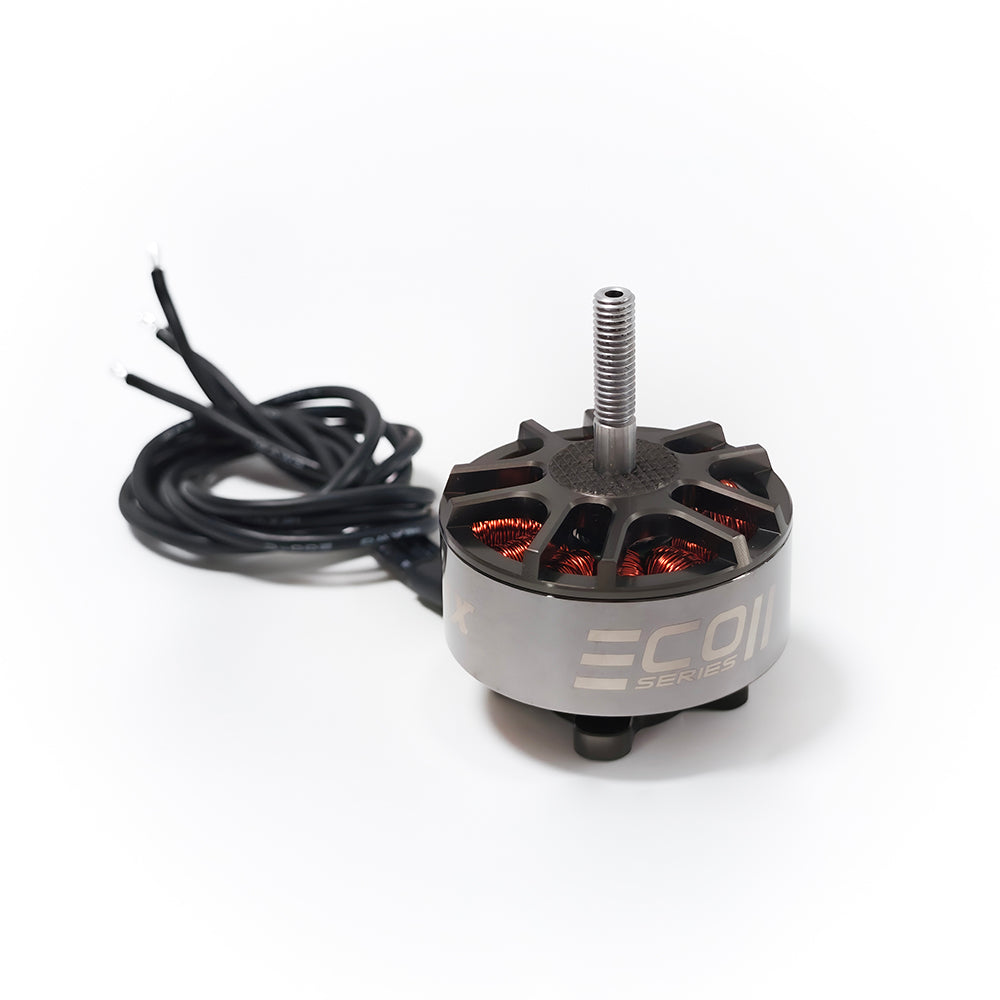

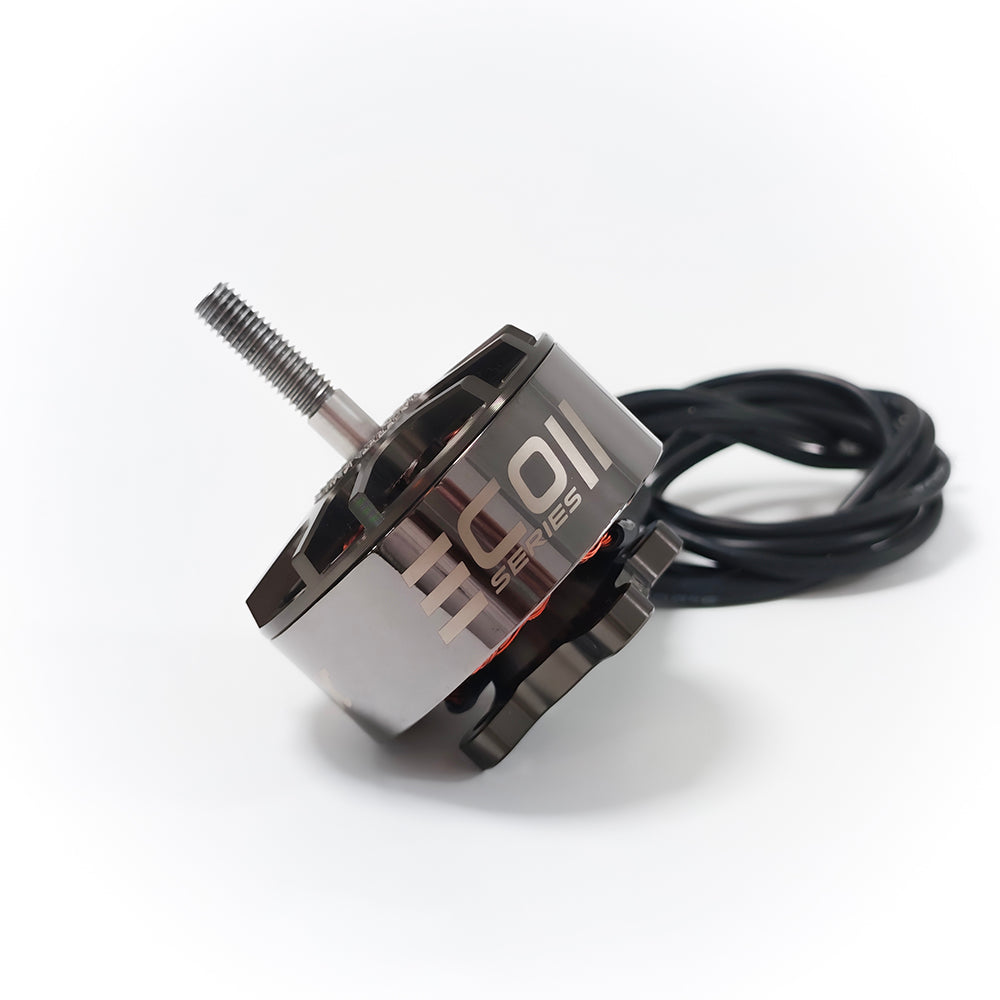

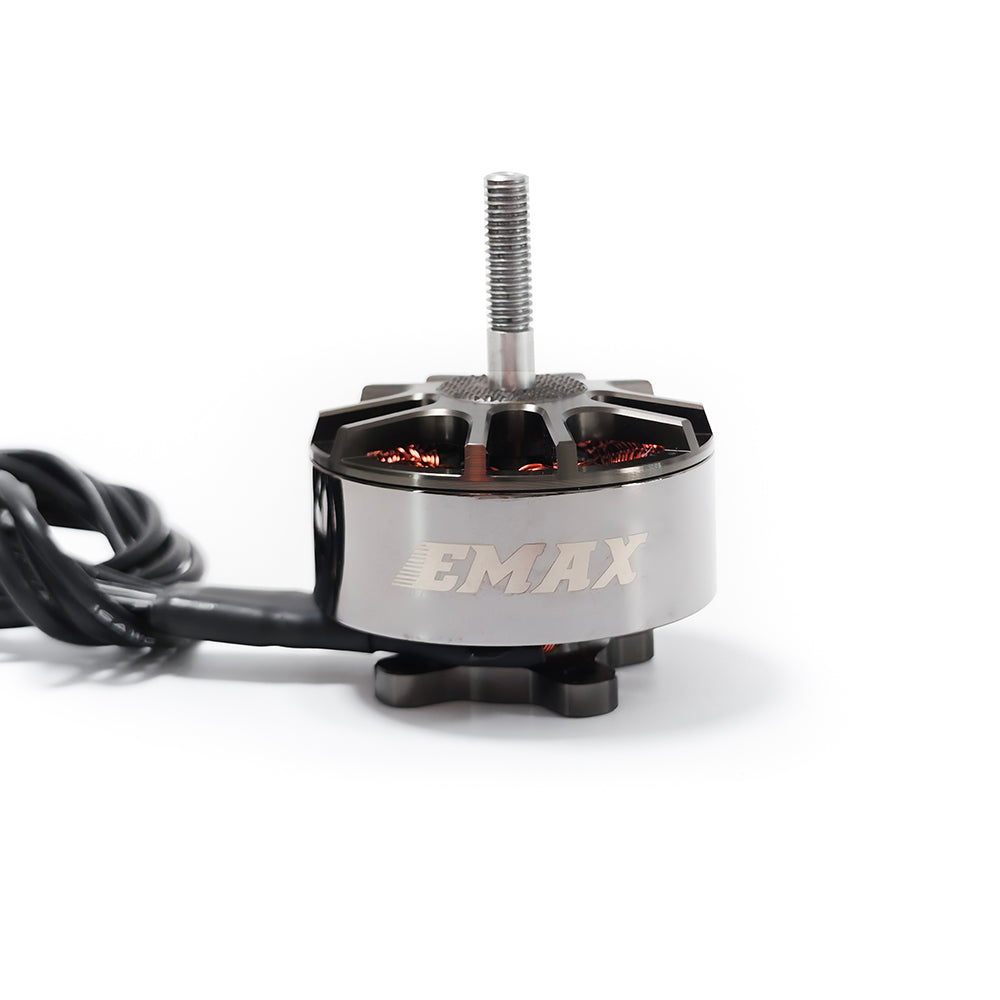

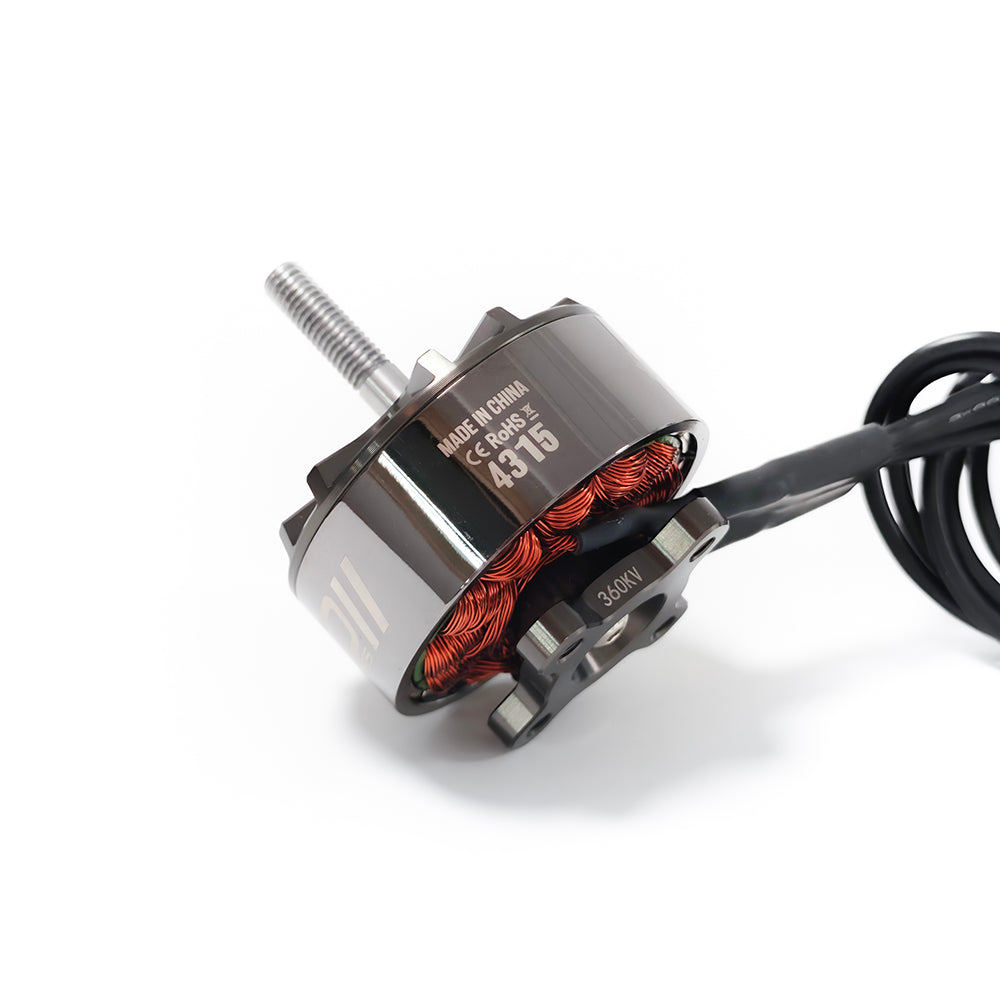

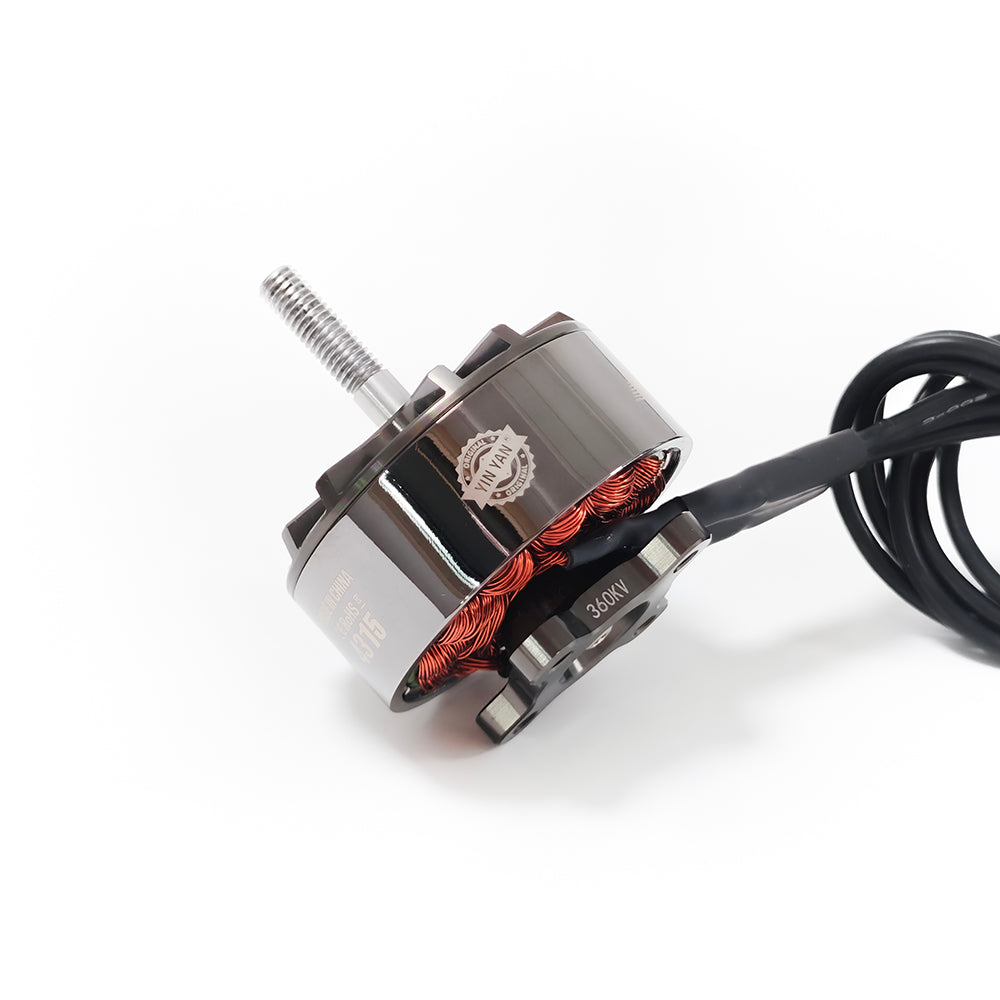

The EMAX ECO II 4315 is a high-efficiency large brushless outrunner for 13- to 15-inch long-range FPV, heavy-lift multirotors and cinematic aircraft. Four windings—360KV, 380KV, 450KV and 520KV—cover published 6S through 8S applications around a 12N14P architecture, M6 propeller shaft and four-hole 30 × 30mm airframe mount.
Four KV options. One 4315 platform.360KV / 380KV / 450KV: 6S–8S520KV: 6SPublished propeller range: 13–15 inches
Motor weight245gIncluding 400mm leads
Motor sizeØ50.6mm63.7mm overall length
Mount30 × 30mmExactly four M4 holes
Framework12N14PLarge outrunner architecture
Four practical power profiles. Official EMAX bench sheets recorded up to 7.962kg of thrust across 360KV, 380KV, 450KV and 520KV windings.
01 / KV Selection
Match winding, voltage and propeller load.
Published application guidance and maximum-throttle highlights come from the official ECO II 4315 sheets.
380KV
6S–8S / 13–15-inch props
Idle current1.3A @ 10V
Resistance51mΩ
Published peak72.9A / 2352W
Bench: 7.579kg at 32.27V, HQ1507 three-blade.
450KV
6S–8S / 13-inch props
Idle current1.6A @ 10V
Resistance43mΩ
Published peak75.4A / 2428W
Bench: 6.919kg at 32.24V, HQ1308 three-blade.
520KV
6S / 13-inch props
Idle current1.9A @ 10V
Resistance37mΩ
Published peak74.6A / 1792W
Bench: 5.420kg at 24.02V, HQ1310 three-blade.
02 / Performance Envelope
Maximum recorded thrust by winding.
03 / Construction
Large-outrunner hardware with precision support.
01 / SHAFT
Steel M6 Shaft
A CW-threaded M6 propeller interface and 6mm bearing section support the rotating assembly.
02 / ROTOR
Anodized Rotor Bell
The rigid outer bell surrounds a full-height 14-pole permanent-magnet ring.
03 / STATOR
12-Slot Wound Stator
Dense multi-strand copper windings form the fixed 12-slot stator.
04 / BEARING
Precision Bearing
Concentric bearing support promotes smooth rotation under sustained load.

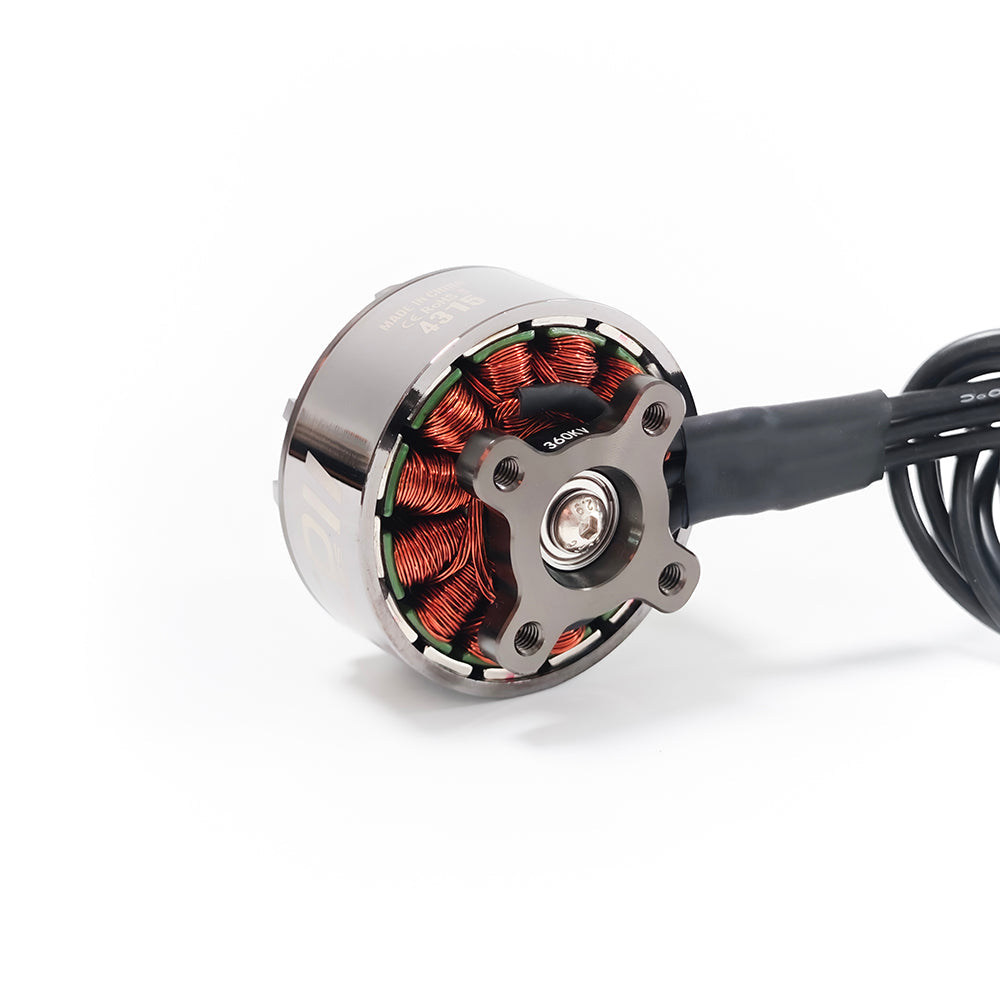

05 / MOUNT
Four-Hole Mount
The 30 × 30mm base has exactly four M4 airframe mounting holes.
06 / LEADS
400mm 16 AWG Leads
Long silicone motor leads provide routing flexibility in large aircraft.
04 / Mechanical Data
4315 geometry and installation details.
| Motor model | EMAX ECO II 4315 |
|---|---|
| Framework | 12N14P |
| Motor diameter | Ø50.6mm |
| Overall length | 63.7mm |
| Weight | 245g with wire |
| Bearing shaft | Ø6mm |
| Propeller shaft | M6 CW thread |
| Mounting pattern | 30 × 30mm, four M4 holes |
| Motor leads | 400mm 16 AWG silicone wire |
| Propeller range | 13–15 inches, KV-dependent |
One platform, four power profiles.
The shared 4315 package lets builders select a winding without changing the four-hole airframe interface.
The official drawing specifies 50.6mm diameter, 63.7mm overall length and a 30 × 30mm four-M4 mounting pattern.
Installation: Confirm frame clearance, screw engagement, propeller retention, ESC headroom and cooling.
05 / Electrical Specifications
KV-specific published limits.
| KV | Cells | Propeller | Idle current | Resistance | Peak current | Max power |
|---|---|---|---|---|---|---|
| 360KV | 6S–8S | 13–15" | 1.2A @ 10V | 53mΩ | 63.5A | 2992W |
| 380KV | 6S–8S | 13–15" | 1.3A @ 10V | 51mΩ | 72.9A | 2352W |
| 450KV | 6S–8S | 13" | 1.6A @ 10V | 43mΩ | 75.4A | 2428W |
| 520KV | 6S | 13" | 1.9A @ 10V | 37mΩ | 74.6A | 1792W |
06 / Bench Data
Maximum-throttle load-test highlights.
360KV test highlightsThree propellers
| Voltage | Propeller | Current | Thrust | Power | Efficiency | RPM |
|---|---|---|---|---|---|---|
| 47.09V | GF1308, 3-blade | 63.53A | 7,962g | 2991.63W | 2.66g/W | 13,305 |
| 32.53V | HQ1310, 3-blade | 54.20A | 5,665g | 1763.13W | 3.21g/W | 8,777 |
| 32.41V | HQ1507, 3-blade | 61.20A | 7,032g | 1983.49W | 3.55g/W | 8,537 |
380KV test highlightsThree propellers
| Voltage | Propeller | Current | Thrust | Power | Efficiency | RPM |
|---|---|---|---|---|---|---|
| 32.37V | HQ1310, 3-blade | 65.20A | 6,198g | 2110.52W | 2.94g/W | 9,176 |
| 32.46V | GF1309, 3-blade | 58.80A | 6,390g | 1908.65W | 3.35g/W | 9,392 |
| 32.27V | HQ1507, 3-blade | 72.90A | 7,579g | 2352.48W | 3.22g/W | 8,829 |
450KV test highlightsTwo propellers
| Voltage | Propeller | Current | Thrust | Power | Efficiency | RPM |
|---|---|---|---|---|---|---|
| 32.24V | HQ1308, 3-blade | 68.80A | 6,919g | 2218.11W | 3.12g/W | 10,598 |
| 32.20V | HQ1309, 3-blade | 75.40A | 6,720g | 2427.88W | 2.77g/W | 10,393 |
520KV test highlightsThree propellers
| Voltage | Propeller | Current | Thrust | Power | Efficiency | RPM |
|---|---|---|---|---|---|---|
| 24.31V | HQ1308, 3-blade | 58.94A | 5,268g | 1432.83W | 3.68g/W | 9,371 |
| 24.19V | HQ1309, 3-blade | 62.70A | 5,079g | 1516.71W | 3.35g/W | 9,151 |
| 24.02V | HQ1310, 3-blade | 74.61A | 5,420g | 1792.13W | 3.02g/W | 8,629 |

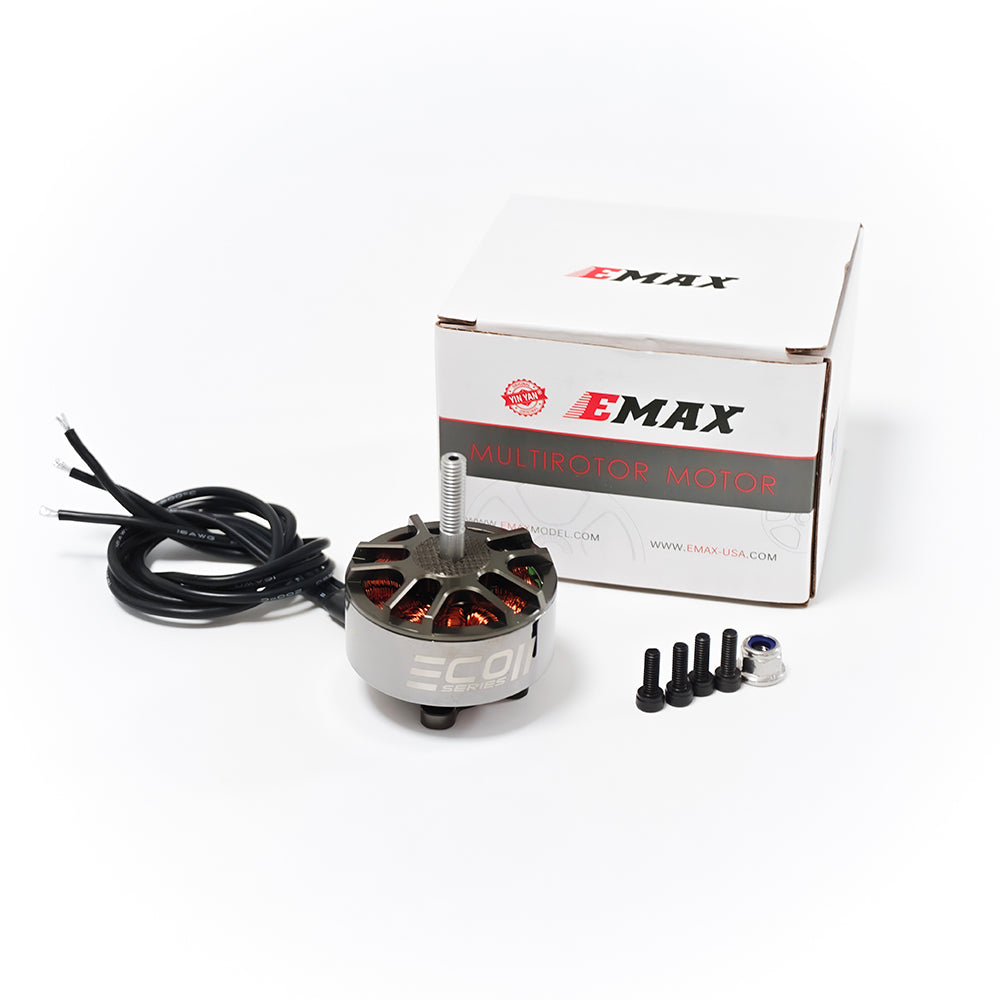

07 / In The Box
Motor and mounting hardware included.

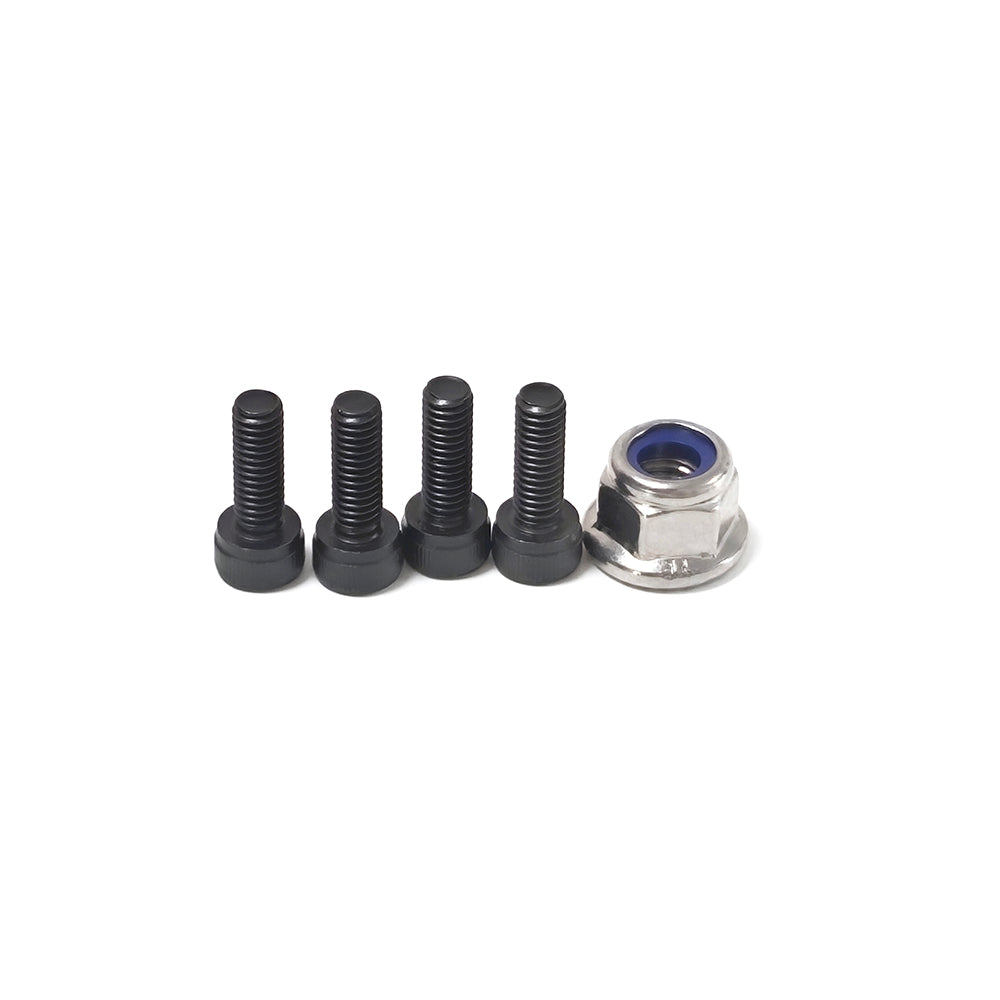

1×EMAX ECO II 4315 brushless motor
4×M4 × 12mm mounting screws
1×Steel M6 nylock nut
