EMAX ECOII 6215 Brushless Motor

$89.99 USD Sold out

Product variants

Notes

ECO II SERIES / HEAVY-LIFT POWER

Brushless Motor Platform

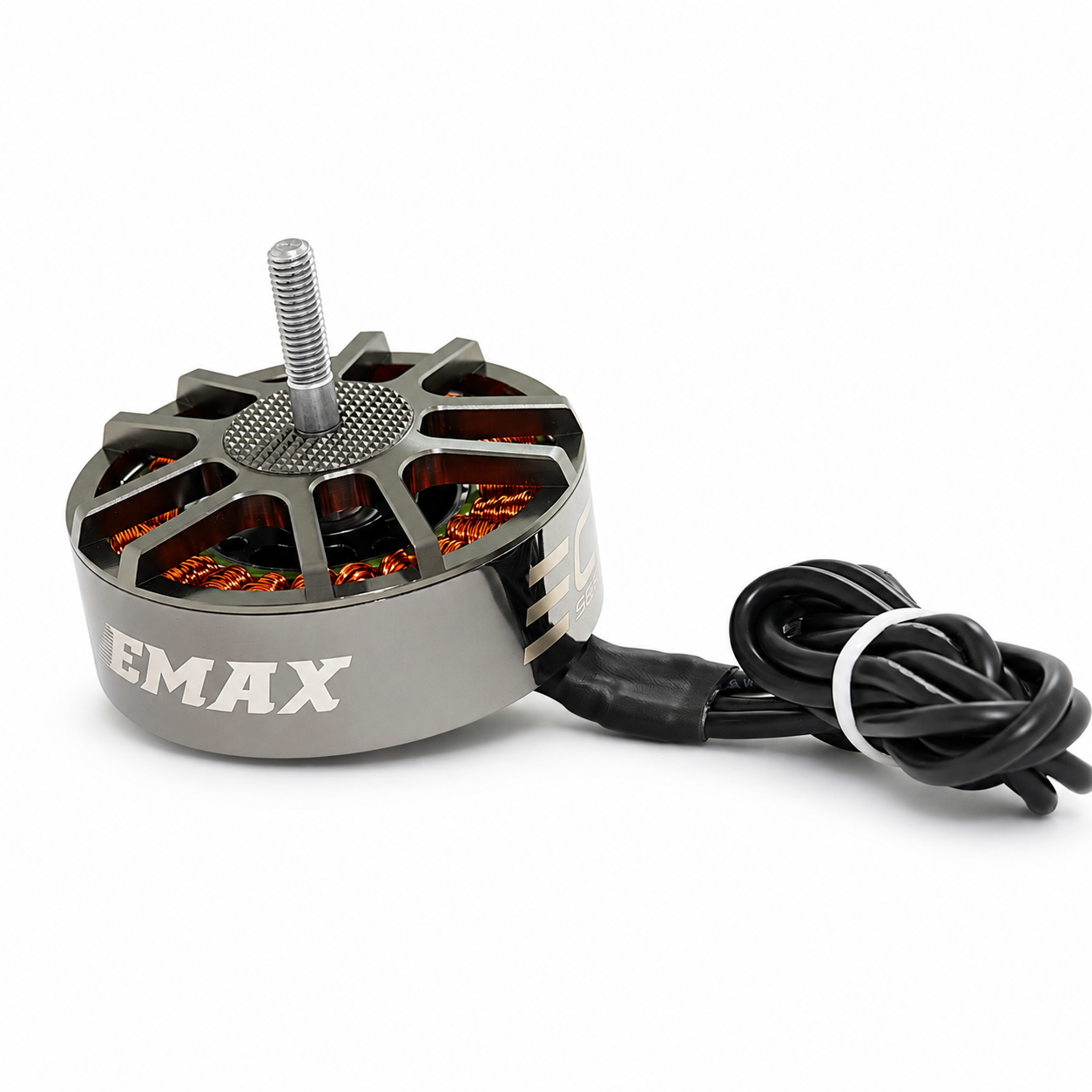

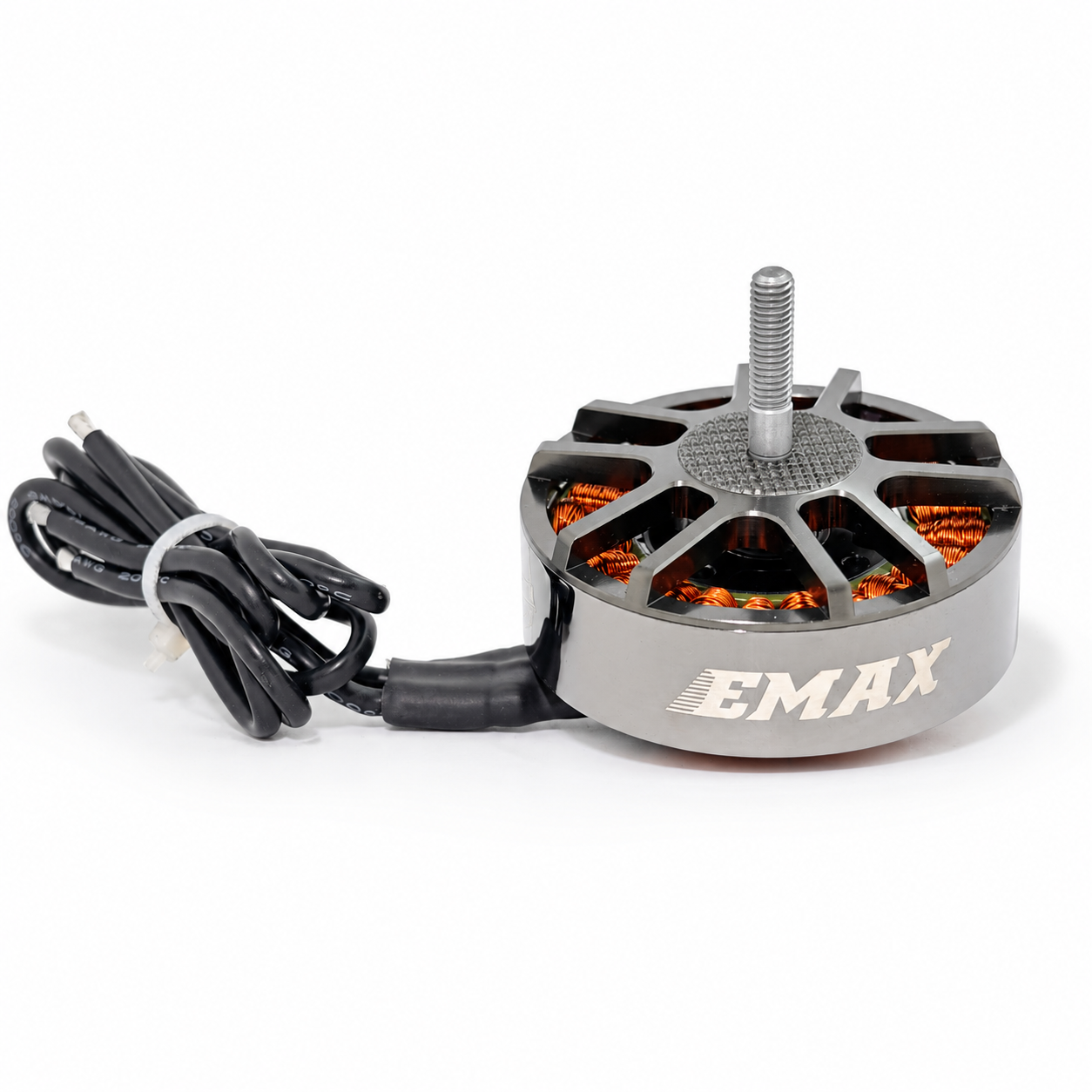

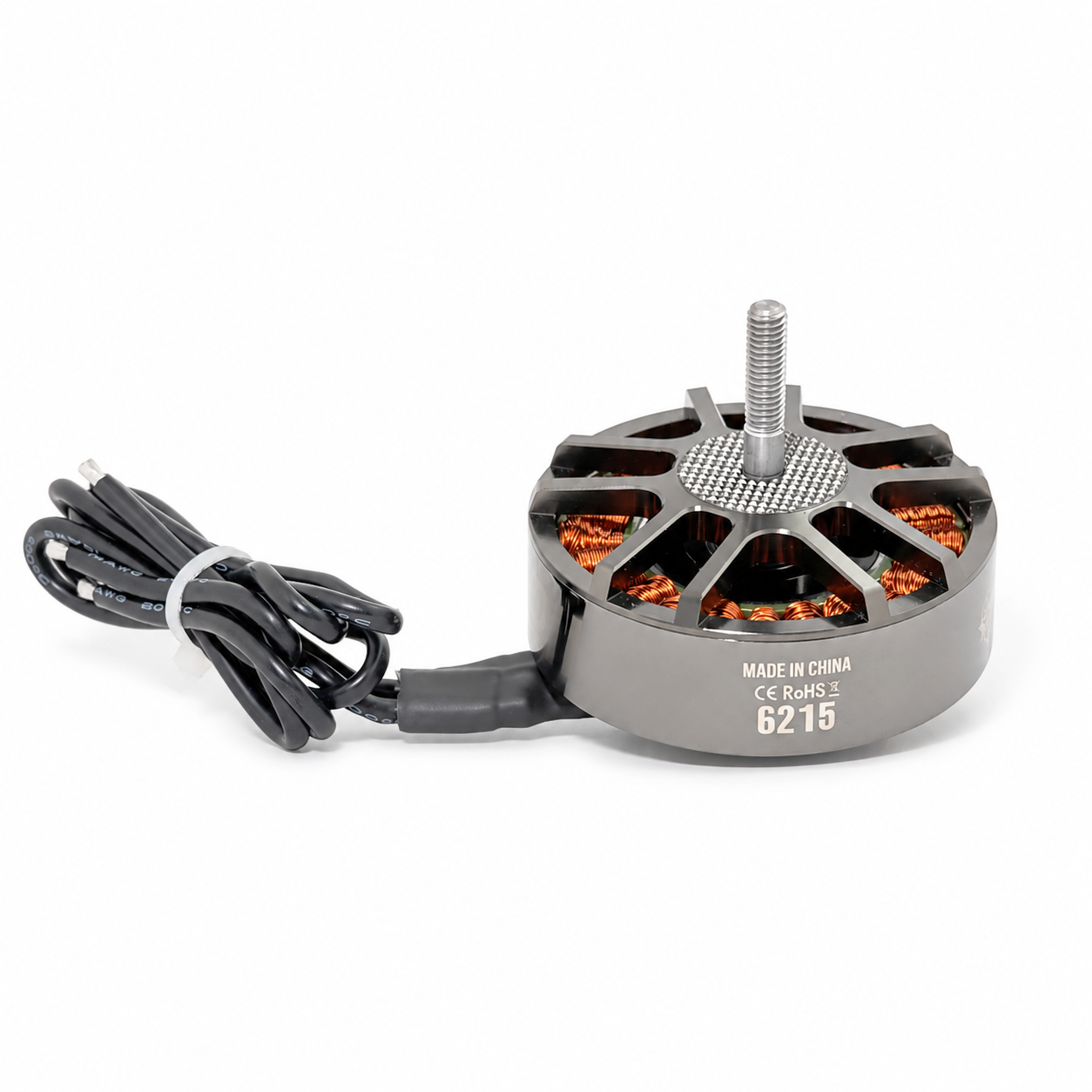

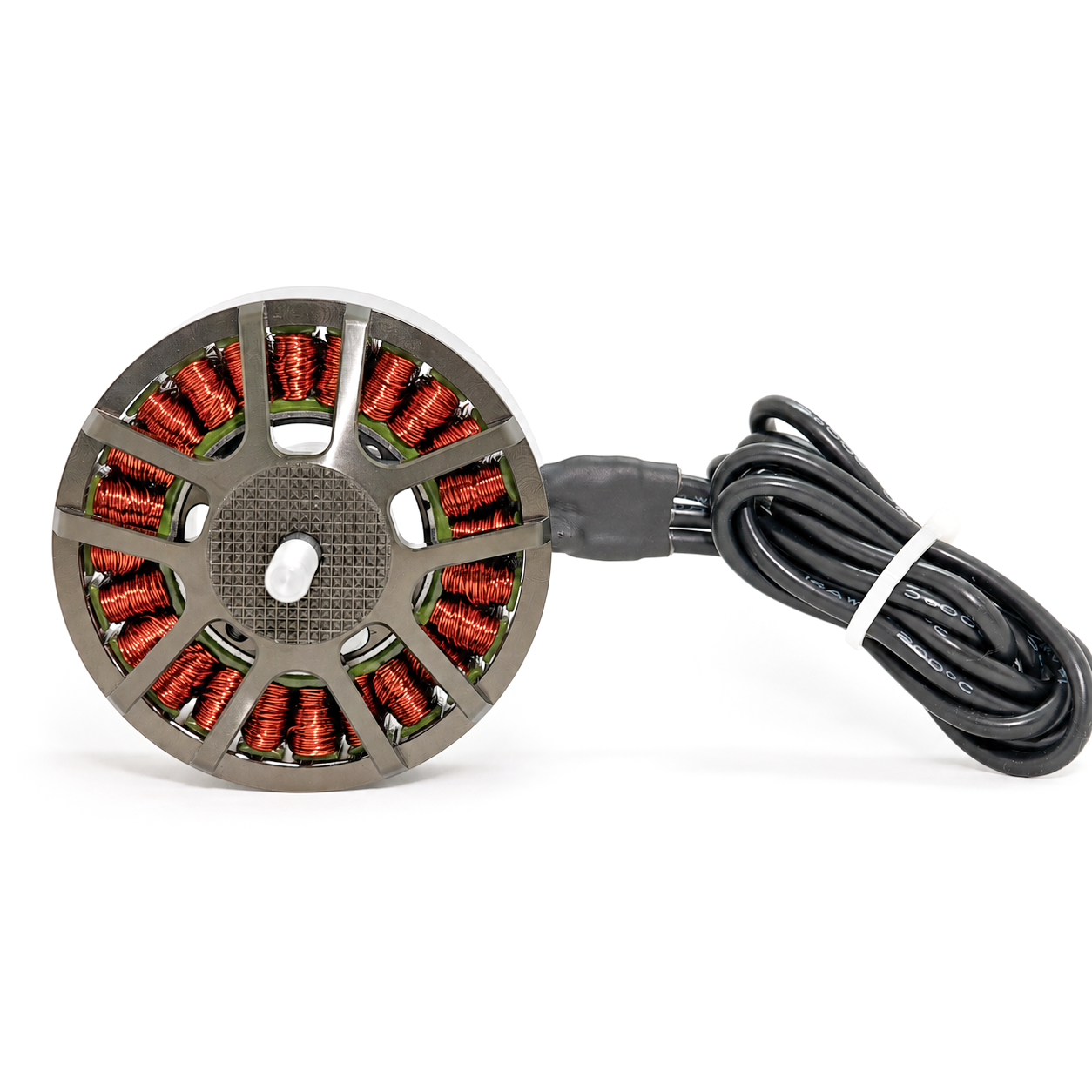

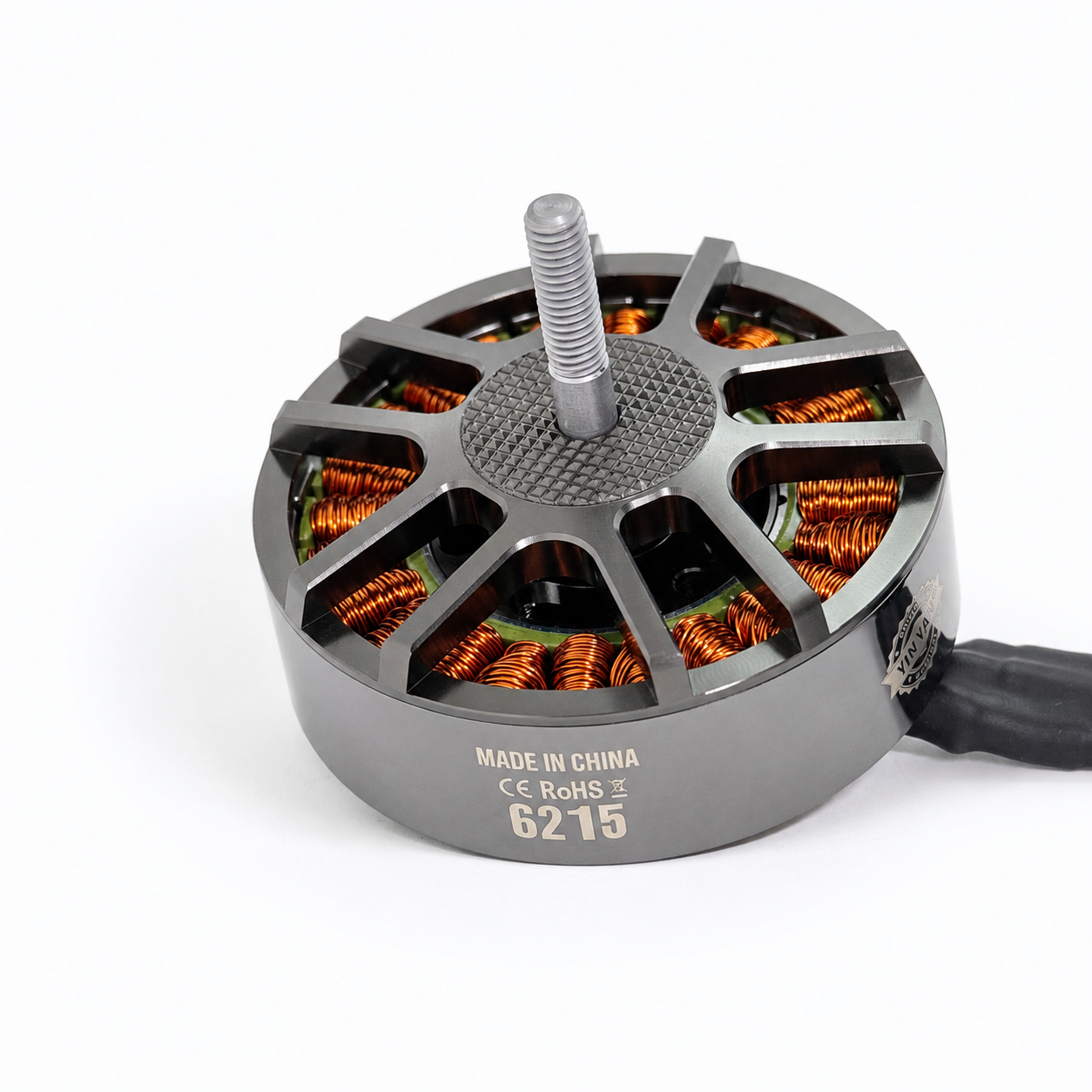

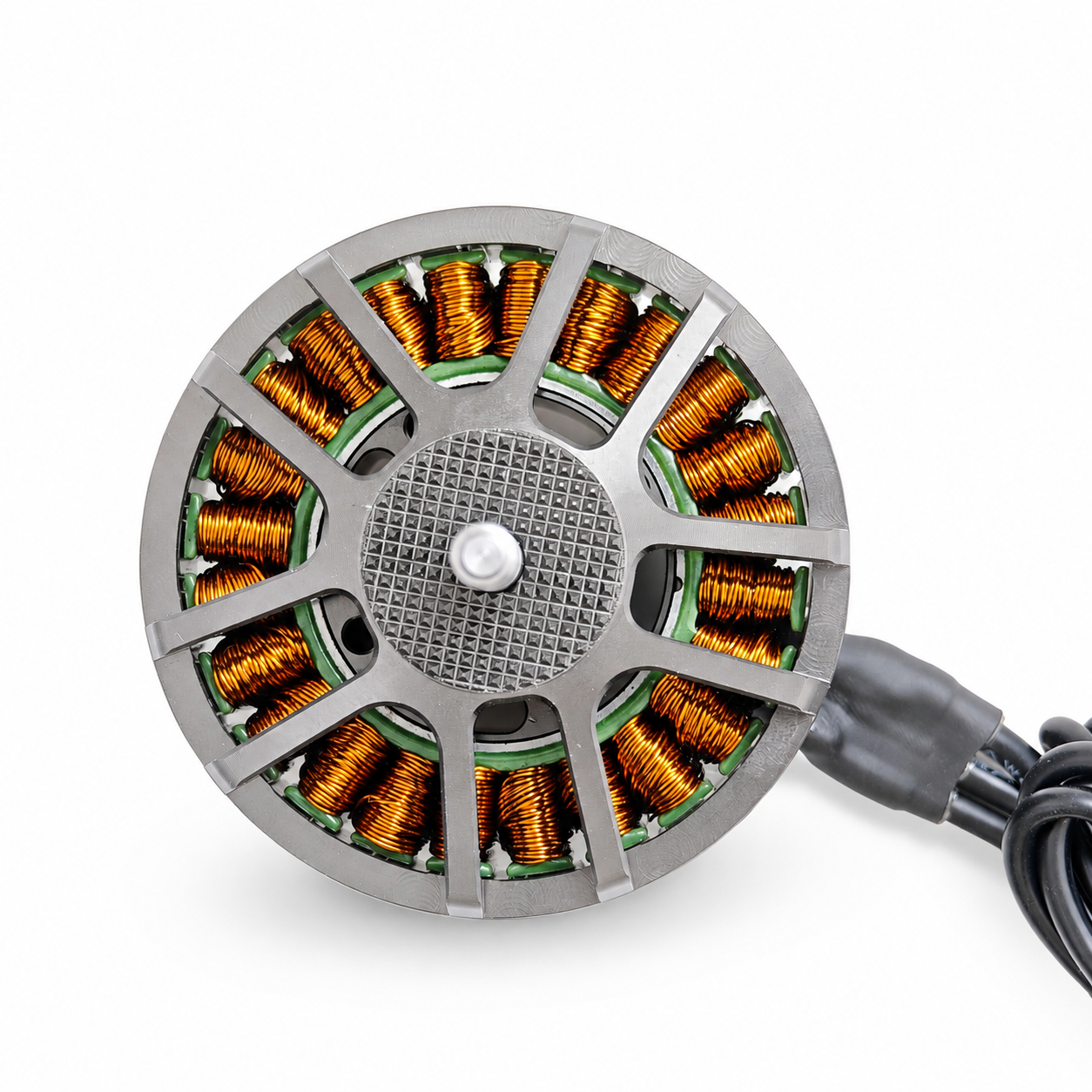

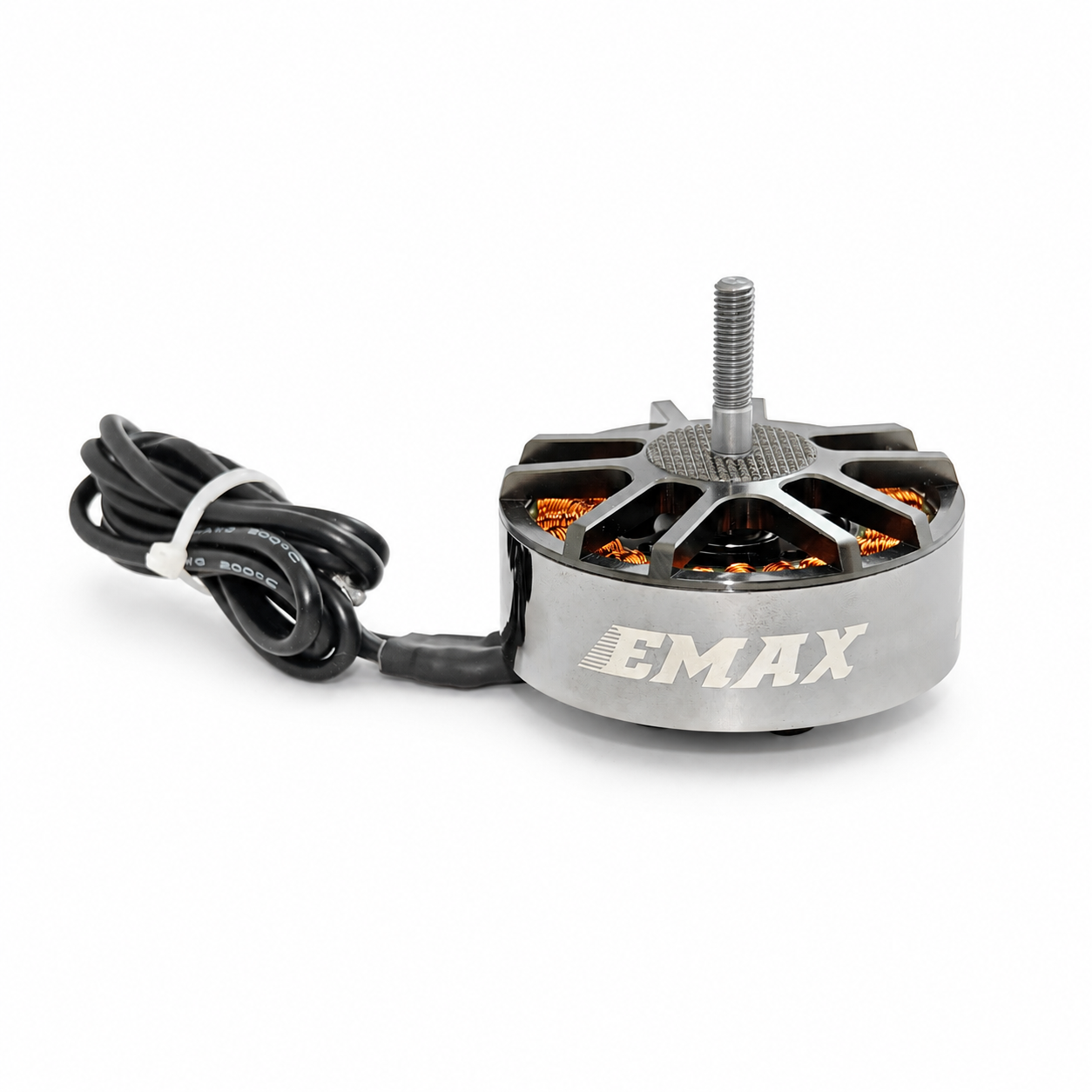

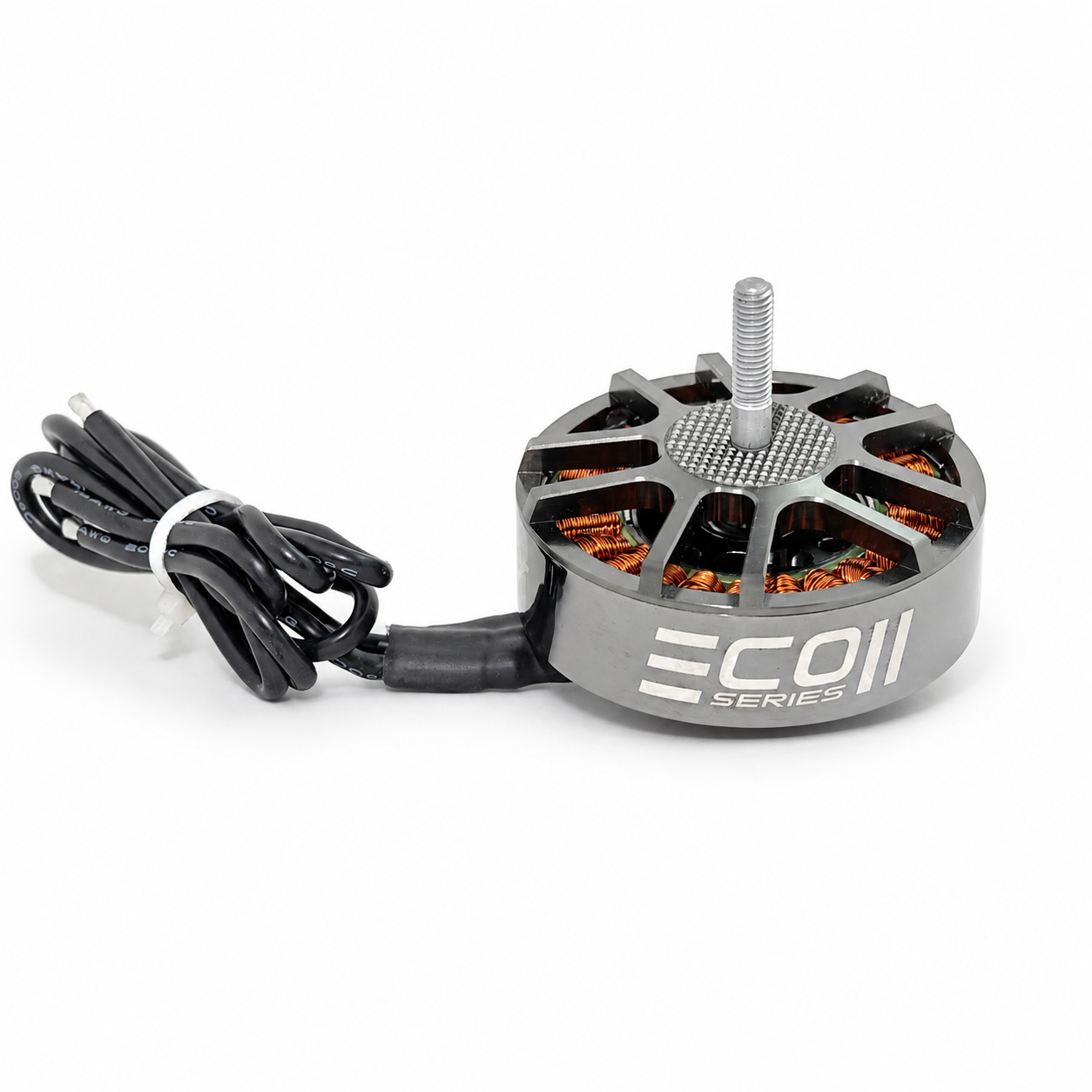

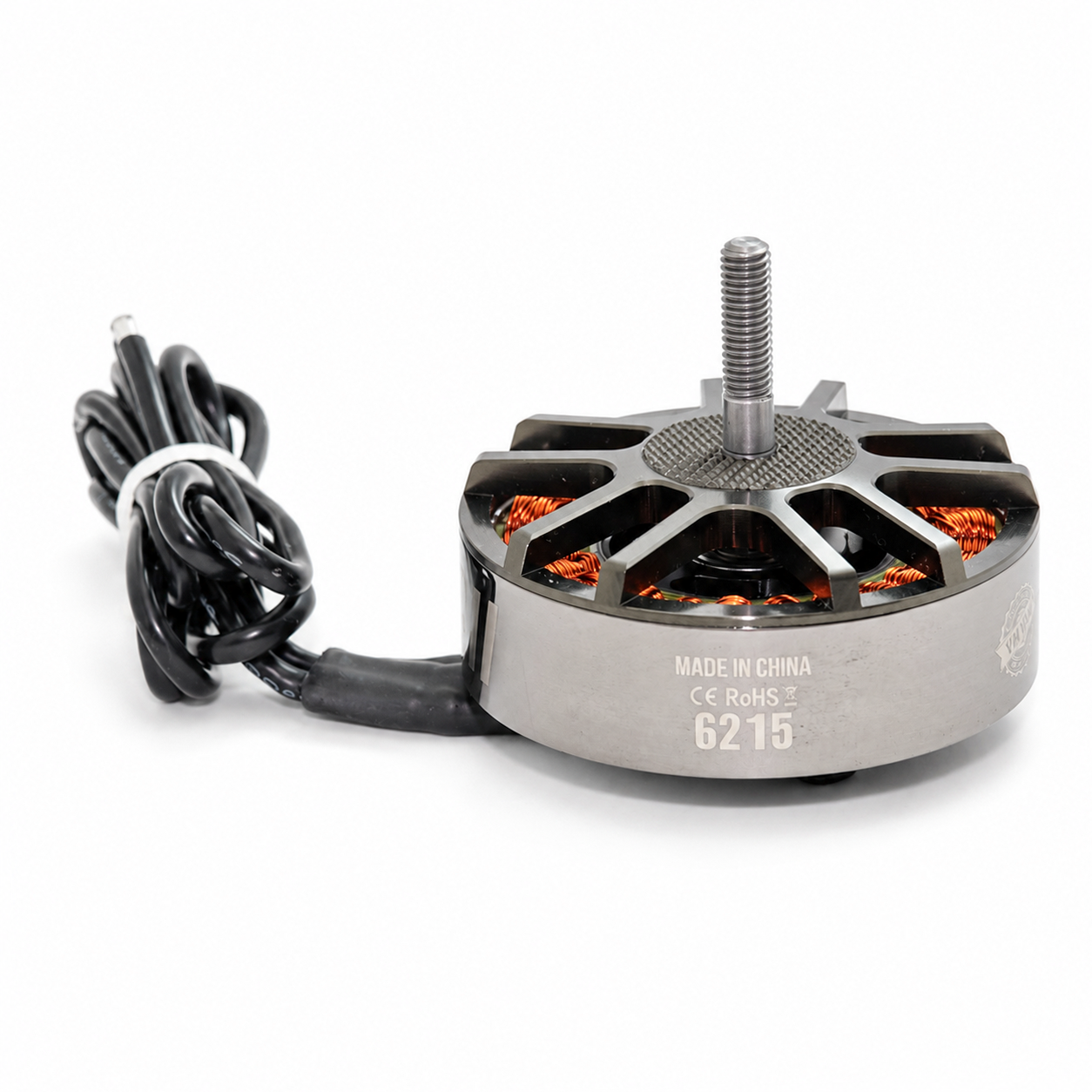

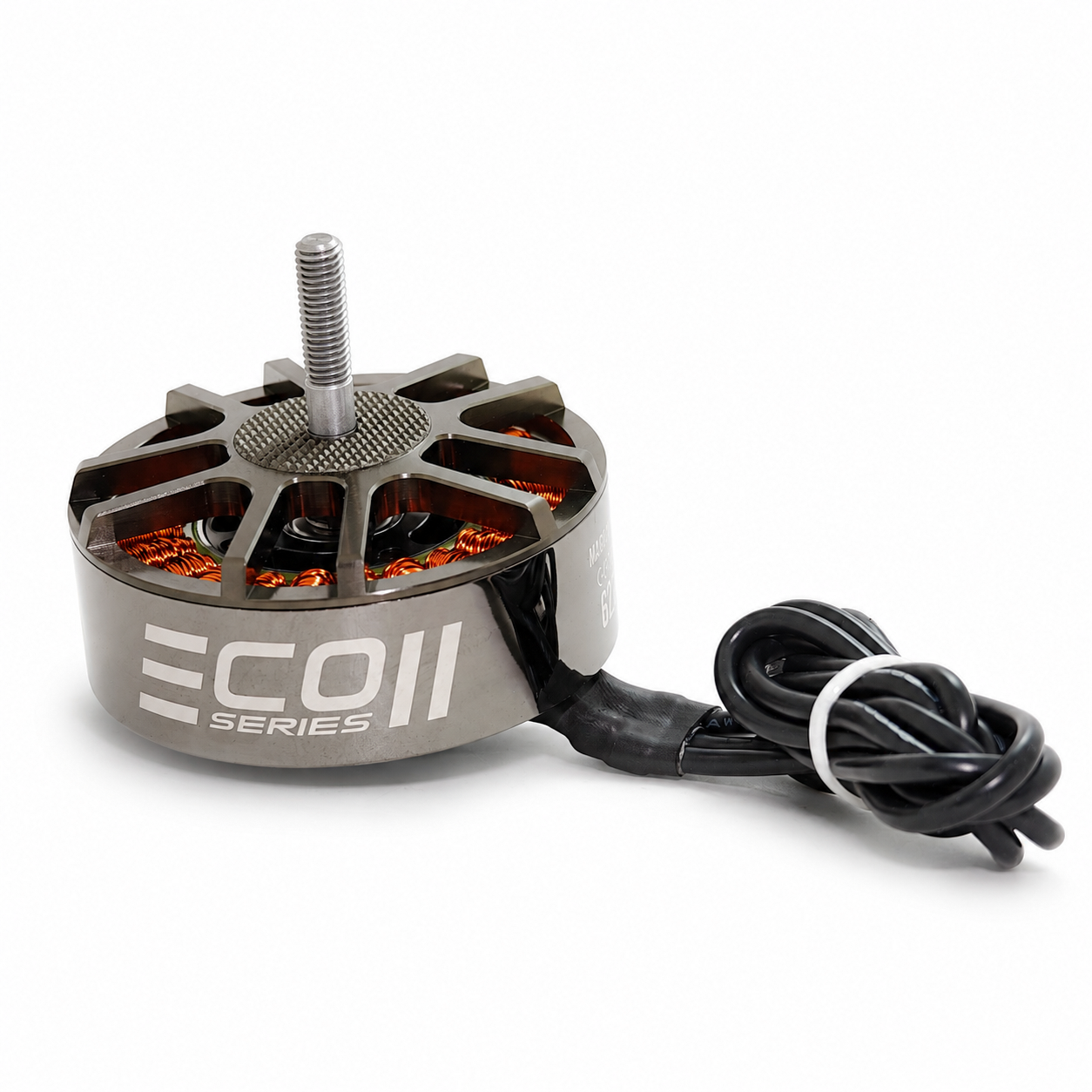

EMAX ECO II 6215

The EMAX ECO II 6215 is a high-torque external-rotor brushless motor for 18- to 22-inch multirotor propellers. Two 12S winding options—180KV and 200KV—use a 24N28P architecture, Ø69.3 × 63.2mm body, M6 threaded propeller shaft and 30 × 30mm mounting pattern. At 378g with wire, it is engineered for large FPV aircraft and heavy-lift propulsion systems.

Two 12S power profiles. 180KV for 18- to 22-inch propellers. 200KV for 18- to 20-inch propellers.

Motor weight378gIncluding silicone wire

System voltage12SBoth KV windings

Propeller18–22"KV-dependent propeller range

Framework24N28PHeavy-lift outrunner architecture

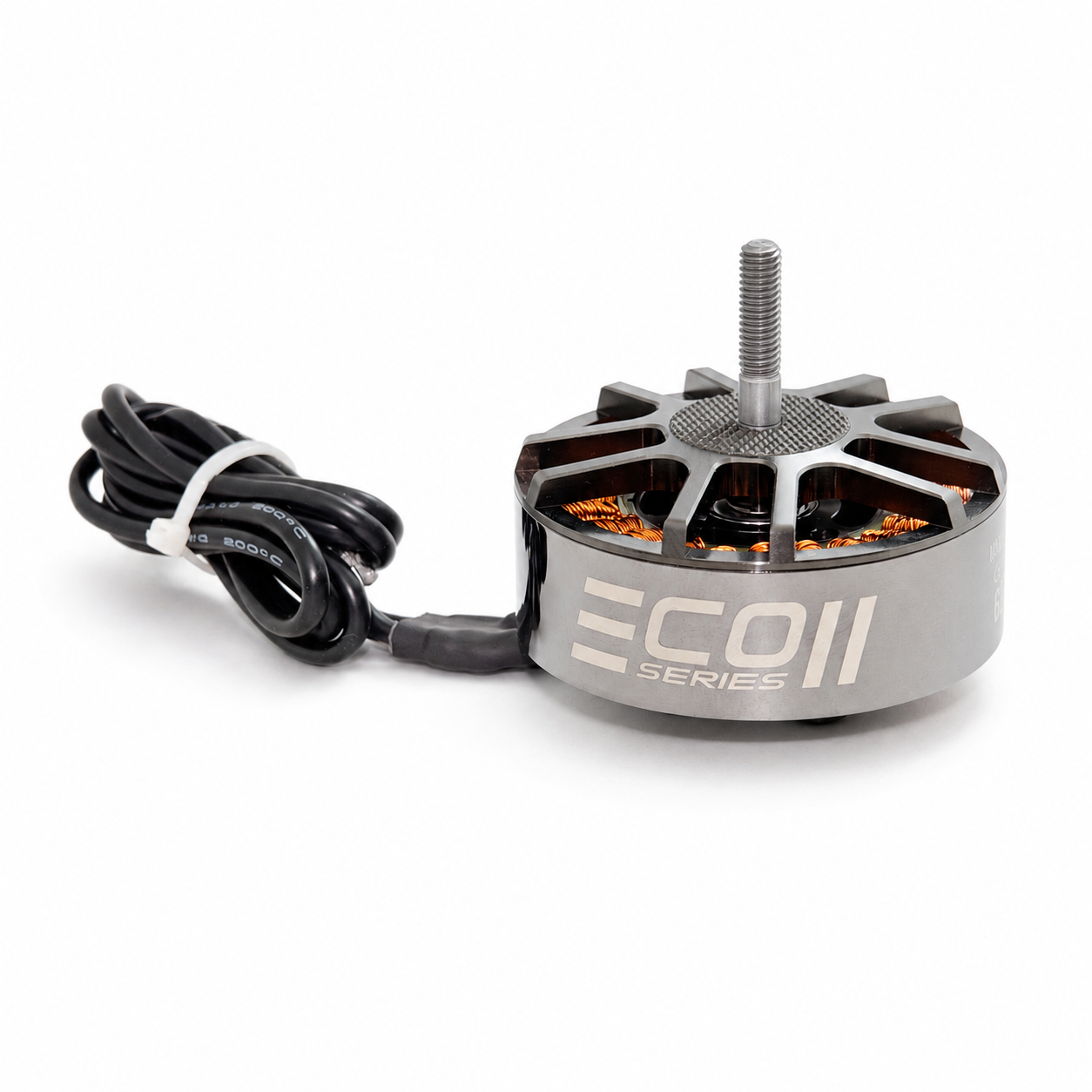

EMAX ECO II 6215 12S brushless motor for 18- to 22-inch aircraft

Large-prop 12S propulsion. The official 180KV bench data records up to 12.850kg thrust at 47.61V with a JXF 22 × 10 carbon-fiber two-blade propeller.

01 / KV Selection

Match voltage and winding to the aircraft.

Published electrical limits and tested thrust values are transcribed from the official EMAX product specification and load-test sheets.

180KV

12S / 18- to 22-inch propeller
Lower-KV winding for the widest propeller range.

Peak current68.2A

Max power3247W

Resistance54mΩ

Idle current1.3A @ 10V

Bench highlight: 12.850kg thrust at 47.61V with JXF 22 × 10 CF two-blade; 68.19A / 3246.5W.

200KV

12S / 18- to 20-inch propeller
Higher-RPM winding for strong large-prop output.

Peak current79.8A

Max power3796W

Resistance45mΩ

Idle current1.5A @ 10V

Bench highlight: 12.618kg thrust at 47.57V with GF 18 × 10 three-blade; 79.79A / 3795.6W.

EMAX ECO II 6215 selection guide for 180KV and 200KV 12S motors

Swipe horizontally to compare both KV options

Choose from the complete aircraft backward. Match motor KV to battery voltage, propeller load, ESC rating, aircraft mass, airflow and required thrust. Published ranges are selection guidance; validate the final power system under realistic thermal conditions.

02 / Performance Envelope

Maximum tested thrust by KV.

Each bar shows the highest thrust recorded in the official test sheet for that winding. Both bars share a 12.850kg scale.

180KV47.61V

12.850kg

200KV47.57V

12.618kg

Maximum values were recorded with a JXF 22 × 10 CF two-blade propeller for 180KV and a GF 18 × 10 three-blade propeller for 200KV. Bench results are configuration-dependent.

03 / Construction

Large outrunner hardware built around precision support.

01 / SHAFT

Steel Shaft

A 6mm bearing section supports the rotating assembly, while the M6 CW threaded propeller interface provides secure retention.

02 / FINISH

Anodized Structure

Anodized metal surfaces provide a durable finish for regular installation and service.

03 / MOUNT

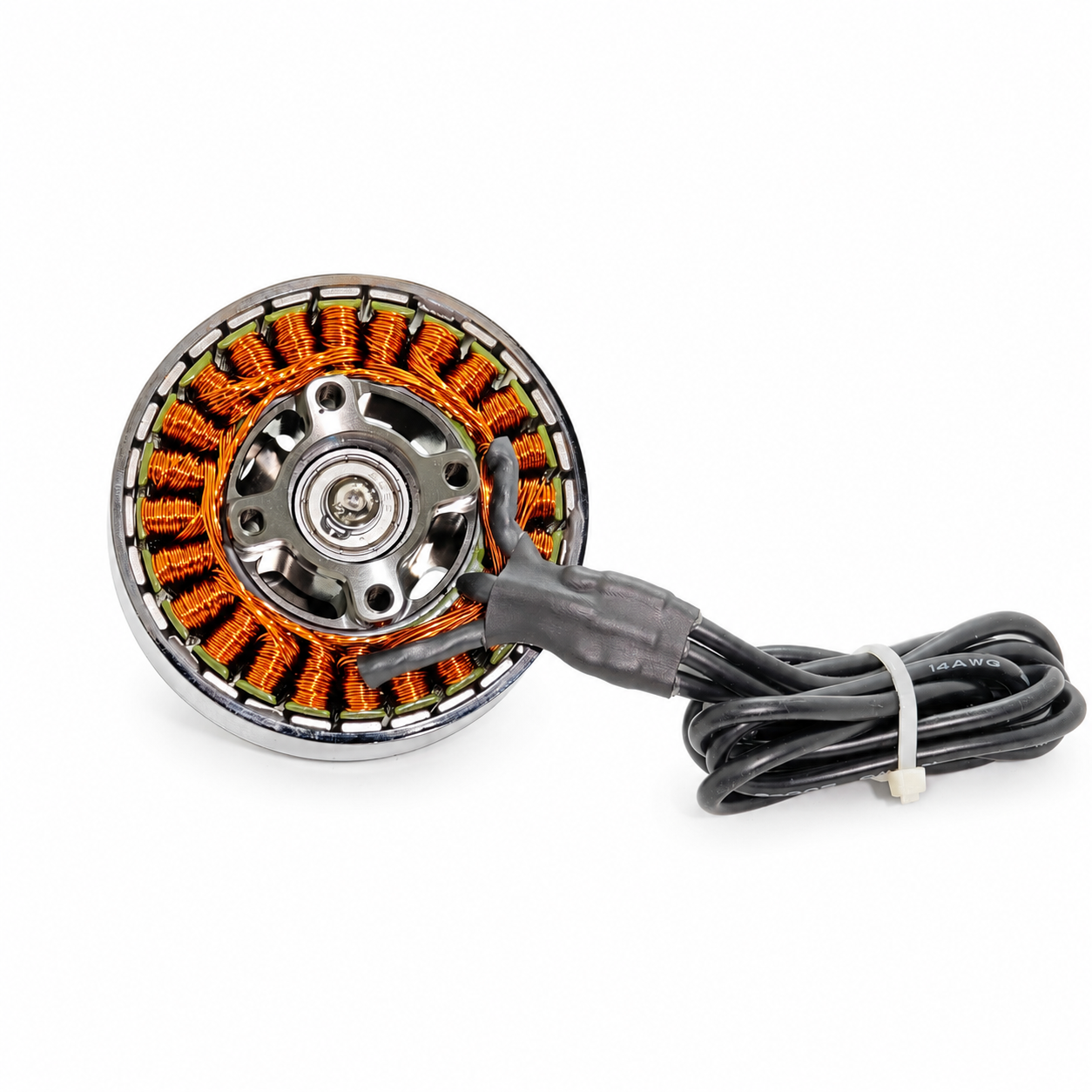

30 × 30mm Pattern

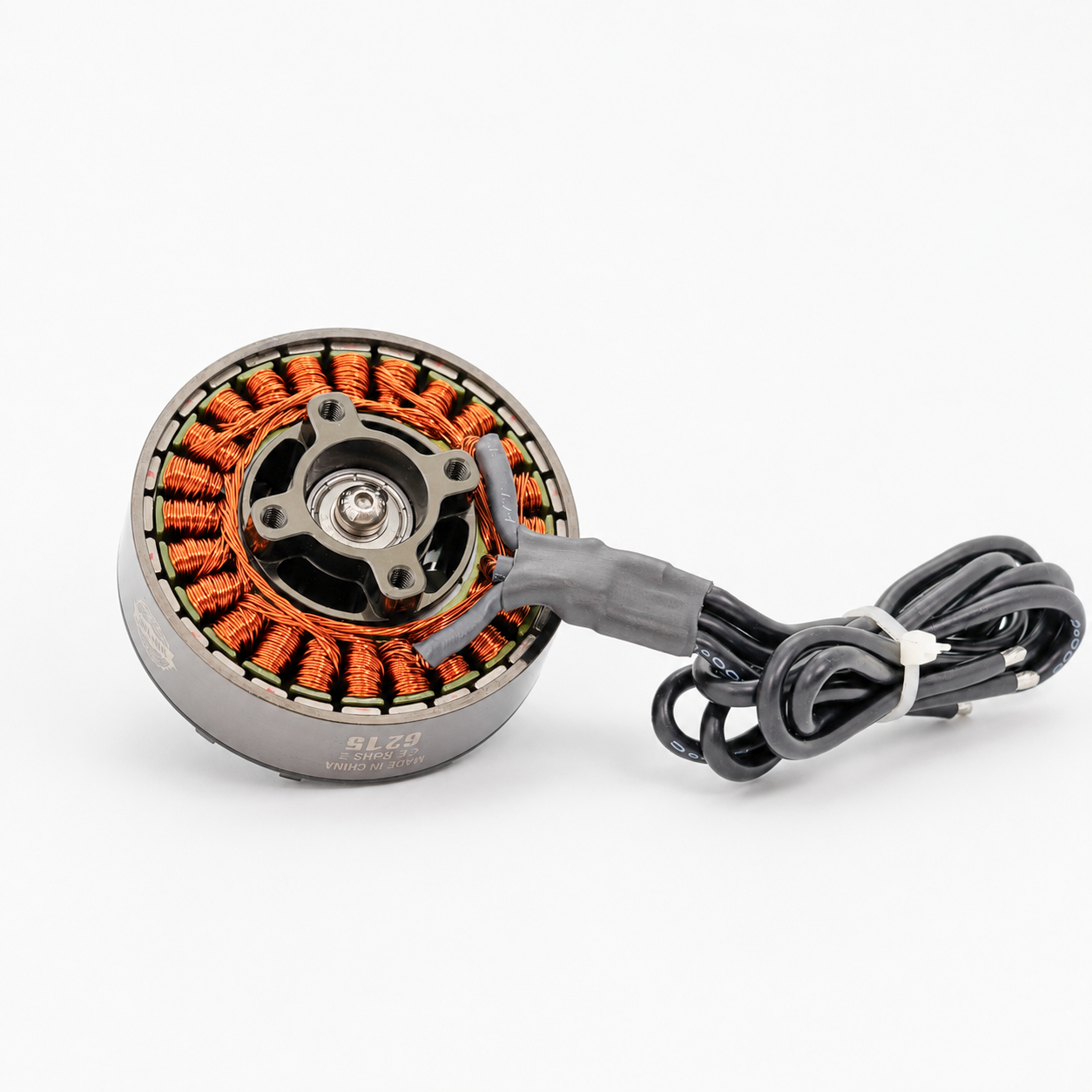

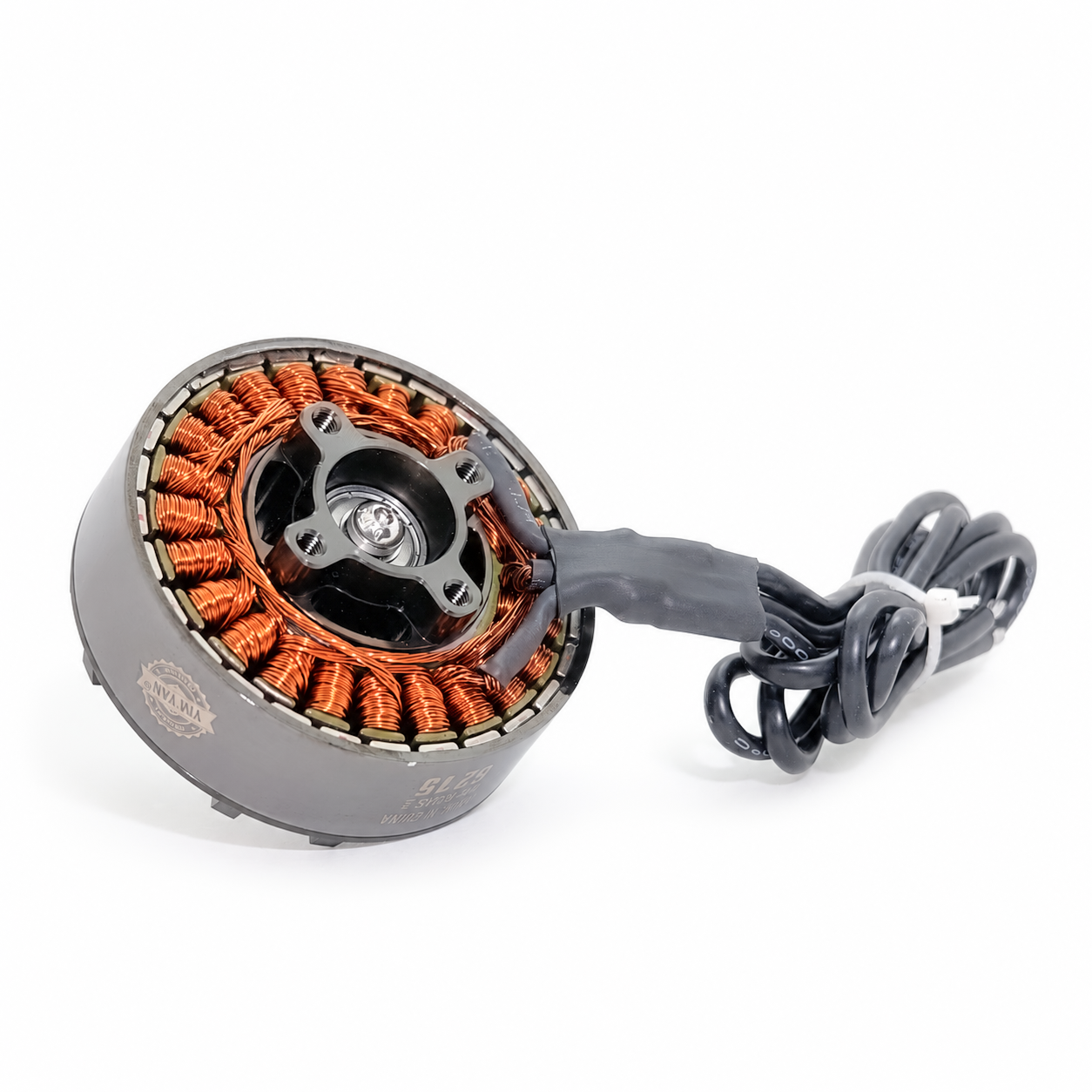

A four-hole 30 × 30mm pattern accepts M4 mounting hardware at the airframe interface.

04 / WINDING

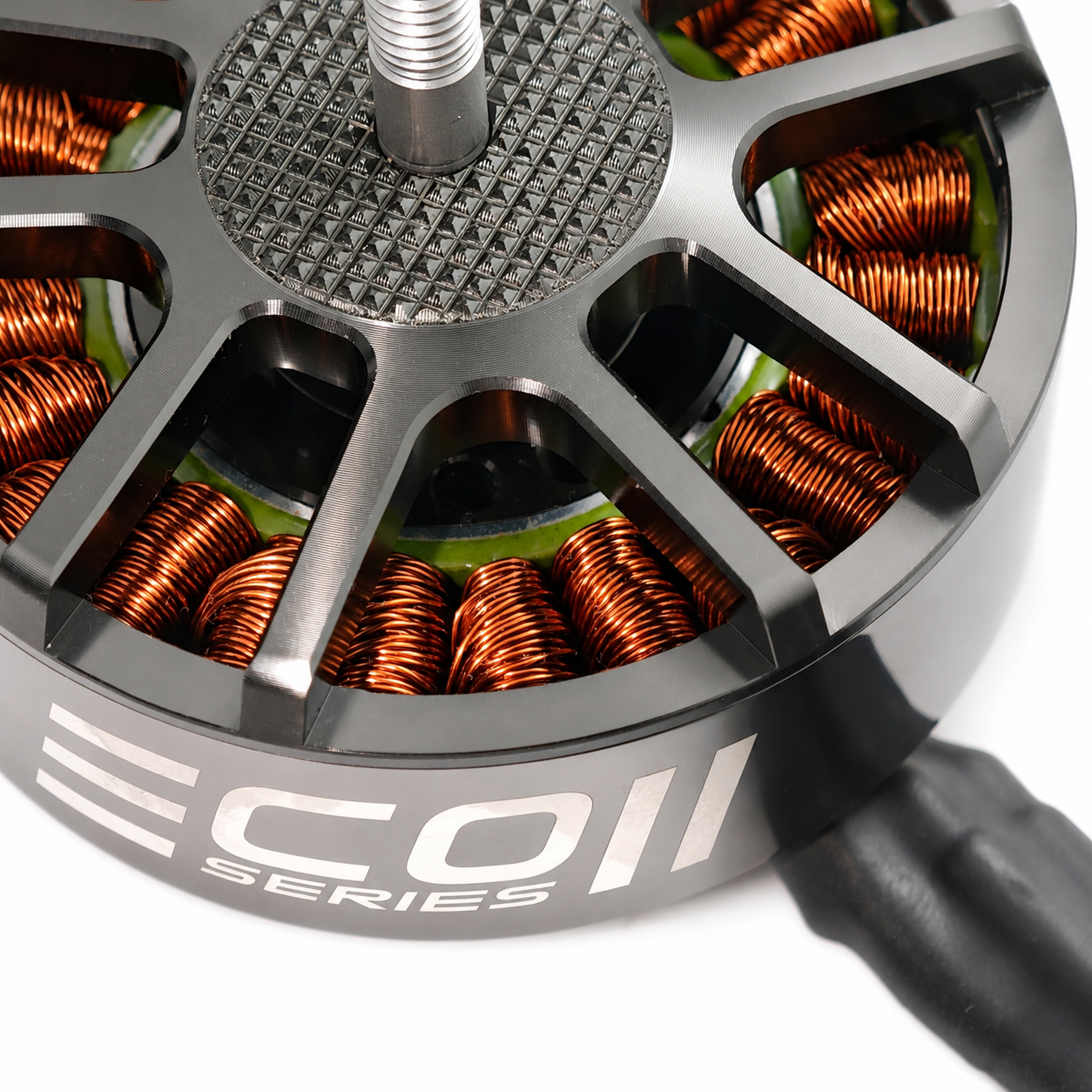

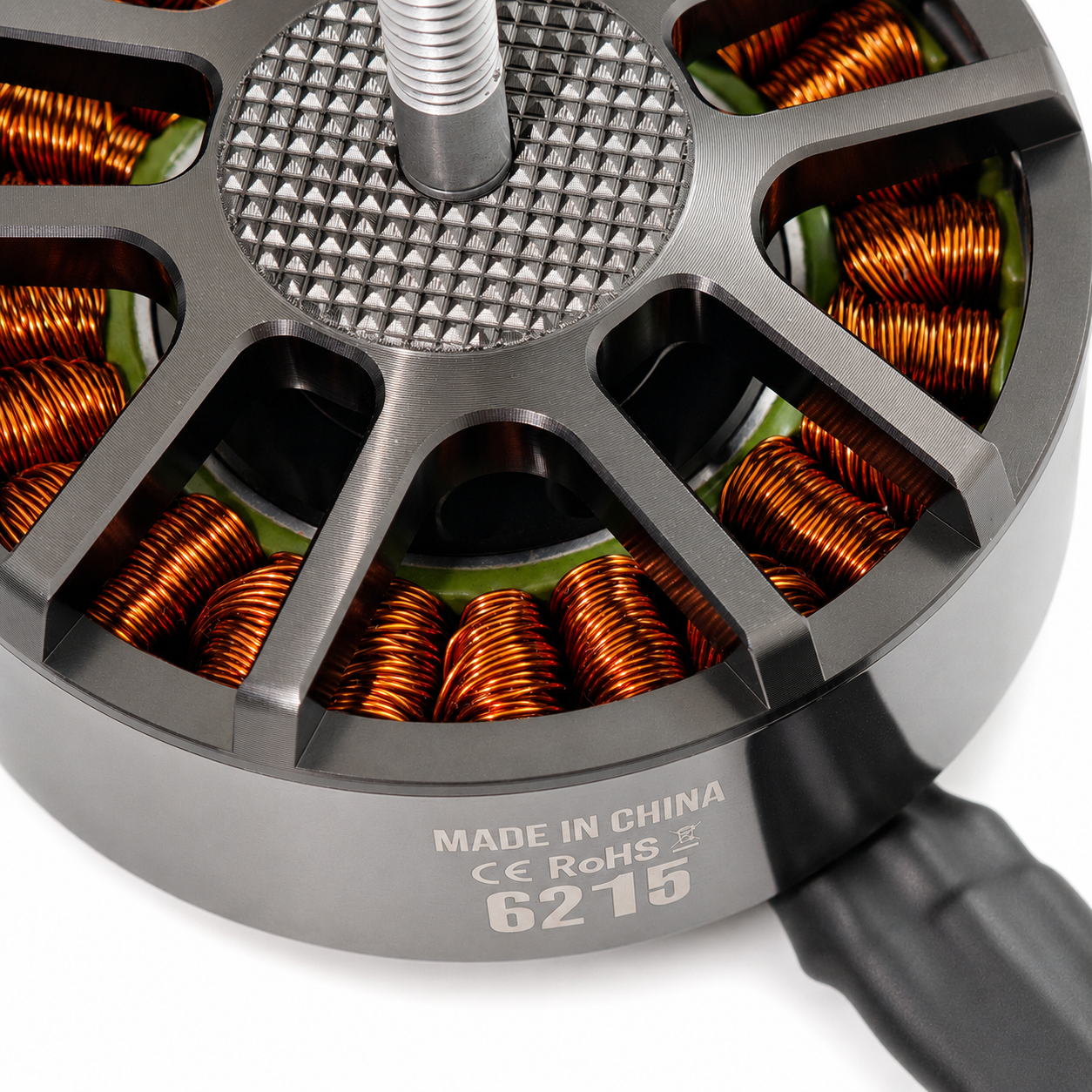

Multi-Strand Winding

Multi-strand winding is specified for the high-current operating range of this large outrunner.

05 / BEARING

Precision Bearing Support

Concentric bearing support promotes smooth shaft rotation under sustained large-propeller load.

06 / LEADS

400mm 14 AWG Wire

Long, heavy-gauge silicone motor leads provide routing flexibility in large-aircraft installations.

Exploded EMAX ECO II 6215 motor showing M6 steel propeller shaft, full-height 28-pole magnet ring, 24-slot copper-wound stator, precision bearing and four-hole 30 by 30 millimeter motor mount

Swipe horizontally to inspect the component callouts

04 / Mechanical Data

6215 geometry and installation details.

Motor model	EMAX ECO II 6215
Framework	24N28P
Motor diameter	Ø69.3mm
Motor length	63.2mm
Weight	378g with wire
Bearing shaft	Ø6mm
Propeller shaft	M6 threaded
Shaft direction	CW thread
Mounting pattern	30 × 30mm, four M4 holes
Motor leads	400mm 14 AWG silicone wire
Propeller specification	18–22 inches, KV-dependent
KV options	180KV / 200KV

One platform, two 12S profiles.

The shared mechanical package lets builders select 180KV or 200KV around the intended propeller load without changing the 30 × 30mm four-hole airframe interface.

The 180KV winding supports the broadest published propeller range, while 200KV provides the higher-RPM choice for 18- to 20-inch propellers.

Installation note: Confirm frame clearance, screw engagement, propeller retention, ESC headroom and cooling before operation.

EMAX ECO II 6215 heavy-lift motor platform for 18- to 22-inch aircraft

Serious lift with practical value. The ECO II 6215 combines a 24N28P heavy-lift platform with two 12S winding choices for builders matching propeller size, current and thrust targets.

05 / Electrical Specifications

KV-specific operating limits.

Use only the published voltage and propeller range for the selected winding. Confirm ESC current capability and thermal headroom for the complete aircraft.

KV	Cells	Propeller	Idle Current	Resistance	Peak Current	Max Power
180KV	12S	18–22"	1.3A @ 10V	54mΩ	68.2A	3247W
200KV	12S	18–20"	1.5A @ 10V	45mΩ	79.8A	3796W

06 / Bench Data

Maximum recorded propeller results.

The expandable tables show the maximum-throttle row from each propeller set in the official EMAX test sheet.

180KV Load-Test Highlights48V / Four propellers

Voltage	Propeller	Current	Thrust	Power	Efficiency	RPM
47.68V	HQ 20 × 10, 3-blade	59.18A	11,271g	2821.7W	3.99g/W	6,836
47.68V	FL 21 × 10 CF, 2-blade	54.98A	11,259g	2621.4W	4.29g/W	6,918
47.63V	FL 22 × 10 CF, 2-blade	64.30A	12,706g	3062.6W	4.15g/W	6,734
47.61V	JXF 22 × 10 CF, 2-blade	68.19A	12,850g	3246.5W	3.96g/W	6,656

Maximum-throttle row from each official 180KV propeller series.

200KV Load-Test Highlights48V / Four propellers

Voltage	Propeller	Current	Thrust	Power	Efficiency	RPM
47.66V	HQ 18 × 9, 3-blade	65.52A	11,396g	3122.7W	3.65g/W	7,789
47.57V	GF 18 × 10, 3-blade	79.79A	12,618g	3795.6W	3.32g/W	7,521
47.69V	FL 19 × 10 CF, 2-blade	56.07A	10,154g	2674.0W	3.80g/W	7,976
47.65V	FL 20 × 10 CF, 2-blade	65.29A	11,792g	3111.1W	3.79g/W	7,793

Maximum-throttle row from each official 200KV propeller series.

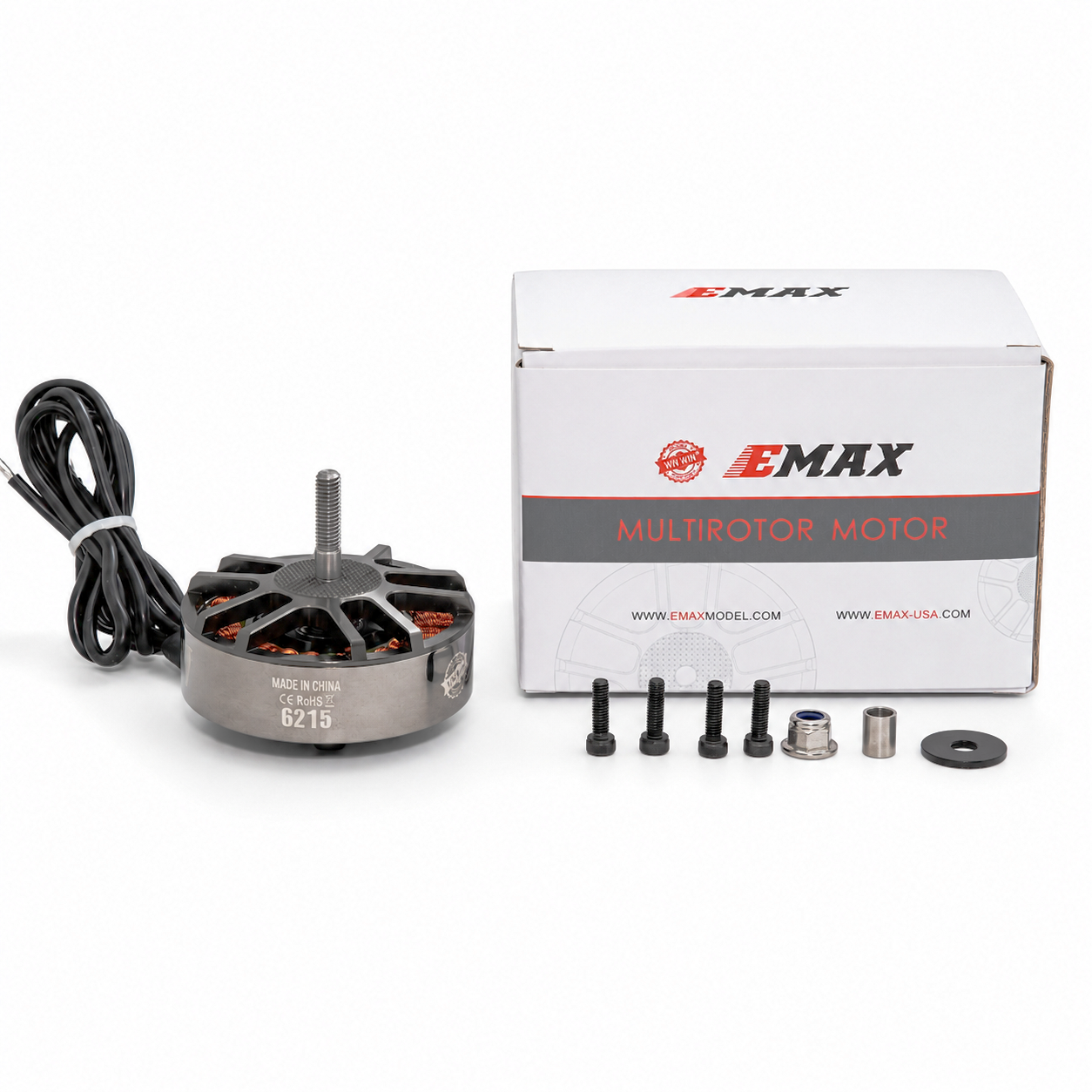

EMAX ECO II 6215 motor package with M4 mounting screws, steel M6 nylock nut, propeller shaft sleeve and paddle gasket

Package contents: one EMAX ECO II 6215 brushless motor, four M4 × 14mm mounting screws, one steel M6 nylock nut, one propeller shaft sleeve and one paddle gasket.

07 / In The Box

Motor and propeller-retention hardware included.

1×EMAX ECO II 6215 brushless motor

4×M4 × 14mm mounting screws

1×Steel M6 nylock nut

1×Propeller shaft sleeve

1×Paddle gasket
