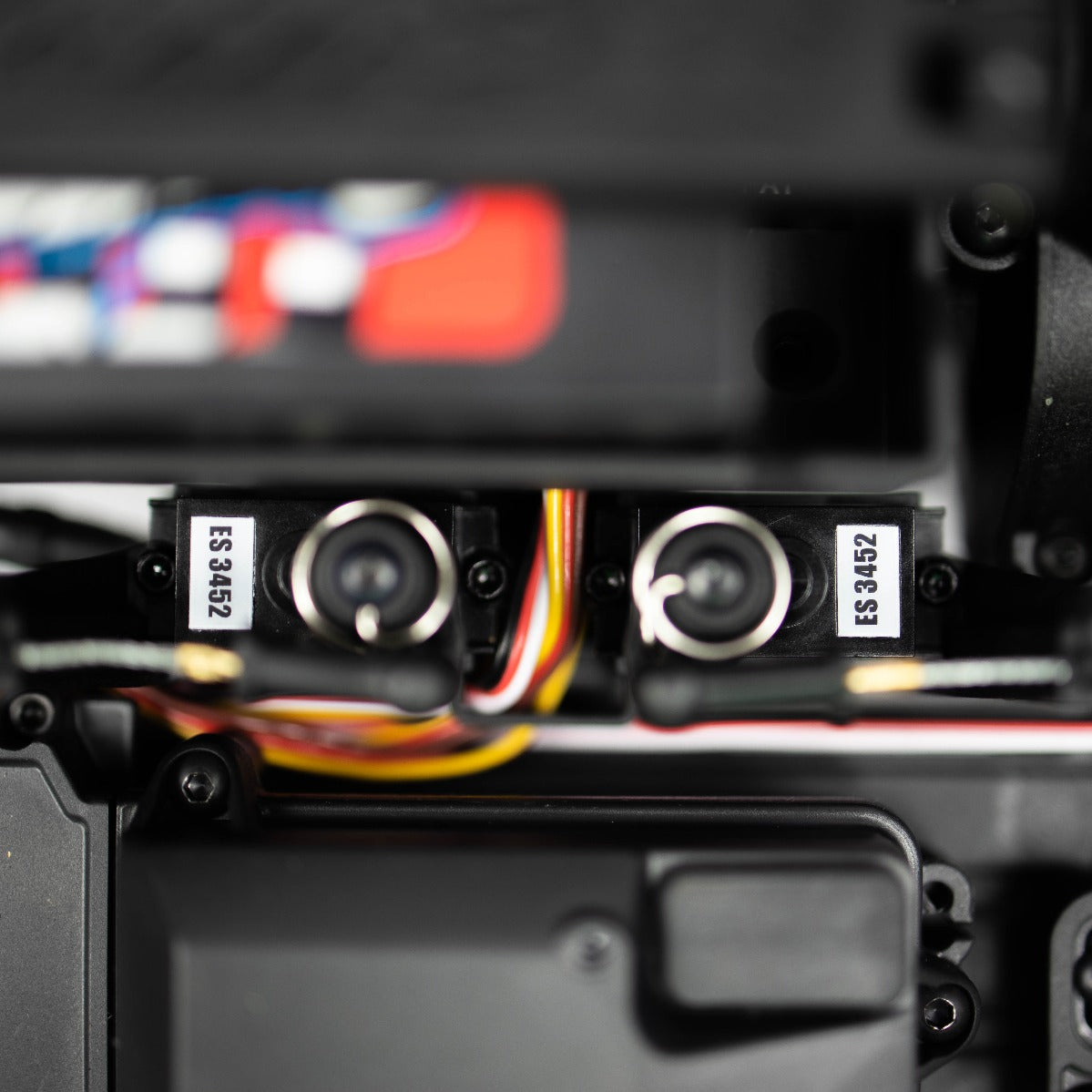

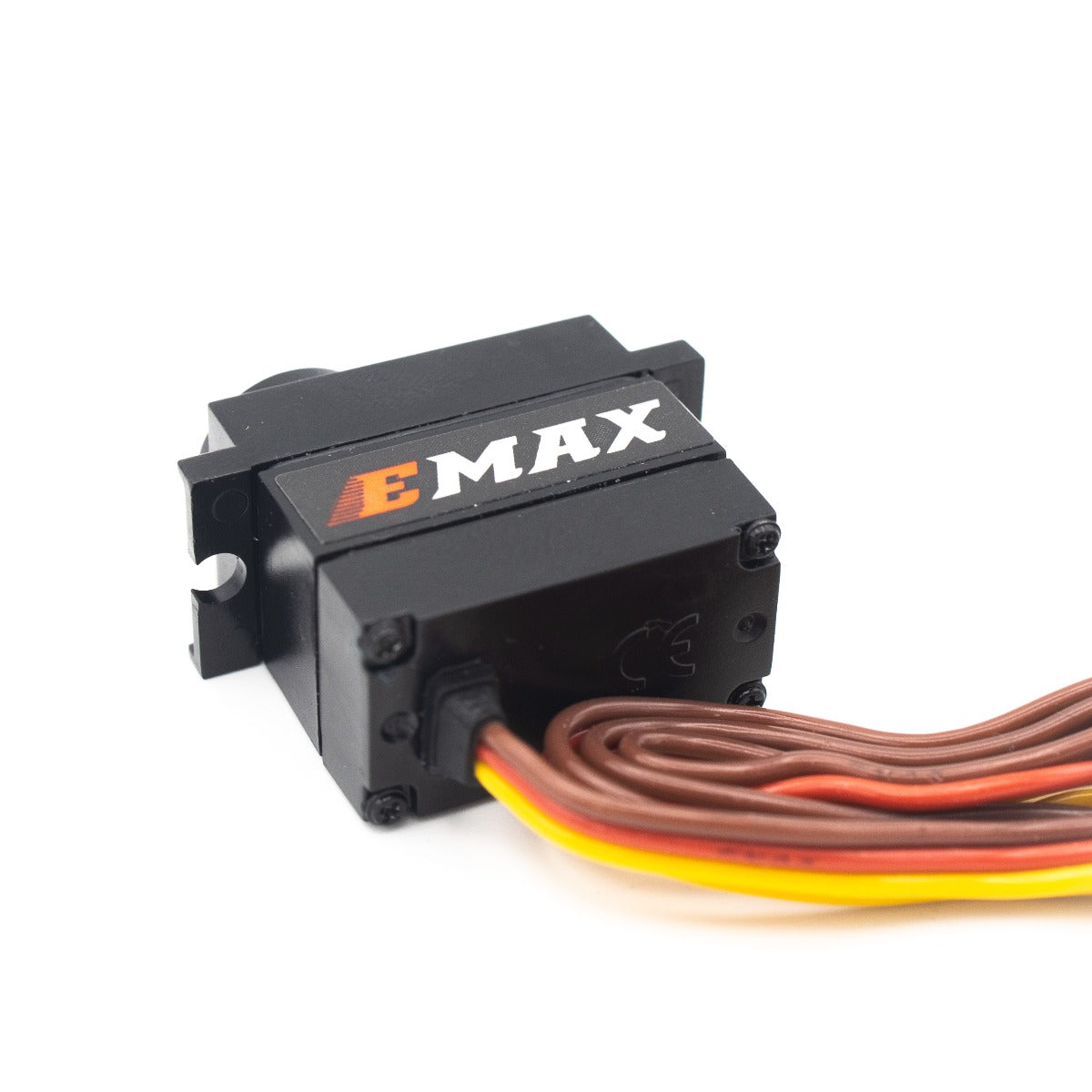

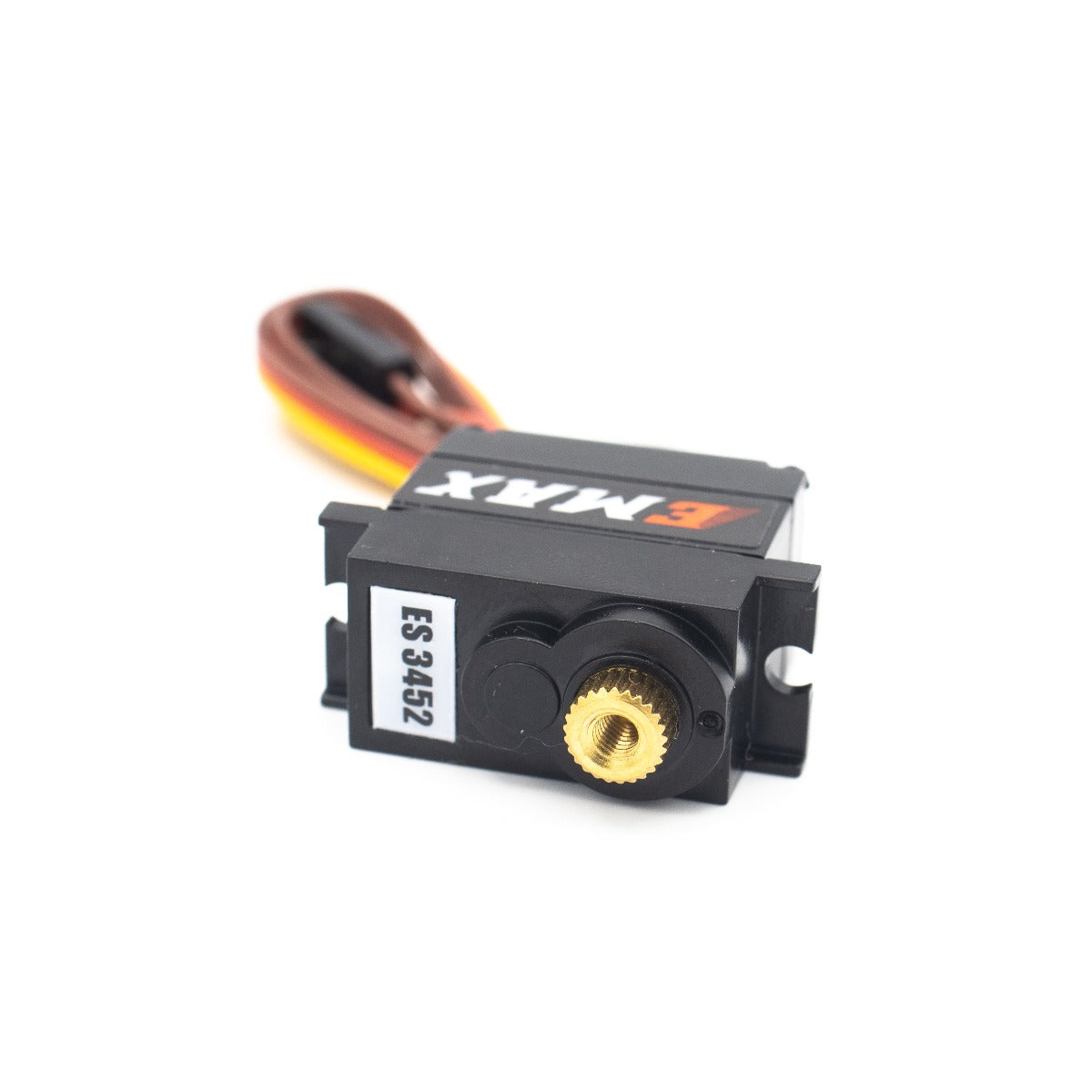

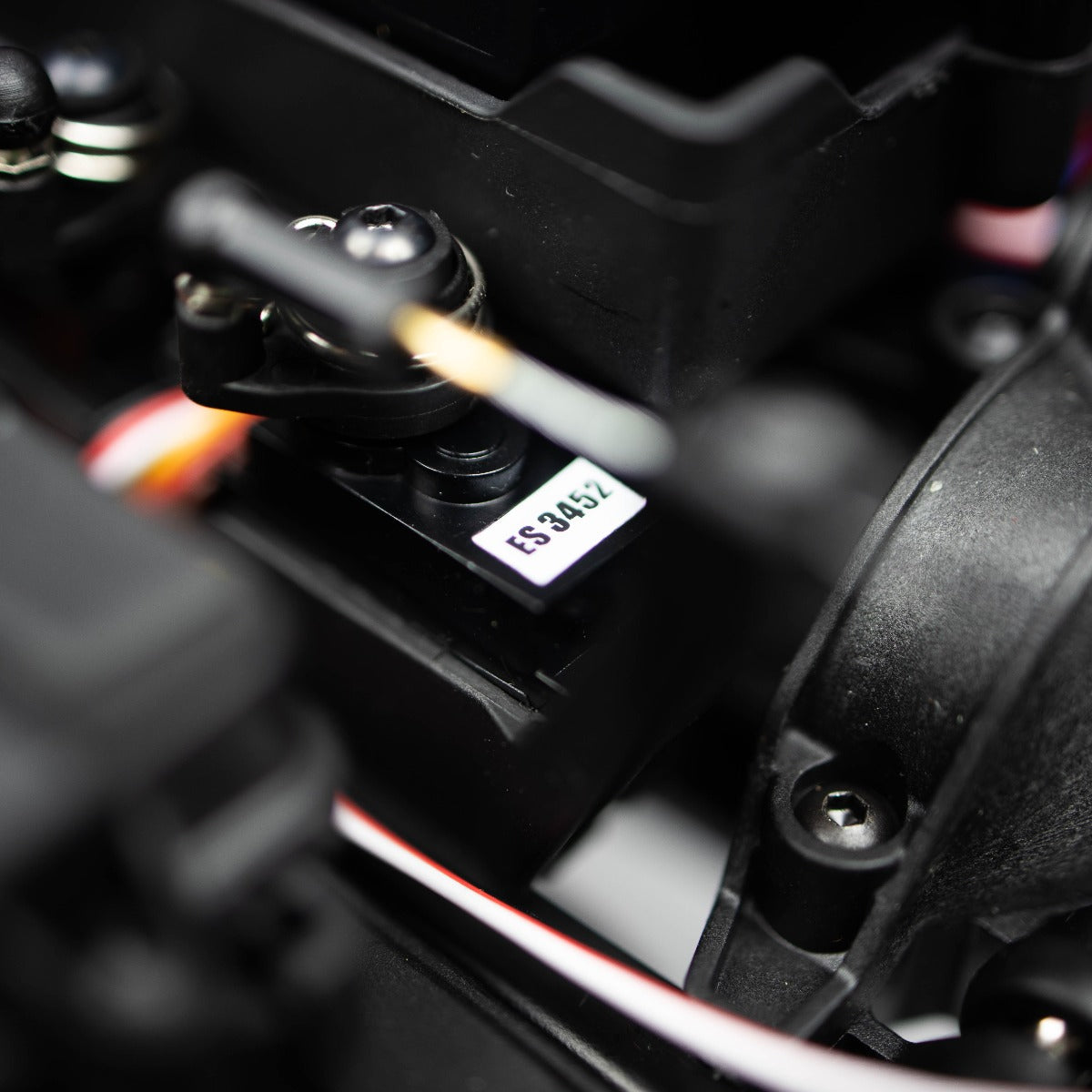

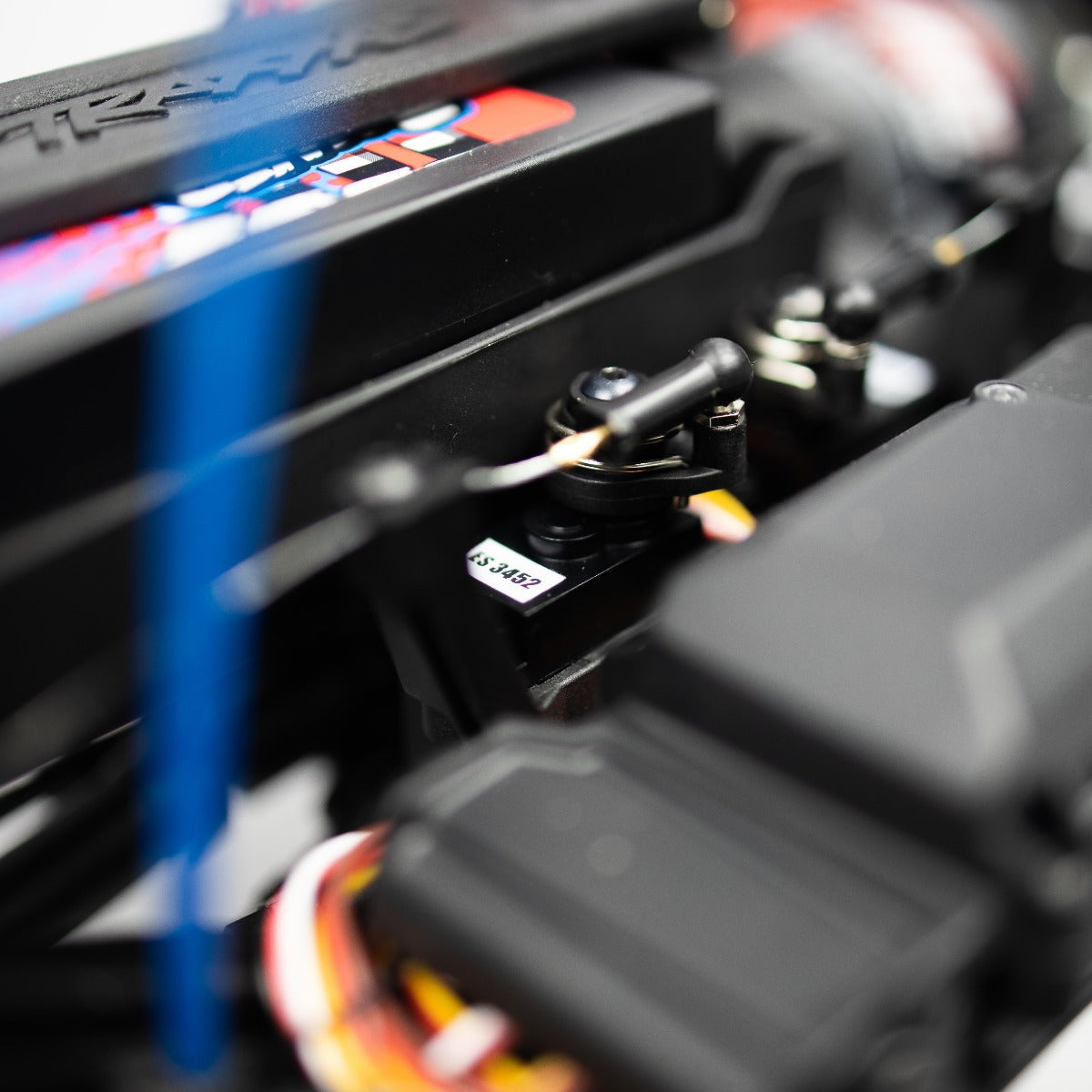

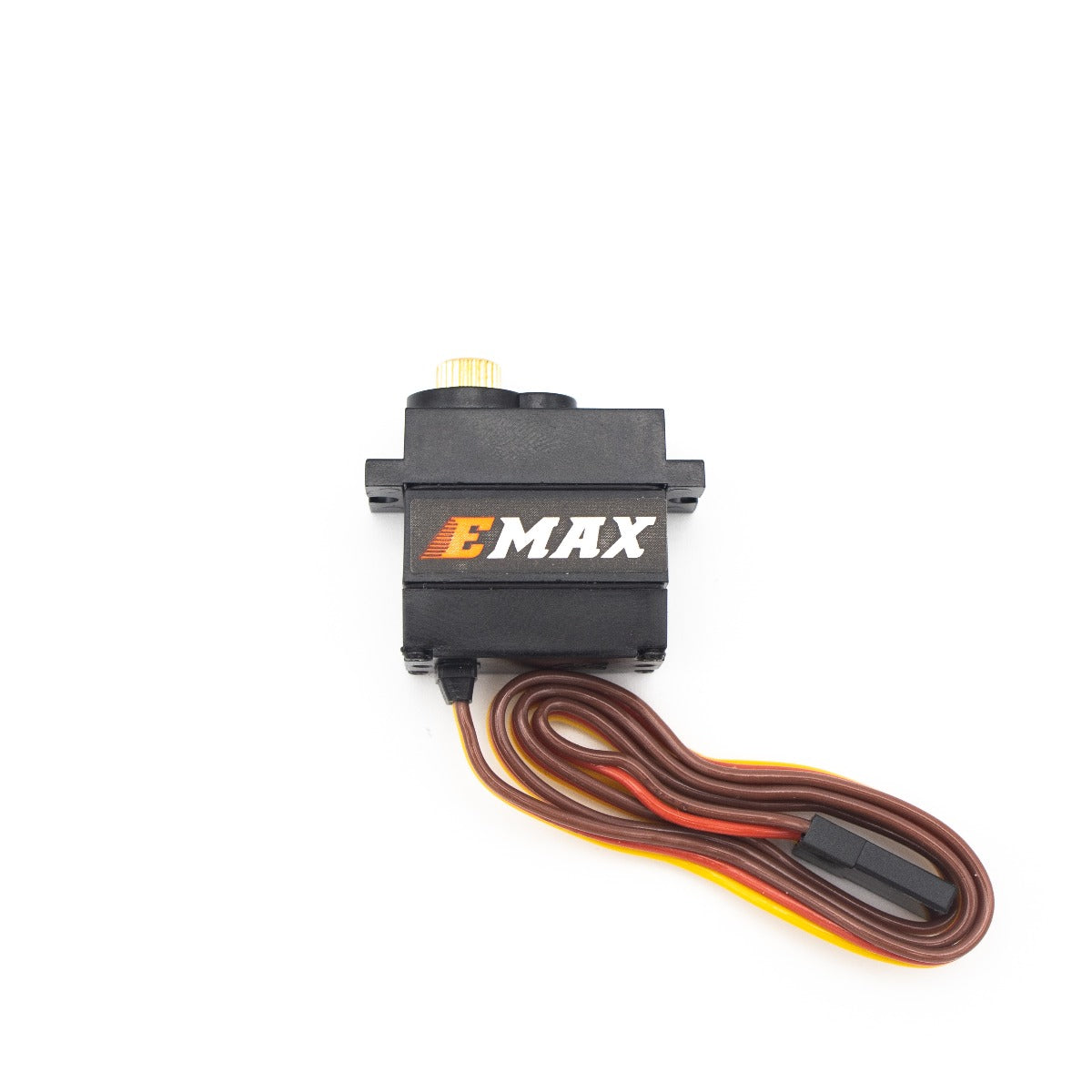

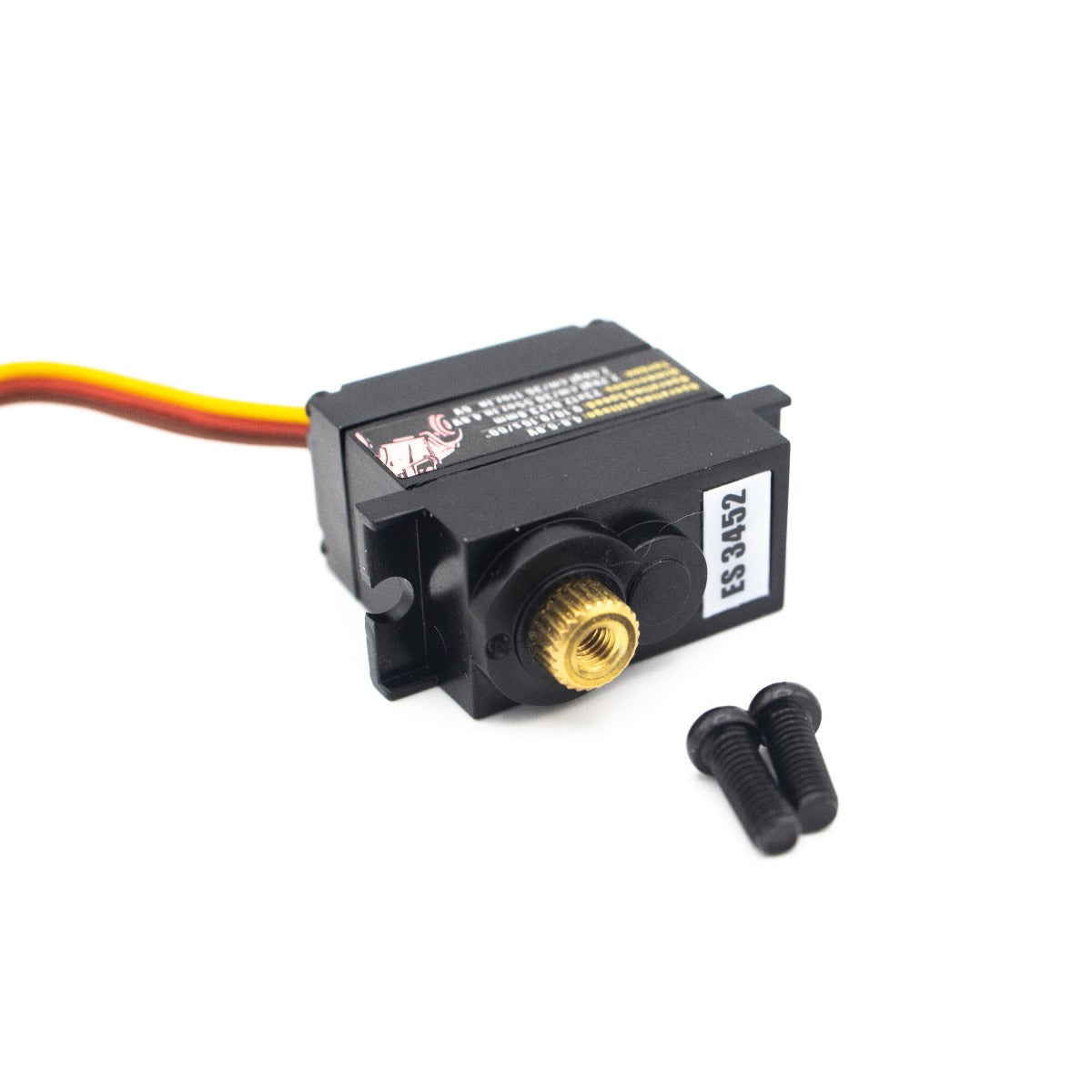

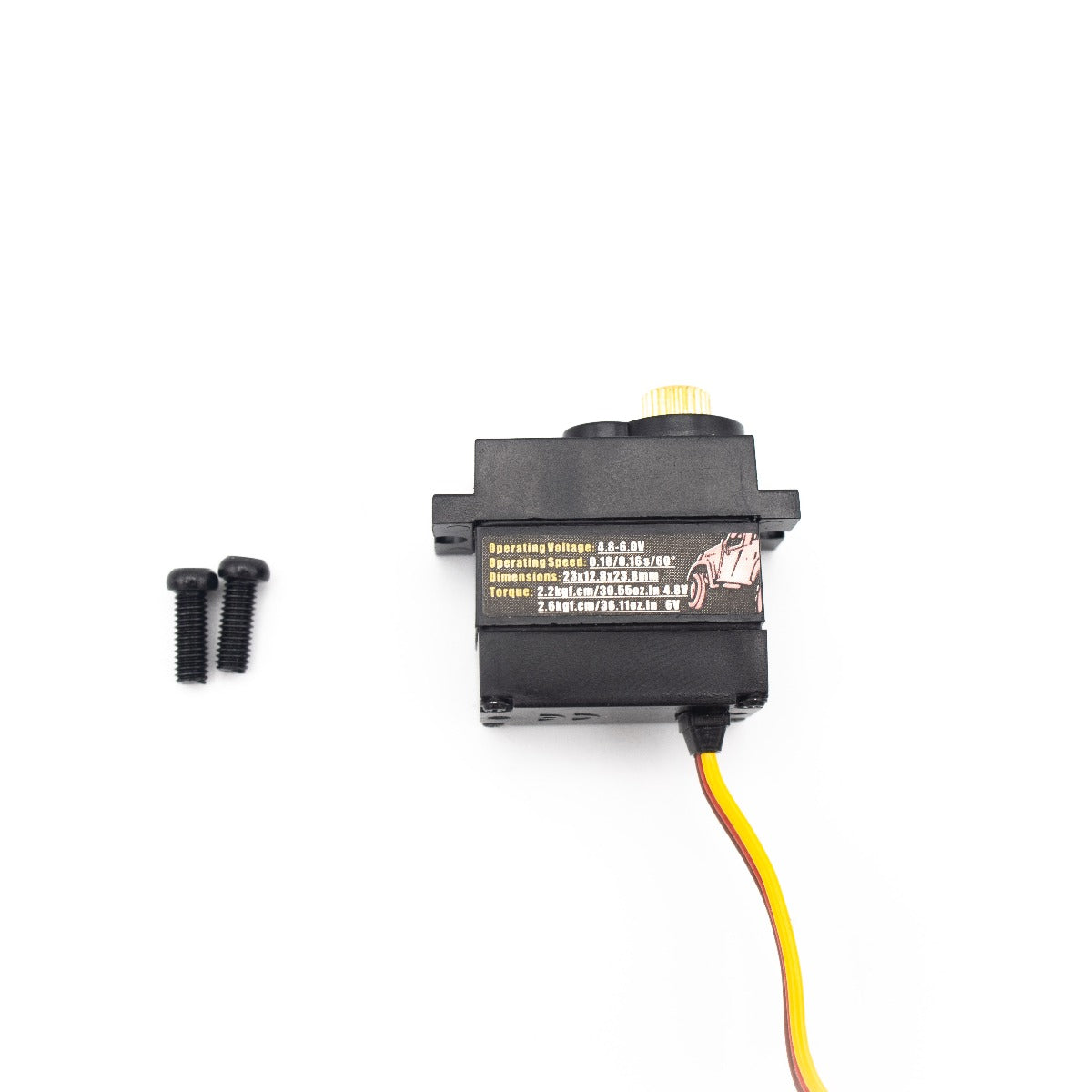

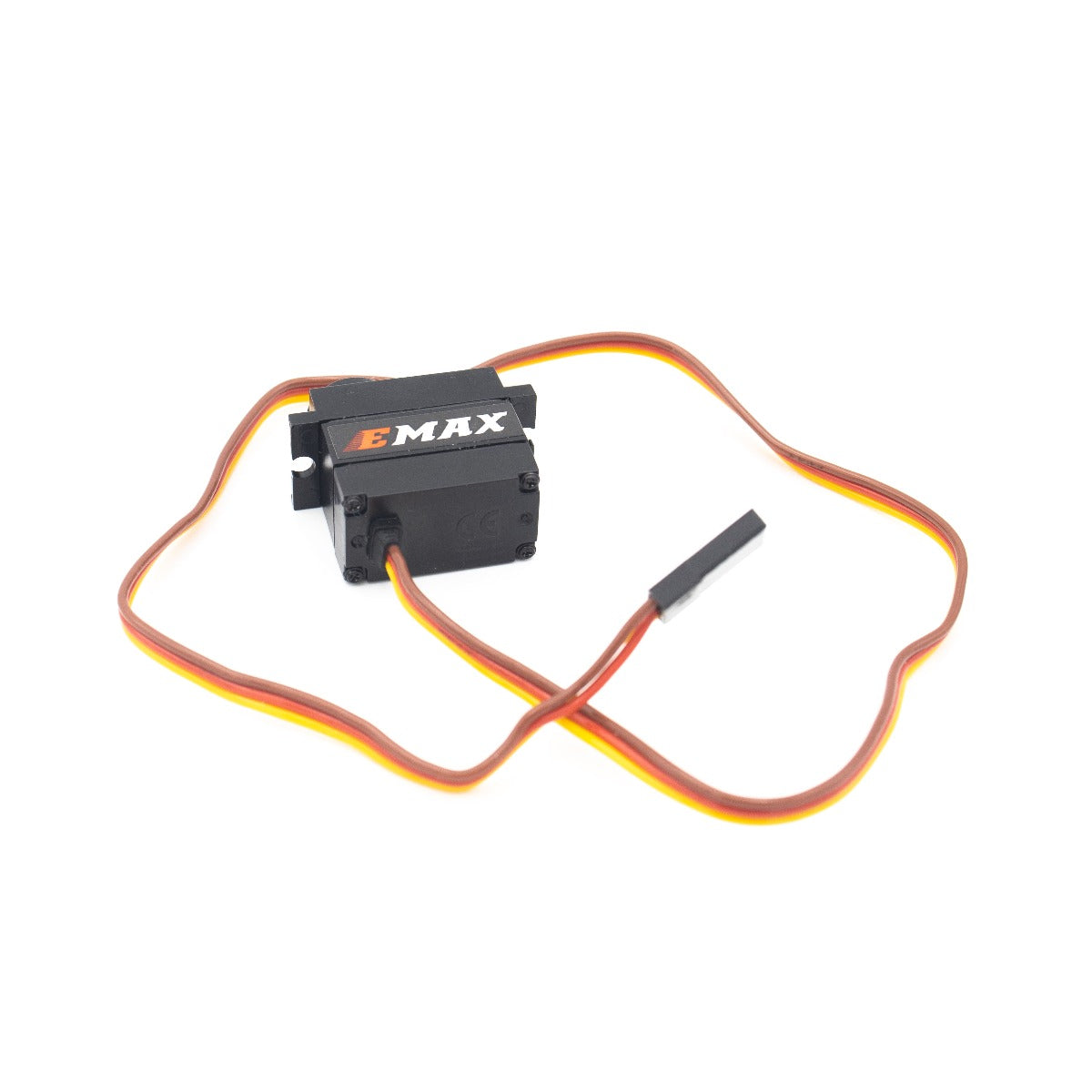

EMAX ES3452 Metal Gear Digital servo for use in TRX vehicles

$26.99 USD
1 in stock
Notes

ES3452 Specifications:

Working Environment：

Storage temperature Range: -20℃~70℃

Operating temperature Range: -10℃~60℃

Electrical Specification:

ES3452

Mechanical Specification：

Overall Dimensions: Weight: 15.5±1 g

Connector wire gauge : JR

Connector wire length: 330±8mm

Spline Teeth: 25T

Gear type: Metal

Extreme angle: 360°

Control Specification：

Control system: PWM

Operating travel: 90° ±10°( when 1000-2000 μ sec )

Neutral position: 1500 μ sec

Rotating direction: Counter Clockwise / Pulse Traveling 1500 to 1900 μ sec

Pulse width range: 700-2300 μ sec

Maximum travel: 145° ( 700-2300μ sec )

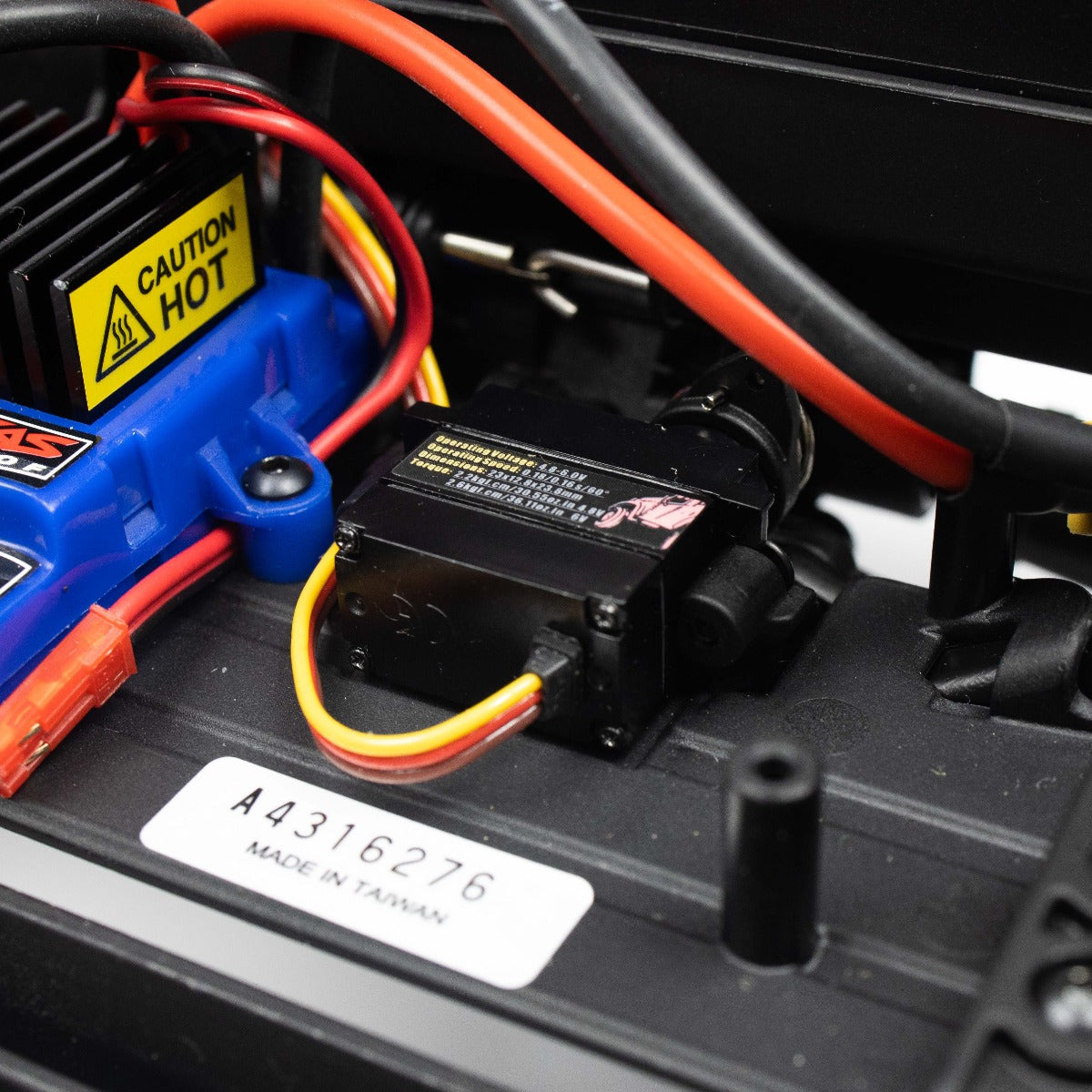

Compatible RC Vehicles:

1/18 LaTrax Desert Prerunner

1/18 LaTrax Rally

1/18 LaTrax Rally VR46

1/18 LaTrax Teton

Summit

TRX-4 1979 Chevrolet Blazer

TRX-4 Ford Bronco

TRX-4 Mercedes-Benz® G 500® 4X4²

TRX-4 Scale and Trail™ Crawler

TRX-4 Sport Unassembled Kit

TRX-4 Sport TRX-4 Tactical Unit

TRX-4 Unassembled Kit

TRX-4 with All-Terrain Traxx™

And any additional kits that use similar sized servo.
