Divimath, Inc.

HDZero AIO5

$99.99 USD

(6)
20 in stock, ready to ship
Notes

*** AIO5 DOES NOT HAVE MOTOR PLUGS PRE SOLDERED ***

NEW release the new vtx firmware v1.7.0(Rev20240923). You can obtain and update your vtx from  https://www.hd-zero.com/document

The update content is as follows:

• Add new target: HDZero AIO5.

• Support Lux camera.

• Fixed osd freezing at betaflight logo.

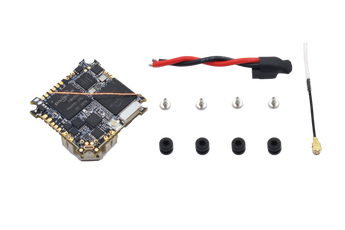

HDZero AIO5


Description
HDZero AIO5 is the world’s first digital video AIO, enabling bind and fly 65mm whoops to weigh less than 19.4g. AIO5 integrates a F4 flight controller, HDZero 5.8GHz digital video transmitter, SPI 2.4GHz ExpressLRS 3.0 receiver, DSHOT protocol 4-in-1 ESC, and a 5V/1A BEC. The minimum voltage has been improved to be 2.3V, which ensures that video never stops transmitting before the motors stop working. Using a single thick PCB rather than a stack of 2 improves durability and simplicity – get ready for a new era of no-compromise tiny whooping in clear digital video!

The HDZero AIO5 is an excellent collaboration between Happymodel and HDZero.


Specifications:

  • MCU: STM32F411 (100MHz, 512K Flash)
  • Gyro: BMI270
  • On board voltage and amperage meters
  • Built-in 5A(each) BLHeli_S 4-in-1 ESC
  • MCU: EFM8BB21
  • HV Current: 5A continuous peak 6A (3 seconds)
  • Factory firmware: O_H_5_48_V0.19.2.HEX
  • Dshot600 ready
  • Built-in 5.8G HDZero VTX
  • RF output: 25mw/200mW
  • Supported channels: R1-R8, F2/F4, L1-L8
  • UFL connector (ultra-lite linear antenna included)
  • Built-in SPI ExpressLRS 2.4GHz receiver
  • Packet rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
  • Pre-soldered enamel wire antenna
  • Telemetry output power,12dBm
  • Built-in 5V 1A BEC
  • Flight controller firmware target: CRAZYBEEF4SX1280
  • Power supply: 1S battery (2.5V – 4.35V)
  • Fully compatible with the popular whoop frames
  • Board size:28.5x28.5mm with a 25.5x25.5 mounting hole size
  • Weight: 5.7g(without motor plugs), 6.3g (with motor plugs)
