BETAFPV

HexaCharger 1S Charger (PRO)

$39.99 USD Sold out
Notes

Pickup currently unavailable at SaltCtyRacingFPV LLC

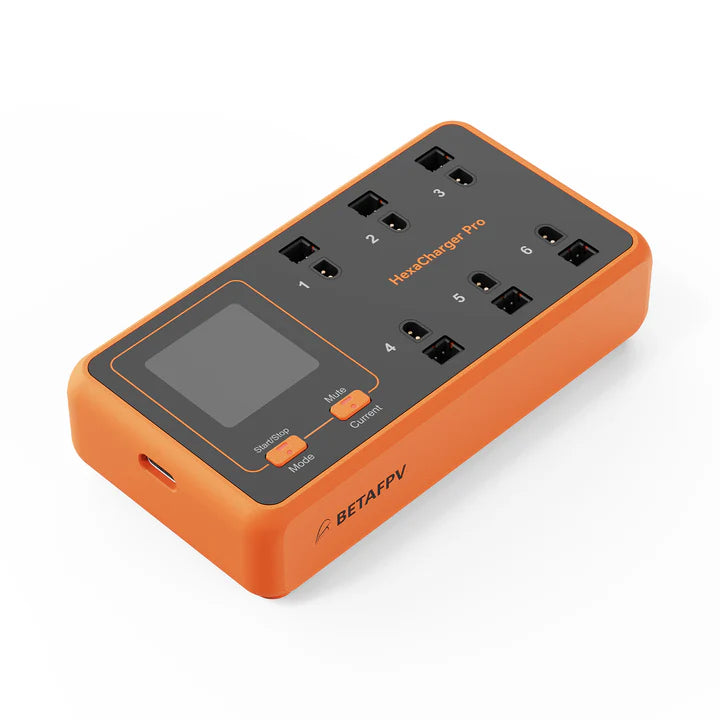

HexaCharger 1S Charger (PRO)

Get back in the air faster with the HexaCharger 1S Charger. This palm‑sized hub charges six 1S batteries at once, available in 24W and 78W Pro outputs for rapid PD 3.0 charging. With an easy‑read color display, dual‑port compatibility, and robust safety systems, it’s built to simplify charging and maximize flight time for whoop pilots of all styles.

Bullet Points

  • Palm‑Sized & Portable: Weighs just 109g (Standard) / 115g (Pro) and fits in the palm of your hand.
  • All‑In‑One Charging Hub: Charge, storage mode, and adjustable current settings all in one device.
  • Easy to Use: Start, stop, and adjust settings with just two buttons, guided by a clear color screen.
  • Fast PD 3.0 Charging: Delivers up to 24W total (Standard) or 78W total (Pro) for rapid, efficient charging of all six ports simultaneously.
  • 1.3” TFT Color Display: Clear, zoned screen shows real‑time voltage, current, and status for all six channels at a glance.
  • Dual BT2.0 & PH2.0 Ports: Compatible with virtually all popular 1S whoop batteries.
  • Smart Cooling System: Intelligent thermal management and high‑flow 9,000 RPM fan ensure safe and reliable charging.
  • Physical Safety Design: Fool-proof ports prevent incorrect insertions.

Specifications

HexaCharger

HexaCharger Pro

Input

5V 3A Max~12V 2.5A Max

5V 3A Max~20V 5A Max

Charging Current
1A Max ( All Ports In Use)

3A Max (One Port In Use)

3A Max (All Ports In Use)

Charging Power

24W Max

78W Max

Supported Battery Type

LiPo/LiHV

Output Voltage

4.2V/4.35V

Storage Voltage

3.85V

Discharging Current

6×400mA

Voltage Accuracy

±0.03V

Input Port

Type-C

Charging Protocol

PD 3.0

Output Connectors

BT2.0/PH2.0

Dimensions

106×56×25.5mm

Operating Temperature

0~40℃

Weight

109g

115g

Diagram

Palm-Sized & Portable

The weighs just 109g (Standard) or 115g (Pro), with a compact design that fits in your palm—and it works with most common adapters for easy power on the go.

All-In-One Charging Hub

Fulfill all your battery‑management needs with built-in charging, storage, and adjustable current settings—all controlled through an intuitive two‑button interface and clear color display. Fast PD 3.0 charging delivers up to 24W total for the HexaCharger or 78W total for the HexaCharger Pro, with the Pro supporting up to 3A max charging current and 400mA discharging current on all six ports simultaneously. Just press to start, then monitor all six ports and real‑time status on the clear 1.3” TFT display. Dual BT2.0/PH2.0 ports ensure full compatibility with popular 1S whoop batteries.

Smart Cooling & Safety Design

Engineered for confidence, the HexaCharger features a foolproof physical design to prevent incorrect insertion, plus an active cooling system with a 9,000 RPM fan and alloy fins to dissipate heat during high‑power operation. Intelligent thermal monitoring automatically adjusts power and halts operation if overheating occurs, ensuring safe, reliable charging every time.

Usage Notes

Charging Current

For optimal battery health and performance, set the charging current according to the recommended values in the chart below. Do not exceed the maximum current for your battery.

 Capacity 280mAh 320mAh 480mAh 580mAh 680mAh 1100mAh
Recommended Current 0.5A 0.5A 1A 1A 1.5A 2A
Charging Time 33min 35.5min 28min 36min 30min 39min
Maximum Current 1A 1.5A 2A 2.5A 3A 3A
Charging Time 17min 15min 16.5min 17min 19min 30min

Charging Adapter

Power Adapter Recommendations

HexaCharger: Use a PD 3.0 adapter with at least 30W output.

HexaCharger Pro: Use a PD 3.0 adapter with 100W output or higher.

Adapter Compatibility & Behavior

  • If the adapter cannot supply the requested charging current, the charger will reduce the current per port to stay within the adapter’s maximum power limit.
  • If the charger detects that the adapter's output is ≤5W (5V/1A), it will charge batteries sequentially by port number, while keeping the other channels off.
  • If charger can only detects the adapter's voltage but not the maximum current, power limit is unknown, *  shown next to voltage. If the input voltage is below 5V, - shown next to voltage. No symbol if the adapter is providing full compatible power.
  • If using a non-PD adapter, wait 5 seconds after powering on for the charger to recognize the protocol before starting to charge.

File

User Manual

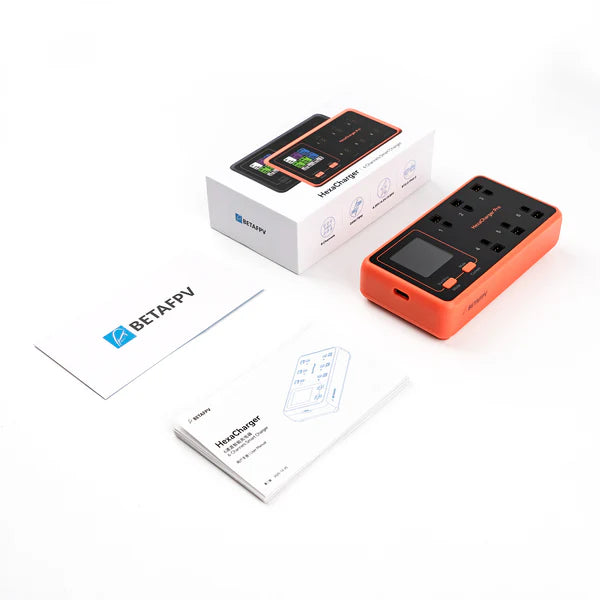

Package

  • 1 * HexaCharger 1S Charger / HexaCharger Pro 1S Charger
  • 1 * User Manual
