Hummingbird 255 AIO Flight Controller AT32F435 AM32 50A 3-6S

$79.99 USD
57 in stock, ready to ship
Notes

Hummingbird 255 AIO Flight Controller AT32F435 AM32 50A 3-6S

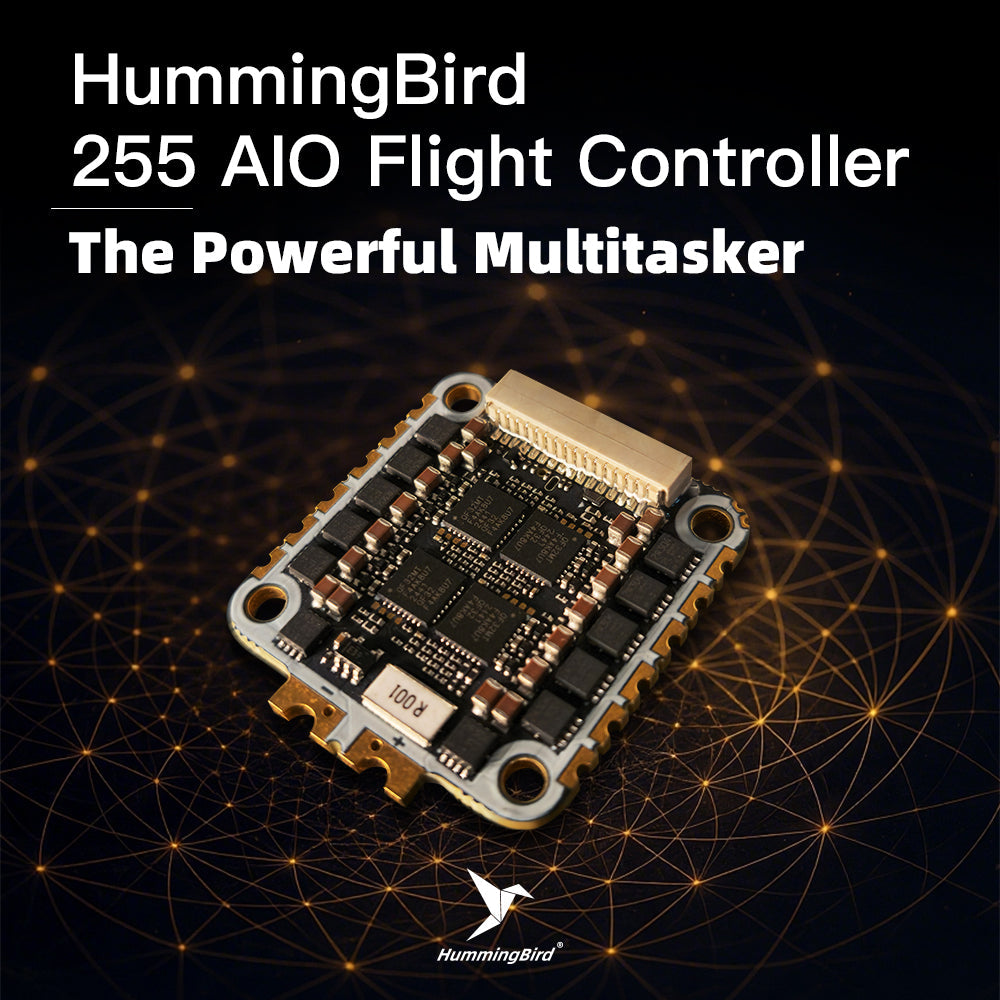

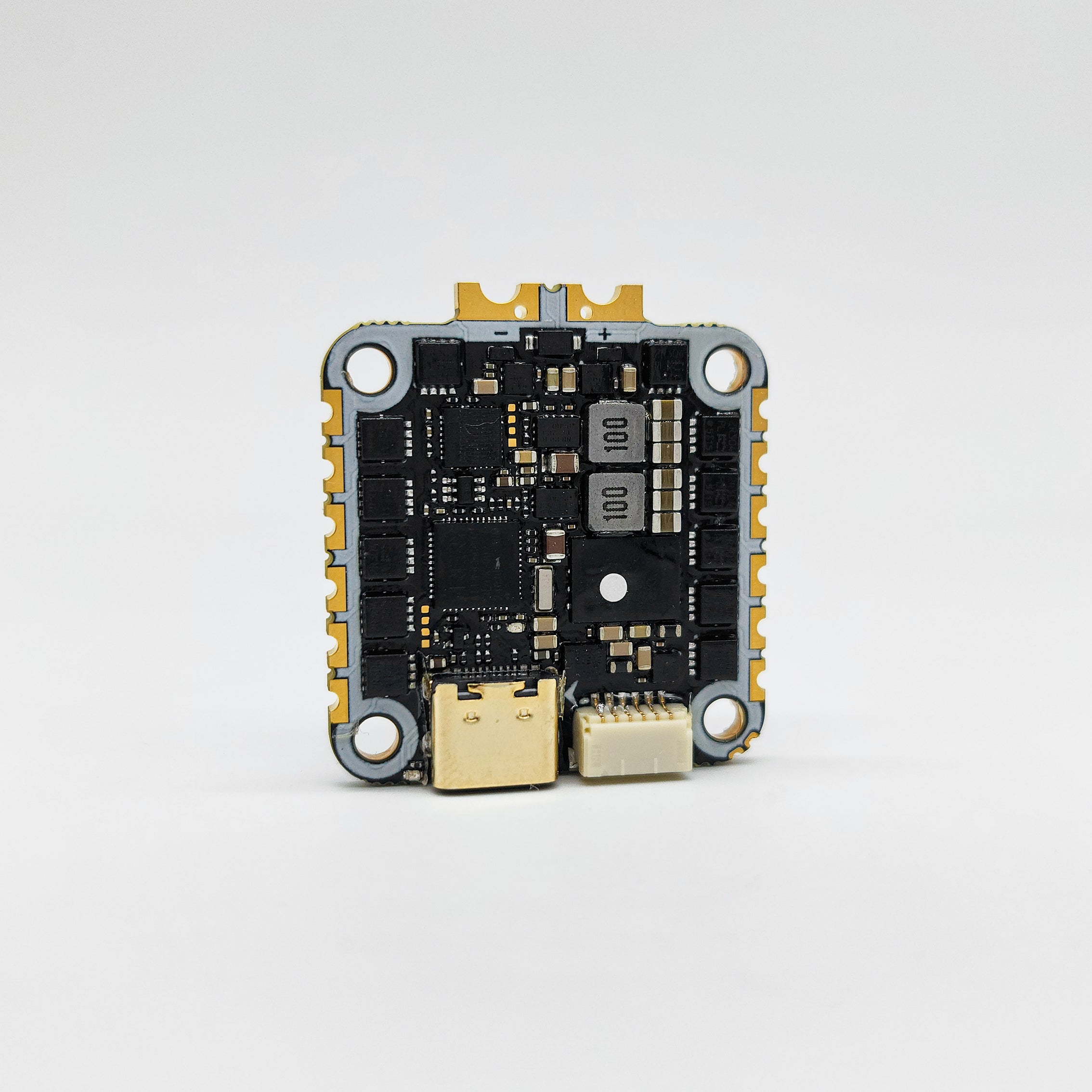

The HummingBird 255 AIO Flight Controller AT32F435 ICM42688 AM32 50A 3-6S is a powerful all-in-one solution tailored for modern FPV drone builds. Featuring a high-performance AT32F435 MCU with a blazing 288MHz core speed, it outperforms traditional F405 by up to 71% and F722 by 33%, delivering unmatched responsiveness and processing power. The Betaflight-recommended ICM-42688 gyro and dual independent BEC system (10V 2A + 5V 2A) deliver clean, stable power to your VTX, receiver, and GPS modules.

With a 6-pin plug-and-play HD VTX interface supporting DJI O4, Walksnail, and HDZero, plus reinforced 16-pin connectors to avoid soldering hassles, integration is effortless and reliable. Designed to handle 50A continuous and 60A burst current with a wide 3–6S input voltage range, it delivers robust performance under demanding conditions.

Optimized for 2.5" to 4" FPV drones, the standard 25.5x25.5mm mounting base and front-access layout make installation seamless. Whether you're building a high-speed ripper or a cinematic micro drone, the HummingBird 255 AIO is your ideal high-performance flight controller.

Perfect for pilots seeking ultra-smooth flight, advanced power handling, and solder-free convenience.



















👉 Recommended Frame Kit Combo
NewBeeDrone StingerBee HD O4 Pro 3” Frame Kit
👉Firmware: HUMMINGBIRD_AIO255


Specifications

  • MCU: AT32F435CGU7
  • Gyro: ICM-42688
  • Blackbox: 128MB
  • Connectors:
    • 6-Pin DJI FPV Air Unit Connector
    • USB-C Connector
  • UART Interfaces:
    • UART7 - SBUS on DJI Connector (RX only)
    • UART4 - DJI Connector
    • UART5 - Free
    • UART6 - Free
  • ESC: 4x AT32F421 AM32 ESC MCU
  • Continuous Current: 50A and 60A Burst ESC
  • Battery Input: 3-6S
  • Power Output: 10V 2A 20W (designed for HD VTX System)
  • Dimensions: 35x32mm with 25.5x25.5 Mounting Holes
  • Weight: 10.2g (without grommets)
  • Features:
    • Betaflight OSD support Analog build
    • I2C_SCL / I2C_SDA Ready
    • Buzzer Ready
    • LED Ready
    • 5V 2A Power supply for external LED or GPS module

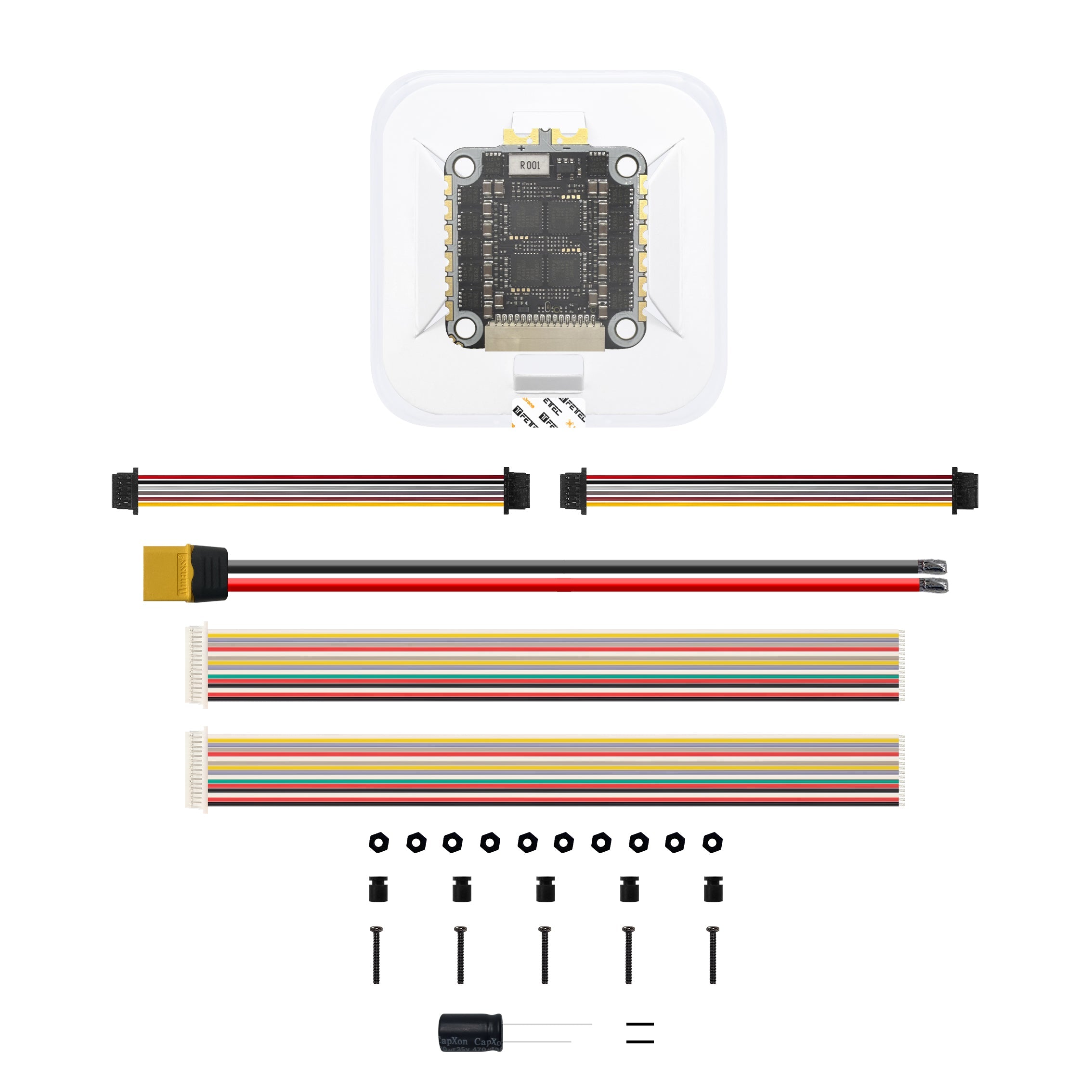

Includes

  • 1x Hummingbird 255 AIO Flight Controller + ESC
  • 2x DJI O4 Cable 55mm (Silicon wire)
  • 2x 16Pin Cable 120mm (Teflon wire)
  • 10x Nylon Lock Nut
  • 5x Steel Screw M2x14
  • 4x Grommets Short
  • 1x 470uf 35v Electrolytic Capacitor
  • 1x XT30 Cable
