Triumph Manufacturing Corp.

LUCID 12S ESC - (NDAA)

$68.99 USD
10 in stock
Notes

Pickup available at SaltCtyRacingFPV LLC

Usually ready in 24 hours

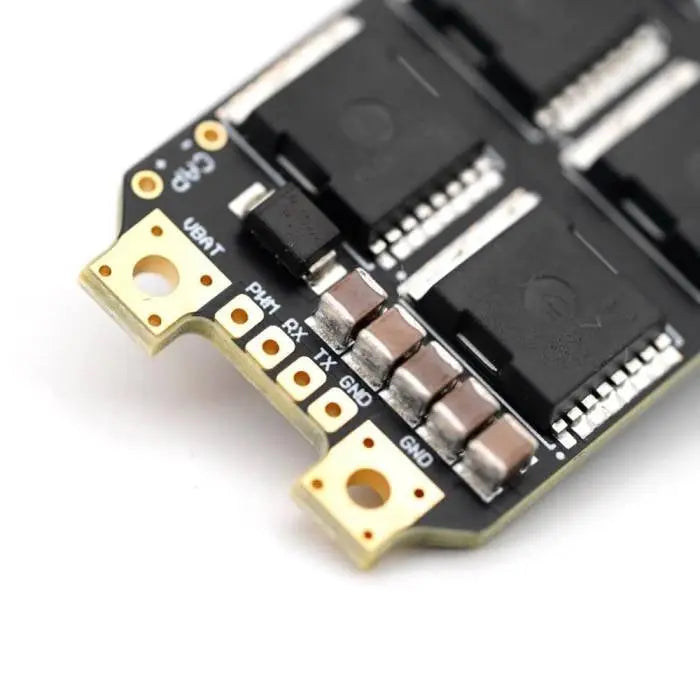

Lucid 12S ESC  - NDAA Compliant Product Made in USA

  • The TBS Lucid 12S ESC is purpose-built for demanding FPV applications that require maximum reliability and high-voltage support. This NDAA-compliant electronic speed controller is engineered for both racing and cinematic drones that operate with heavy payloads and high currents. Developed in collaboration with AlkaMotors32 (AM32), this ESC integrates advanced firmware tuning with an 8-layer high current PCB—designed to handle brutal conditions while remaining lightweight and efficient.



    With TVS protection built-in, the TBS Lucid 12S ESC shields your electronics from voltage spikes, ensuring safe and consistent operation. Its thermal design focuses on passive heat dissipation, eliminating the need for bulky heatsinks while still handling up to 120A peak current on 3-12S LiPo input. Whether you’re flying long-range rigs or high-speed builds, the Lucid 12S offers elite performance with clean power and stable telemetry.

    Key Features:

    • NDAA Compliant – Fully approved for government, defense, and industrial use

    • AM32 Firmware – Performance-tuned with support for bi-directional DShot

    • Rated at 90A (40s), Peak 120A (30s) – Handles high current under load

    • High-Voltage Ready – Operates on 3–12S LiPo systems

    • TVS Surge Protection – Prevents ESC and FC damage from voltage spikes

    • 8-Layer High Current Density PCB – Maximized power delivery and thermal stability

    • Compact & Lightweight – Just 19g (excluding wires/caps)

    • Supports Bi-directional DShot and KISS ESC Telemetry

    • No BEC – Ensures clean power isolation for critical components

    Specifications:

    • Protocol Support: Bi-directional DShot 300/600, KISS ESC Telemetry

    • ESC Software: AlkaMotors32 (AM32)

    • ESC Target: AM32_TBS_12S_F421

    • Rated Current: 70A (60 seconds), 90A (40 seconds)

    • Peak Current: 120A (30 seconds)

    • Input Voltage: 3–12S LiPo

    • ESC Current Port: Yes

    • BEC: None

    • Weight: 19g (excluding wire and capacitors)

    • Dimensions: 57.75mm x 29mm

    • Propeller Compatibility: Up to 15” (requires airflow for 7”+)

    • NDAA Compliant: Yes

    Package Includes:

    • 1× TBS Lucid 90A 3–12S AM32 ESC – NDAA

    • 1× 3-Color Signal Wire (PWM/Serial Input)

    • 2× 330μF 12S Low-ESR Capacitors

    • 1× Transparent Shrink Tube

    • 1× XT60 12AWG Power Wire

    Downloads & Resources:



  •

    NDAA Compliance Notice

    This product is part of our NDAA-aligned collection. It is intended for customers seeking components that meet sourcing and compliance requirements related to the National Defense Authorization Act (NDAA). End users are responsible for ensuring proper application and regulatory compliance based on their specific use case.
