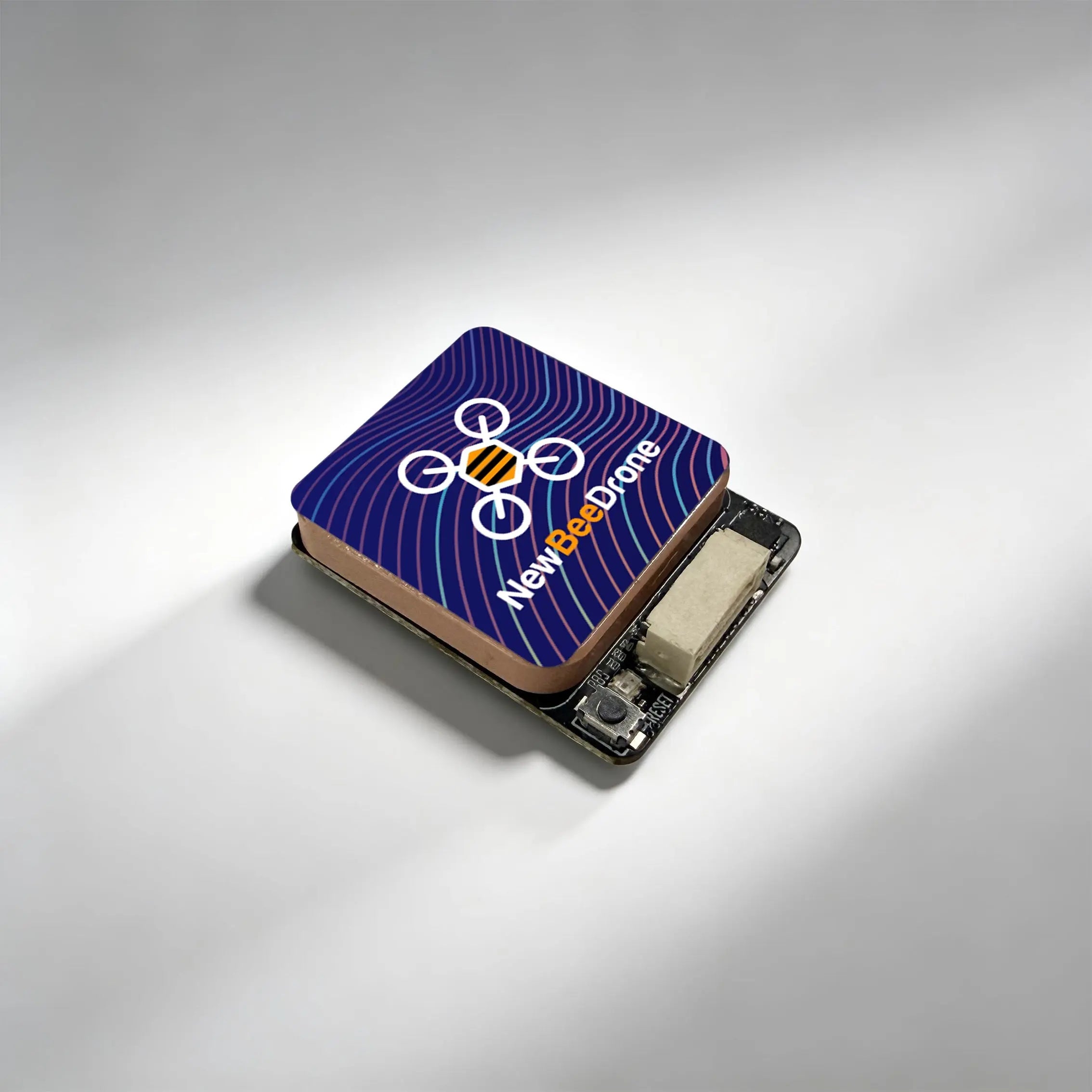

NewBeeDrone BeeID Pro M10 GPS Module with RemoteID & IST8310 Compass

$59.99 USD
96 in stock, ready to ship
Notes

NewBeeDrone BeeID Pro M10 GPS Module with RemoteID & IST8310 Compass

Building upon the success of our popular M10Q version, we are proud to introduce the NewBeeDrone BeeID Pro M10 GPS Module—specifically engineered for professional-grade drones and autonomous flight missions.

This isn't just an FAA-compliant Remote ID broadcast module; it's a comprehensive navigation powerhouse. The new M10 Pro version has been fully optimized for PX4 series and other professional flight controllers. We've integrated a high-precision IST8310 Compass and upgraded the interface to an industry-standard GH1.25 connector, making wiring and configuration for professional rigs easier and more reliable than ever.

Meanwhile, it perfectly retains all the core features of the original BeeID: it features a built-in, fully FAA-compliant Broadcast Remote ID. No need for clunky external modules—simply plug and play. Ensure your professional drone maintains top-tier navigation accuracy while effortlessly complying with the latest aviation regulations.

Key Features

  • Designed for Professional Flight Controllers: Features a standard GH1.25 6-Pin connector, making it perfectly compatible with PX4, ArduPilot, and other professional flight controllers for maximum connection stability.

  • Integrated IST8310 Compass: The newly added high-performance IST8310 magnetometer provides exceptionally accurate heading data, essential for complex autonomous waypoints, hovering, and Return-to-Home (RTH) missions.

  • Next-Gen M10 GPS Core: Powered by the latest 10th-generation U-blox positioning chip. It supports concurrent reception of multiple GNSS (GPS, Galileo, GLONASS, BeiDou) for faster satellite acquisition and outstanding accuracy, even in challenging environments.

  • Built-in FAA-Compliant Remote ID: Retains the exact same reliable Remote ID broadcasting functionality as our M10Q version. It includes a dedicated Broadcast Barometer and broadcasts your drone’s serial number, location, altitude, and speed in real-time via Bluetooth/WiFi to keep you flying legally.

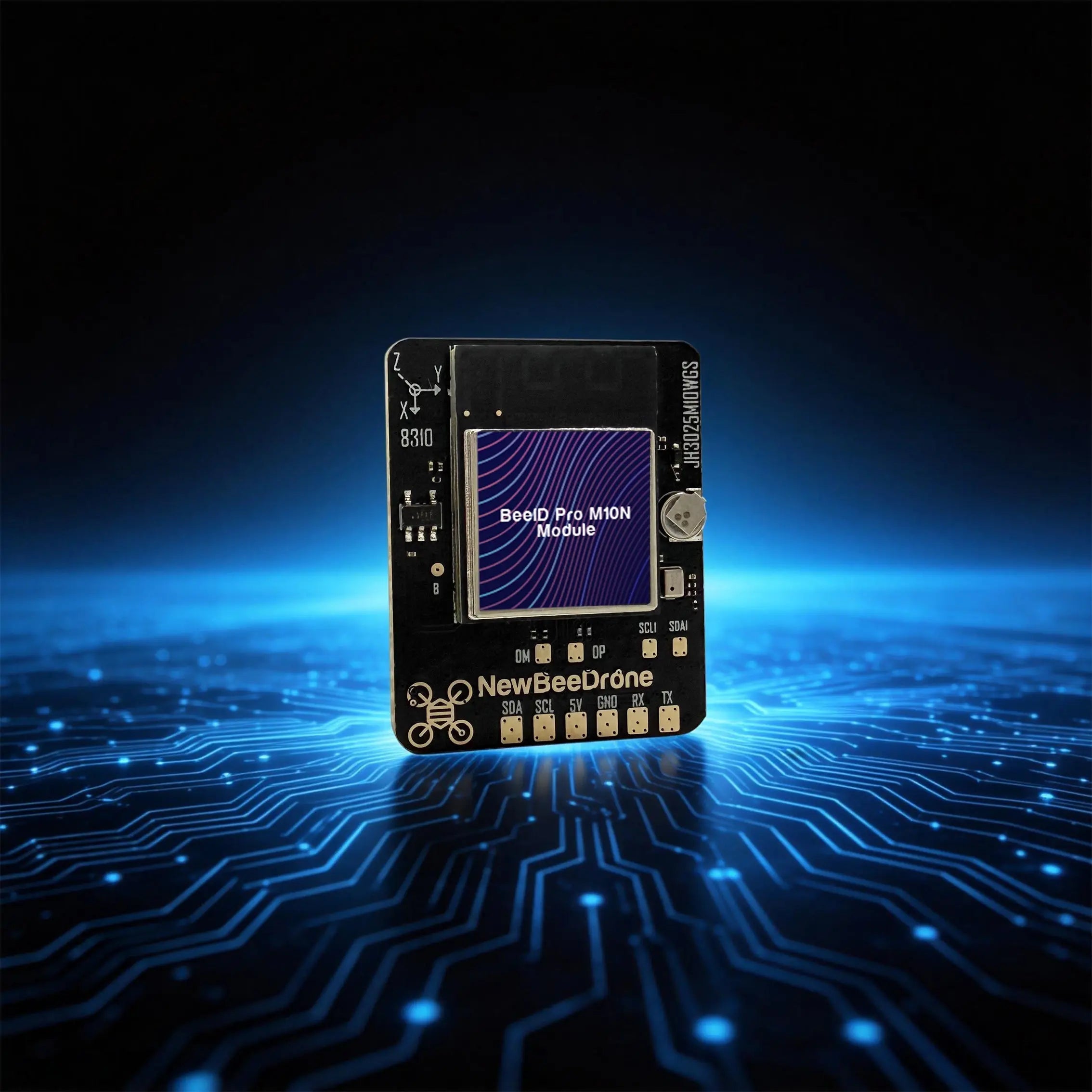

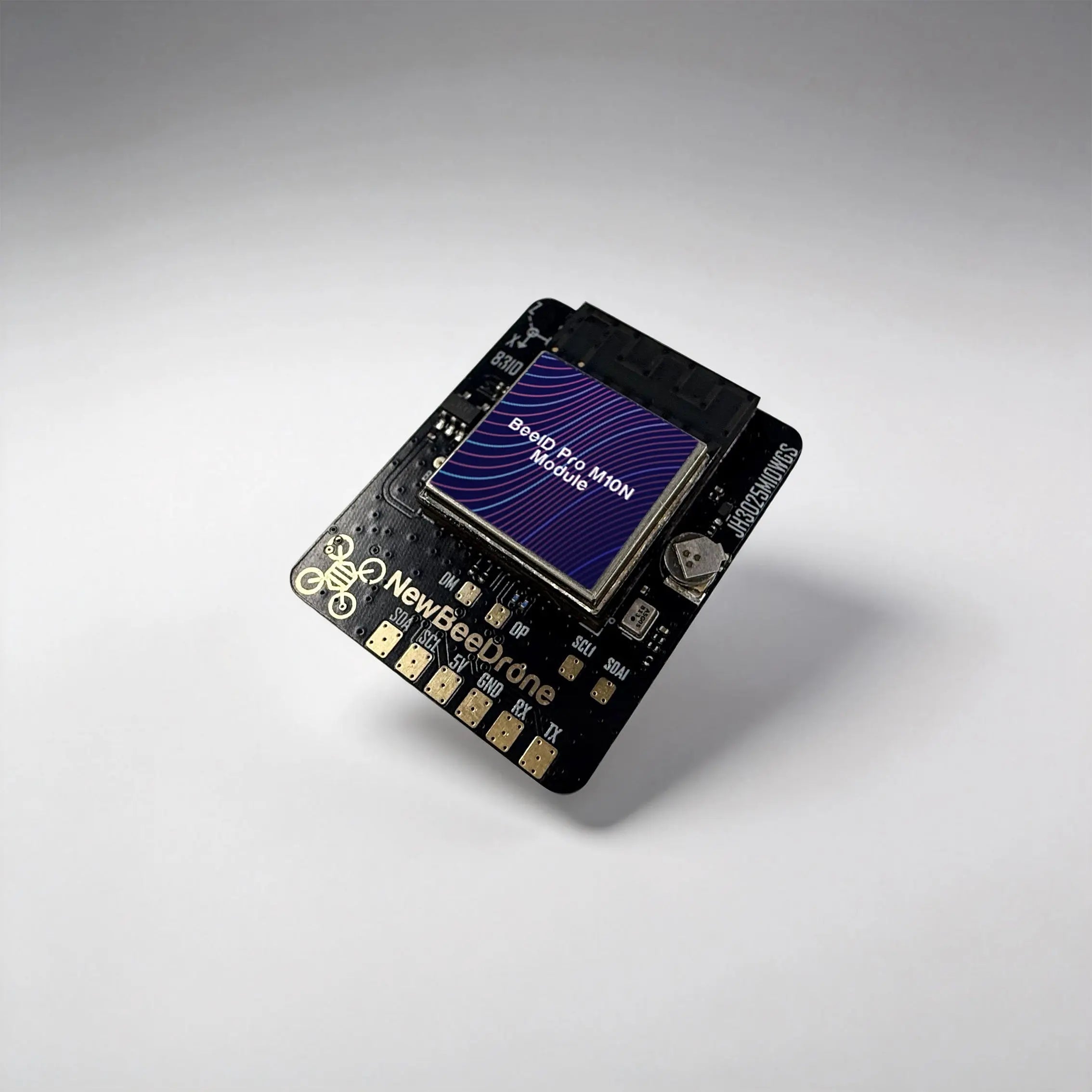

  • Compact & Versatile: Despite packing a GPS, Compass, Remote ID, RGB indicator, and functional button, the footprint remains incredibly small. In addition to the GH1.25 connector, we've kept the direct solder pads (SDA, SCL, 5V, GND, RX, TX) on the back for hardcore DIY builders who need maximum installation flexibility.

Specifications

  • GPS Module: U-blox M10

  • Compass (Magnetometer): IST8310

  • Weight: About 13.37g

  • Remote ID: Supported (WiFi / Bluetooth broadcast, FAA Compliant)

  • Barometer: Built-in Broadcast Barometer (dedicated to Remote ID altitude data)

  • Connector Type: GH1.25 6-Pin (Direct solder pads also available on the bottom)

  • Input Voltage: 5V

  • Size: 25 × 31.22 × 9.5 mm

  • Pinout Definition:

    • TX (Connect to FC RX)

    • RX (Connect to FC TX)

    • GND (Ground)

    • 5V (Power)

    • SCL (I2C Clock - for Compass)

    • SDA (I2C Data - for Compass)



  • Additional Components: Integrated RGB Status LED, Boot/Function Button, RESET pads.

    Download
    BeeID_PRO 3D PRINT Mount Step File: Link
    BeeID_PRO Firmware: Link

Includes

  • 1x NewBeeDrone BeeID Pro M10 GPS Module with RemoteID

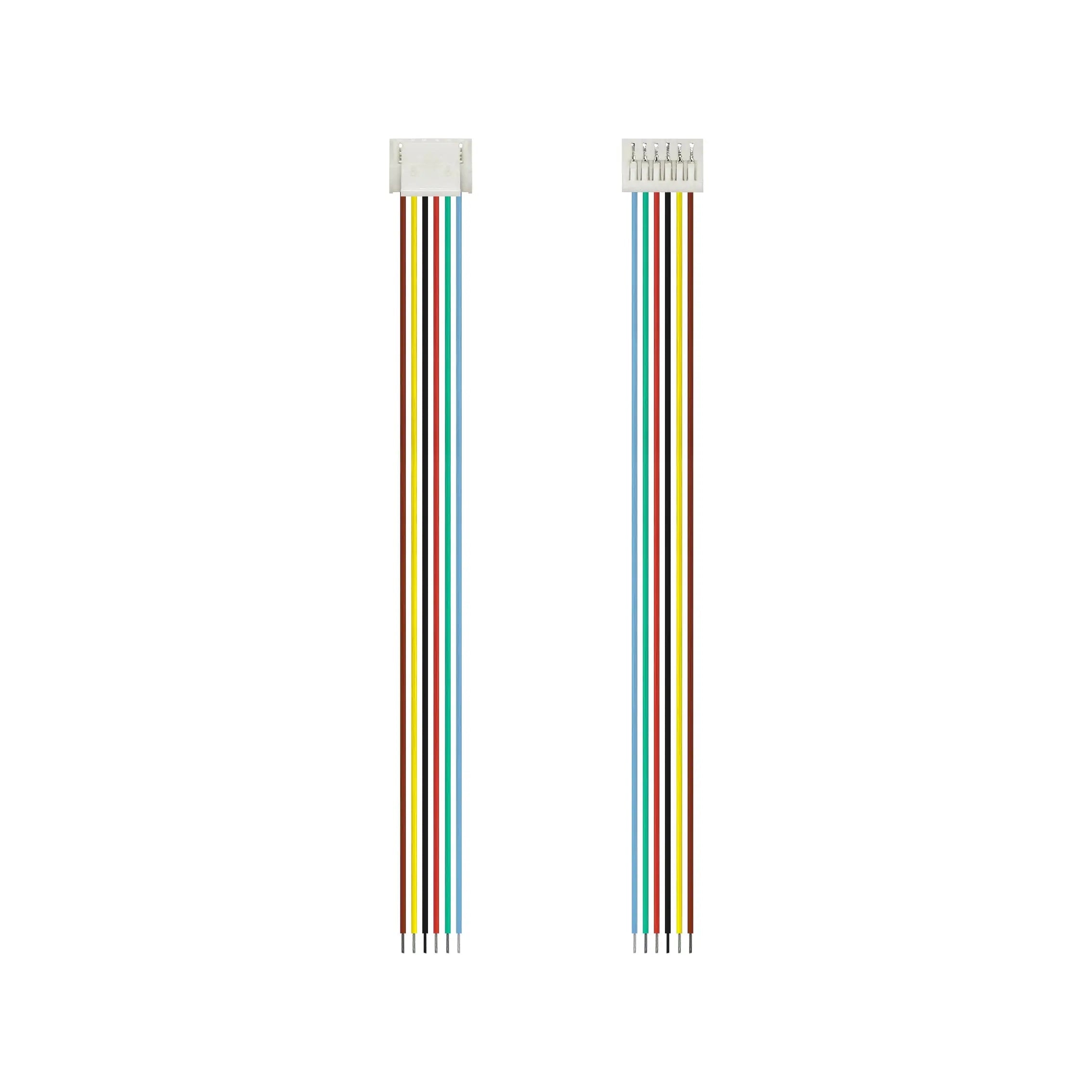

  • 2x GH1.25 6-Pin Silicone Cable (Modify this based on your actual packaging)
