NewBeeDrone DJI O3 AirUnit 20x20 adapter mount

$6.99 USD
1 in stock
Notes

NewBeeDrone DJI O3 AirUnit 20x20 Adapter Mount

The NewBeeDrone DJI O3 AirUnit 20x20 Adapter Mount offers a secure and lightweight solution for mounting your DJI O3 AirUnit to 20x20 mounting holes. Crafted from durable materials, this adapter mount ensures a stable and easy installation. It’s perfect for DIY drone builds, providing flexibility and adaptability to your custom setup. With precise fitment and straightforward assembly, you’ll have your AirUnit securely in place for optimal performance.

Key Features:

  • Compatible with DJI O3 AirUnit
  • Fits 20x20 mounting holes
  • Lightweight yet sturdy construction
  • Easy installation for custom drone builds

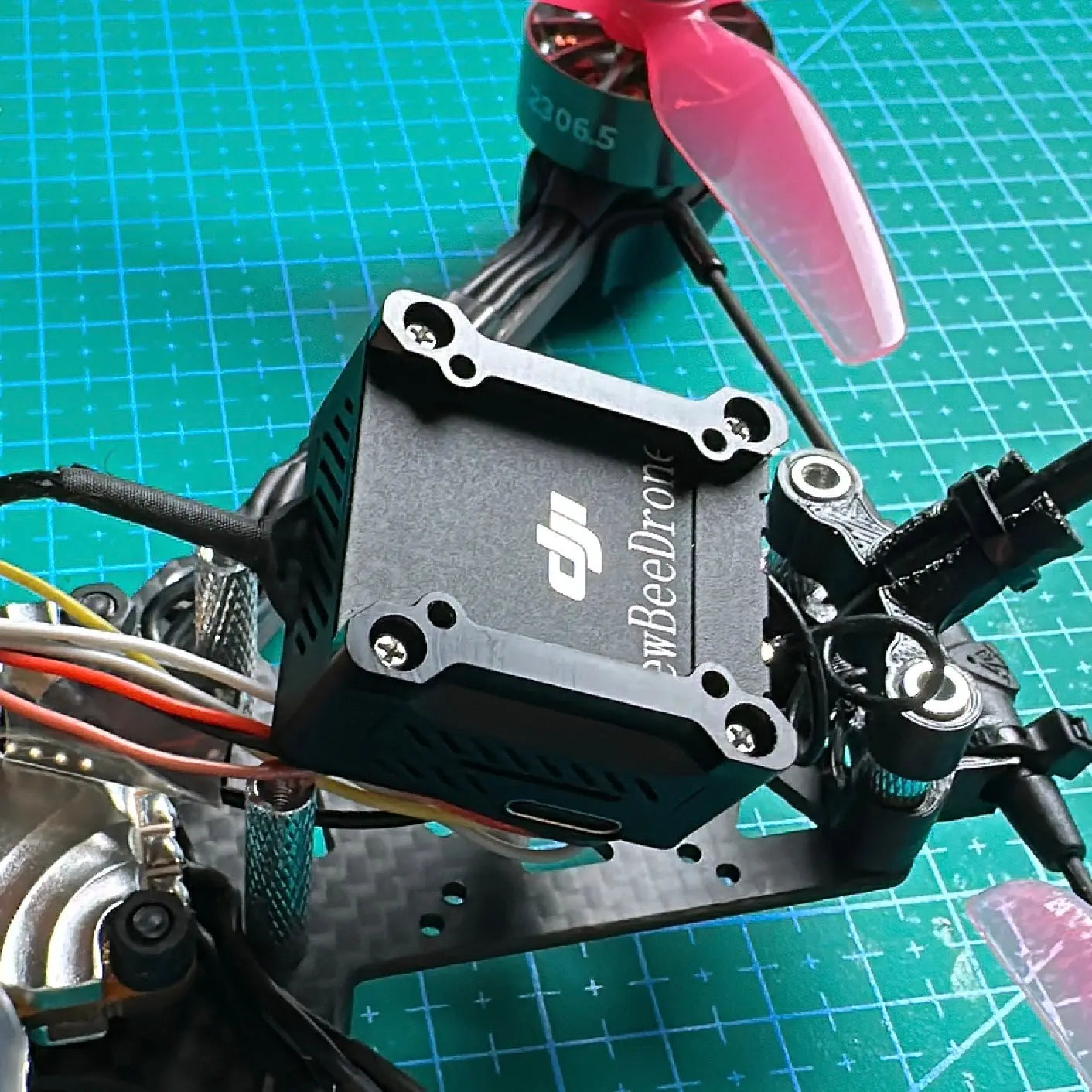

DJI O3 Air Unit adapter mount is made by CNC Aluminum, it can dissipate heat from the O3 Air Unit at the same time provide a strong mounting solution for the Air Unit.

Spec:
Material: 6061 Aluminum Alloy
Mount to air unit: 25.5x25.5
O3 AirUnit mount screw M1.6 X8mm
Mount to Drone frame: 20x20 M2

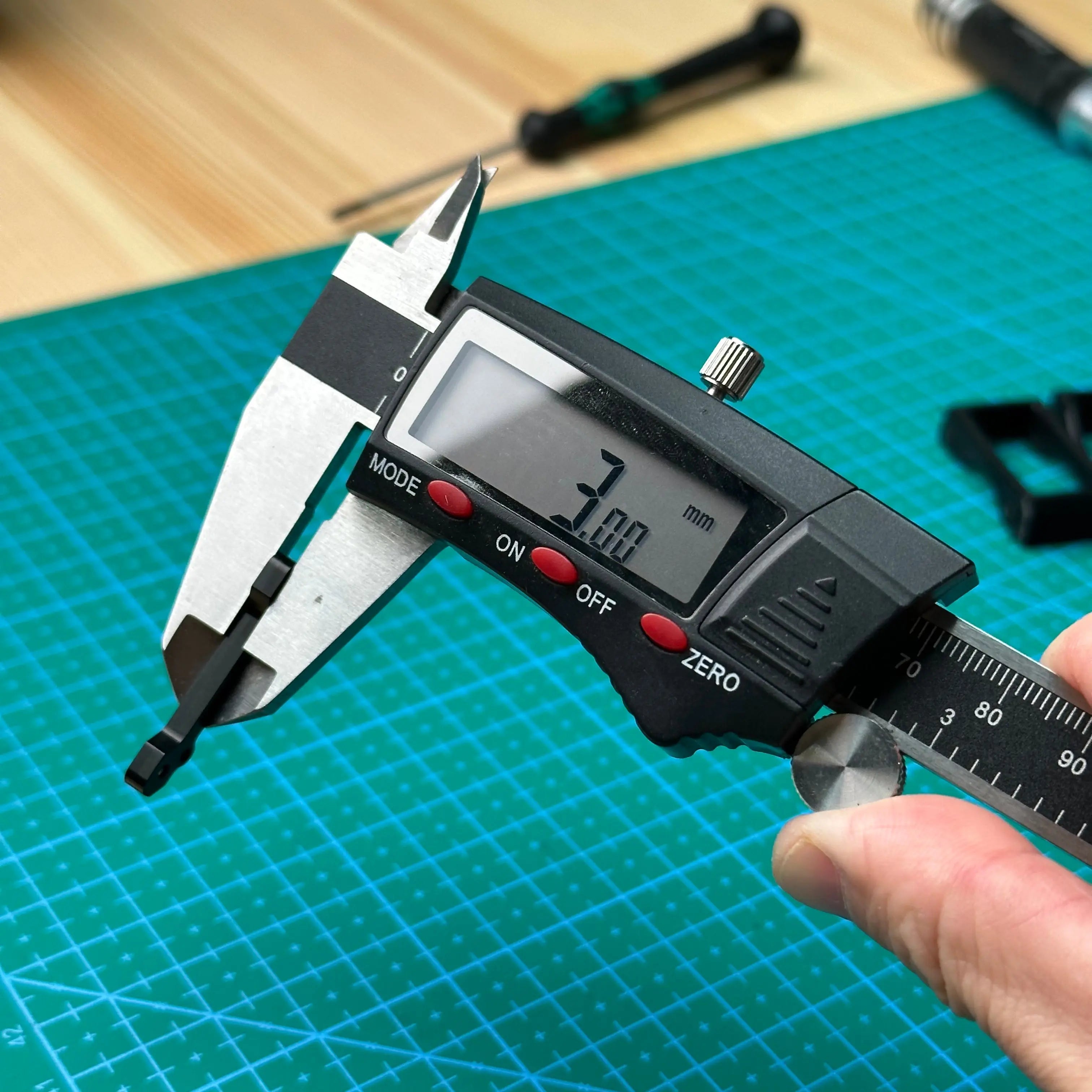

Thickness: 3mm

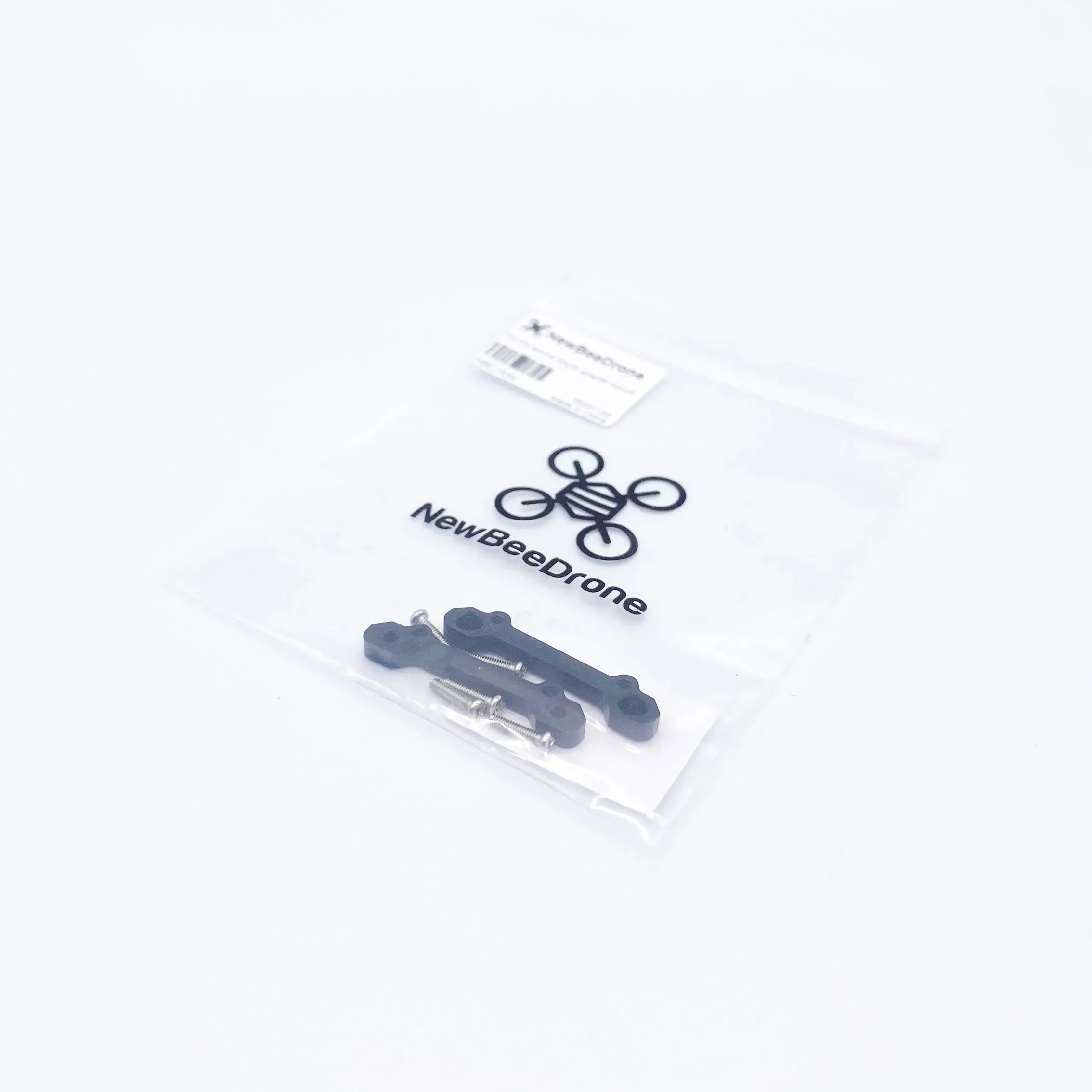

Include:
2x CNC Aluminum Parts
5x M1.6 x 8mm Stainless steel screw Philips head

New Batch started from Jan 16 will comes with extra 5x M2-4mm screw, this screw only works with 1mm to 2mm thickness frame bade mount. If you frame base board is thicker than 2mm, please don’t use this screws. This is why we don’t provide the M2 screws in the past.

Installation Guide
