NewBeeDrone Infinity305 F4 Flight Controller

$34.99 USD
Blackbox?
33 in stock, ready to ship
Notes

NewBeeDrone Infinity305 F4 Flight Controller

The NewBeeDrone Infinity305 F4 Flight Controller is engineered for serious FPV enthusiasts seeking cutting-edge performance and reliability. Featuring the powerful F4 processor, this flight controller ensures lightning-fast response times and seamless integration with your drone's components. With support for up to 6S battery configurations, the Infinity305 F4 allows for advanced flight modes and precise tuning, giving you complete control over your flying experience.

Designed with built-in OSD (On-Screen Display) capabilities, you can easily monitor essential flight data directly in your goggles. The robust layout and comprehensive filtering reduce noise, enhancing stability and overall flight performance. Upgrade your drone's capabilities with the NewBeeDrone Infinity305 F4 Flight Controller, and experience smooth, responsive flying that meets the demands of both racing and freestyle pilots.


Infinity305 Flight Controller


-Infinity305 Flight Controller Firmware on Official Betaflight
Target name: NBD_INFINITYF4

Build Video:

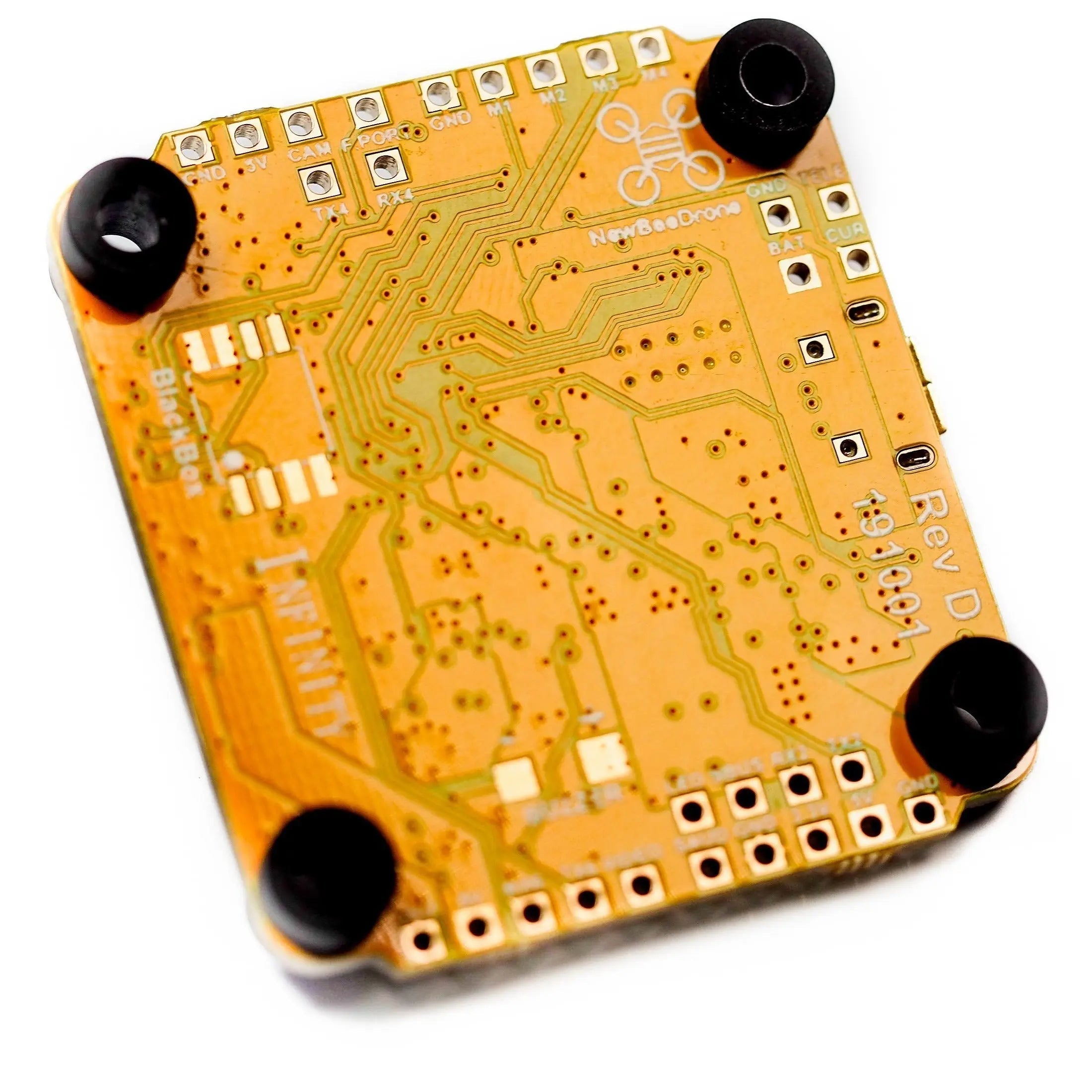

We are offering a limited supply of the Infinity FC with a BlackBox pre-installed. The chip is a W25Q128JVSIM (128Mbit / 16MByte)

Flight Controller Spec:

  • MPU6000 Gyro
  • STM32F405 CPUE @ 168mhz, can be overclocked
  • 3-6S direct battery input
  • 5V 2A,
  • 9V 2A 18W Design for DJI FPV Air Unit
  • 5V Camera Power
  • betaflight OSD
  • Flat bottom PCB for SUPER CLEAN builds
  • 36x39 CB with 30.5x30.5 mounting holes
  • 6 UARTS. UART1 (INVERTER FOR SBUS)
  • UART2 (FREE)
  • UART3 (INVERTED TELEMETRY)
  • UART4 (Free)
  • UART5 (Smart Audio)
  • UART6(Free)
  • Built-in 4 IN 1 ESC socket(including ESC telemetry, External current sensor) JST1.0 8Pin
  • Plug and plug with NBD Infinity30 ESC. Also compatible with most of the ESC on the market.
  • Built-in solder pads for ESC signal output and power
  • Printed layout instructions ON the board - no need for instructions!
  • DJI FPV Air Unit socket (use UART1 and UART6)


Includes:

  • 1x Infinity305 flight controller
  • 4x Grommets short 4x Grommets Long
  • 1x Infinity305 FC to DJI Air module cable 40mm
  • 1x Infinity305 FC to DJI Air module cable 100mm
  • 1x Infinity305 FC to DJI Air module cable 150mm

NOTE: We suggest running a cap on 4s builds. Even though we tested and designed it to not need one, all builds are different and there are always exceptions.

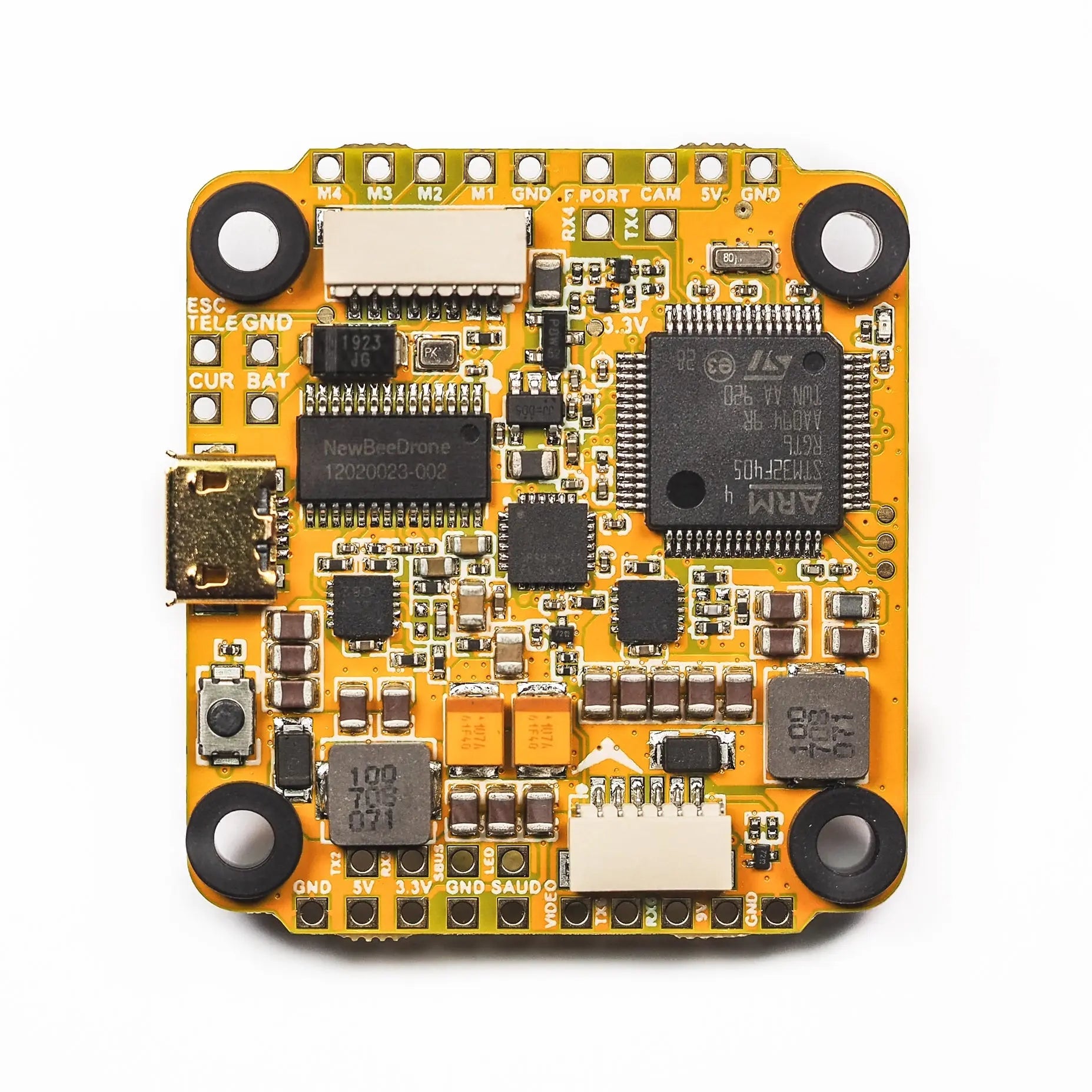

Infinity305 Wire diagram top

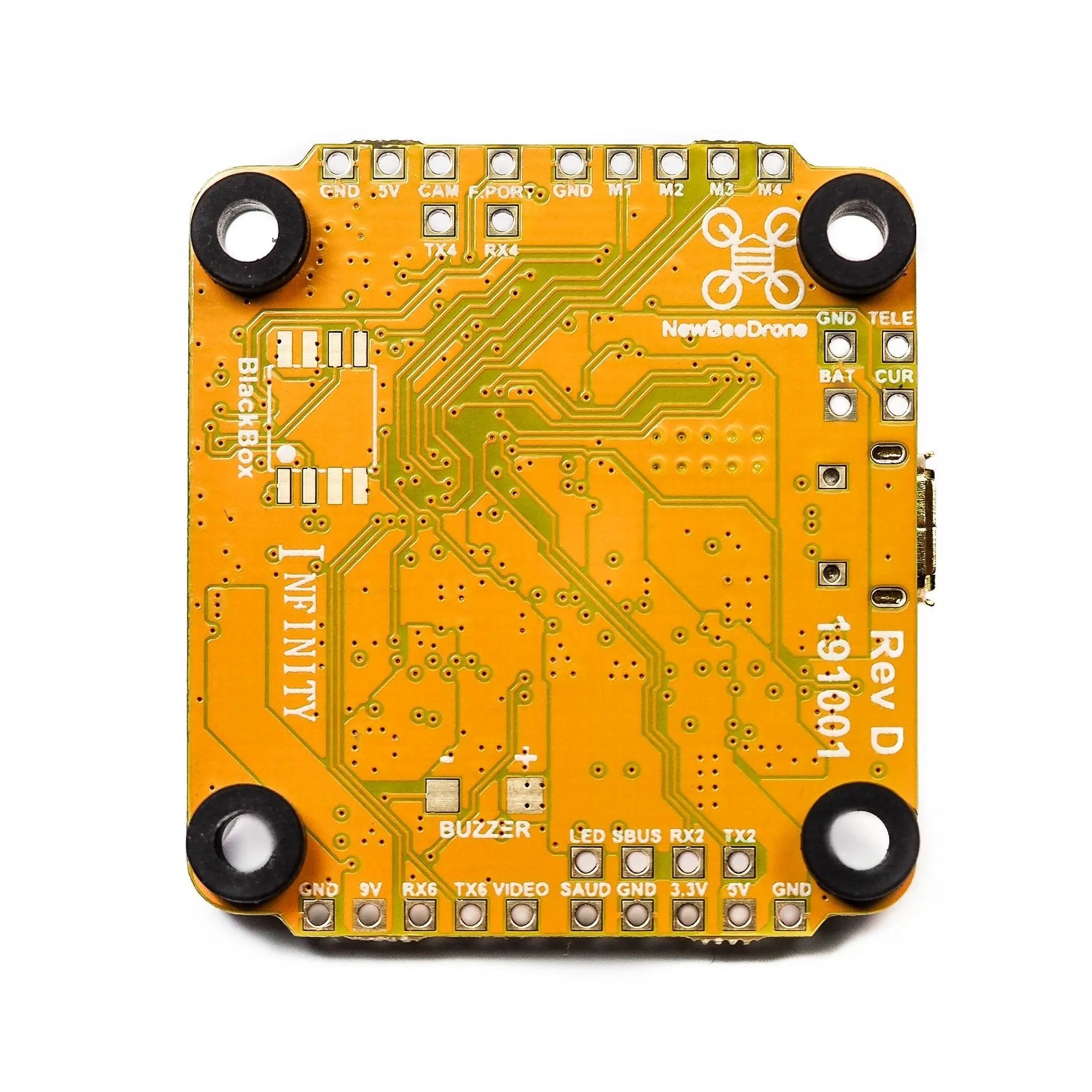

Infinity305 Wire diagram bottom
