BETAFPV

P1 Air Unit HD VTX

$49.99 USD Sold out
Notes

The P1 Air Unit HD VTX, part of the ArtLynk protocol ecosystem, delivers a stunning 1080p@60fps live feed with approximately 60ms latency and an impressive transmission range of over 5km. Its 1/2.9” CMOS sensor and wide 170° field of view provide an incredibly immersive and detailed perspective, making every flight intuitive and responsive. Designed for reliability in diverse conditions, the system maintains a stable, interference-resistant connection—whether weaving through dense forests or navigating complex urban environments.

Bullet Points

  • ArtLynk Protocol: A low-latency, long-range communication protocol for drones, offering superior stability and range over traditional analog VTX.
  • Lightweight & Affordable HD: Weighs just 6.8g, offering a compact and affordable HD VTX solution.
  • Reliable Video Transmission: Delivers smooth video with ~60ms latency and over 5km range.
  • Wide‑Angle 1080p Clarity: 1/2.9” CMOS sensor and 170° FOV for a crisp, immersive live view.
  • Plug‑and‑Play Compatibility: Standard 6‑pin port works seamlessly with Betaflight and BETAFPV flight controllers.

    Specifications

    Air Unit

    Weight
    Air Unit (Camera excluded): Approx. 3.61g
    Air Unit (Camera included): Approx. 6.5g
    Antenna: Approx. 0.44g

    Mounting Hole Size

    25.5*25.5mm

    Mounting Hole Diameter

    ø2.5mm

    Dimensions (L*W*H)
    Air Unit: 30*30*5.5mm
    Camera: 14*14*17mm

    Ports
    SH 1.0 6-pin (FC)

    SH 1.0 4-pin (USB)

    VTX

    Frequency

    5.1-5.9 GHz

    Effective lsotropic Radiated Power (EIRP)
    ＜200mW (FCC/SRRC)
    <25mW (CE)

    Video Transmission Range
    >5km

    Video Transmission Latency

    Approx. 60ms

    Live View Quality

    1080p@60fps

    Bandwidth

    10MHz

    Antenna

    Single antenna

    Channels

    3

    Camera

    Mounting Width

    14mm

    Mounting Hole

    M2

    Image Sensor

    1/2.9'' CMOS

    Lens

    Field of View (FOV): 170°

    Video Format

    MP4

    Max Video Transmission Bitrate

    20Mbps

    OSD

    Canvas mode

    Firmware

    Input Voltage

    5V

    Operating Temperature

    -10℃ to 40℃

    Compatibility

    Supported FC

    Betaflight FC & BETAFPV FC

      Diagram

      Reliable Video Transmission

      The P1 Air Unit delivers reliable, clear video transmission with a max power output of 200mW and over 5km range*. With approximately 60ms low latency, enjoy stable, static-free video that lets you fly farther and explore with confidence. Standby Mode automatically adjusts power based on the distance between your goggles and the drone, keeping your live view connected even in a crash.

      Lightweight & Affordable HD

      At just 6.5g (antenna excluded), the P1 Air Unit delivers a compact and budget‑friendly HD video solution—so you can build your perfect HD whoop without compromise.

      Wide Compatibility

      Featuring a standard SH1.0 6-pin port and MSP communication protocol for OSD, the P1 Air Unit seamlessly supports Betaflight and BETAFPV flight controllers.

      Know More About ArtLynk Protocol

      P1 Air Unit HD VTX is a part of the ArtLynk protocol, which is a low-latency, long-range communication protocol for drones, offering superior stability and range over traditional analog VTX. ArtLynk protocol enables real-time HD video at about 60ms latency from glass to glass, which is crucial for smooth flight control and high-quality FPV (First Person View). Here are the key features you may want to know.

      • Artosyn Inside & KAP Supported: ArtLynk protocol uses the Artosyn's latest AR803X chipset, with core technology support provided by KAP (KAP company provides core technology support or product solution to all FPV companies and ensures compatibility for various FPV products using Artosyn chipsets).
      • Collaborative and Open Community: ArtLynk protocol is a collaborative FPV ecosystem not belonging to ONLY one company. Many FPV enterprises and teams would design and produce their own products based on the ArtLynk protocol, ensuring broad compatibility and fostering community.

      The ArtLynk protocol supports the following devices, letting you customize your own build or simply bind and fly:

      Firmware Compatibility Notes:

      1. To ensure seamless compatibility with third-party ArtLynk protocol equipments (such as HGLRC Draco), please verify that your BETAFPV devices are updated to firmware version V2.0.5 or later.
      2. The air unit needs to be updated via the ground station. First make sure the ground station and air unit are on the same firmware version, then proceed to update the air unit. And firmware V2.0.5 is not compatible with any V1 versions (V1.0.36 / V1.0.44).
       Ground Station Air Unit Actions Required
      V1 V1 Update both to V2
      V1 V2 Update ground station to V2
      V2 V1 Downgrade ground station to V1, then update both to V2
      V2 V2 Ready to use



      Click to see how to update the firmware.

      How to Connect with FC

      Use the included 6-pin cable to connect the P1 Air Unit to your flight controller. Refer to the diagram below for correct pin alignment and wiring sequence.

      File

      Recommended Parts

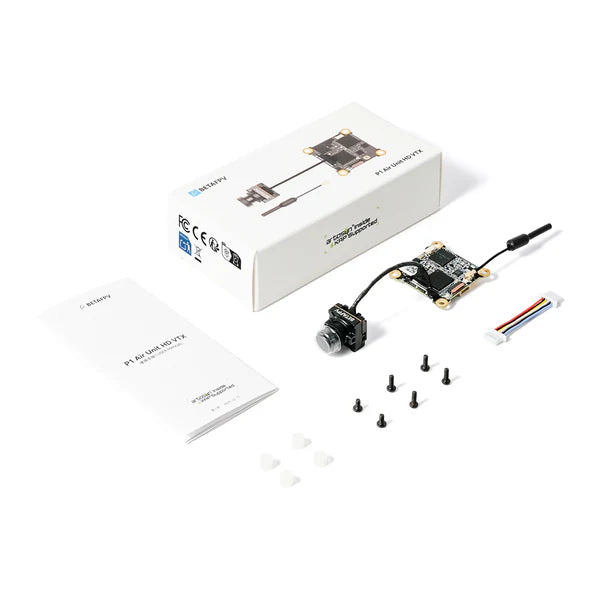

      Package

      • 1 * P1 Air Unit HD VTX
      • 1 * 6Pin Cable
      • 1 * Accessories Package (4*Shock-absorbing Balls, 2*M2-4 Screws, 4*M2-6 Screws)
      • 1 * User Manual
