NewBeeDrone

RP-SMA 45 Degree Connector for DJI Goggles

$1.99 USD
Connector
164 in stock, ready to ship
Notes

RP-SMA 45 Degree Connector for DJI Goggles

Enhance your FPV experience with the RP-SMA 45 Degree Connector for DJI Goggles, a must-have accessory for optimizing antenna placement and improving signal reception. This high-quality connector is specifically designed to fit DJI Goggles, allowing you to easily attach your RP-SMA antennas at a 45-degree angle. This angled design helps reduce stress on the antenna and cable, minimizing the risk of damage during flights.

Crafted from durable materials, this connector ensures reliable performance and longevity, even in demanding environments. The precise engineering guarantees a snug fit, maintaining a strong connection for optimal signal quality. Whether you’re racing or exploring the skies, the RP-SMA 45 Degree Connector provides the flexibility and convenience needed to achieve the best possible performance from your FPV setup. Upgrade your gear and experience improved connectivity with this essential accessory.





Why Use a 45 Degree SMA Connector?

This SMA 45 Degree Connector is useful for pointing antennas on both your quad and goggles upwards.

Omnidirectional antennas actually have a dead zone in the vertical axis, so it is best to keep them vertically oriented during flight and on your goggles. Using a 45 degree connector is perfect, since most quads fly forwards at an angle of 30-45 degrees.

Directional antennas on goggles work best when they are pointed straight forwards and by using a 45 degree connector, you can adjust the upwards angle of your directional antenna by rotating the connector. This way, you can add between 0 and 45 degrees of up tilt on your goggle antenna.

Increase the Lifespan of your Goggles and Vtx Connector

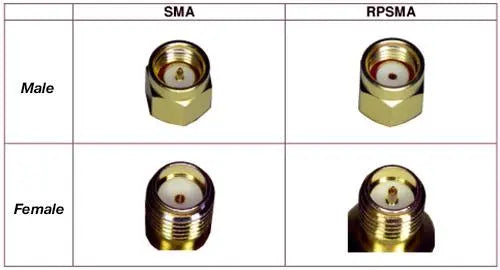

SMA and RPSMA  connectors have a limited lifespan and using an additional connector between your antenna and goggles or Vtx increase their lifespan.

RP-SMA (Male) to SMA (Female)

Use this connector to adapt your male (non-DJI) antennas to your DJI Goggles

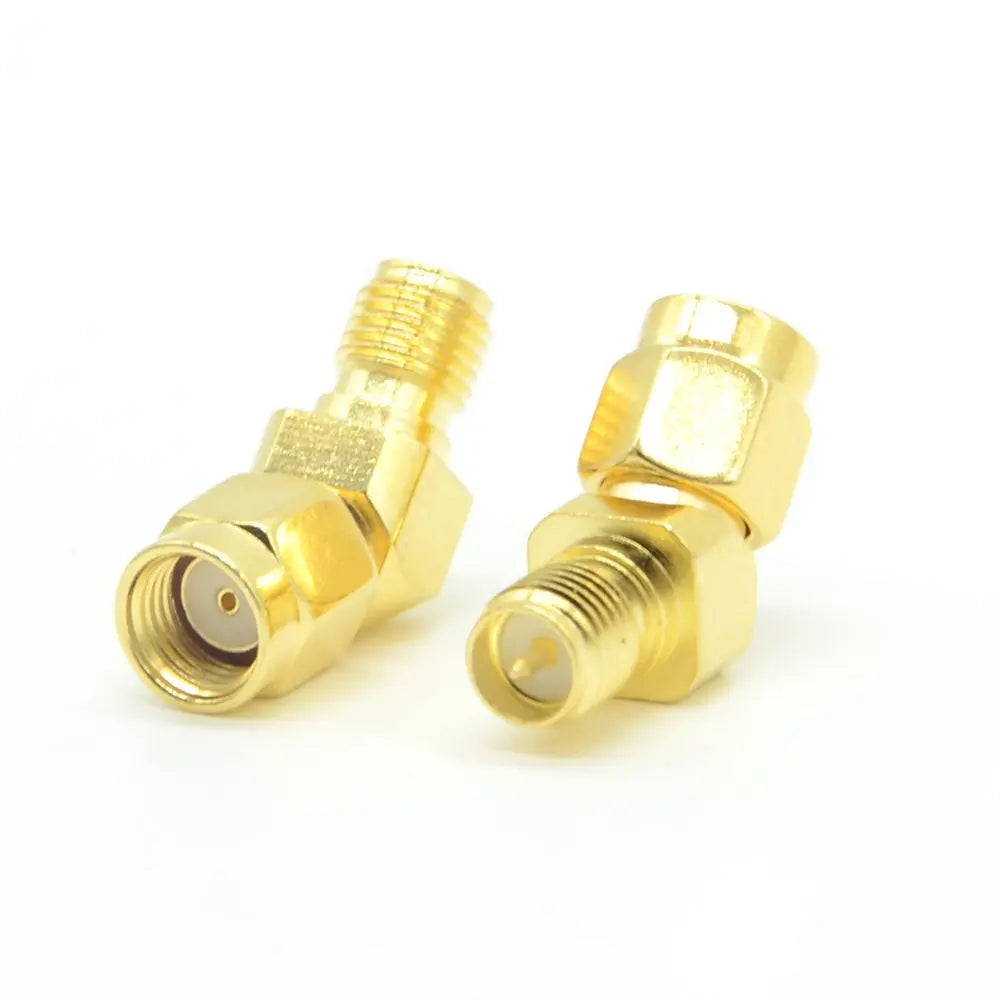

RP-SMA to RP-SMA

Use this connector to extend the life of your DJI Goggles.



Included

  • 1x 45 Degree Connector
