Emax USA

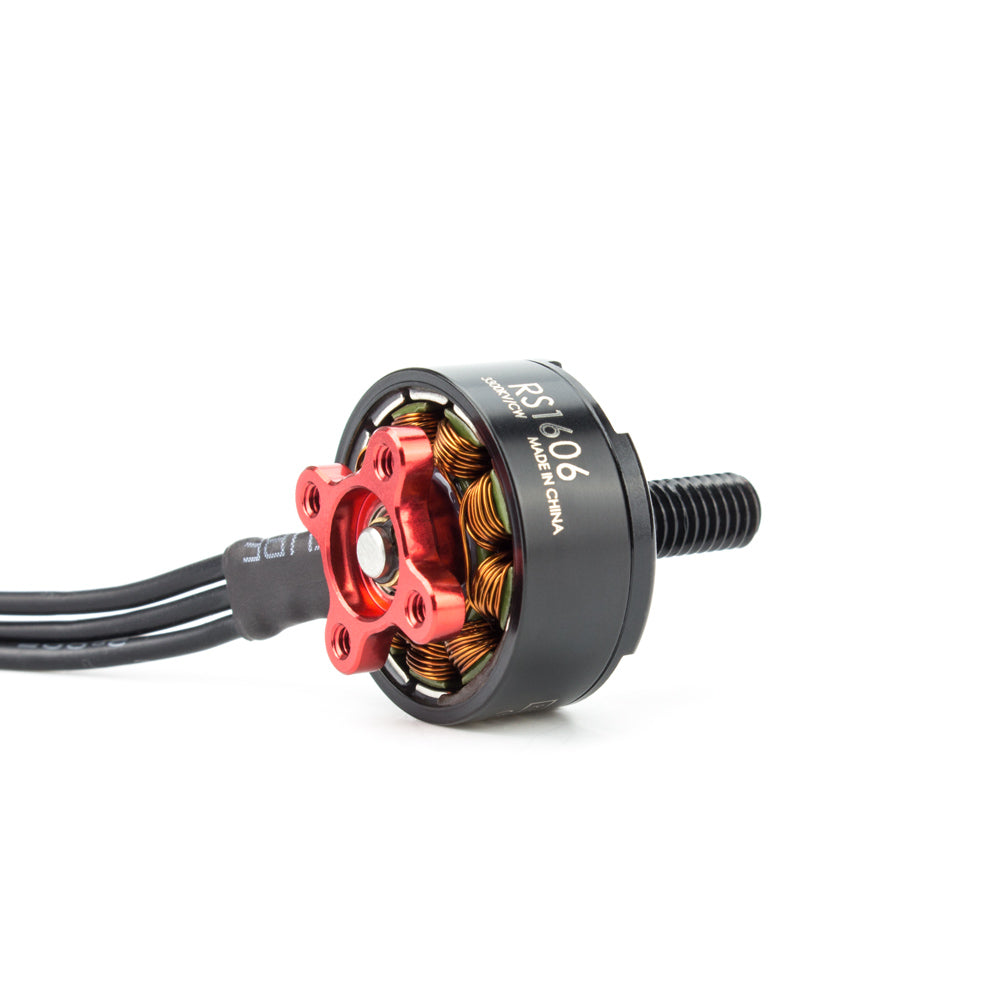

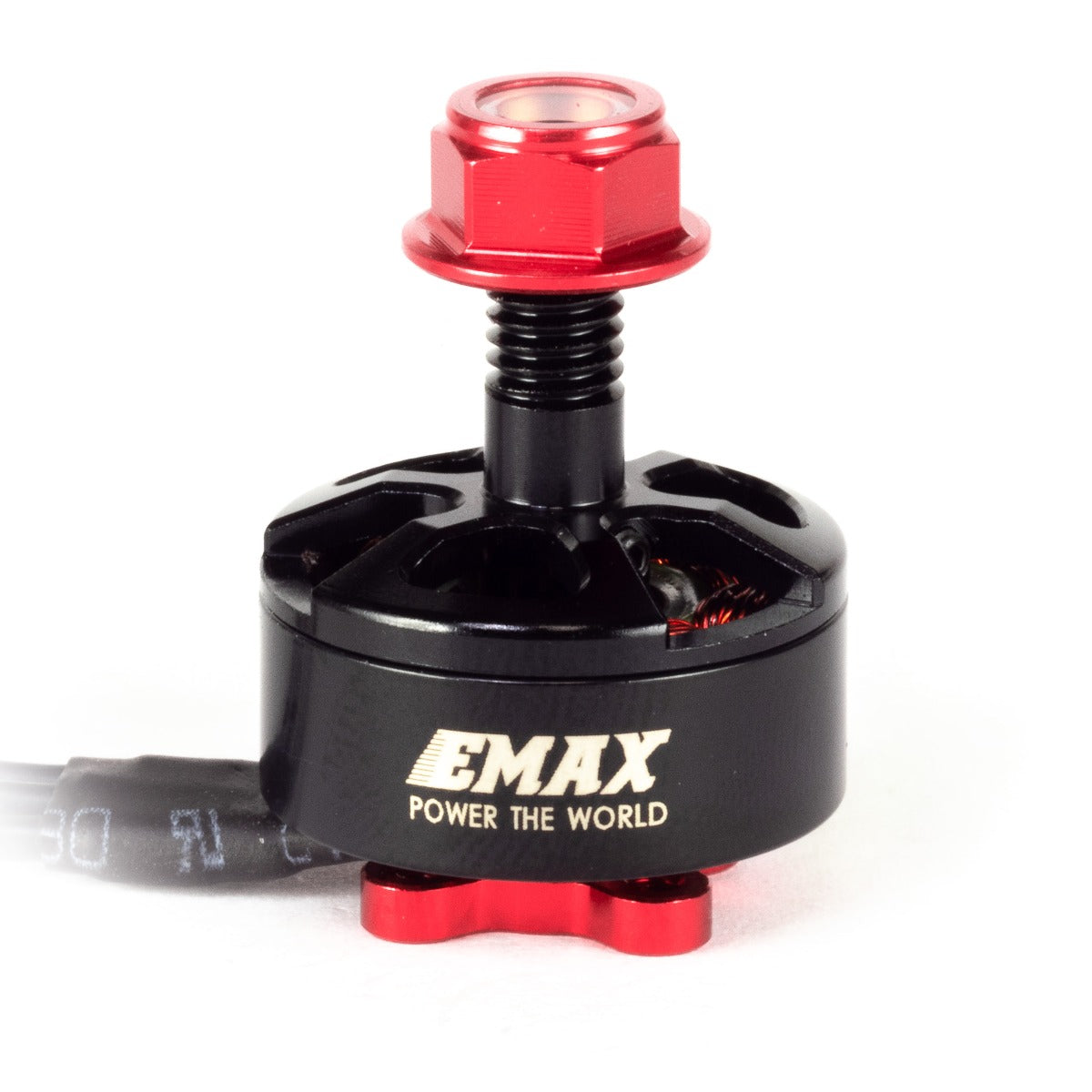

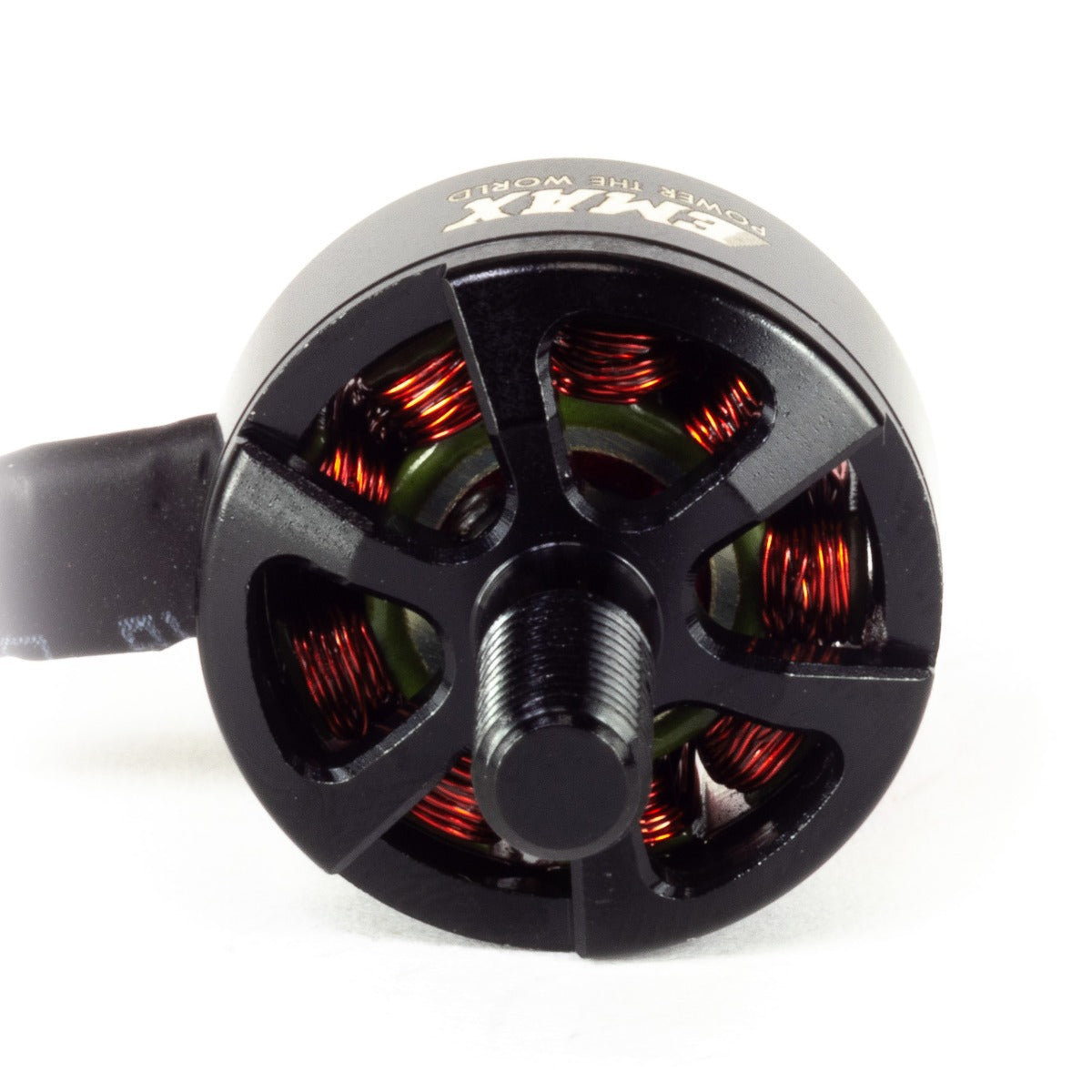

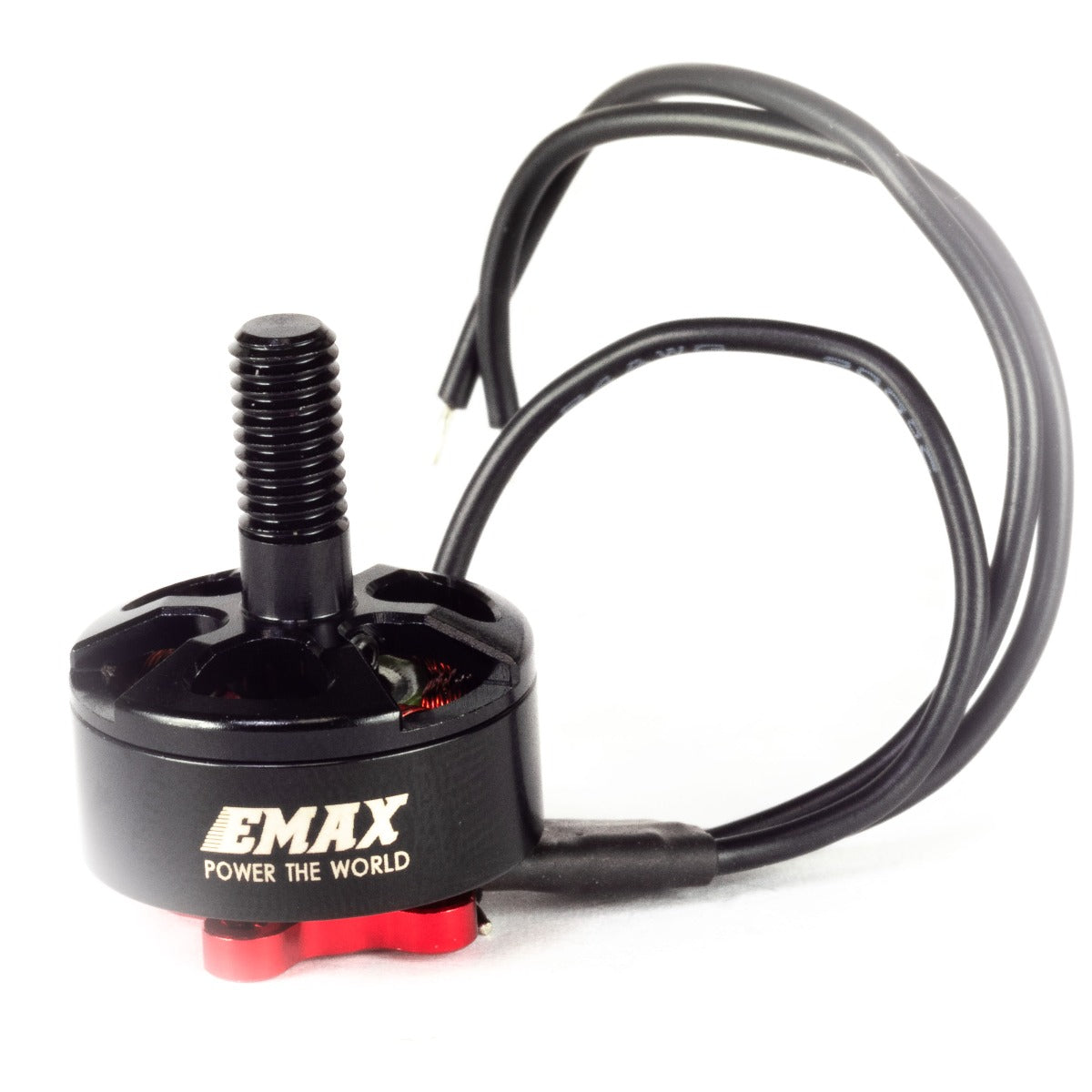

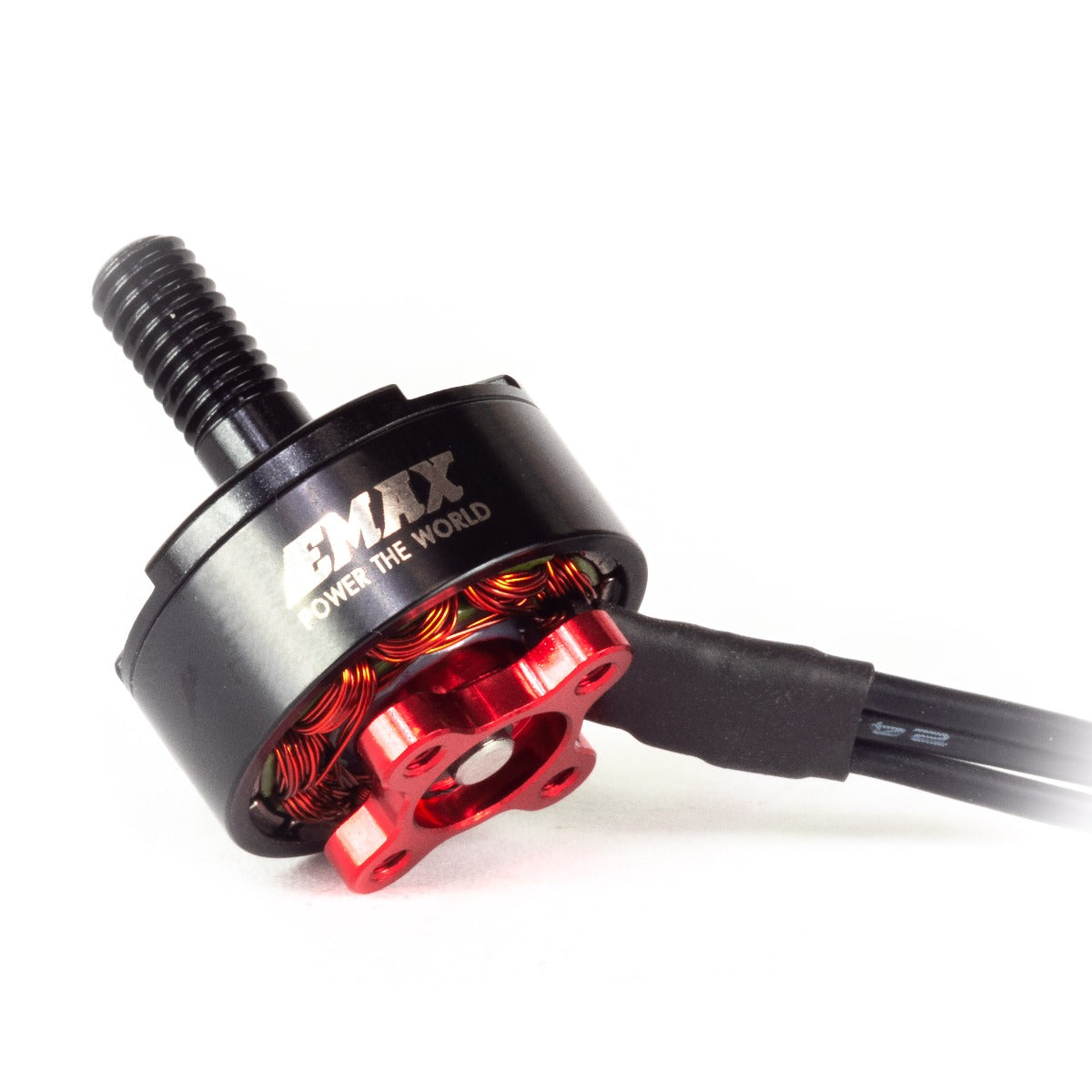

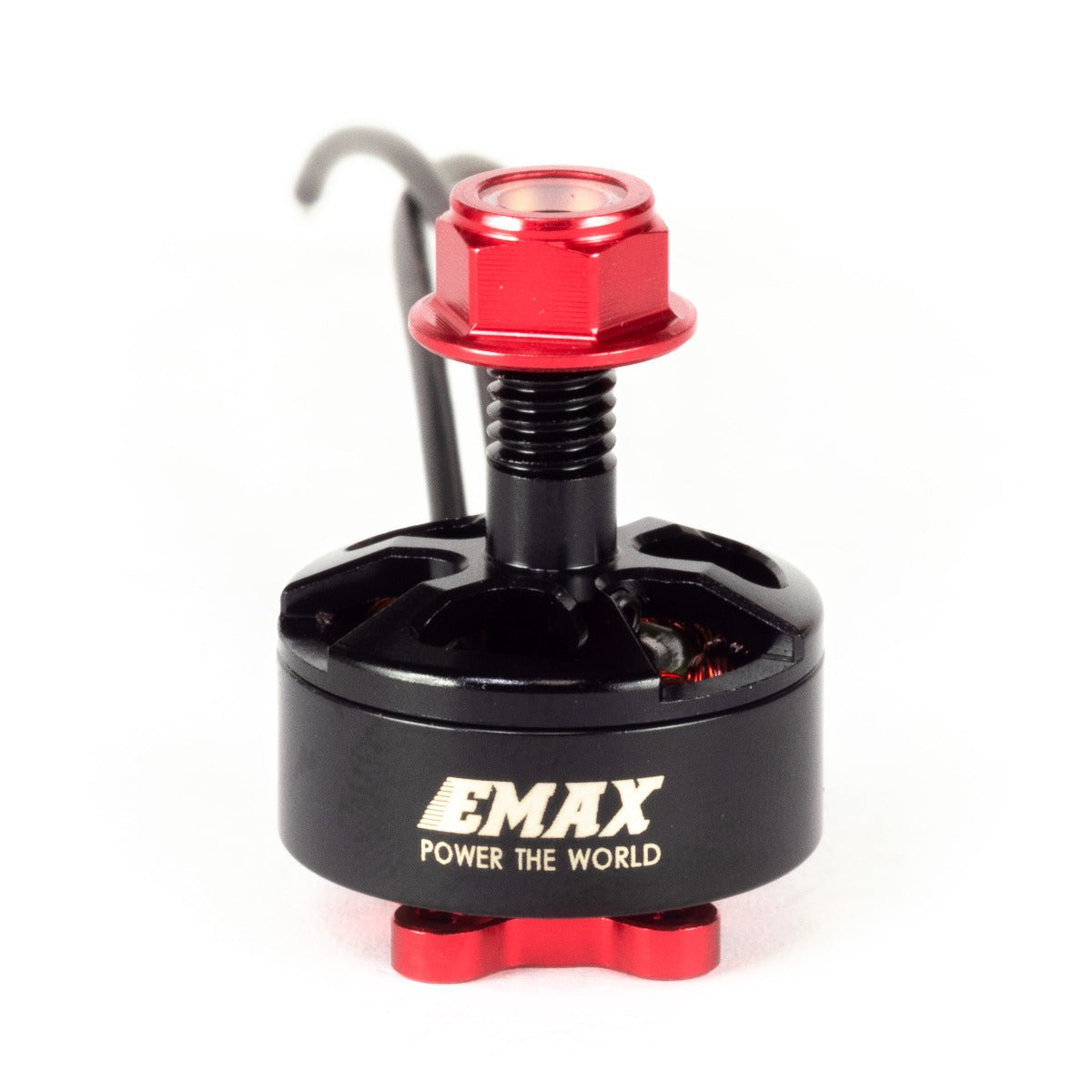

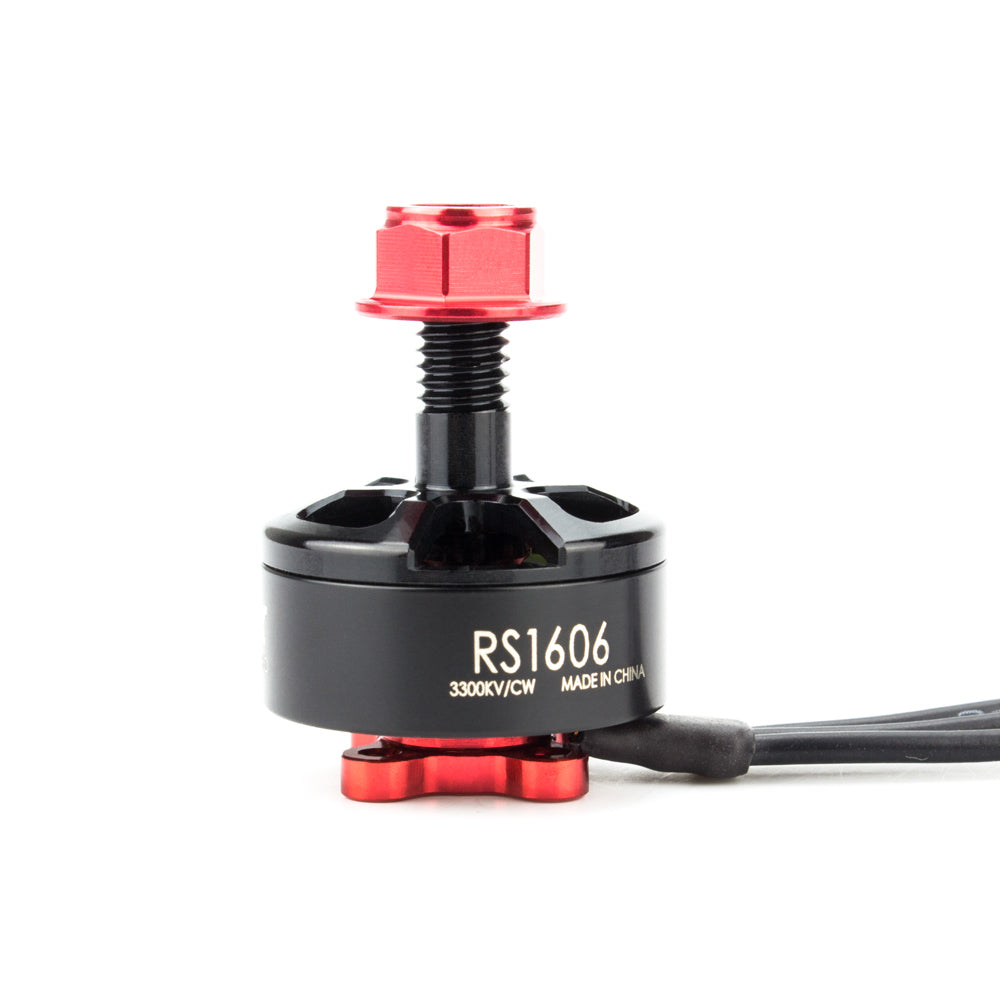

RS1606 - Brushless Racing Motor

$12.99 USD Sold out
Motor KV
Notes

EMAX would like to introduce our 1606 motor. Quadcopter that utilize 3-4 inch props always struggle as the old motor choices were limited to 14xx series motors, or even heavy 22xx series motors. With the 1606 this bridges the gap providing a powerful motor in a small package to get the correct AUW for 3-4 inch quadcopters. This is also great for frames that are using more HD style components like the RunCam split to carry the extra payload. Can you say smooth controlled HD footage, now its possible with the RS1606.



RS1606 - 4000KV - 3300kv

Framework: 9N12P

Length: 28.1

Diameter: 20.8mm

No. of Cells: 3-4S

Max. Thrust: 4000-1027g (on 4s) 3300kv-875 (on 4s)

Prop shaft thread type: M5

Propeller: 3" - 4"

Weight: 15.8g (W/O silicone wire)

Wire Length: 85mm 24AWG

Motor mount bolt pattern 12mmx12mm M2 Thread

Bearing: 3x6x2.5

EMAX brushless motors are suitable for a wide range of hobby, engineering, and custom motion-control applications. They’re ideal for high-speed propulsion, precision motion control, custom cooling fans, gimbals, 3D-printed mechanisms, and STEM or engineering prototypes.

If you’re building lightweight, high-efficiency systems that need reliable power, smooth operation, and long service life, EMAX brushless motors are the go-to solution.
