SMD 1206 Pre-Wired LED Diodes – FPV Drone Whoop Customization Lights

$1.69 USD
CHOOSE COLOR: PINK
200 in stock, ready to ship
Notes

Pickup available at SaltCtyRacingFPV LLC

Usually ready in 24 hours

✨ Light Up Your Whoop

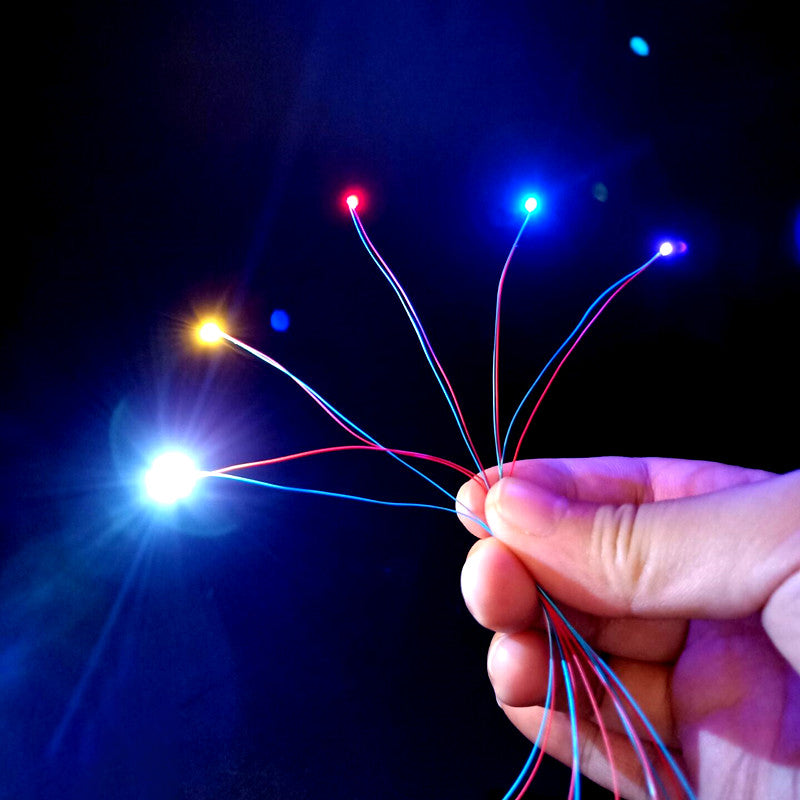

Take your FPV customization to the next level with SMD 1206 Pre-Wired LED Diodes. Designed specifically for micro drones and whoops, these LEDs are the perfect blend of lightweight performance and bold style.

🔹 Key Features

  • ✅ Pre-Wired for Easy Install – no more struggling with tiny pads.

  • ✅ 1206 SMD Size – ultra-compact and whoop-friendly.

  • ✅ 10 Color Options – Purple, Ice Blue, Orange, Red, Blue, Green, White, Warm White, Yellow and Pink.

  • ✅ Durable & Bright – stand out indoors and outdoors.

  • ✅ Perfect for FPV Whoop Racing & Freestyle – show off while maintaining orientation.

🎨 Customize Your Build

Whether you’re racing under LEDs, flying freestyle, or building a unique indoor whoop, these diodes let you fly with personality. Add orientation lights, canopy accents, or frame glow — your creativity is the limit.


🛠️ How to Wire and Use SMD 1206 Pre-Wired LED Diodes for FPV Whoops



1. Gather Your Parts

  • SMD 1206 pre-wired LED diodes

  • Appropriate resistors (see chart below)

  • Wire harness or soldering tools

  • Heatshrink or tape (optional, for strain relief)

💡 Resistor Quick Guide:

  • 21Ω (1/4W): White, Blue, Ice Blue, Green, Pink, UV

  • 51Ω (1/4W): Yellow, Red, Orange

  • 240Ω: For balancing mixed-color setups (e.g., Orange + White).

2. Single-Color Harness Setup

  • For a 4-LED harness of a single color, just use 21Ω or 51Ω depending on the LED color.

  • Example: 4x Red LEDs = 51Ω resistor inline with the power lead.

3. Multi-Color Setup

  • Each color needs its own resistor value.

  • Example: White + Orange harness

    • White → 240Ω resistor

    • Orange → 51Ω resistor

  • This balances brightness and prevents premature burnout.

4. Soldering Instructions

  1. Identify polarity: The longer lead (or marked wire) is positive (+).

  2. Connect resistor inline with the positive lead before power.

  3. Solder LEDs in parallel if using multiple per harness.

  4. Insulate connections with heatshrink or tape to avoid shorts.

5. Testing Your LEDs

  • Apply power (1S–2S LiPo depending on your setup).

  • Confirm brightness and color.

  • If mixing colors, check that none overpower the others — adjust resistors if needed.

6. Installing on Your Whoop

  • Mount LEDs under canopy, on arms, or in custom spots.

  • Secure with tape, glue, or zip ties — just avoid props!

  • Power from flight controller pads, external harness, or dedicated LED rail.

✅ Pro Tips

  • Always test before mounting.

  • Use resistors matched to color to avoid LED failure.

  • For racing, consider mixing orientation colors (e.g., Red rear, White front).

  • Keep wiring clean to avoid added weight or snag points.
