BONKA CO., LTD

TIFTT 300mAh Wide-Format 1S LiHV Battery | weBLEEDfpv

$7.49 USD
248 in stock, ready to ship
Notes

Short body. Wide footprint. Centered purpose.


ThisIsForTheTinkerers 🩸



Not every product needs to be for every build. This one isn’t.

The weBLEEDfpv TIFTT 300 is a short, wide-format 1S LiHV battery created for builders exploring a more centralized battery layout on select NewBeeDrone Cockroach frames.

Instead of allowing a traditional stick battery to extend beyond the front and rear of the build, this wide-format footprint allows the battery to sit almost entirely beneath the flight controller when properly installed. The objective is simple: concentrate the battery mass toward the center of the aircraft, create a cleaner overall profile, and reduce the amount of battery exposed during crashes.

This is not being presented as a universal replacement for the traditional 300mAh stick battery. It is a highly specialized option for specific frames... and for pilots who understand exactly why they want it.

CONFIRMED FRAME COMPATIBILITY

  • NewBeeDrone Cockroach 65mm Brushless LiteAF... all colors, including the weBLEEDfpv RED Edition
  • NewBeeDrone Cockroach 65mm Brushless V3

Compatibility with other frames has not been confirmed or guaranteed. Other applications and modifications are entirely at the builder’s discretion. Please verify your frame before purchasing.

COMMUNITY-BORN

This battery format did not begin inside weBLEEDfpv... and credit belongs where it is earned.

Nightwing has discussed the advantages of a flatter, more centralized battery layout for quite some time. Spezi shared the square-style concept with Team WB pilot Mr. eedok, while Blackhorse raised the question inside WHOOPGROUP: why not have a battery that fits completely within the tray?

Mr. eedok & Nightwing brought the idea to weBLEEDfpv, and the geometry of NewBeeDrone’s Cockroach frames provided the opportunity to make it useful.

The community did the thinking. weBLEEDfpv listened and brought the wide-format battery to market.

If someone else helped advance this idea, let us know. This community moves quickly, and proper credit will always matter here.

United We Fly, Together… weBLEEDfpv.

SPECIFICATIONS

  • Cell Count: 1S
  • Battery Type: LiHV
  • Capacity: 300mAh
  • Nominal Voltage Shown on Label: 3.7V
  • Maximum Charge Voltage: 4.35V
  • Energy Rating Shown on Label: 1.11Wh
  • Discharge Rating: 75C
  • Connector: BT2.0 pigtail

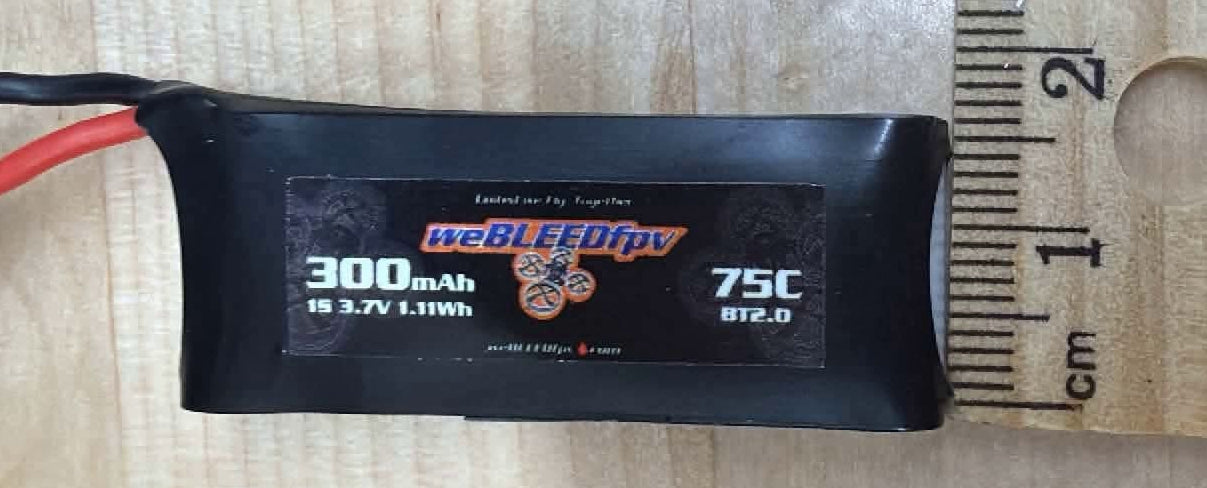

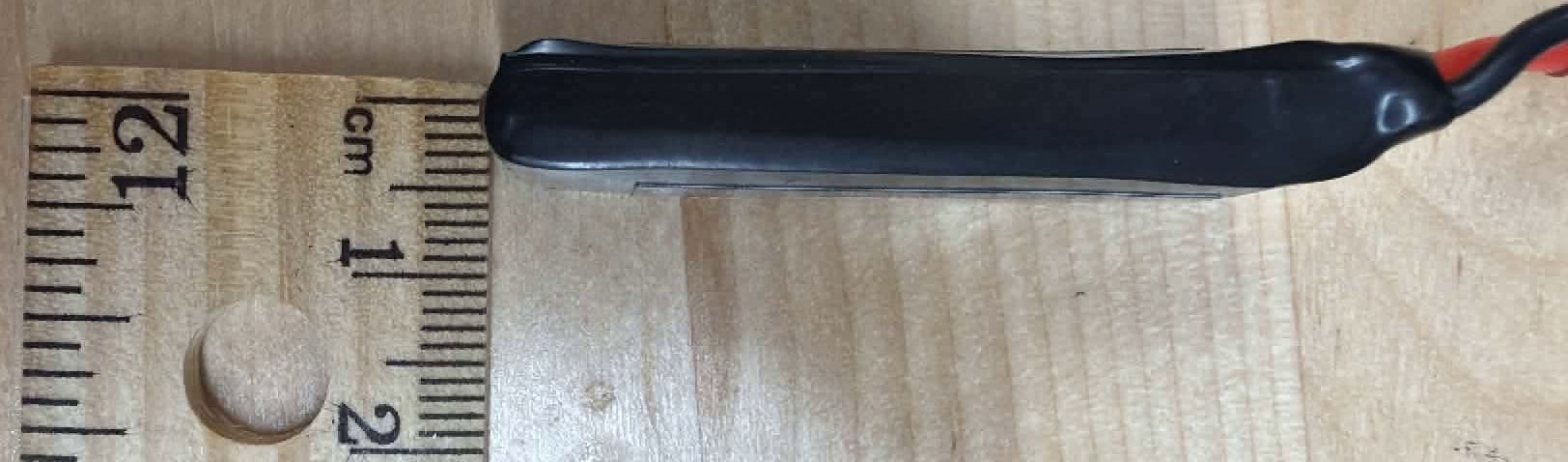

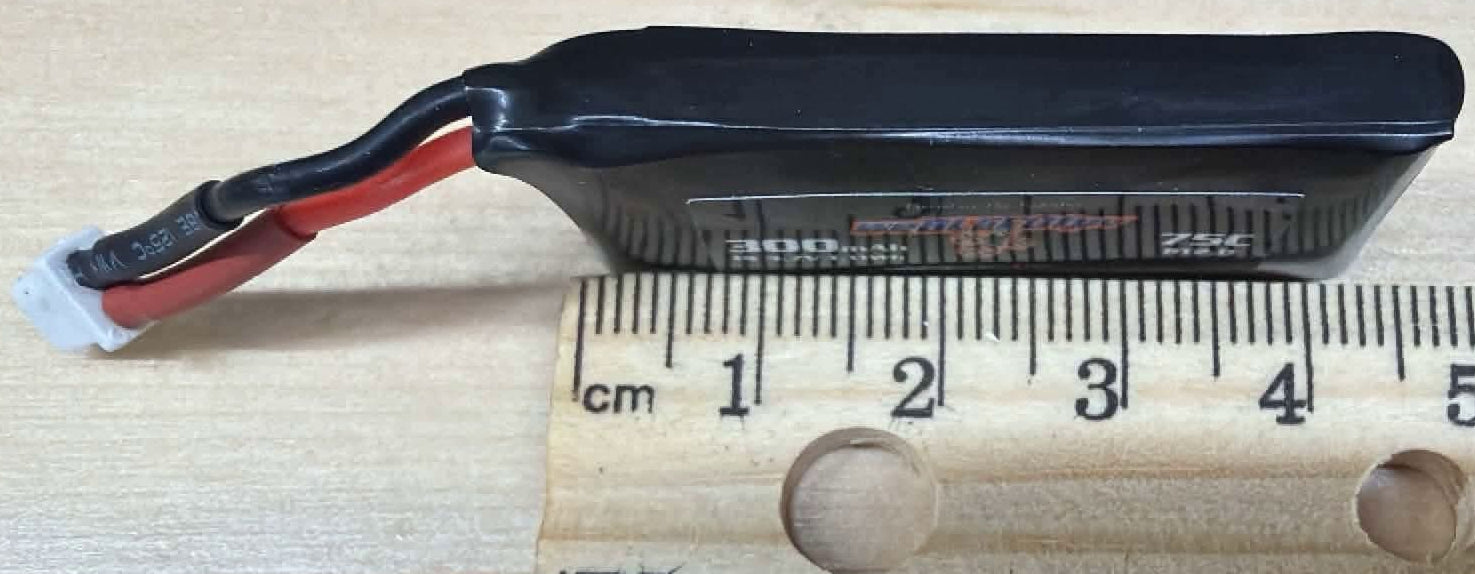

  • Approximate Dimensions: 50 × 20 × 6mm

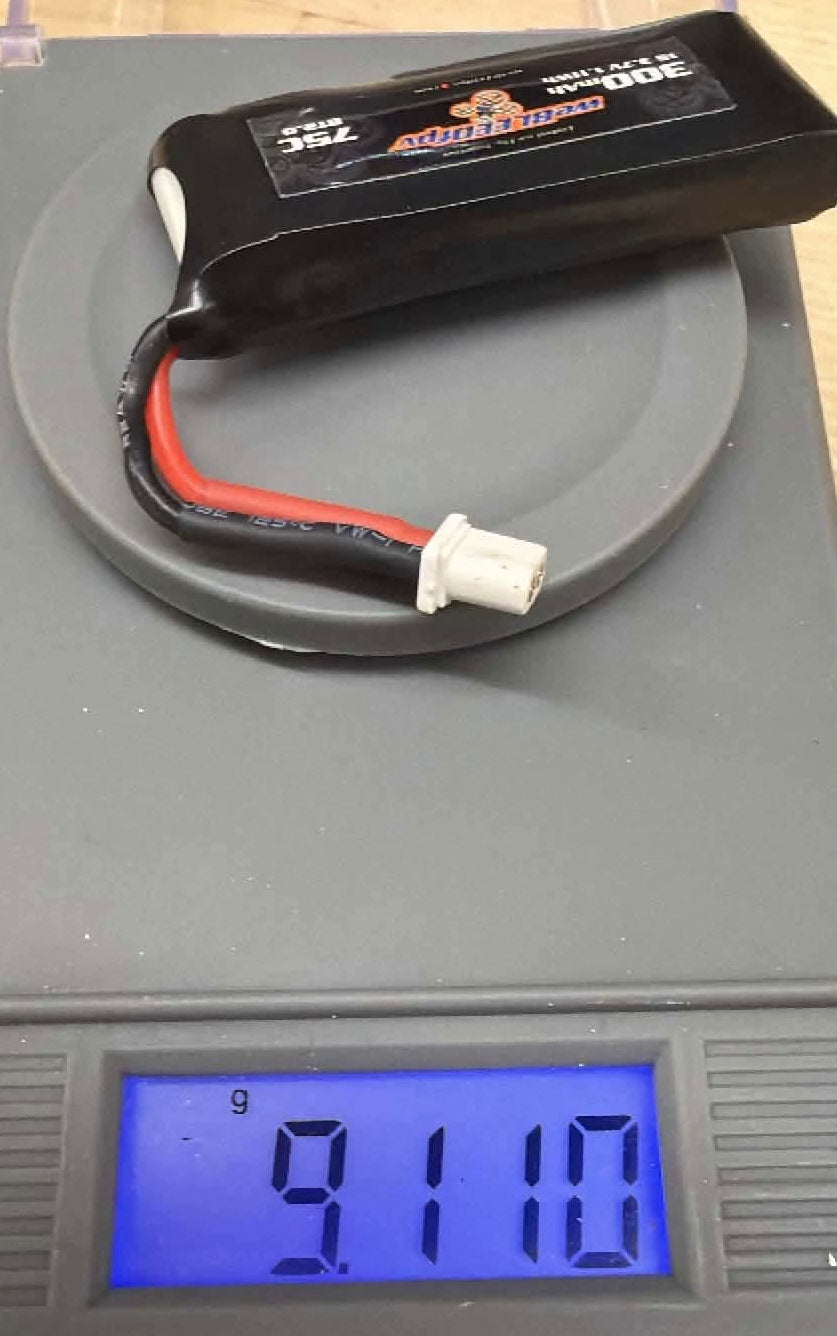

  • Approximate Weight: 9.11g
  • Sold as singles

Measurements may vary slightly between individual batteries.

IMPORTANT BATTERY NOTICE - UPS GROUND ONLY

Always use a LiHV-compatible charger and never charge beyond 4.35V. Never charge, discharge, or store lithium batteries unattended. Discontinue use immediately if a battery becomes damaged, punctured, excessively warm, or swollen.

All batteries and products containing batteries must ship by an approved ground-shipping method. Battery orders cannot be shipped using air or next-day-air services.

SOLD INDIVIDUALLY... PRICE IS FOR ONE BATTERY.
